La Crosse Technology 308-1417 Manual de usuario

User Manual of Product 1:

La Crosse Technology 308-1417 Forecast Station, Silver

User Manual of Product 2:

La Crosse Technology C85845-INT Weather Station, Black

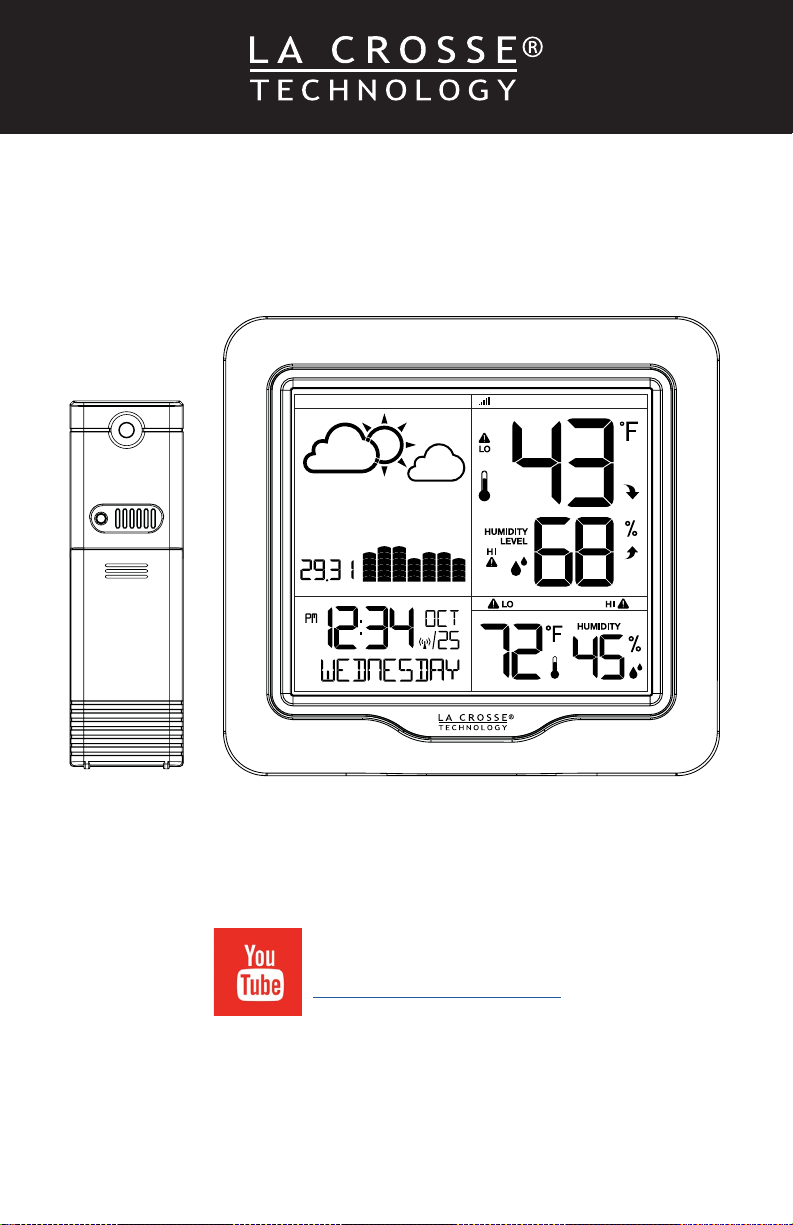

Wireless Pressure Station

Model: 308-1417

DC: 111517

For online video support:

http://bit.ly/LaxTechTalk

inHg

RELATIVE

PRESSURE

FORECAST

INDOOR

OUTDOOR

-24h -18h -12h -9h- 6h -3h0 h

PRESSURE HISTORY

Table of Contents

Button Function Explanation ...............................

Setup ..............................................................

Atomic Time .....................................................

Settings Menu ..................................................

LCD Features ....................................................

Weather Forecast Icons ......................................

Pressure History Graph .......................................

Programmable Pressure Number ..........................

Select Pressure Units (inHg or hPa) .....................

HI |LO Temperature |Humidity Records .................

Trend Arrows ....................................................

Set Weather Alerts ............................................

Active Alert ......................................................

Sensor Search ..................................................

Position TX141TH-Bv2 Sensor .............................

Position Forecast Station ....................................

Low Battery Icon ..............................................

Restart ............................................................

Visit Us on Social Media .....................................

Specications ...................................................

Care and Maintenance .......................................

Warranty and Support .......................................

FCC Statement ................................................

Page | 1 www.lacrossetechnology.com/support 308-1417

Setup

1. Install 2-AA batteries into the TX141TH-Bv2 sensor.

The red LED light will blink when transmitting.

2. Insert 3-AA batteries into the back of the station.

4. Keep sensor and weather station within 5 feet for at least 15

minutes after installing batteries. This allows the sensor and station

to sync properly and ensures a strong connection.

5. After 15 minutes, place sensor in desired location (position

sensor page 11).

6. Program the station in the settings menu.

Button Function Explanation

For better programming instructions, please note these terms for

button use:

• Press: Press and release the designated button.

• Hold: Hold the button for 3 seconds then release the button.

308-1417 www.lacrossetechnology.com/support Page | 2

PRESSURE

LED

button

Note: Press the TX button inside the battery cover of the sensor to

force a signal transmission.

Settings Menu

1. Hold the SET button to enter settings menu.

2. Press the + or - button to adjust the ashing values.

3. Hold the + or - buttons to adjust quickly.

4. Press the SET button to conrm adjustments and move to

the next item.

5. Press the SEARCH button at any time to exit.

Settings menu order:

• Language: (English, Español, Français)

• Beep ON | OFF

• Atomic ON | OFF

• DST ON | OFF (Daylight Saving Time)

• Time Zone

• Format: 12Hr | 24Hr

• Set Hour

• Minutes

• Set Year

• Set Month

• Set Date

• Temperature Fahrenheit | Celsius

Atomic Time

• The station will automatically search for the atomic time signal at

UTC 7:00, 8:00, 9:00, 10:00, and 11:00.

• Press the SEARCH button to search manually, for the atomic

time signal.

• Please be sure you have selected your time zone from the list in the

Settings menu. When the Atomic time signal is received, the station

will set to the time zone selected. Default is Eastern Time.

• For information about WWVB visit: http://bit.ly/AtomicTime

Page | 3 www.lacrossetechnology.com/support 308-1417

Time Zones

Note: When Español is selected, the instructions on screen will be in

Spanish. When Français is selected, the instructions on the screen will

be in French.

Note: Setting the time zone ensures the time will be correct when the

atomic time signal is received.

Note: The day of the week sets automatically when year, month and

date are set.

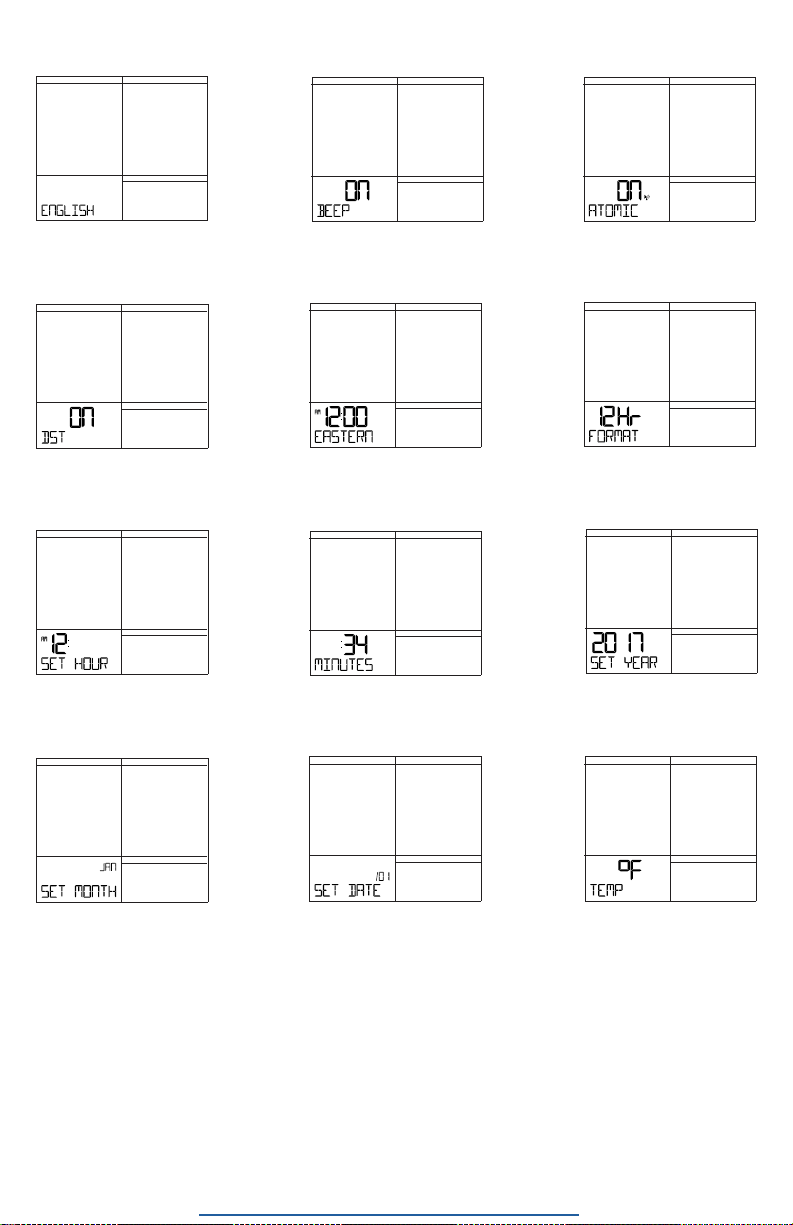

Language Beep ON |OFF Atomic ON | OFF

DST ON | OFF Time Zone 12Hr | 24Hr

Set Hour Minutes Set Year

Set Month Set Date Temp ˚F | ˚C

308-1417 www.lacrossetechnology.com/support Page | 4

LCD Features

AM | PM

Trend Arrows

Percent Humidity

Low Battery Icon

Humidity Section Icon

Fahrenheit | Celsius

Atomic Time

Pressure History Graph

Sensor Reception

Forecast Icons

-24h -18h -12h -9h- 6h -3h0 h

HI | LO Alert Icons

Temperature Section Icon

Page | 5 www.lacrossetechnology.com/support 308-1417

inHg

RELATIVE

PRESSURE

FORECAST

INDOOR

OUTDOOR

-24h -18h -12h -9h- 6h -3h0 h

PRESSURE HISTORY

308-1417 www.lacrossetechnology.com/support Page | 6

• The forecast icons are determined by the station's barometric

pressure reading. Please allow 7-10 days for barometric calibration.

• Six forecast icons use changing atmospheric pressure to predict

weather conditions for the next 12-hours with 70-75% accuracy.

• When Outdoor temperature is below 32˚F and the forecast is RAIN

or T-STORM, the station will display SNOW.

Weather Forecast Icons

FORECAST FORECAST FORECAST

SUNNY CLOUDSPARTLY SUNNY

RAIN SNOWT-STORM

Pressure History Graph

• Read from left to right, the Pressure History Graph indicates the rise

and fall in air pressure over the past 24 hours.

• The numbers below represent the hour in which the reading was

taken. Where “0h” is the current pressure level. “-3h” was the

reading taken three hours ago, compared to current pressure.

• The bar chart will constantly scroll to avoid burnout of the LCD. This

feature cannot be turned off.

-24h -18h -12h -9h -6h -3h 0h

PRESSURE HISTORY

Page | 7 www.lacrossetechnology.com/support 308-1417

Programmable Pressure Number

• The relative air pressure number is programmable:

23.62 to 32.48 InHg (800 to 1100 hPa).

• If not manually programed, please allow 7-10 days for the station

to acclimate to your location. After this time, you should begin to

see accurate pressure graph readings automatically displayed on

your station’s screen.

Program Pressure Number:

1. Hold the PRESSURE button to set pressure number.

2. PRESSURE will show and Pressure Value will ash.

3. Press the + or - button to adjust the ashing pressure value.

4. Hold the + or - buttons to adjust quickly.

5. Press the PRESSURE button to conrm adjustments and exit.

6. Press the SEARCH button at any time to exit.

inHg

RELATIVE

PRESSURE

inHg

RELATIVE

PRESSURE

Select Pressure Units (inHg or hPa)

Inches of Mercury (inHg) is common in the USA.

• Press the PRESSURE button to toggle the pressure reading between

Inches of Mercury and Hectopascals

• The letters, INHG or HPA will show for 3 seconds. Other readings will

remain.

• Station will stay on measurement selected.

inHg

RELATIVE

PRESSURE

FORECAST

INDOOR

OUTDOOR

-24h -18h -12h -9h- 6h -3h0 h

PRESSURE HISTORY

hPa

RELATIVE

PRESSURE

FORECAST

INDOOR

OUTDOOR

-24h -18h -12h -9h- 6h -3h0 h

PRESSURE HISTORY

Trend Arrows

• The UP and DOWN arrows indicate changes in temperature and

humidity over the past hour.

• They update every 15 minutes and compare data from exactly one

hour prior.

Temperature: arrow changes every 2 degrees Fahrenheit.

Humidity: arrow changes every 3% RH

All HI/LO temperature/humidity records reset automatically at 12:00

(midnight).

• Press the TEMP button once to view HI indoor and outdoor

temperature/humidity records.

• Press the TEMP button a second time to view LO indoor and outdoor

temperature/humidity records.

• Press the TEMP button a third time to view outdoor Heat Index.

• Press the TEMP button a fourth time to view outdoor Dew Point.

• Press the TEMP button again to return to normal display.

HI | LO Temperature | Humidity Records

INDOOR

OUTDOOR

INDOOR

OUTDOOR

OUTDOOR OUTDOOR

308-1417 www.lacrossetechnology.com/support Page | 8
