Atomic Digital Wall Clock with

Indoor/Outdoor Temperature

Table of Contents

Lets Get Started

Page | 1 www.lacrossetechnology.com/support BBB86088v2 BBB86088v2 www.lacrossetechnology.com/support Page | 2

Let’s Get Started

Basic Settings

Fahrenheit | Celsius

LCD Features

Daylight Saving Time Indicator

Atomic Time - WWVB Signal

Time Alarm

Activate | Deactivate Alarm

Snooze

Sensor Reception and Search

Temperature Trend Arrows

Position TX141-Bv2 Sensor

Low Battery

Let’s Get Social

Care and Maintenance

Warranty and Support

Speciﬁcations

FCC Statement

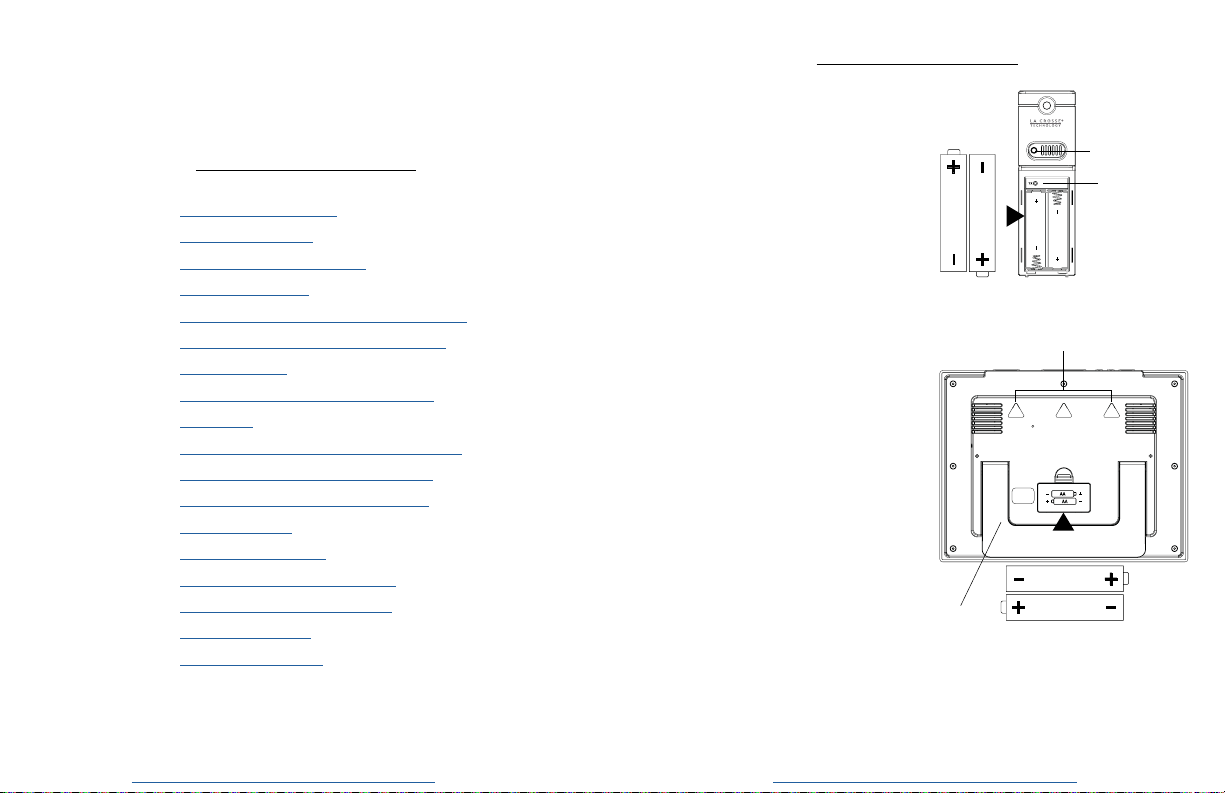

1. Insert 2 AA batteries into

your sensor.

∙The red LED light will ﬂash

when your sensor transmits.

∙The TX button lets you

manually transmit a signal.

LED

TX Button

2. Insert 2 AA batteries into

your clock.

3. Conﬁgure basic settings.

4. After 5 minutes, place

your sensor outside in a

shaded location.

Wall Hang

Pullout Stand

∙ Mount your clock on the wall with the 3 holes on the back, or

use the pullout stand to place your clock on a desk or

counter.

Welcome to the La Crosse Technology® family!

We hope you enjoy your new Atomic Clock.

Time Zones

Zone AST - Atlantic

Zone EST - Eastern

Zone CST - Central

Zone MST - Mountain

Zone PST - Paciﬁc

Zone AKT - Alaska

Zone HAT - Hawaii

Page | 3 www.lacrossetechnology.com/support BBB86088v2 BBB86088v2 www.lacrossetechnology.com/support Page | 4

Basic Settings

1. Hold the °F/°C button 3 seconds to enter settings mode.

2. Press the + or - button to adjust the ﬂashing values, hold to

adjust quickly.

3. Press the °F/°C button to conﬁrm adjustments and move to

the next item.

4. Press the SNOOZE button at any time to exit.

Settings menu order:

• Language (English, Español, Francais)

• Beep ON/OFF

• Atomic ON/OFF

• DST ON/OFF

• Time Zone

• 12/24 Hour Format

• Hour

• Minutes

• Year

• Month

• Date

Note: When Español or Francais

are selected, the settings

menu will continue in the

language selected.

Language Beep ON | OFF Atomic ON | OFF

DST ON | OFF Time Zone 12/24 Hour Format

DST

Hour Minutes

Year Month Date

Fahrenheit | Celsius

Press and release the °F/°C button to select Fahrenheit or

Celsius temperature display.

Fahrenheit Celsius

LCD Features

AM | PM

Alarm Bell

DST Indicator

Atomic Time

Sensor Reception

Low Battery

Fahrenheit | Celsius

Temperature Trend

Atomic Time -WWVB Signal

• Your clock will search for the atomic signal at UTC 7:00, 8:00,

9:00, 10:00, and 11:00.

• If there is no WWVB signal reception, your clock will search

every 2 hours until the WWVB time is received.

• The atomic time signal icon (tower) will ﬂash while searching,

and be solid when connected.

• Hold the MINUS button for 3 seconds to manually search for

the WWVB atomic time signal.

• For information about WWVB visit: http://bit.ly/AtomicTime

Daylight Saving Time (DST) Indicator

The letters DST will show when your clock has received the

atomic time signal and Daylight Saving Time is being

observed.

Time Alarm

1. Hold the ALARM button 3 seconds to enter alarm mode.

2. Press the + or - button to adjust the ﬂashing values, hold to

adjust quickly.

3. Press the ALARM button to conﬁrm adjustments and move

to the next item.

4. Press the SNOOZE button at any time to exit.

Page | 5 www.lacrossetechnology.com/support BBB86088v2 BBB86088v2 www.lacrossetechnology.com/support Page | 6

• The alarm is active when set. From normal time display,

press and release the ALARM button to deactivate or

activate the alarm.

• Alarm icon (bell) will show then active.

Activate | Deactivate Alarm

• When your alarm sounds, press the SNOOZE button to

silence alarm for 10 minutes. The alarm bell will ﬂash.

• Press any button except SNOOZE to silence the alarm

for 24 hours.

Snooze

Sensor Reception & Search

• If the signal is lost, your clock will display the LAST DATA

recorded from the sensor for 10 minutes.

• After that 10 minutes if the signal does not come back

dashes will show for outdoor temperature.

• After 30 minutes, your clock will automatically search

for the sensor.

• Hold the PLUS button for 3 seconds to manually search for

your outdoor sensor.

• The sensor reception icon will ﬂash while searching.

• The icon will be solid when the sensor is connected.

Position TX141-Bv3 Sensor

• Mount your sensor with the hole at the top:

Either hang it from the back using a nail, or

insert one mounting screw through the front.

• Mount your sensor on a north-facing wall or

in any shaded area. Under an eave or deck

rail is preferred.

• The maximum wireless transmission range

to your clock is over 330 feet (100 meters)

in open air, not including walls or ﬂoors.

• Be sure the sensor is mounted vertically, to

allow moisture to drain out properly.

• Watch sensor mounting video:

http://bit.ly/TH_SensorMounting

• The trend arrows indicate changes in your

temperature (2°F, 1°C) over the past hour.

• They update every 15 minutes and compare

data from exactly one hour prior.

Temperature Trend Arrows

Low Battery

• When the low battery icon appears by the time, replace

the batteries in your clock.

• When the low battery icon appears by the outdoor

temperature, replace the batteries in your sensor.

Page | 7 www.lacrossetechnology.com/support BBB86088v2 BBB86088v2 www.lacrossetechnology.com/support Page | 8

Page | 9 www.lacrossetechnology.com/support BBB86088v2

Let’s Get Social

JOIN THE CONVERSATION

Ask questions, watch detailed setup videos, and provide

feedback on our social media channels!

• Do not mix old and new batteries

• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries

• Always purchase the correct size and grade of battery most suitable

for intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to

battery installation.

• Ensure the batteries are installed with correct polarity ( + and - ).

• Remove batteries from equipment when it is not to be used for an

extended period of time.

• Promptly remove expired batteries.

Care and Maintenance

Speciﬁcations

La Crosse Technology, Ltd. provides a 1-year limited time warranty

(from date of purchase) on this product relating to manufacturing

defects in materials & workmanship.

Before returning a product, please contact our friendly customer

support or visit our online help:

Phone: 1-608-782-1610

Online: www.lacrossetechnology.com/support

Warranty and Support

BBB86088v2 www.lacrossetechnology.com/support Page | 10

Temperature

Power

Dimensions

Indoor Range:

Outdoor Range:

Transmission Range:

Update Interval:

32°F to 122°F (0°C to 50°C)

-40°F to 140°F (-40°C to 60°C)

330 feet (100 meters) open air

Every 51 seconds

Clock:

TX141-Bv3 Sensor:

2 AA LR6, IEC batteries

Batteries not included

Battery Life: Over 12 months

Clock:

TX141-Bv3 Sensor:

11.02” L x 1.10” W x 8.54” H

(28.00 L x 2.80 W x 21.70 H cm)

1.57” L x 0.82” W x 5.11” H

(3.98 L x 2.08 W x 12.98 H cm)

WARNING: This product can expose you to chemicals including

styrene, which is known to the State of California to cause

cancer. For more information go to: www.P65Warnings.ca.gov

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other

antenna or transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused

by unauthorized changes or modiﬁcations to this equipment. Such changes or

modiﬁcations could void the user authority to operate the equipment.

duplicated or processed using electronic, mechanical or chemical process without

the written permission of the publisher.

This booklet may contain errors or misprints. The information it contains is

regularly checked and corrections are included in subsequent editions. We

disclaim any responsibility for any technical error or printing error, or their

consequences.

All trademarks and patents are recognized.

FCC Statement

Page | 11 www.lacrossetechnology.com/support BBB86088v2

Tabla de contenidos

Otros manuales de Reloj de La Crosse Technology

La Crosse Technology

La Crosse Technology 515-1419 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1918S Manual de usuario

La Crosse Technology

La Crosse Technology WT-8002Uv2 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1417ALv4 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1211 Dimensiones

La Crosse Technology

La Crosse Technology C75723-AU Manual de usuario

La Crosse Technology

La Crosse Technology K86302 Manual de usuario

La Crosse Technology

La Crosse Technology WT-8008U Manual de usuario

La Crosse Technology

La Crosse Technology WS-6002U Manual de usuario

La Crosse Technology

La Crosse Technology Radio Controlled Projection Alarm WT-5110 Manual de usuario

La Crosse Technology

La Crosse Technology 404-3556A Manual de usuario

La Crosse Technology

La Crosse Technology 404-1225 Manual de usuario

La Crosse Technology

La Crosse Technology Radio Controlled Analog Clock Manual

La Crosse Technology

La Crosse Technology 404-1235UA-PL Manual de usuario

La Crosse Technology

La Crosse Technology WS-8418U-IT Manual de usuario

La Crosse Technology

La Crosse Technology Payton 404-3015CC Manual de usuario

La Crosse Technology

La Crosse Technology 515-1316 Manual de usuario

La Crosse Technology

La Crosse Technology WT-8029U Manual de usuario

La Crosse Technology

La Crosse Technology 513-1417CH Manual de usuario

La Crosse Technology

La Crosse Technology BBB87740x1 Manual de usuario

La Crosse Technology

La Crosse Technology WT-8112U Manual de usuario

La Crosse Technology

La Crosse Technology T73743 Manual de usuario

La Crosse Technology

La Crosse Technology WS-8418U-IT Manual de usuario

La Crosse Technology

La Crosse Technology W88631 Dimensiones

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

Sharp

Sharp SPC900 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario

IKEA

IKEA ROTBLÖTA Manual de usuario

U-Line

U-Line Н-2811 Manual de usuario

Digiview

Digiview RC305EL Manual de usuario
