La Crosse Technology Wattz 2.0 Manual de usuario

SET UP GUIDE

MODEL NUMBER C75709

5-in-1

* projection alarm

* 10w wireless charger

* usb-a-charging port

* usb-c-charging port

* temperature/humidity

2.0

projection alarm clock

Table of Contents

BASICS

APPENDIX

Initial Setup

Buttons

LCD Display

Accessories & Ports

LCD Display Brightness

Auto-Dim Settings

Display Modes

Display Mode Options

Speciﬁcations

Warranty

Recycling & Disposal

Cautions/Statements

Trademarks & Warning

Use the +/- buttons on

the top of the clock to

adjust the values.

Initial Setup

Power Up

Insert the 9V Power Adapter into an outlet, and then plug it into the Power Jack

on the bottom of the alarm clock. Next, remove the Insulation Tab from the

Clock’s Battery Compartment.

A greeting will appear on the LCD and the clock will then automatically move

into the Settings Menu.

You may exit the Settings

Menu at any time by

pressing the SNOOZE/

BACKLIGHT button.

18-20

SUPPORT

Support Information

Stay in Touch

ADD-ON SENSOR

Purchase Information

Add-On Sensor Setup

Lost Connection

Low Battery

ALARM

Setting the Alarm

Activate/Deactivate

Snooze Duration

PROJECTION

Projection Brightness

Adjusting the Projection

Projection Image Options

CHARGING

Wireless Phone Charger

Phone Compatibility

Adjustable Charging Coil

USB Charging Ports

Earbud Charging

Accesory Storage

Smart Watch Stand

Cable Organizer

BASICS

Press the SET button

to conﬁrm selection and

move to next setting.

Note: Weekday will set automatically after year, month, & date settings are adjusted.

Settings Menu Order

Beep On/O • 12/24 Format • Hour • Minutes • Year • Month • Date • Fahrenheit/Celsius

Note: To enter the Settings Menu after the initial startup, hold the SET button on the top

of the clock.

03 04

Buttons LCD Display

BASICS BASICS

1. DISPLAY OPTION

4. PLUS +

7. SNOOZE/BACKLIGHT

2. MINUS -

5. PROJECTION

Tap to select LCD display

mode options

Scroll to rotate the projection

image (left or right)

Press to increase values,

hold to change values quickly

Press to activate/deactivate

alarm. Hold to enter alarm

settings

Press to adjust projection

intensity. Hold to change

projection mode*

Press to adjust backlight or

snooze a sounding alarm.

Hold for Auto-Dim Settings.

Hold to enter Settings

*An add-on sensor is required for additional projection options. See p.15 for details.

Press to decrease values,

hold to change values quickly

8. ROTATION WHEEL

3. SET

6. ALARM

Accessories are stored in the bottom compartment of your clock. The Dock Cover is on the top.

AM/PM

Indicator

Alarm

Indicator

Time

Auto Dim

Indicator Calendar

Display

Modes

Calendar

Temperature

Alarm

Auto-scroll

all modes

Low Battery

Indicator

Accessories Ports

Back View

Type C USB

Charging Port

Type A USB

Charging Port

Power

Jack

Bottom View

CR2032

Backup

Battery

Use,Organize & Store

1. Smart Watch Stand

2. Earbuds Dock

3. Dock Cover

4. Small Cable Fitting

5. Large Cable Fitting

Top View

235

05 06

LCD Display Brightness Display Modes

Adjusting the LCD Display Brightness Selecting the Display Mode

Display Mode Options

Auto-Dim Settings

Press the SNOOZE/BACKLIGHT button on the top of the clock to adjust the

backlight intensity. There are 4 brightness levels, plus an o option. Tap the button on the front of the clock to

select a display mode or automatically cycle

through all of the available options.

Hold the SNOOZE/BACKLIGHT

button to enter the Auto-Dim

Settings Menu.

Program your LCD display to automatically dim during preselected times.

Press the +/- buttons to turn the

Auto-Dim feature on or o. Press

the SNOOZE/BACKLIGHT to

conﬁrm.

Press the +/- buttons to adjust the

starting hour. Press the SNOOZE/

BACKLIGHT to conﬁrm.

Press the +/- buttons to adjust the

stopping hour. Press the SNOOZE/

BACKLIGHT to conﬁrm and exit.

The icon will appear on the LCD when activated.

Indoor

Temp/Humidity

The Red Icons on the right side of the LCD

indicate the current display mode.

Weekday

Month + Date

Alarm Time

ON/OFF

Outdoor

Temp/Humidity*

BASICS BASICS

Calendar

Temperature

Alarm

Auto-scroll

all modes

Display

Modes

The icon will appear on the LCD when the

Cycle Mode is active. This setting will automatically

toggle through the available display mode options.

Snooze

Countdown

*An add-on sensor is required for outdoor data. See p.15 for details.

4. Your time alarm is now activated,

indicated by the icon on the LCD.

1. Hold the ALARM button on the

top of the clock to enter the Alarm

Settings Menu.

2. Use the +/- buttons to set your

desired time. Press the ALARM

button to conﬁrm.

3. Next, use the +/- buttons to set

your desired snooze duration (5

to 120 minutes). Press the ALARM

button to conﬁrm and exit the Alarm

Settings Menu.

Time Alarm

Ascending Alarm

Snooze Duration Countdown

The alarm will increase in frequency over a 2-minute period. After the 2-minute

time frame, the alarm will stop if not snoozed or turned o.

When your alarm sounds, press the

SNOOZE/BACKLIGHT button to snooze

your alarm for your preselected snooze

duration. A countdown will appear on

screen.

When the snooze time reaches “00,” the

alarm will sound again. The snooze feature

can be repeated as many times as desired.

Setting the Alarm

ALARM ALARM

Activating & Deactivating the Alarm

Press the ALARM button to

activate/deactivate the alarm

(ON/OFF).

The icon will appear on the

normal time display when the

alarm is active.

1009

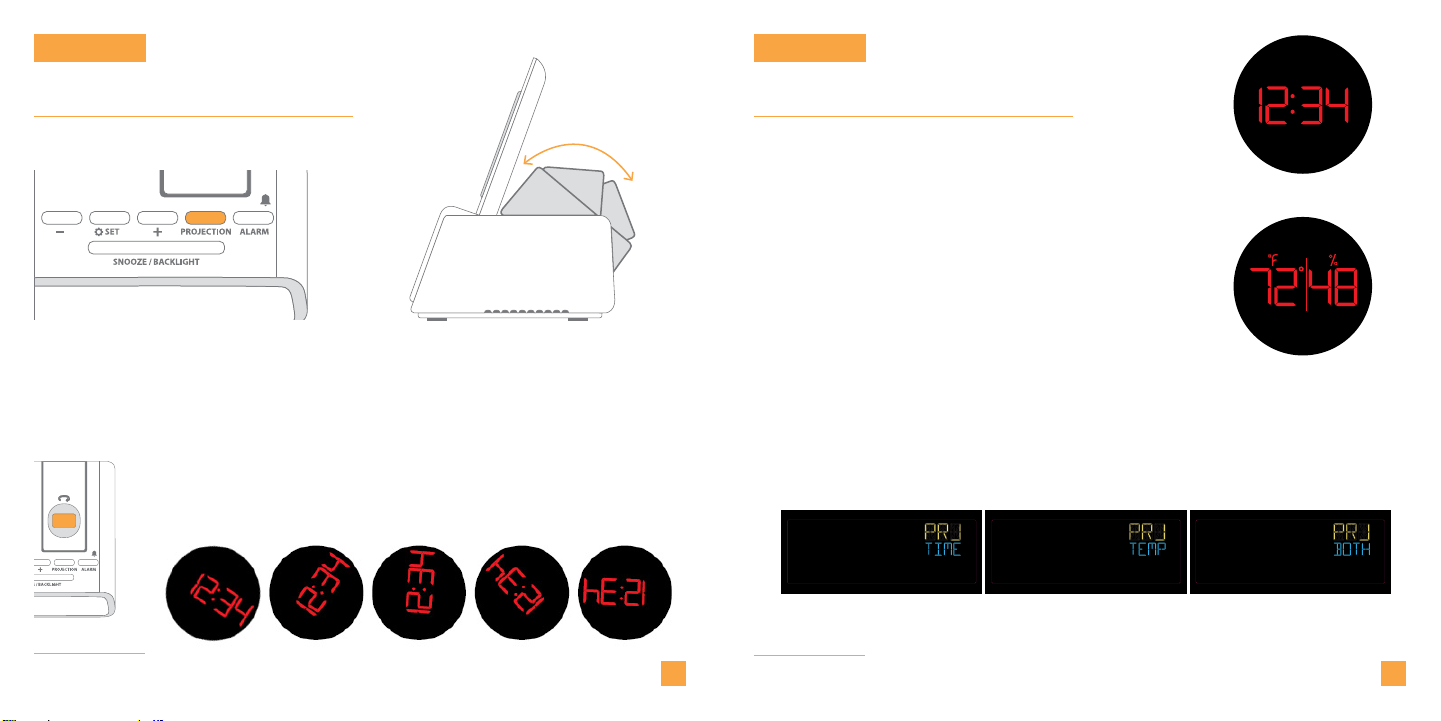

Projection OptionsAdjusting the Projection Image

PROJECTIONPROJECTION

Projection Image Options

The Projection Arm tilts forwards and

backwards to adjust the location of the

projection image.

Use the Rotation Wheel on the Projection Arm to rotate the

viewing angle of the image.

Press the PROJECTION button to

adjust the projection’s brightness

(HI/LOW/OFF).

You can choose to see the (1) time, (2) outdoor

temperature and humidity, or (3) cycle through

both options.

Outdoor weather information is only available if

an add-on sensor is connected.

Selecting Your Projection Image

When an outdoor sensor is connected, hold the

PROJECTION button on the top of the clock

to toggle between the projection options. If no

sensor is connected, this button will only adjust

the projection’s brightness.

Time will be the default projection image. Hold and release the

PROJECTION button each time to switch between projection modes.

Note: The ﬁxed focus projection image will look best at about 7ft. (2.1m).

Time-Only Projection

Current Time

Outdoor Temperature

and Humidity

Outdoor Temperature &

Humidity-Only Projection

Cycle Through Both Options

outdoor

Projection Brightness

*An add-on sensor is required for additional projection options. See p.15 for details.

11 12

10W Wireless Charger

CHARGING CHARGING

Charging your Qi-Enabled Phone

Phone Compatibility

• Place your Qi-Enabled phone on the platform.

Your phone should be centered and should

sit ﬂush to the charging cradle.

• The blue Charging Indicator Light below

the platform will be solid when your phone

is successfully charging.

• The light will ﬂash slowly if your device is

not positioned properly or if your device is

not compatible with the Qi wireless charging

technology. If this problem persists, try

removing any large/bulky cases.

Works with all Qi-Enabled phones, such as:

• iPhone 8 or newer

• Galaxy S8 or newer

• Galaxy Note 8 or newer

Compatibility may vary based on phone model and/or case selection.

This list is not comprehensive. Please check your phone’s manual for details

regarding Qi-Enabled capabilities.

Adjustable Charging Coil

As phone sizes can vary greatly,

simply slide the Phone Charger

Adjustment Handle up or down to

best match your device and get it

charging correctly.

USB Charging Ports

There is a USB Type “A” Charging Port, and a USB

Type “C” Charging Port located on the back of

your alarm clock.

• Connect your external device’s USB charging

cable (not included) into the USB Charging Port.

• Charging times may vary.

• USB Power Output: 1 Amp maximum current

Note: Although this clock is capable of

delivering 10W wireless charging, actual

charging times will be determined by

your mobile device.

Cable Organizer

CHARGING

Use the included Cable Organizer to keep

your charging cords neat and secure.

Insert the organizer into the Cable Clip

Keyhole and slide it down to lock in place.

Lift up and pull the Cable Organizer out to

remove it.

Earbud Charging

1. Remove the Dock Cover from the top of the

alarm clock.

2. Open the bottom Accessory Compartment

and ﬁnd the Earbud Dock and Cable Fittings.

3. Feed your earbud charging cable (not

included) up through the Earbud Dock,

securing it with the correct Large or Small

size Cable Fitting.

4. Wrap any extra cord up inside the Accessory

Compartment and feed the charging end

through the bottom hole.

5. Plug the cord into the appropriate 1 amp

USB Charging Port.

Smart Watch Stand

The removable Smart Watch Stand is engineered to ﬁt

a variety of smart watch brands. Its open design allows

for easy access to your device’s unique charging port

location, for use with the included USB Charging Port.

The Earbud Dock, Cable Fittings, and Smart Watch Stand can all be stored in the

Accessory Compartment on the bottom of the clock when not in use.

How to attach the Smart Watch Stand

Accessory Storage

Open design ﬁts most

smartwatches, including

Apple Watch

1. Remove the Smart Watch Stand from the Accessory

Compartment on the bottom of the alarm clock.

2. Insert the watch stand into the left side of the clock.

3. Place your watch on the stand and attach its

charging cord.

4. Plug the charging cord into the correct USB port.

Note: Smartwatch and charging cords not included.

CHARGING

Optional Add-On Sensor

Lost Connection

ADD-ON SENSOR

• The Sensor Reception Icon will disappear from the bottom right of the LCD

and the clock will search for up to 3 minutes every hour to try to reestablish the

connection.

• To manually reconnect, hold the + button on the top of the clock to search for

the sensor.

• Dashes will show while searching for the sensor and the icon will ﬂash for

up to 3 minutes or until the sensor is connected.

• If the sensor loses connection to the clock for any reason, the clock will show

NO after 30 minutes of disconnection.

outdoor

Optional Add-On Sensor

Purchase Your Add-On Sensor at

(or scan QR Code): http://bit.ly/c75709_parts

You can purchase an add-on Thermo-Hygro Sensor to get real-time

temperature and humidity data, straight from your backyard.

Search for the compatible sensor using the alarm

clock’s model number (C75709).

ADD-ON SENSOR

Add-On Sensor Set Up

Insert 2 “AA” Batteries into the sensor battery compartment.

Hold the +button on the clock to search for the sensor.

Press the TX button inside the sensor battery compartment to transmit a signal.

The sensor’s data should then be viewable on your LCD

and as an option to be projected.

Projection Image

Outdoor

Temp/Humidity

The icon will appear when the sensor

batteries needs to be replaced.

Low Battery

Speciﬁcations

APPENDIX

Power Requirements: 9.0V Power Cord

(Included) HX25-0902500-AU

CR2032 Battery for backup (Included)

The plug on the power adapter is intended

to serve as the disconnect device, the

socket-outlet shall be installed near the

equipment and shall be easily accessible.

Projection Brightness: 2 Intensity Levels + OFF

LCD Brightness: 4 Intensity Levels + OFF

(Programmable Auto-Dim Backlight Option)

Programmable Snooze Duration:

5 to 120 Minutes

Wireless Charger Power Output:

10 Watts

USB “A” and “C” Charging Port:

1 Amp Maximum Current

(Charging Cords Not Included)

Indoor Temperature Range:

32°F to 122°F(0°C to 50°C)

Indoor Humidity Range: 10% to 99% RH

Settings Backup: The CR2032 Battery

will save Time and Alarm Setting when

power is lost. Projection will not show. 18

Warranty

Recycling & Disposal Caution!

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on

this product, relating to manufacturing defects in materials and workmanship.

For full warranty details, you can visit: www.lacrossetechnology.com/support

Please consider the environment when

deciding to dispose of this product.

Although household electronics are

generally safe to use on a daily basis,

incorrect disposal can cause negative

and potentially irreversible impacts on

our environment.

Check with local donation centers to

see if your product can be donated for

future use. If disposal is the only option,

federal agencies, local governments, and

certiﬁed retailers may have electronic

recycling programs in place. Programs

may vary based on location.

Please Recycle

The manufacturer is not responsible for

any radio or TV interference caused by

unauthorized changes or modiﬁcations

to this equipment. Such changes or

modiﬁcations could void the user authority

to operate the equipment.

be reproduced in any form, even in part, or

duplicated or processed using electronic,

mechanical or chemical process without the

written permission of the publisher.

This booklet may contain errors or misprints.

The information it contains is regularly

checked and corrections are included

in subsequent editions. We disclaim any

responsibility for any technical error or

printing error, or their consequences. All

trademarks and patents are recognized.

La Crosse Technology, Ltd •2830 S. 26th Street •La Crosse, WI 54601

APPENDIX

8.39 in. (21.31 cm)

4.81 in. (12.21 cm)

1.80 in.

(4.57 cm)

0.35 in.

(0.88 cm)

4.35 in.

(11.04 cm)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reloj de La Crosse Technology

La Crosse Technology

La Crosse Technology WT-3181X1 Manual de usuario

La Crosse Technology

La Crosse Technology WT-3143AX1 Dimensiones

La Crosse Technology

La Crosse Technology 404-4450 Manual de usuario

La Crosse Technology

La Crosse Technology BBB87276 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1918S Manual de usuario

La Crosse Technology

La Crosse Technology WT-3143A Manual de usuario

La Crosse Technology

La Crosse Technology 513-1417H-AL Dimensiones

La Crosse Technology

La Crosse Technology WT-5120 433 Manual de usuario

La Crosse Technology

La Crosse Technology WT-3143A Manual de usuario

La Crosse Technology

La Crosse Technology BBB86088v2 Manual de usuario

La Crosse Technology

La Crosse Technology WT-8100 Hoja de especificaciones

La Crosse Technology

La Crosse Technology C86279V4 Manual de usuario

La Crosse Technology

La Crosse Technology KWS-8140-BK Manual de usuario

La Crosse Technology

La Crosse Technology 513-1311 Manual de usuario

La Crosse Technology

La Crosse Technology WS-8236U Manual de usuario

La Crosse Technology

La Crosse Technology WS-8007U-C Manual de usuario

La Crosse Technology

La Crosse Technology 513-1417ALv4 Manual de usuario

La Crosse Technology

La Crosse Technology WT-3161WH Manual de usuario

La Crosse Technology

La Crosse Technology WT-8029U Manual de usuario

La Crosse Technology

La Crosse Technology 404-1235UA-SS Manual de usuario

La Crosse Technology

La Crosse Technology WT-3181 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1918S Manual de usuario

La Crosse Technology

La Crosse Technology KWS-8140U-IT Manual de usuario

La Crosse Technology

La Crosse Technology BBB87733 Manual de operación y mantenimiento

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

Sharp

Sharp SPC900 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario

IKEA

IKEA ROTBLÖTA Manual de usuario

U-Line

U-Line Н-2811 Manual de usuario

Digiview

Digiview RC305EL Manual de usuario
