KVM-TEC USBflex 6031 SET Instrucciones de funcionamiento originales

Check out

our Installation

Channel:

www.kvm-tec.com

flex

USB

flex

kvm-tec

Quick

Installation

6031 SET

USBﬂ ex

6031L CPU/LOCAL

6031R CON/REMOTE

flex

kvm-tec

First Aid

Gerne sind wir für Ihre Fragen

zu Ihrer Installation da?

Manual download www.kvm-tec.com

oder

kvm-tec Installationchannel auf unserer Homepage

persönlich +43 2253 81912

kvm-tec Support

[email protected]

Phone: +43 2253 81912 - 30

USB is not

working

No Power

(No LED)

Check the

powerplug

Is the power

supply ok? Try

another Unit.

Try reprogramming

the Unit by using a

JTAG programmer

Contact kvm-tec

support

Are the USB

Devices plugged

in correctly?

Is the USB cable on

the Local side plug-

ged into the PC?

Are the USB

Devices working

directly on the PC?

Check if local and

remote Unit have

the same ﬁ rmware

Replace the USB

cable from PC to

the Local Extender

Check if the local

or the remote

Unit is causing

the problem by

swaping ﬁ rst the

local and than the

remote Unit to

another Unit

Contact kvm-tec

support

Update with USB-Stick

Plug the USB stick with update ﬁ le into USB Flex.

2. press the button on the back left (if PtP, the USB channel will be

disconnected) ~ 4 sec

3. wait until LED ﬂ ashes orange (USB stick is scanned for updates) ~

10-20 sec

4. LED lights up speciﬁ cally for 3 seconds

LED red -> no update on stick found (remove stick and start at step 1)

LED green -> Update found, ready to start

5. press button again

6. wait until the update is completed or an error occurs (for PtP local is

updated ﬁ rst) ~ 2-3 min (PtP ~ 5-6 min)

While update is running, LED ﬂ ashes green, if data is transferred or

copied, LED ﬂ ashes very fast.

At the end of the update, the LED ﬂ ashes orange 4 more times and then

starts the reboot process (the Extender must not be disconnected from

the power supply during this process!)

Power plug

12V 1A

Power plug

12V 1A

USB to PC

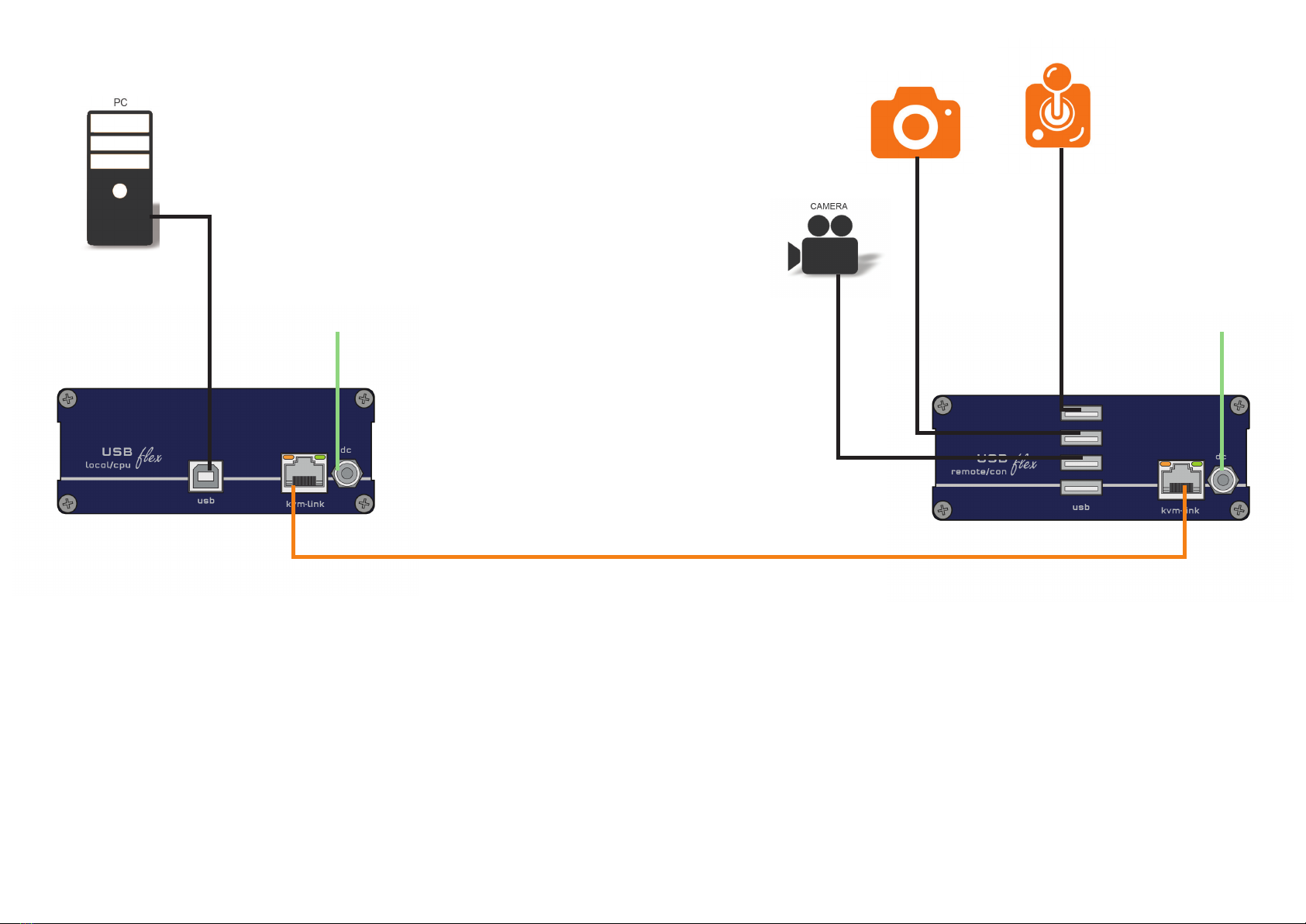

Quick Installation USBﬂ ex local / CPU – remote/ CON

1. Connect the CON / Remote and the CPU / Local Unit to the included 12V 1A power supply.

2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU /

Local Unit. Connect some USB devices to the CON / Remote Unit.

3. Connect the CPU / Local and the CON / Remote Unit with a network cable.

HAVE FUN - your kvm-tec Extender is now in use for many years ( MTBF approx 10 years)

Network cable CAT5e/6/7/ up to 150m/492ft

USB from

Photo camera

USB from Joystick

USB from

Video camera
