KVM-TEC MATRIXLINE Instrucciones de funcionamiento originales

kvm-tec

First Aid

Mouse glide & switch

Video error

(stripes in the

picture)

USB is not

working

No Power

(No LED)

Check the

powerplug

Is the power

supply ok? Try

another Unit.

Try reprogramming

the Unit by using a

JTAG programmer

Contact kvm-tec

support

Are the USB

Devices plugged

in correctly?

Is the USB cable

on the Local side

plugged into the

PC?

Are the USB

Devices working

directly on the

PC?

Check if local

and remote Unit

have the same

ﬁ rmware

Replace the USB

cable from PC to

the Local

Extender

Check if the local

or the remote

Unit is causing

the problem by

swaping ﬁ rst the

local and than the

remote Unit to

another Unit

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check if the PC is

sending a Image by

plugging in a

monitor on the

local out of the

local Unit

Check if the DDC is

set correctly (in menu

under point „O“)

Check if both

Units have the

correct ﬁ rmware

No Video

Contact kvm-tec

support

Check if all

cables are plug-

ged in correctly

Check if the PC is

sending a Image

by plugging in a

monitor on the

local out of the

local Unit

Check if local and re-

mote Unit have the

correct ﬁ rmware

Check if the DDC

is set correctly (in

the menu under

point „o“)

Check if the

network switch

is setup correctly

and has enough

bandwidth

Contact kvm-tec

support

Check if other units

have the same

behaviour

We are here for you to answer

your questions about installation?

Manual download www.kvm-tec.com

kvm-tec Installationchannel on our homepage

personally +43 2253 81912

kvm-tec Support

[email protected]

Phone: +43 2253 81912 - 30

www.kvm-tec.com

kvm-tec

Quick

Installation

Check out

our Installation Channel:

connect collaborate communicate control

kvm-tec = C 4

Softwarefeature

for

MATRIXLINE and

4K Ultraline

Mouse Glide

Switch

matrixline

RS232

matrixline

RS232

matrixline

RS232

matrixline

RS232

matrixline

RS232

matrixline

RS232

matrixline

RS232

matrixline

RS232

Audio to PC

USB to PC

USB from PC

DVI in

from PC

Audio

from PC Audio

from PC

Audio

from PC

DVI in

from PC

DVI in

from PC

DVI in

from PC

DVI from

Monitor

Audio from

microphone

Audio to

speaker

USB from

keyboard and mouse

DVI to

Monitor

DVI to

Monitor

DVI to

Monitor

power plug

12V 1A

power plug

12V 1A power plug

12V 1A

power plug

12V 1A

power plug

12V 1A

power plug

12V 1A

power plug

12V 1A

power plug

12V 1A

Network cable CAT 5e/6/7 up to 150m/492ft

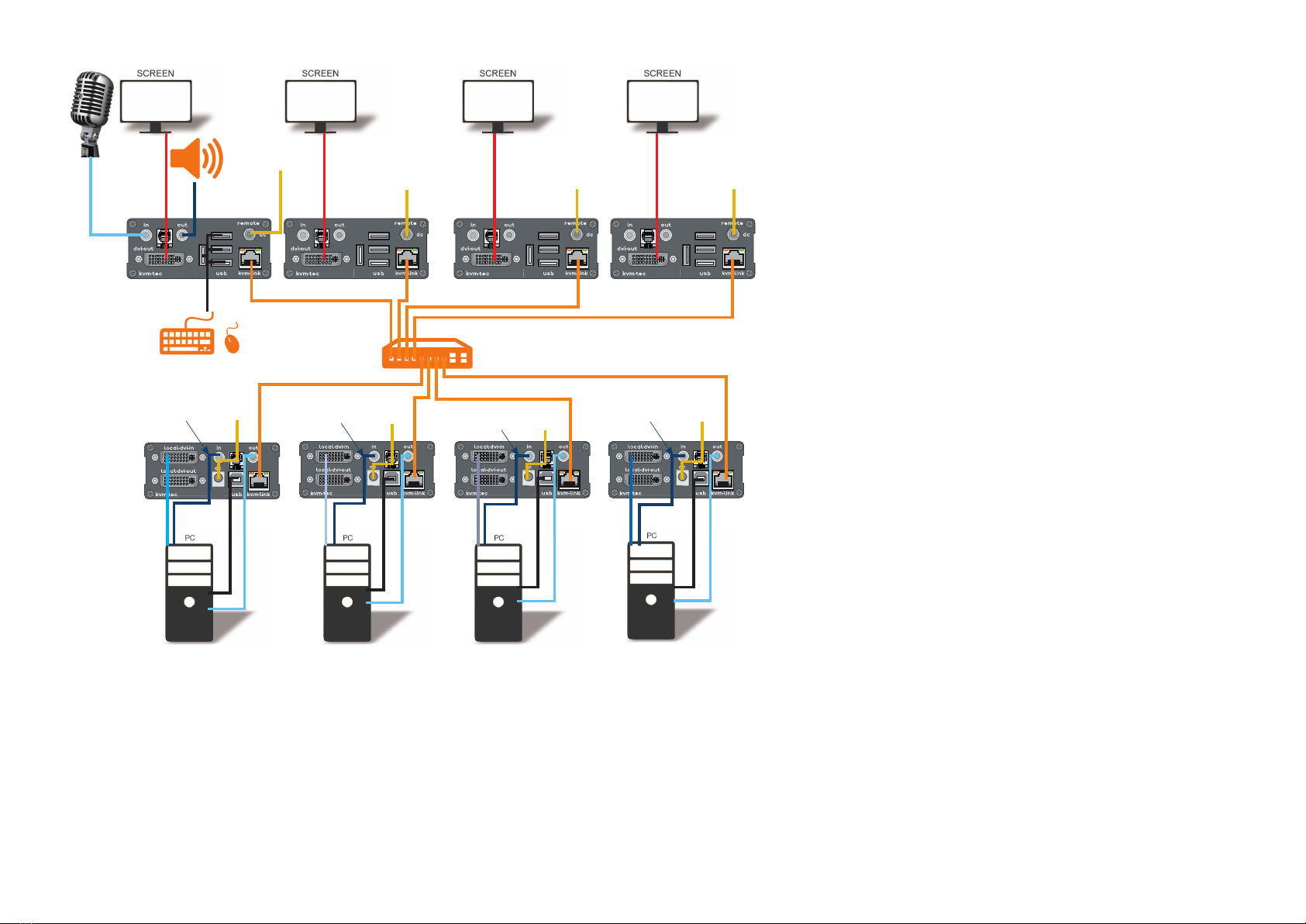

Quick Installation mouse glide&switch local / CPU – remote/ CON

1. Connect the MX CON/Remote and MX Local Units to the supplied 12V 1A power supply.

2. Now connect the USB cables to a USB jack on your PCs and connect the other ends of the USB

cables to the CPU/Local Units Connect the Keyboards and mouse to the CON/Remote Units.

3. Connect the MX CPU/Local and the CON/Remote Unit with several network cables to the

switch.

4. Connect the DVI cables from the PCs to the DVI/in jacks of the MX Local devices and connect

the MX Remote devices to the DVI cables of the monitors.

5. Then connect to the PCs audio-out with multiple audio cables to Local Audio in. Then connect

the speaker via the audio cables Remote Audio/out

6. Almost there! Now use multiple audio cables to connect Local Audio/out to PC´s Audio/in and

Remote Audio/into the audio cables to the microphones.

MUCH FUN - your mouse glide&switch is now ready and you can now work quite smoothly!
