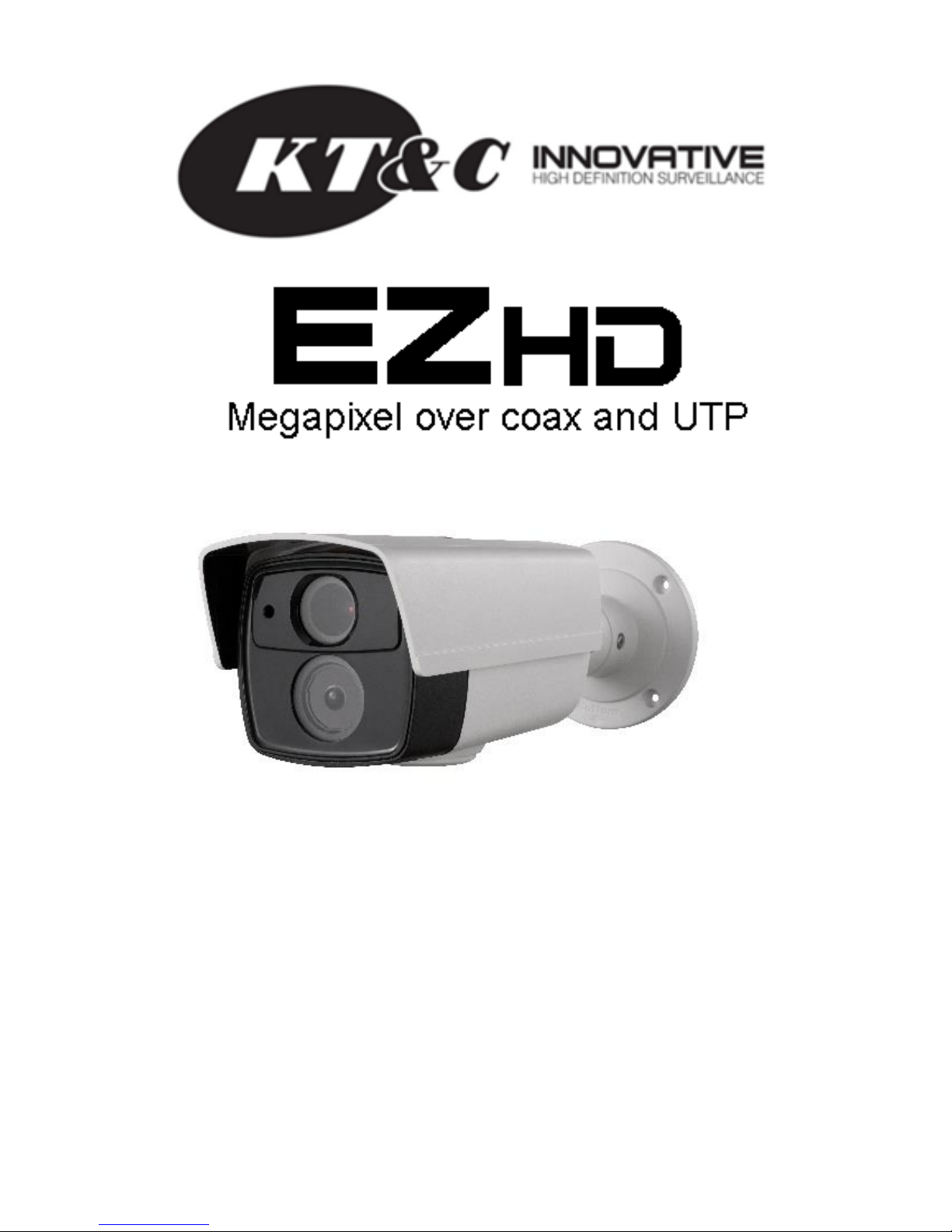

KT&C KEZ-c2BR28V12XIR Guía del usuario

KEZ-c2BR28V12XIR

HD-TVI 1080p Varifocal IP66 Super Beam

IR True WDR Bullet Cameras with OSD,

CVBS Test Output and UTC Control

Quick Operation Guide

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

Thank you for selecting this KT&C OMNI EZHD Series product. For

additional information please refer to the complete User Guide for

this cameras series. End users should contact their KT&C Certified

Dealer for service. Certified Dealers can obtain support directly from

KT&C.

About This Guide

While KT&C makes every effort to insure the completeness and

accuracy of the information contained in this Guide, we are not

responsible for typographical errors or misprints. At the same time,

KT&C reserves the right to make changes to improve the performance

of our products at any time without notice, and so the specifications

and content of this document are subject to change without notice.

Every effort will be made to include updates in new versions of this

manual and/or online.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to

comply with the limits for a digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in

a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own

expense.

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and comply

therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2006/95/EC, the

EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with

this symbol cannot be disposed of as unsorted

municipal waste in the European Union. For proper

recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more information

see: www.recyclethis.info.

2006/66/EC (battery directive): This product

contains a battery that cannot be disposed of as

unsorted municipal waste in the European Union.

See the product documentation for specific battery

information. The battery is marked with this symbol,

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your supplier

or to a designated collection point. For more information see:

www.recyclethis.info

Safety Instructions

These instructions are intended to ensure that the camera is installed

in a manner that avoids danger to persons or property loss.

These precautionary measures are divided into “Warnings” and

“Cautions”

Warnings: Serious injury or death may occur if any of the warnings

are neglected.

Cautions: Injury or equipment/property damage may occur if any of

the cautions are neglected.

Warnings

Warnings Follow these

safeguards to prevent

serious injury or death.

Cautions Follow these

precautions to prevent

potential injury or material

damage.

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

●In the use of the product, you must be in strict compliance with

the electrical safety regulations of the nation and region. Please

refer to technical specifications for detailed information.

●Input voltage should meet the requirements for both the SELV

(Safety Extra Low Voltage) and Limited Power Source for 12 VDC

or 24VAC according to the IEC60950-1 standard. Please refer to

technical specifications for detailed information.

●If connecting several devices to one power supply, to avoid any

overload that may cause over-heating or a fire hazard insure that

the power supply is adequate for the power load.

●Please make sure that all plugs are firmly connected to the

power sockets. When the product is mounted on wall or ceiling,

the device shall be firmly attached, taking into consideration any

wind, snow loading, or other factors. The mounting surface shall

be capable of supporting several times the base weight of the

camera.

●If smoke, unusual odors or noise come from the device, turn off

the power at once and unplug the power cable, and then

contact authorized service personnel.

Cautions

●Make sure the power supply voltage is correct before using the

camera.

●Do not drop the camera or subject it to physical shock.

●Do not touch lenses or sensor modules with fingers. If cleaning is

necessary, use clean cloth with a bit of ethanol and wipe gently.

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

If the camera will not be used for an extended period, please

protect the lens openings from damage and/or debris.

●Avoid aiming the camera at the sun or extremely bright light

sources. Blooming or smearing may occur in excessive light

(which is not a malfunction), and could compromise the

performance of the sensor.

●The sensor may be damaged if exposed to laser energy, so when

any laser equipment is in use, make sure that the sensor will not

be exposed to the laser beam.

●Do not place the camera in extremely hot or cold (see camera

specifications) locations. Do not exceed the rated environmental

(IP66) conditions. Do not expose the camera to high levels of

electromagnetic (RF) radiation.

●To avoid heat accumulation, good ventilation is required in the

operating environment.

●Keep the camera away from solvents while in use; exposure to

liquids should not exceed IP66 environmental conditions.

●During shipping, the camera shall be packed in its original

packing, or packing providing the equivalent protection.

●Improper use or replacement of any batteries (if so equipped)

may result in the hazard of explosion. Replace with the same or

equivalent type only. Dispose of used batteries according to the

instructions provided by the battery manufacturer.

●If the product does not function properly, Dealers please contact

KT&C; End Users please contact your KT&C Certified Dealer or an

authorized service center. Do not disassemble the camera for

repair or maintenance by yourself. (KT&C shall not assume any

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

responsibility for problems caused by unauthorized repair or

maintenance.)

Table of Contents

1 Appearance and Description .......................................................... 7

2 Installation...................................................................................... 9

3 Camera Connection & Focus......................................................... 13

4 OSD Menu Operation ................................................................... 15

1Appearance and Description

Figure 1-1 Bullet Camera Overview

Note: True WDR processing and downscaling from 1080p to CVBS

both demand significant processor resources. CVBS output and digital

zoom are disabled when True WDR is active; where full time CVBS

output is desired, Digital WDR is an OSD menu option. WDR status is

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

easily controlled from a switch provided next to the CVBS test point

and OSD joystick (if WDR was ON, moving the switch will turn it OFF;

if WDR was OFF, moving the switch will turn it ON). To employ a

CVBS test monitor connected to either the black BNC or the video

test point, if True WDR is on, move the switch; when ready to put the

camera in service, slide the switch to the previous position. If True

WDR was not active (and CVBS output is enabled), if desired after the

CVBS output is no longer required, changing the switch position will

turn True WDR ON.

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

2Installation

Before you start:

Make sure the camera is in good condition and all the accessory

parts are included.

Make sure all related equipment is powered-off during the

installation.

Check to insure that the specifications of the camera are correct

for the installation environment.

Make sure the power supply voltage is 12VDC to avoid damage to

the camera. Or, the supply voltage can be 24VAC for this model.

If the product does not function properly, Dealers please contact

KT&C; End Users please contact your KT&C Certified Dealer or an

authorized service center. Do not disassemble the camera for

repair or maintenance by yourself.

Make sure that the mounting surface is strong enough to withstand

three times the weight of the camera.

If the IR LED in this camera will be active, you must observe

the following precautions to prevent IR reflection:

●Dust or grease on the lens/dome cover will cause IR reflection.

Please do not remove the cover protective film until the

installation is finished. If there is dust or grease on the

lens/dome cover, clean the lens/dome cover with clean soft

cloth and isopropyl alcohol.

KEZ-c2BR28V12XIR HD-TVI WDR VF XIR Bullet Camera·Quick Operation Guide

●Make sure that there is no reflective surface too close to the

camera lens. The IR light from the camera may reflect back into

the lens causing haze, distortion or improper scene exposure.

Steps:

1. Attach the drill template on the wall or ceiling.

Figure 2-1 Attach the template

2. Secure the camera to the wall or ceiling with the supplied screws

and expansion anchors (if required). Attach the TVI video coax

and power cables.
