USER MANUAL

MODEL:

DIP-31

Automatic Video Switcher

DIP-31 – Contents

Contents

1Introduction 1

2Getting Started 2

Achieving the Best Performance 22.1 Safety Instructions 22.2 Recycling Kramer Products 32.3

3Overview 4

4Defining the Automatic Video Switcher 5

5Connecting the DIP-31 Automatic Video Switcher 7

Connecting the Remote Control Switches 95.1 Wiring the RJ-45 Connectors 105.2

6Principles of Operation 11

Input Selection 116.1 Signal Loss and Unplugged Cable Timeouts 126.2 Audio Signal Control 126.3 VGA Phase Shift 136.4

7Operating the DIP-31 14

Locking the EDID 147.1 Resetting the DIP-31 147.2 Analog Audio Output Volume Control 157.3

8Configuring the DIP-31 16

Setting the Configuration DIP-switch 168.1 Switching Timeouts 178.2 Using the Step-in Feature 178.3

9Operating the DIP-31 Remotely Using the Web Pages 18

Browsing the DIP-31 Web Pages 189.1 Switching Page 239.2 Device Settings Page 249.3 Remote Device Control Page 269.4 Video and Audio Settings Page 279.5 Authentication Page 289.6 EDID Page 309.7 About Us Page 329.8

10 Technical Specifications 33

Default IP Parameters 3410.1 Default Logon Credentials 3410.2 Supported HDMI Resolutions 3410.3 Supported VGA Resolutions 3510.4

11 Default EDID 36

HDMI 3611.1 PC-UXGA 3811.2

12 Protocol 3000 40

Understanding Protocol 3000 4112.1 Kramer Protocol 3000 Syntax 4312.2 Protocol 3000 Commands 4412.3

DIP-31 - Contents

Figures

Figure 1: DIP-31 Front Panel 5

Figure 2: DIP-31 Rear Panel 6

Figure 3: Connecting the DIP-31 7

Figure 4: Remote Switches Terminal Block 9

Figure 5: TP PINOUT 10

Figure 6: Configuration DIP-switch 16

Figure 7: Entering Logon Credentials 19

Figure 8: Default Page 20

Figure 9: Main Switching Page 21

Figure 10: Switching Page 23

Figure 11: Device Settings Page 24

Figure 12: Video and Audio Settings Page 27

Figure 13: Authentication Page 28

Figure 14: EDID Page 30

Figure 15: About Us Page 32

DIP-31 – Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 14 groups that are clearly defined by

function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and

GROUP 14: Collaboration.

Congratulations on purchasing your Kramer DIP-31 Automatic Video Switcher

which are part of the Kramer Audio Distribution System and are ideal for:

Display systems requiring simple, automatic input selection.

Multimedia and presentation source selection.

Video distribution in hotel rooms and schools.

DIP-31 - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment.

Review the contents of this user manual.

Go to http://www.kramerav.com/downloads/DIP-31 to check for up-to-date

user manuals, application programs, and to check if firmware upgrades are

available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often associated

with low quality cables).

Do not secure the cables in tight bundles or roll the slack into tight coils.

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality.

Position your DIP-31 Automatic Video Switcher away from moisture, excessive

sunlight and dust.

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit

Warning:

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall

before installing

DIP-31 – Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims

to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country go

to our recycling pages at http://www.kramerav.com/support/recycling/.

DIP-31 - Overview

3 Overview

DIP-31 is a 4K UHD automatic switcher for HDMI, VGA, Ethernet, data and

unbalanced audio signals. The unit supports resolutions up to 4K@60Hz (4:2:0)

UHD and various modes of input selection and transmits the signal via HDMI cable

to a compatible receiver (for example the VS-62H or when connecting directly to a

display/projector). DIP-31 is a Step−in commander when connected to a matrix

switcher that supports Step−in over HDMI such as the VS-62H.

The DIP-31 Automatic Video Switcher features:

Max. Resolution –4K@60Hz (4:2:0) UHD and WUXGA.

Max. Data Rate –10.2Gbps (3.4Gbps per graphic channel).

HDTV support

HDCP compliancy –works with sources that support HDCP repeater mode

HDMI with Deep Color, x.v.Color™ and 3D

I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling

& processing algorithm ensures Plug and Play operation for HDMI systems

Automatic live input detection based on video clock presence

Automatic input selection based on priority selection or last connected input

Manual input selection

Step-in control when connected to a device that provides step-in support

Automatic analog audio detection and embedding

Control via Kramer Protocol 3000 and embedded Web pages over a LAN

A lockable EDID

Remote control via contact-closure switches

Equalization and re-clocking of the data

Support for digital audio formats

An RS-232 data port for controlling external devices

DIP-31 – Defining the Automatic Video Switcher

4 Defining the Automatic Video Switcher

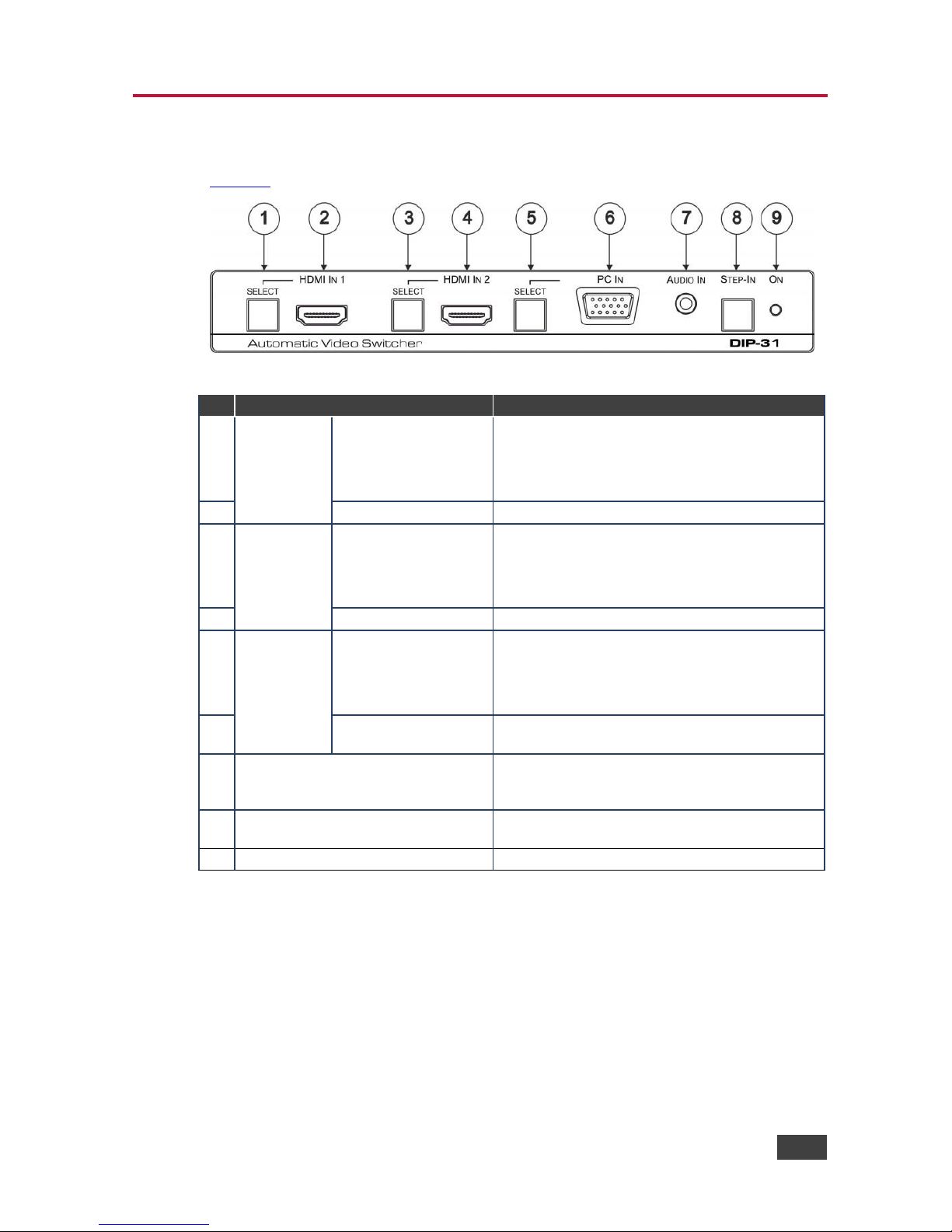

Figure 1 defines the front panel of the DIP-31.

Figure 1: DIP-31 Front Panel

Feature

Function

HDMI IN 1

SELECT Button

Press to select the HDMI In 1 input.

When HDMI In 1 is selected, the button:

Lights red when external audio is selected

Lights green when HDMI In 1 is selected

HDMI 1 Connector

Connect to the first HDMI source

HDMI IN 2

SELECT Button

Press to select the HDMI In 2 input.

When HDMI In 2 is selected, the button:

Lights red when external audio is selected

Lights green when HDMI In 2 is selected

HDMI 2 Connector

Connect to the second HDMI source

PC IN

SELECT Button

Press to select the PC graphics input.

When PC graphics is selected, the button:

Lights red when external audio is selected

Lights green when the PC input selected

PC Graphics 15-pin

HD Connector

Connect to the PC graphics source, (for

example, a laptop)

AUDIO IN 3.5mm Mini Jack

Connect to the unbalanced, stereo audio

source, (for example, the audio output of the

laptop)

Step-In Button

Press to take control of the input that this device

is connected to on a compatible switcher

ON LED

Lights green when the device is powered on
