USER MANUAL

TP-900UHD

HDMI/HDBaseT Receiver/Switcher/Scaler

MODEL:

KRAMER.RU

2KRAMER ELECTRONICS, LTD.

TP-900UHD QUICK START GUIDE

This guide helps you install and use your product for the first time. For more detailed information, go to

http://www.kramerav.com/manual.

Step 1: Check what’s in the box

Step 2: Get to know your TP-900UHD

TP-900UHD HDMI/HDBaseT Receiver/Switcher/Scaler

1 Power supply (12V DC)

4 Rubber feet

1 Quick Start Guide

Feature Function

IN LED Lights green when the HDMI input is selected and blue when HDBT is selected. It ashes if no

input signal

HDBT/HDMI Button Press to select remote HDBT or local HDMI source

3 HDMI output status LED Lights green when an HDMI acceptor is connected

4 HDBT LINK status LED Lights green when the HDBT link between transmitter and receiver is successfully established

and is active

5 ON LED Lights green when the unit is powered from local 12V DC source and lights blue when from

remote HDBT

6 MENU Button Press to enter the conguration menu. When the menu is displayed, press to exit one level up.

7 ENTER Button When not in OSD, press ENTER to call input status.

In OSD, press Enter to selects and activates a menu item or to accept a parameter value. Press

and hold together with the “-“ or “+” to accelerate auto increment.

8 “-“ Button When not in OSD, press and hold together with the “+” to set factory default output resolution

1080p.

In OSD, press to move backward through the sub-menu list or to decrement the parameter

value. Press and hold together with the “+“ button to set default value

9 +/FREEZE Button When not in OSD, press to freeze the image. Press and hold together with the “-” to set factory

default output resolution 1080p.

In OSD, press to move forward through the sub-menu list or to increment the parameter val-

ue. Press and hold together with the “-“ button to set factory default value

10 FREEZE LED Lights green when image is frozen

Feature Function

HDBT IN RJ-45 Connector Connects to an HDBaseT transmitter

HDMI IN Connector Connect to HDMI source

13 HDMI OUT Connector Connects to an HDMI acceptor

14 AUDIO BALANCED OUT

Terminal Block Connector

Connect the balanced stereo audio output to a balanced stereo audio acceptor

15 S/PDIF digital audio

output

Connect to digital audio acceptor

16 IR input/output Connect to IR Emitter or Sensor for the remote control of any external device

17 Ethernet RJ-45 Connector Connect via a LAN to a PC for unit control or to any external device to establish pass-through

Ethernet link between this device and another device connected to HDBT transmitter

18 RS-232 Terminal Block

Connector

Connects to a controller or to any external device to establish pass-through serial link be-

tween this device and another device connected to RS-232 port of HDBT transmitter

19 12V DC +12V DC connector for powering the unit

Step 3: Install the TP-900UHD

Attach the rubber feet and place on a table or mount the TP-900UHD in a rack (using an optional RK-T2B rack mount).

Step 4: Connect the inputs and outputs

Always switch o the power on each device before connecting it to your TP-900UHD.

Always use Kramer high-performance cables connecting AV equipment to the TP-900UHD.

Step 5: Connect the power

If the unit does not receive power via PoE, connect the 12V DC power adapter to the TP-900UHD and plug the adapter into the main

electricity.

CONTENTS

4KRAMER ELECTRONICS, LTD.

CONTENTS

1 INTRODUCTION 6

2 GETTING STARTED 7

2.1 Achieving the Best Performance 7

2.2 Safety Instructions 8

2.3 Recycling Kramer Products 8

3 OVERVIEW 9

4 DEFINING THE TP-900UHD 10

5 CONNECTING THE TP-900UHD 12

5.1 Connecting the Ethernet Port Directly to a PC 13

5.2 Remote control of unit via HDBaseT Ethernet Link 15

5.3 Connecting the Ethernet Port via a Network Hub or Switch 16

5.4 RS-232 Control over HDBaseT 16

5.5 IR Control Over HDBaseT 16

6 OPERATING THE TP-900UHD 17

6.1 Operating the TP-900UHD Using the Front Panel Buttons 17

6.2 Using the OSD 17

6.3 The OSD Menu Structure 18

6.4 Operating the TP-900UHD Remotely 21

6.5 The settings that are recommended to optimize CLEAN SWITCH feature 22

6.6 Different Modes of Inputs Switching 22

7 UPGRADING THE FIRMWARE 23

8 TECHNICAL SPECIFICATIONS 24

9 DEFAULT COMMUNICATION PARAMETERS 25

10 KRAMER PROTOCOL 3000 26

10.1 Kramer Protocol 3000 Syntax 26

Host Message Format 26

Simple Command 26

Command String 26

Device Message Format 26

Device Long Response 27

CONTENTS

Command Terms 27

Entering Commands 28

Command Forms 28

Chaining Commands 28

Maximum String Length 28

10.2 Kramer Protocol 3000 Commands 29

Common Commands 29

Device Speci c Commands 29

FIGURES

Figure 1: TP-900UHD HDMI HDBaseT Receiver Switcher Scaler Front Panel 10

Figure 2: TP-900UHD HDMI HDBaseT Receiver Switcher Scaler Rear Panel 11

Figure 3: Connecting the TP-900UHD HDMI/HDBaseT Receiver/Switcher/Scaler 12

Figure 4: Local Area Connection Properties Window 14

Figure 5: Internet Protocol Version 4 Properties Window 14

Figure 6: Internet Protocol Properties Window 15

INTRODUCTION

6KRAMER ELECTRONICS, LTD.

1 INTRODUCTION

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique,

creative, and a ordable solutions to the vast range of problems that confront video, audio, presentation,

and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most

of our line, making the best even better!

Our 1,000-plus di erent models now appear in 14 groups that are clearly de ned by function:

GROUP 1: Distribution Ampli ers;

GROUP 2: Switchers and Routers;

GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters;

GROUP 5: Range Extenders and Repeaters;

GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers;

GROUP 8: Cables and Connectors;

GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters;

GROUP 11: Sierra Video Products;

GROUP 12: Digital Signage;

GROUP 13: Audio;

and GROUP 14: Collaboration.

Congratulations on purchasing your Kramer TP-900UHD HDMI/HDBT Receiver/Switcher/Scaler, which is

ideal for:

• Professional broadcasting and production studios

• Home theater, presentation and multimedia applications

• Post production

GETTING STARTED

2 GETTING STARTED

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible

future shipment

• Review the contents of this user manual

Go to http://www.kramerav.com/downloads to check for up-to-date user manuals,

application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolu-

tion cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables)

• Do not secure the cables in tight bundles or roll the slack into tight coils

• Avoid interference from neighboring electrical appliances that may adversely in uence signal quality

• Position your TP-900UHD away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equip-

ment that is installed inside a building.

GETTING STARTED

8KRAMER ELECTRONICS, LTD.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit.

Warning: Use only the power cord that is supplied with the unit.

Warning: Do not open the unit. High voltages can cause electrical shock! Servicing

by quali ed personnel only.

Warning: Disconnect the power and unplug the unit from the wall before installing .

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the

amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled.

To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European

Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of

waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s

recycling arrangements in your particular country go to our recycling pages at http://www.kramerav.

com/support/recycling/.

OVERVIEW

3 OVERVIEW

The TP-900UHD comprises HDBaseT signal receiver and additional local HDMI input and can perform

CLEAN SWITCH between these two inputs. It is capable to scale the picture to match the resolution

of the monitor and can maintain stable, without intermission output HDMI signal while input signal

changes format or resolution. Besides that, it allows transmitting of RS-232, IR, Ethernet signals via

CAT6.

In particular, the TP-900UHD features:

• Resolution support for up to 4K@60Hz (4:2:0) UHD

• An HDBaseT input

• A local HDMI input

• An HDMI output

• A bidirectional RS-232 port for embedding/de-embedding control commands in the HDBaseT data

stream

• Infrared input and output ports for controlling devices over the HDBaseT data stream

• Audio de-embedding to the balanced stereo line out and to the S/PDIF digital out

• Maintains constant sync or optionally frozen last picture on the output, even when the input video

signal is lost or interrupted

• System range up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m

(590ft) extra range mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables

• A built-in ProcAmp for convenient signal adjustment

• An On-Screen Display (OSD) for easy setup and adjustment, accessible via the front-panel buttons

• A non-volatile memory that retains the last settings and can hold up to 16 user-de nable settings.

• A freeze button

The machine is fed from an external 12V DC source or optionally from HDBT POE system, making it suit-

able for  eld operation.

You can control the TP-900UHD using the front panel buttons, or remotely via:

• A PC connected to the Ethernet port on the device via a LAN using the control software

• A PC connected to the Ethernet port of remote HDBT transmitter using the same control software

DEFINING THE TP-900UHD

10 KRAMER ELECTRONICS, LTD.

4 DEFINING THE TP-900UHD

Figure 1 defines the front panel of the TP-900UHD.

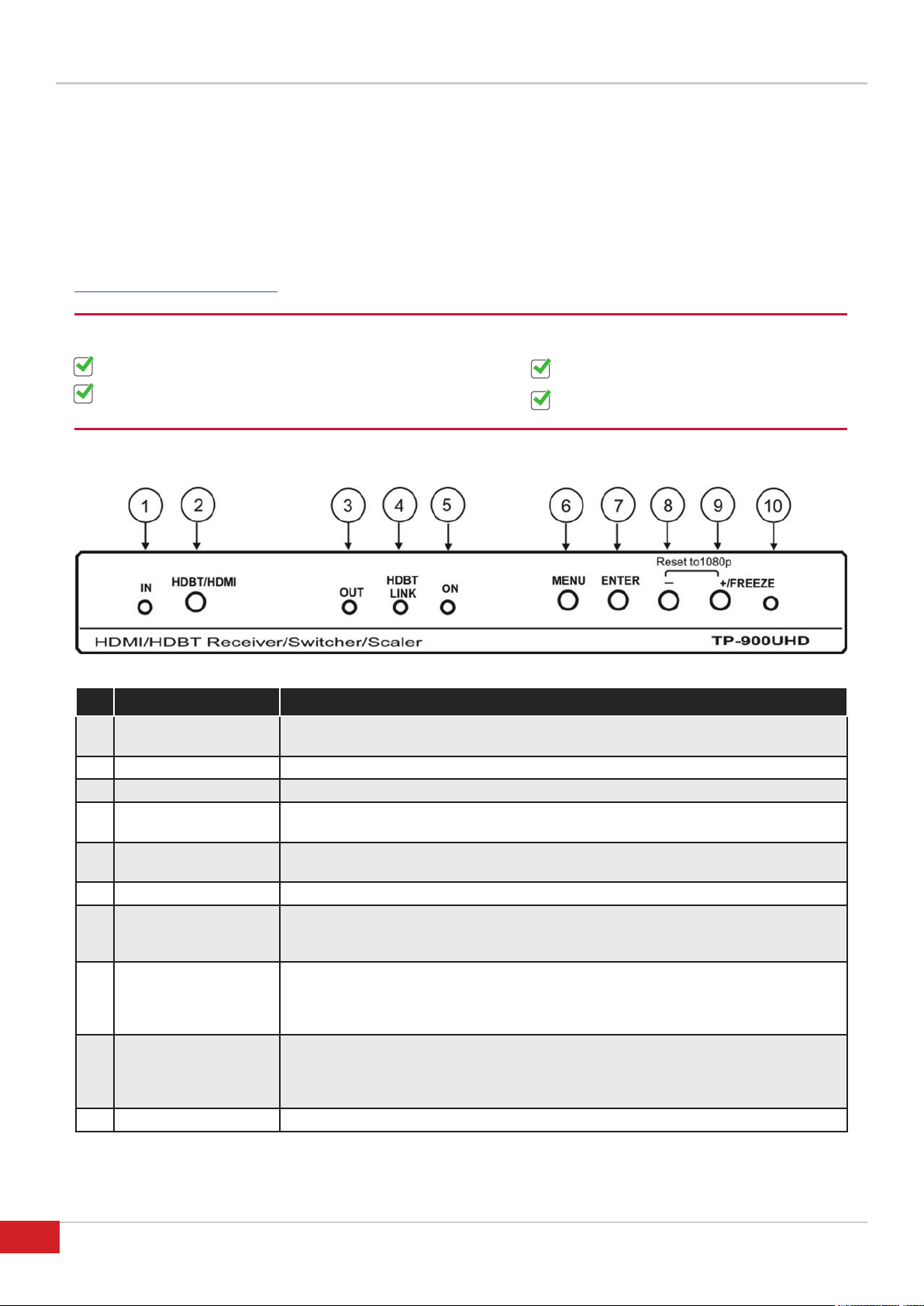

№Feature Function

1IN LED Lights green when the HDMI input is selected and blue when HDBT input is select-

ed. It  ashes if input signal is lost

2 HDBT/HDMI Button Press to select remote HDBT or local HDMI source

3HDMI output status LED Lights green when an HDMI acceptor is connected

4HDBT LINK status LED Lights green when the HDBT link between transmitter and receiver is successfully

established and is active

5ON LED Lights green when the unit is powered from local external 12V DC source and

lights blue when from remote HDBT POE system

6MENU Button Press to enter the con guration menu. When the menu is displayed, press to exit

one level

7ENTER Button When not in OSD, press ENTER to call input signal status menu.

In OSD, press Enter to selects and activates a menu item or to accept a parameter

value. Press and hold together with the “-“ or “+” to scroll rapidly through parameter.

8 “-“ Button When not in OSD, press and hold together with the “+” to set factory default out-

put resolution 1080p.

In OSD, press to move backward through the sub-menu list or to decrement the

parameter value. Press and hold together with the “+“ button to set rapidly param-

eter factory default value

9+/FREEZE Button When not in OSD, press to freeze the image. Press and hold together with the “-”

to set factory default output resolution 1080p.

In OSD, press to move forward through the sub-menu list or to increment the

parameter value. Press and hold together with the “-“ button to set rapidly param-

eter factory default value

10 FREEZE LED Lights green when image is frozen

Figure 1: TP-900UHD HDMI/HDBaseT Receiver/Switcher/Scaler Front Panel

Tabla de contenidos

Otros manuales de Cambiar de Kramer

Kramer

Kramer ASPEN-32UFX Manual de usuario

Kramer

Kramer VP-201xl Manual de usuario

Kramer

Kramer VP-551X Manual de usuario

Kramer

Kramer VS-401USB Manual de usuario

Kramer

Kramer VS-66FW Manual de usuario

Kramer

Kramer VP-734 Manual de usuario

Kramer

Kramer VS-21H-IR Manual de usuario

Kramer

Kramer VS-28 Manual de usuario

Kramer

Kramer VS-211XS Manual de usuario

Kramer

Kramer VS-81ETH Manual de usuario

Kramer

Kramer VS-41HC Manual de usuario

Kramer

Kramer Wall Plate Series Manual de usuario

Kramer

Kramer VP-445 Manual de usuario

Kramer

Kramer VM-218DTxr Manual de usuario

Kramer

Kramer VP-734 Manual de usuario

Kramer

Kramer VP-31KSi Manual de usuario

Kramer

Kramer VS-41HDCP Manual de usuario

Kramer

Kramer VP-440X Manual de usuario

Kramer

Kramer VP-733 Manual de usuario

Kramer

Kramer VP-720DS Manual de usuario

Kramer

Kramer VM-22H Manual de usuario

Kramer

Kramer DIP-31 Manual de usuario

Kramer

Kramer VS-81H Manual de usuario

Kramer

Kramer VP-81SIDN Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
