Kramer 650T Manual de usuario

Kramer Electronics, Ltd.

USER MANUAL

Models:

650T

DVI-Coax Transmitter

650R

Coax-DVI Receiver

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 2

Overview 3

3.1

650T DVI-Coax Transmitter 3

3.2

650R Coax-DVI Receiver 3

3.3

Achieving the Best Performance 3

Your 650T / 650R DVI-Coax Transmitter / Receiver 4

4.1

Your 650T DVI-Coax Transmitter 4

4.2

Your 650R Coax-DVI Receiver 6

Using the DVI-Coax Transmitter/Receiver 7

Technical Specifications 9

Figures

Figure 1: 650T DVI-Coax Transmitter Features 5

Figure 2: 650R Coax-DVI Receiver 6

Figure 3: DVI-to-Coax Transmitter and Receiver System 8

Tables

Table 1: 650T DVI-Coax Transmitter Features 5

Table 2: 650R Coax-DVI Receiver Features 6

Table 3: 650T / 650R Technical Specifications 9

Table 4: 650T / 650R Range Chart 9

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups

that are clearly

defined by function.

Thank you for purchasing the Kramer DigiTOOLS

650T DVI-Coax

Transmitter and Kramer DigiTOOLS

650R Coax-DVI Receiver, which are

ideal for:

Boardroom and projection applications

Long-range multimedia extension for schools, hospitals,

security, and stores

Upgrading a legacy analog installation to a digital installation

The package includes the following items:

650T DVI-Coax Transmitter and/or 650R Coax-DVI Receiver

Power adapter (12V DC input)

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high-resolution cables

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories

and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

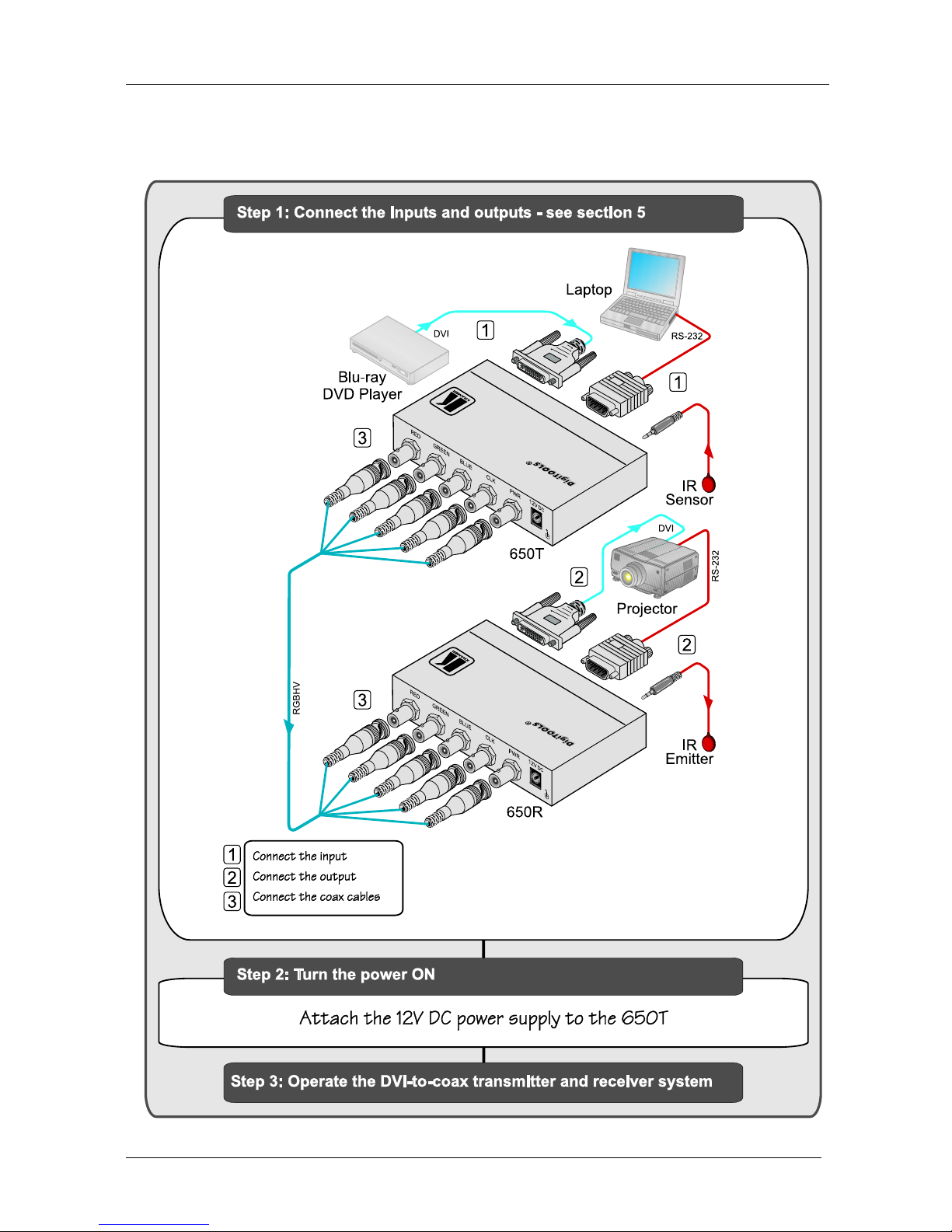

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

This section describes:

The 650T DVI-Coax Transmitter, see section 3.1

The 650R Coax-DVI Receiver, see section 3.2

How to achieve the best performance from your equipment, see section 3.3

3.1 650T DVI-Coax Transmitter

The Kramer DigiTOOLS

650T is a DVI-Coax Transmitter that receives a

DVI signal, codes it, and transmits red, green, blue, clock and data signals,

as well as power, infrared and RS-232 control signals over coax cable to the

650R receiver. The 650T features:

Digital signal transmission without compression or conversion

Bi-directional IR

and RS-232 interfaces

Power feeding to the 650R

Plug and Play installation with no adjustments

3.2 650R Coax-DVI Receiver

The Kramer DigiTOOLS

650R is a Coax-DVI Receiver that receives a

coded coax signal transmitted by the 650T, decodes R-G-B, clock and data

components and converts them to a DVI output. The 650R features:

Power feeding to the 650T

Bi-directional IR

and RS-232 interfaces

Plug and Play installation with no adjustments

3.3 Achieving the Best Performance

To achieve the best performance with your Kramer equipment:

Use only high-quality connection cables

to avoid interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your 650T / 650R away

from moisture, excessive sunlight and dust

1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or

C-A35M/2IRE

2 IR and RS-232 data is available only when using a 5-plug coax cable and the power coax line is connected

3 Available from Kramer on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your 650T / 650R DVI-Coax Transmitter / Receiver

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

4 Your 650T / 650R DVI-Coax Transmitter / Receiver

This section defines the DVI-Coax Transmitter/Receiver:

650T DVI-Coax Transmitter (see section 4.1)

650R Coax-DVI Receiver (see section 4.2)

4.1 Your 650T DVI-Coax Transmitter

Figure 1 and Table 1 define the 650T:

1 For example, part number 2535-052001

Your 650T / 650R DVI-Coax Transmitter / Receiver

Figure 1: 650T DVI-Coax Transmitter Features

Table 1: 650T DVI-Coax Transmitter Features

# Feature Function

1 RED Output BNC Connector Transmits the red signal to the 650R

2 GREEN Output BNC Connector Transmits the green signal to the 650R

3 BLUE Output BNC Connector Transmits the blue signal to the 650R

4 CLK Output BNC Connector Transmits the clock signal to the 650R

5 PWR Output BNC Connector Transmits power and the IR signal to the 650R

6 12V DC +12V DC connector for powering the unit

7 IR Connector Connects to an IR sensor or transmitter

8 IN / OUT LED The IN LED Illuminates when an input source is connected. The

OUT LED illuminates when an output acceptor is connected

9 RS-232 9-pin D-sub Connector Connects to an RS-232 computer source

10 DVI IN Connector Connects to a DVI source

11 ON LED Illuminates when receiving power

1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or

C-A35M/2IRE

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your 650T / 650R DVI-Coax Transmitter / Receiver

4.2 Your 650R Coax-DVI Receiver

Figure 2 and Table 2 define the 650R:

Figure 2: 650R Coax-DVI Receiver

Table 2: 650R Coax-DVI Receiver Features

# Feature Function

1 RED Input BNC Connector Receives the red signal from the 650T

2 GREEN Input BNC Connector Receives the green signal from the 650T

3 BLUE Input BNC Connector Receives the blue signal from the 650T

4 CLK Input BNC Connector Receives the clock signal from the 650T

5 PWR Input BNC Connector Receives power and the IR signal from the 650T

6 12V DC +12V DC connector for powering the unit

7 IR Connector Connects to an IR sensor or transmitter

1 Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or

C-A35M/2IRE

Using the DVI-Coax Transmitter/Receiver

# Feature Function

8 IN / OUT LED The IN LED Illuminates when an input source is connected. The

OUT LED illuminates when an output acceptor is connected

9 RS-232 9-pin D-sub Connector Connects to an RS-232 computer source

DVI OUT Connector Connects to a DVI acceptor

ON LED Illuminates when receiving power

5 Using the DVI-Coax Transmitter/Receiver

You can use the 650T DVI-Coax Transmitter and the 650R Coax-DVI

Receiver to configure a DVI-to-Coax Transmitter and Receiver system (see

Figure 3).

To connect the DVI-to-Coax Transmitter and Receiver system as shown in

the example in Figure 3, do the following:

1. Connect a DVI source, for example, the DVI output from a Blu-ray DVD

player, to the 650T DVI IN connector.

2. Connect the 650R DVI OUT connector to the DVI acceptor, for example, a

projector.

Note: All coax cables must be the same length. There can be no more

than 6 inches (15cm) difference in length between any of the

cables.

3. If using a 4-plug coax cable or 4 coax cables:

Connect the 650T red, green, blue, and clock BNC connectors to

the 650R red, green, blue and, clock BNC connectors

Connect 12V DC power supplies to both the 650T and the 650R

(not shown in Figure 3). The remote power, IR remote control

and RS-232 functions are not available

4. If using a 5-plug coax cable or 5 coax cables:

Connect the 650T red, green, blue, clock, and power BNC

connectors to the 650R red, green, blue, clock, and power BNC

connectors

Connect one 12V DC power supply to either the 650T or the

650R (not shown in Figure 3). Power and the IR remote control

function are transmitted over the power coax connection to the

second device

5. Connect the 12V DC power supply(s) to the mains electricity.

After all connections are made and the units are powered ON, the system

operates.

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Using the DVI-Coax Transmitter/Receiver

Figure 3: DVI-to-Coax Transmitter and Receiver System
