USER MANUAL







Model:

VS-88HD

8x8 SD/HD-SDI Matrix Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher 3

Installing on a Rack 6

Connecting Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher 7

6.1

Dipswitch Settings 8

6.1.1

Setting the Machine # Dipswitches 9

6.2

Controlling via RS-232 (for example, using a PC) 9

6.3

Controlling via the RS-485 Port 10

Operating the VS-88HD 11

7.1

Switching OUT-IN Combinations 11

7.2

Confirming Settings 11

7.2.1

Toggling between the AT ONCE and CONFIRM Modes 12

7.2.2

Confirming a Switching Action 12

7.3

Storing/Recalling Input/Output Configurations 12

7.3.1

Storing an Input/Output Configuration 12

7.3.2

Recalling an Input/Output Configuration 13

Technical Specifications 13

Table of Hex Codes for Serial Communication 14

Kramer Protocol 2000 15

Figures

Figure 1: VS-88HD 8x8 SD/HD-SDI Matrix Switcher 4

Figure 2: Connecting the VS-88HD 8x8 SD/HD-SDI Matrix Switcher 8

Figure 3: Dipswitches 8

Figure 4: Connecting a PC without using a Null-modem Adapter 9

Figure 5: Controlling via RS-485 (for example, using an RC-3000) 10

Tables

Table 1: Front Panel VS-88HD 8x8 SD/HD-SDI Matrix Switcher 5

Table 2: Rear Panel VS-88HD 8x8 SD/HD-SDI Matrix Switcher 5

Table 3: Machine # Dipswitch Settings 9

Table 4: Technical Specifications of the VS-88HD 8x8 SD/HD-SDI Matrix Switcher 13

Table 5: VS-88HD Hex Codes for Switching via RS-232/RS-485 14

Table 6: Protocol Definitions 15

Table 7: Instruction Codes for Protocol 2000 16

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your Kramer VS-88HD 8x8 SD/HD-SDI

Matrix Switcher. This product is ideal for:

Professional broadcasting and production studios

Presentation applications

The package includes the following items:

VS-88HD 8x8 SD/HD-SDI Matrix Switcher

Power cord, Null-modem adapter and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

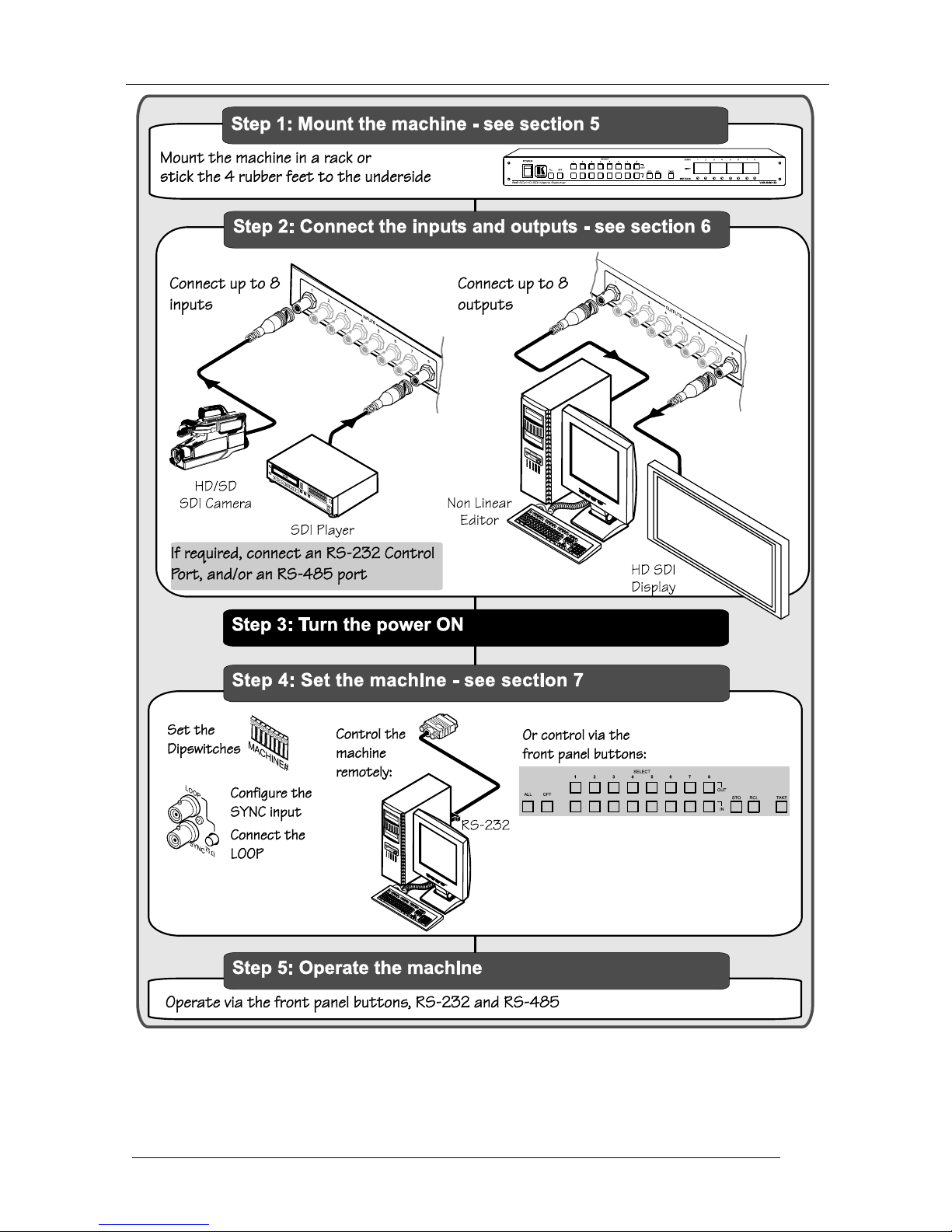

2.1 Quick Start

This quick start chart summarizes the basic setup and operation:

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VS-88HD is an HDTV compatible high performance matrix switcher for

HD-SDI and SDI digital video signals. It lets you simultaneously route any of

the eight inputs to any or all of the eight outputs. Switching during the

vertical interval ensures glitch-free switching with genlocked sources. In

particular, the VS-88HD features:

Input and output signals on BNC connectors

A looping analog sync input with selectable sync signal termination

Switching synchronization, letting you synchronize to either the

external reference or incoming video

Automatic reclocking and equalization on each input

Each input button on the front panel automatically lights up when

the VS-88HD detects a video signal on that input

Switching according to the Bi-level or Tri-level Genlock input

The storing and recalling of setups

A Take button for the execution of multiple switches all at once

A 7-segment display

The VS-88HD, which is housed in a 19" 1U rack mountable enclosure, and is

fed from a 90-240 VAC universal switching power supply, can be controlled

via the:

Front panel buttons

Remotely, by RS-232 or RS-485 serial commands transmitted by a

touch screen system, PC, or other serial controller

To achieve the best performance:

Connect only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and

elevated noise levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VS-88HD

away from moisture, excessive sunlight and dust

4 Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher

Figure 1, Table 1, and Table 2 define the VS-88HD 8x8 SD/HD-SDI Matrix

Switcher.

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher

Figure 1: VS-88HD 8x8 SD/HD-SDI Matrix Switcher

Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher

Table 1: Front Panel VS-88HD 8x8 SD/HD-SDI Matrix Switcher

# Feature Function

1 POWER Switch Illuminated switch for turning the unit ON or OFF

2 OFF Button An OFF-OUT combination disconnects that output from the inputs; an

OFF-ALL combination disconnects all the outputs

3 ALL Button Pressing ALL followed by an INPUT button, connects that input to all

outputs

4 IN SELECT Buttons Select the input to switch to the output

5 OUT SELECT Buttons Select the output to which the input is switched

6 STO (STORE) Button Pressing STO followed by an INPUT / OUTPUT button stores the current

setting

7 RCL (RECALL) Button Pressing the RCL button and the corresponding INPUT / OUTPUT key

recalls a setup from the non-volatile memory

8 TAKE Button Pressing TAKE toggles the mode between the CONFIRM mode

and the

AT ONCE mode (user confirmation per action is unnecessary)

9 7-segment Display Displays the selected input switched to the output (marked above each

input)

INPUT STATUS LEDs Lights when the input signal complies with the SDI standard

Table 2: Rear Panel VS-88HD 8x8 SD/HD-SDI Matrix Switcher

# Feature Function

INPUT BNC Connectors Connect to the serial digital video sources

OUTPUT BNC Connectors Connect to the serial digital video acceptors

LOOP BNC Connector Connect to the Genlock connector of the next unit in the line

SYNC BNC Connector Connect to the Genlock source

75TERM Button Press to terminate the Genlock source (75) or release for looping

RS-232 IN DB 9F Port Connects to the PC or the Remote Controller

RS-232 OUT DB 9M Port Connects to the RS-232 IN DB 9F port of the next unit in the

daisy-chain connection

MACHINE # Dipswitches Dipswitches for setup of the unit (1, 2, 3 and 4 are for setting the

Machine #; 8 is for RS 485 Termination)

RS-485 Detachable

Terminal Block Port

The SYNC and the G PINs are for vertical sync and the ground

connection respectively; pins A (+) and B (-) are for RS-485

Power Connector with Fuse AC connector enabling power supply to the unit

1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

2 For example, press STO and then the Output button # 3 to store in Setup # 3

3 When in Confirm mode, the TAKE button illuminates

4 Push in to terminate the input. Release when the input extends to another unit

5 Via a null-modem connection

6 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not

connected

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Installing on a Rack

5 Installing on a Rack

This section describes what to do before installing on a rack and how to rack

mount.

Connecting Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher

6 Connecting Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher

You can use your VS-88HD to switch one of the eight standard definition /

high definition SDI inputs to any or all of the eight standard definition / high

definition SDI outputs, as the example in Figure 2 shows.

To connect the VS-88HD 8x8 SD/HD-SDI Matrix Switcher, do the following

1. Connect up to eight SDI sources to the SDI INPUT BNC connectors (for

example, an HD/SD SDI camera to input 1 and an SDI player to input 8).

2. Connect the SDI OUTPUT BNC connectors to up to

eight SDI

acceptors (for example, output 1 to a non linear editor, and output 8 to an HD

SDI display).

3. Set the dipswitches (see section 6.1).

4. As an option

, connect:

A Genlock source to the SYNC BNC connector

The LOOP BNC connector to the GENLOCK connector of the next

unit in the line, and release the TERM button for looping

5. Connect a PC and/or controller (if required), to the:

RS-232 port (see section 6.2), and/or

RS-485 port (see section 6.3), and/or

6. Connect the power cord

1 Switch OFF the power on each device before connecting it to your VS-88HD. After connecting your VS-88HD, switch on

its power and then switch on the power on each device

2 When only one output is required, connect that output, and leave the other outputs unconnected

3 Not illustrated in Figure 2

4 Pushed in terminates the input. Release when the input extends to another unit

5 We recommend that you use only the power cord that is supplied with this machine

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting Your VS-88HD 8x8 SD/HD-SDI Matrix Switcher

Figure 2: Connecting the VS-88HD 8x8 SD/HD-SDI Matrix Switcher

6.1 Dipswitch Settings

By default, all dipswitches are set to OFF. Figure 3 illustrates the VS-88HD

dipswitches:

Figure 3: Dipswitches
