Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have redesigned

and upgraded most of our line, making the best even better! Our 1,000-plus

different models now appear in 11 groups

that are clearly defined by

function.

Congratulations on purchasing your Kramer VS-88HCB 8x8 Component /

Video / Audio Matrix Switcher, which is ideal for presentation and production

applications. The package includes the following items:

VS-88HCB 8x8 Component /Video / Audio Matrix Switcher

Power cord and Null-modem adapter

Windows®-based Ethernet Configuration Manager and Virtual Serial Port

Manager

Windows®-based Kramer control software

and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:

Format/Standards Converters; GROUP 5: Twisted-Pair Solutions; GROUP 6: Specialty AV Products; GROUP 7: Scan

Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and

Rack Adapters; GROUP 11: Sierra Products

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Overview

3 Overview

The high performance VS-88HCB is a universal matrix switcher for composite

video, s-Video, component video (Y, Cb/Pb, and Cr/Pr), balanced stereo audio

and S/PDIF digital audio signals. It can route any or all inputs to any or all outputs

simultaneously. The VS-88HCB 8x8 Component /Video / Audio Matrix

Switcher features:

High Bandwidth - 300MHz (-3dB) fully loaded

HDTV compatibility

Control via the front panel, RS-232 (K-Router™ Windows®-based

software is included), RS-485, Ethernet, IR Remote RC-IR2 (included)

and external Remote IR receiver (optional), see section 4.1

A Take button to execute multiple switches all at once

Memory locations that can be used to store multiple switches as presets to

be recalled and executed when needed

Audio (analog) breakaway switching, for switching audio independently

from video

The VS-88HCB is housed in a 19” 3U rack mountable enclosure.

In addition, the VS-88HCB:

Can be used for mixed video applications such as CV, Y/C and YUV

simultaneously

Includes an ETHERNET connection that supports easy dial-up and Internet

system remote control (requiring only a dedicated IP address

and a modem in

the remote location) whether it is a stand-alone PC or a LAN

system

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise-

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances and position your

Kramer VS-88HCB away from moisture, excessive sunlight and dust

4 Your VS-88HCB

Figure 1 and Table 1 define the front and rear panels of the VS-88HCB.

1 IP Address is a 32-binary digit number that identifies each sender or receiver (within a network via a particular server or

workstation) of data (HTML pages or e-mails) that is sent in packets across the Internet. Every device connected to an IP

network must have a unique IP address. This address is used to reference the specific unit

2 LAN is Local Area Network

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-88HCB

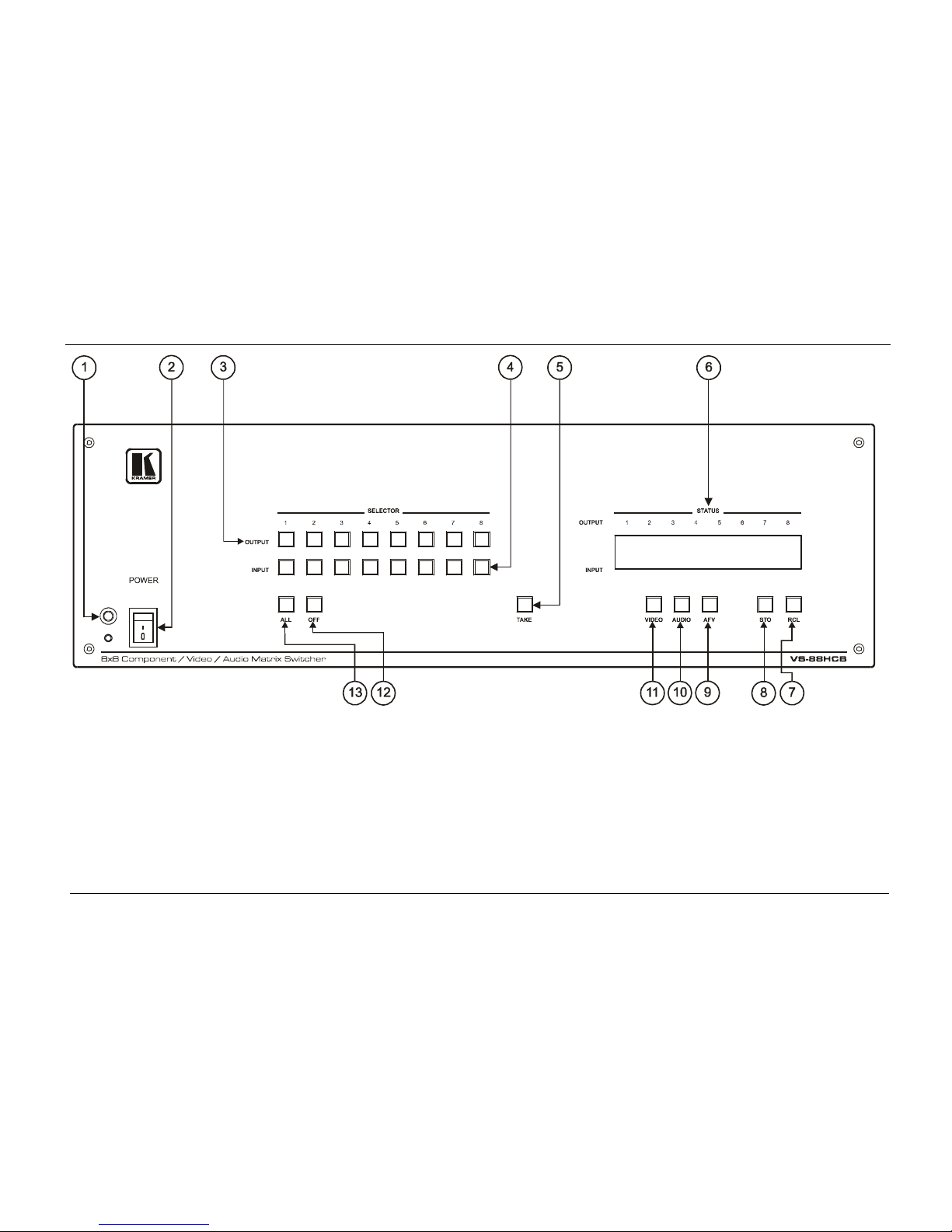

Figure 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Your VS-88HCB

Table 1: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Front Panel Features

#Feature Function

1IR Receiver The red LED is illuminated when receiving signals from the Kramer

Infrared remote control transmitter

2POWER switch Illuminated switch for turning the unit ON or OFF

3OUTPUT SELECTOR

Buttons Select the output to which the input is switched (from 1 to 8)

4INPUT SELECTOR

Buttons Select the input to switch to the output (from 1 to 8)

5 TAKE Press to toggle between the Confirm mode1and the At Once mode (user

confirmation per action is unnecessary), or press to confirm action

6INPUT STATUS display Displays the selected input switched to the output (marked above each input)

7RCL Button Press the RCL button followed by an INPUT button2to recall a setup from the

non-volatile memory

8 STO Button Press the STO button followed by an INPUT button2to store the current

settings

9AFV Button When pressed3, actions relate to the video and audio channels. The audio

channels follow the video channels

10 AUDIO Button When pressed3, actions relate to audio

11 VIDEO Button When pressed3, actions relate to video

12 OFF Button An OFF-OUTPUT combination disconnects that output from the inputs; an

OFF-ALL combination disconnects all the outputs

13 ALL Button Press ALL followed by an INPUT button to connect that input to all the outputs

1 When in the Confirm mode, the TAKE button blinks

2 In this case the INPUT button corresponds to the setup address number

3 The button illuminates

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-88HCB

Figure 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel

im Vertrieb von

CAMBOARD Electronics

www.camboard.de

Tel. 07131 911201

Fax 07131 911203

[email protected]

Your VS-88HCB

Table 2: VS-88HCB 8x8 Component / Video / Audio Matrix Switcher Rear Panel Features

#Feature Function

14 AUDIO INPUTS Terminal

Block Connectors Connect to the balanced stereo audio sources (from 1 to 8)

15 AUDIO OUTPUTS Terminal

Block Connectors Connect to the balanced stereo audio acceptors (from 1 to 8)

16 Ethernet Connector Connects to the PC or other Serial Controller through computer networking

17 RS-485 Port Pin G is for the Ground connection1; pins B (-) and A (+) are for RS-485

18 REMOTE IR 3.5mm Mini

Jack

Connect to an external IR receiver unit for controlling the machine via an IR

remote controller (instead of using the front panel IR receiver)2

19 Power Connector with Fuse AC connector, enabling power supply to the unit

20 Factory Reset Button Press to reset to factory default definitions3:

IP number 192.168.1.39

Mask – 255.255.255.0

Gateway – 192.168.1.1

21 Dipswitches Dipswitches for setup of the unit (1, 2 and 3 are for setting the machine

number; 4 is for RS-485 bus termination; 5 is for Reply; 8 is for RS-485 PC

communication)

22 RS-232 9-pin D-sub Port Connect to the PC or the remote controller

23 Video/Y

S/PDIF/

Connect to the composite video (Video/Y) and digital audio (S/PDIF/C)

acceptors, or to the s-Video (Video/Y and S/PDIF/C) acceptors

OUT BNC

Connectors

(from 1 to 8)

Connect to the component video (Y, C

, C

) acceptors

24 Video/Y

S/PDIF/C

Connect to the composite video (Video/Y) and digital audio (S/PDIF/C)

sources or to the s-Video (Video/Y and S/PDIF/C) sources

INPUT BNC

Connectors

(from 1 to 8)

Connect to the component video (Y, C

, C

) sources

1 The ground connection is sometimes connected to the shield of the RS-485 cable. In most applications, the ground is not

connected

2 Can be used instead of the front panel (built-in) IR receiver to remotely control the machine

3 Turn the machine OFF, then turn the machine ON while pressing the FACTORY RESET button. The unit powers up and

loads its memory with the factory default definitions
