USER MANUAL







Model:

VS-1616SDI

16x16 SDI Video Matrix Switcher

Contents

Introduction 1

Getting Started 1

Overview 1

Operating a Single Machine 3

Your SDI Video Matrix Switcher 3

Installing the SDI Video Matrix Switcher 6

6.1

Configuring a Standalone SDI Video Matrix Switcher 6

6.2

Assembling a System of Interconnected Switchers 7

6.3

Setting the Dipswitches 8

6.3.1

Setting the MACHINE # 9

6.3.2

Understanding the SYSTEM Mode 10

6.3.3

Understanding the SLAVE Mode 10

6.4

Connecting a Control Interface 11

6.4.1

Connecting the RS-232 Control Interface 11

6.4.1.1

Connecting with a Null-modem Adapter 13

6.4.1.2

Connecting without a Null-modem Adapter 13

6.4.1.3

Connecting to a DB9 COM Port with a Null-modem Adapter 13

6.4.1.4

Connecting to a DB9 COM Port without a Null-modem Adapter 14

6.4.1.5

Connecting to a DB25 COM Port 14

6.4.2

Connecting the RS-485 Control Interface 15

6.5

Configuring the Sync 17

6.6

Connecting the Keyboard Extension 17

Operating Your SDI Video Matrix Switcher 18

7.1

Using the Startup Display 18

7.2

Using the Front Panel Buttons 19

7.2.1

Confirming the Settings 19

7.2.1.1

Toggling Between the AT ONCE and CONFIRM Modes 20

7.2.2

Switching Outputs 20

7.2.2.1

Switching One Input to One Output 20

7.2.2.2

Switching Several Inputs to Several Outputs 21

7.2.2.3

Switching One Input to All Outputs 22

7.2.3

Clearing Outputs 23

7.2.3.1

Clearing One Output 23

7.2.3.2

Clearing Several Outputs 24

7.2.3.3

Clearing All Outputs 25

7.2.4

Storing and Recalling Setups 25

7.2.4.1

Storing Setups 26

7.2.4.2

Recalling Setups 26

Using the MENU Command Sequence 27

8.1

Locking and Unlocking the Front Panel 29

8.2

Choosing the System Modes 30

8.3

Choosing the SWITCHING METHOD Setting 31

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

8.3.1

Understanding the SWITCHING METHOD Settings 32

8.3.2

Configuring a SWITCHING METHOD 33

8.4

Choosing the EXTENDED KEYBOARD Setting 34

8.5

Setting the STORE/RECALL KEYBOARD Mode 35

8.6

Choosing What to INDICATE 35

8.7

Choosing the COMMUNICATION Setting 36

8.8

Setting the IR REMOTE Control 37

8.9

Choosing the AUTO STORE Current SETUP 38

8.10

Identifying the MACHINE 38

8.11

Choosing the Initial RESET 39

Upgrading Flash Memory 40

9.1

Connecting the PC to the RS-232 Port 40

9.2

Upgrading the Firmware 41

Technical Specifications 43

Hex Codes 43

ASCII Protocol: General 45

ASCII Protocol: Description 45

Contents

iii

Figures

Figure 1: Default Dipswitch Setup on a Single Machine 3

Figure 2: VS-1616SDI 16x16 SDI Video Matrix Switcher 4

Figure 3: Configuring a Stand Alone 16x16 VS-1616SDI Switcher 6

Figure 4: Assembling a System of Interconnected Switchers 8

Figure 5: Rear Panel Dipswitches 9

Figure 6: Connecting a PC to Four Switchers 12

Figure 7: Connecting a PC (with a 25-pin connector) without a Null-modem Adapter 14

Figure 8: RS-485 Connector PINOUT 15

Figure 9: Connecting the RS-485 Connectors 15

Figure 10: An RS-485 Control Interface Setup 16

Figure 11: Keyboard Extension (EXT. KEYS) Connector 18

Figure 12: Default Startup Status Display Sequence 19

Figure 13: Sequence of MENU Commands 28

Figure 14: Choosing the MTX (SYNC from Matrix) Setting 33

Figure 15: Choosing what to INDICATE 35

Figure 16: Machine Identification 39

Tables

Table 1: Quick Reference Operating Guide for a Single Machine 3

Table 2: Front Panel VS-1616SDI 16x16 SDI Video Matrix Switcher Features 5

Table 3: Rear Panel VS-1616SDI 16x16 SDI Video Matrix Switcher Features 5

Table 4: Dipswitch Definitions 9

Table 5: Machine # Dipswitch Settings 9

Table 6: Summary of Basic RC-IR2 Setups 37

Table 7: Summary of Basic RC-IR2 Operations 38

Table 8: Technical Specifications of the VS-1616SDI Video Matrix Switcher 43

Table 9: Hex Table for the VS-1616SDI Video Matrix Switcher 44

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, and presentation

professional on a daily basis. In recent years, we have redesigned and

upgraded most of our line, making the best even better! Our 500-plus

different models now appear in eight groups

that are clearly defined by

function.

Thank you for purchasing the Kramer VS-1616SDI 16x16 SDI (serial

digital) Video Matrix Switcher, which is ideal for:

Video broadcast studios for on-air switching and signal routing

Video production facilities

The package includes the following items:

VS-1616SDI 16x16 SDI Video Matrix Switcher

Power cord

Windows®-based Kramer control software

Null-modem adapter

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

Use Kramer high-performance high-resolution cables

3 Overview

The Kramer VS-1616SDI is an adjustment-free, high-performance 16x16

vertical interval matrix switcher for SDI (serial digital) video signals on

BNC connectors.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

A main advantage of the VS-1616SDI is that it forms part of the series of

16x16 matrix switchers that includes, but is not limited to, VS-1616A (a

16x16 analog balanced stereo audio matrix switcher), VS-1616V (a 16x16

analog video matrix switcher), VS-1616AD (a 16x16 digital audio matrix

switcher), VS-162V (a 16x16 video matrix switcher), and VS-162AV (a

16x16 audio-video matrix switcher).

In particular, the VS-1616SDI:

Is a true matrix switcher, enabling the user to simultaneously route

any or all of the 16 inputs to any or all of the 16 outputs

Provides automatic equalization for losses on 75co-axial cable

Reclocks each output to provide 16 low-jitter serial digital outputs

Has automatic video standard recognition

Accepts either analog or serial video as the external source for its

vertical trigger. Alternately, input # 1 can be assigned as the sync

source

In addition the VS-1616SDI:

Can be configured into a Kramer multi-signal switcher system

including digital and analog video, digital and analog audio, and

RS-422 control switchers

When integrated in a system, all units switch in true audio-follow-

video mode

Recalls up to 99 configuration setups via the non-volatile memory

and provides for an unlimited quantity of setups when using the

Kramer control software on your PC

Includes a user-friendly LCD display (making operation even

easier)

With its FLASH memory, lets you upgrade to the latest Kramer

firmware version via Internet download

Comes with a choice of protocol format: hexadecimal or ASCII

You can control the VS-1616SDI using:

The front panel buttons

Remotely, by RS-485 or RS-232 serial commands transmitted by

a touch screen system, PC, or other serial controller

Remotely, from the Kramer RC-IR2 Infra-Red Remote Control

Transmitter

External dry-contact push-buttons

Operating a Single Machine

To achieve the best performance:

Use only good quality connection cables

to avoid interference,

deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables).

Avoid interference from neighboring electrical appliances that

may adversely influence signal quality and position your

VS-1616SDI away from moisture, excessive sunlight and dust.

4 Operating a Single Machine

By default, the VS-1616SDI is setup for use as a single machine. This

means that it is:

A 16x16 SDI video switcher

Switched during the vertical interval of the external analog reference

In particular, be sure that the dipswitches are set as shown in Figure 1 (see

section 6.3 for further details). To operate a single machine, see Table 1.

Figure 1: Default Dipswitch Setup on a Single Machine

Table 1: Quick Reference Operating Guide for a Single Machine

To perform this command: Press:

Connect an input with an output OUT #; IN #

Clear (disconnect) a specific output OUT #; OFF

Clear (disconnect) all outputs ALL; OFF

Connect all outputs to a specific input ALL; IN #

Store a setup STO; OUT #; TAKE

Recall a setup RCL; OUT #; TAKE

Lock front panel MENU; TAKE

Unlock front panel TAKE; TAKE

Change default setup Press the Menu button several times until you reach the

appropriate Menu setup command and follow the instructions

5 Your SDI Video Matrix Switcher

Figure 2 illustrates the front and rear panels of the VS-1616SDI. Tables 1

and 2 define the front and rear panels of the VS-1616SDI, respectively.

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your SDI Video Matrix Switcher

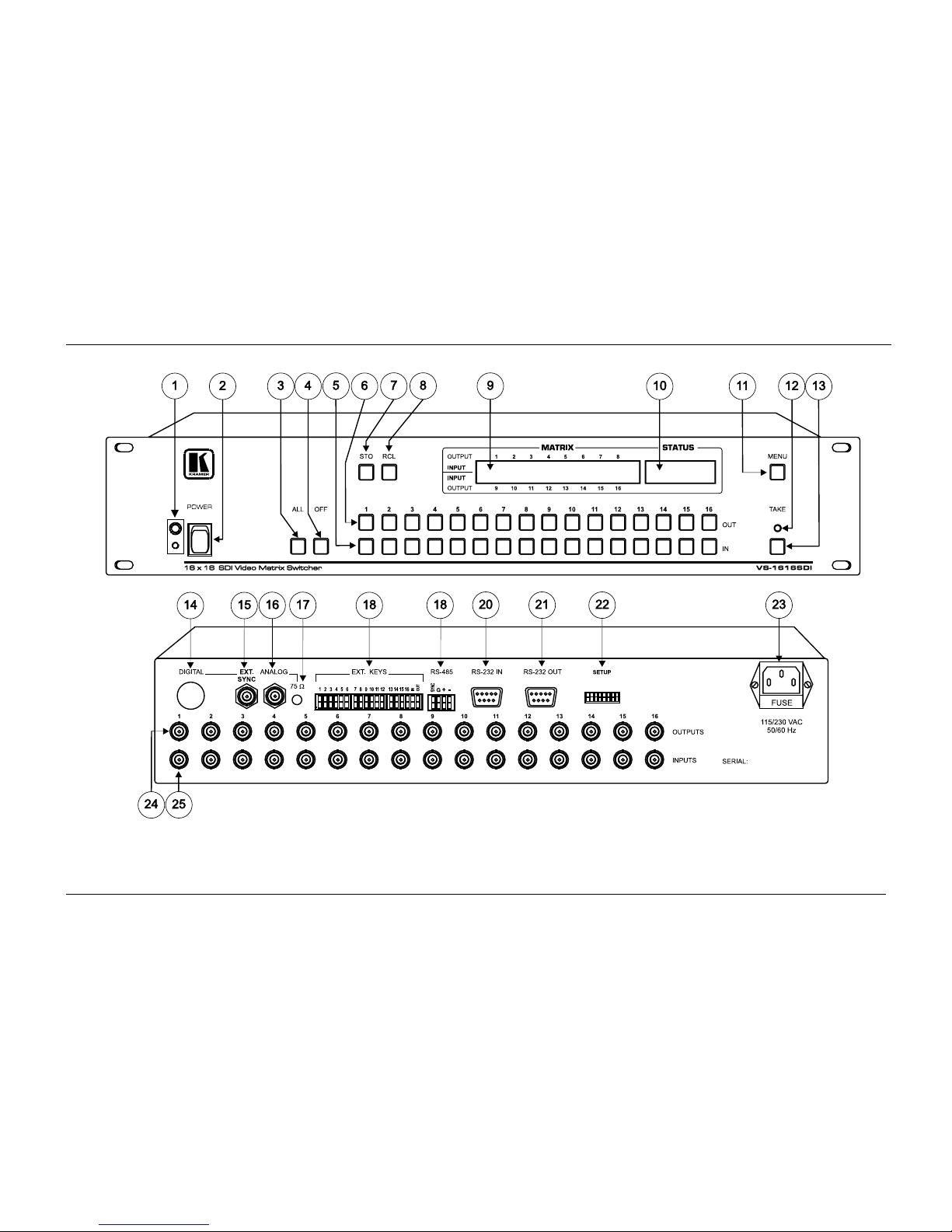

Figure 2: VS-1616SDI 16x16 SDI Video Matrix Switcher

Your SDI Video Matrix Switcher

Table 2: Front Panel VS-1616SDI 16x16 SDI Video Matrix Switcher Features

# Feature Function

1 IR Receiver The red LED is illuminated when receiving signals from the

Kramer Infra-red remote control transmitter

2 Power Switch Illuminated switch supplying power to the unit

3 ALL Button Pressing ALL followed by an INPUT button, connects that input to

all outputs

4 OFF Button An OFF-OUT combination disconnects that output from the inputs;

an OFF-ALL combination disconnects all the outputs

5 IN Buttons Select the input to switch to the output

6 OUT Buttons Select the output to which the input is switched

7 STO Button Stores the current setting in the non-volatile memory

8 RCL Button Recalls a setup from the non-volatile memory

9 LCD MATRIX Display

Displays the selected input(s) switched to the output(s) (above or

below the corresponding OUTPUT label) and user interface

messages

LCD STATUS Display

Displays the matrix status (input to output connections)

MENU Button Selects the programming commands to setup the switcher

TAKE LED Shows the current TAKE button mode

TAKE Button Used to confirm and complete setup and switching

Table 3: Rear Panel VS-1616SDI 16x16 SDI Video Matrix Switcher Features

# Feature Function

DIGITAL Space for optional digital Genlock input board with BNC

Connector

EXT. SYNC BNC Connector Connects to the external sync source

ANALOG BNC Connector Connects to the analog Genlock source



Analog Genlock Button Press to terminate at 75 or release for looping

EXT. (extension) KEYS

Terminal Block Connectors

Connects to an external keyboard (remote unit)

RS-485 Detachable Terminal

Block Port

Pins # 1 and # 2 are for vertical sync and Ground connection, and

Pins # 3 and # 4 are for RS 485

RS-232 IN DB 9F Port Connects to the PC or the Remote Controller

RS-232 OUT DB 9M Port Connects to the RS-232 IN DB 9F port of the next unit in the

daisy-chain connection

SETUP Dipswitches Dipswitches for setup of the unit

Power Connector with Fuse AC connector enabling power supply to the unit

INPUTS BNC Connectors Connect to the digital video sources

OUTPUTS BNC Connectors Connect to the digital video acceptors

1 In sections 7.2.4 and 8, the word “Displays” refers to the LCD MATRIX and STATUS Displays

2 Push in to terminate the sync line. Push out when the sync line extends to another unit

3 If the unit is not the first unit in the line, connects to the RS-232 OUT DB 9F port of the previous unit in the line

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Installing the SDI Video Matrix Switcher

6 Installing the SDI Video Matrix Switcher

To install the VS-1616SDI, connect the following

to the rear panel, as

required:

Power cord

Video input and output cables

Control Interface cables between switcher units, or PC (or other

controller), as section 6.4 describes

Set the dipswitches, as section 6.3 describes

Set the system variables using the MENU function, as section 8

describes

Using the VS-1616SDI unit and/or other 16x16 matrix switchers in the

series

, you can assemble the following kinds of systems:

A stand alone switcher (see section 6.1)

A system of interconnected switchers (see section 6.2)

6.1 Configuring a Standalone SDI Video Matrix Switcher

By default, a single VS-1616SDI unit is configured as a 16x16 stand alone

switcher for SDI video with 16 inputs and 16 outputs, as Figure 3 illustrates:

Figure 3: Configuring a Stand Alone 16x16 VS-1616SDI Switcher

1 Switch OFF the power on each device before connecting it to your VS-1616SDI

2 Including the VS-1616A (a 16x16 analog balanced stereo audio matrix switcher), the VS-1616V (a 16x16 analog video

matrix switcher), the VS-1616AD (a 16x16 digital audio matrix switcher), VS-162V (a 16x16 video matrix switcher), and the

VS-162AV (a 16x16 audio-video matrix switcher)

Tabla de contenidos

Otros manuales de Conmutador de matriz de Kramer

Kramer

Kramer VP-16x18AK Manual de usuario

Kramer

Kramer VP-88ETH Manual de usuario

Kramer

Kramer VSM-4x4HFS Manual de usuario

Kramer

Kramer VS-402XL Manual de usuario

Kramer

Kramer XL 1616S Manual de usuario

Kramer

Kramer VS-88HDCPxl Manual de usuario

Kramer

Kramer 3216HDEE Manual de usuario

Kramer

Kramer 88DEE Manual de usuario

Kramer

Kramer VP-16X18AK/110V Manual de usuario

Kramer

Kramer Sierra Video 84V3 Manual de usuario

Kramer

Kramer VS-81HD Manual de usuario

Kramer

Kramer XL 1208V4S Manual de usuario

Kramer

Kramer Sierra Video 3216V5S Manual de usuario

Kramer

Kramer VS-1616V Manual de usuario

Kramer

Kramer VS-42HN Manual de usuario

Kramer

Kramer VP-8x4 Manual de usuario

Kramer

Kramer VSM-4x4X Manual de usuario

Kramer

Kramer VP-12x8 Manual de usuario

Kramer

Kramer VP-4x4 Manual de usuario

Kramer

Kramer VS-4x4YCx1 Manual de usuario

Kramer

Kramer Sierra Video 3232V5 Manual de usuario

Kramer

Kramer XL 1616V2 Manual de usuario

Kramer

Kramer Sierra Video 3216V5 Manual de usuario

Kramer

Kramer XL 1208VS Manual de usuario

Manuales populares de Conmutador de matriz de otras marcas

Broadcast Tools

Broadcast Tools SS 8.2 Manual de usuario

Altimium

Altimium MATF32 Manual de usuario

ALFAtron

ALFAtron ALF-MUK44N Manual de usuario

Monoprice

Monoprice Blackbird 15377 Manual de usuario

PTN

PTN FMX12 Manual de usuario

CYP

CYP nT15GX01 Manual de usuario

TESmart

TESmart HMA0402A40 Manual de usuario

Octava

Octava HD4XSTPMX Manual de usuario

Intelix

Intelix FLX-88 Instrucciones de funcionamiento

Roland

Roland XS-1HD Manual de usuario

Atlona

Atlona AT-HDMI-22M Manual de usuario

Link

Link HD8X8 Manual de usuario

AMX

AMX AVS-OP-2020-117 Instrucciones y recetas

Lindy

Lindy 38042 Manual de usuario

Extron electronics

Extron electronics MTPX Plus Series Manual de usuario

Key Digital

Key Digital Champion KD-16x16CS Manual de usuario

Shinybow USA

Shinybow USA SB-8811 Manual de usuario

Optimus

Optimus Compact Manual de usuario
