VP-778 Quick Start Guide

This guide helps you install and use your VP-778 for the first time.

Go to www.kramerav.com/downloads/VP-778 to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VP-778

Presentation Matrix Switcher/Dual Scaler 1 Set of rack ears 4 Rubber feet

IR remote control transmitter with batteries 1 Power cord 1 Quick start guide

2 DVI (M) to 15-pin HD (F) (AD-DM/GF) 2 DVI-A (M) to 5 BNC (F) adapter cables (ADC-DMA/5BF-1)

Step 2: Get to know your VP-778

# Feature Function

1 IR LED Lights red when the unit accepts IR remote commands

2 IR Receiver Accepts IR remote commands

MODE Button

Select the operation mode: audio follow video (AFV), Video or audio

Mode LED indicators

Indicate the operation mode, as selected via the MODE button

5 CH 1 INPUT

Selector Buttons HDMI Press to select the HDMI input (from 1 to 4)

DVI-U Press to select the DVI universal input: HDMI, VGA, component or composite video (from 1 to 2)

HDBT

Press to select the HDBT input (from 1 to 2)

CH 2 INPUT

Selector Buttons

HDMI

Press to select the HDMI input (from 1 to 4)

DVI-U Press to select the DVI universal input: HDMI, VGA, component or composite video (from 1 to 2)

HDBT Press to select the HDBT input (from 1 to 2)

CH 1 FREEZE Button

Press to freeze/unfreeze the CH 1 output video image

CH 2 FREEZE Button

Press to freeze/unfreeze the CH 2 output video image

9 CH 1 BLANK Button Press to toggle between a blank screen (black) and the CH 1 display

10 CH 2 BLANK Button Press to toggle between a blank screen (black) and the CH 2 display

USR1 User-defined Button

can be assigned and programmed (for example, to turn a projector on and off)

USR2 User-defined Button

can be assigned and programmed (for example, to turn a projector on and off)

13 MENU Button Press to access/exit the OSD menu. While browsing the CH1 OSD menu, press and hold the

MENU button to jump to the CH2 menu and vice versa. When in the MIC Effects menu, press and

hold the MENU button to toggle between MIC 1 and MIC 2

# Feature Function

Navigation Buttons

Button// VOLUME

Button

Press to move to the previous level in the OSD screen. When not within the OSD menu, press to

decrease the Audio CH1 volume

Button // VOLUME

Button

Press to move to the next level in the OSD screen. When not within the OSD menu, increase the

Audio CH 1 volume

// VOLUME Button Press to move down the menu list and to decrease numerical values. When in the transition mode

and not within the OSD menu mode, press to decrease the Audio CH 2 volume

// VOLUME Button Press to move up the menu list values and to increase numerical values. When in the transition

mode and not within the OSD menu mode, press to increase the Audio CH 2 volume

ENTER Button Press to enter sub-menu items, and save. When in the transition mode and not within the OSD

menu, performs as a TAKE button (to carry out a transition).

15 RESET TO XGA/720P

Button

Press to reset the video output resolution to XGA or 720p and change the deep color settings to Off

on the output. Press and hold for about 3 secs to toggle between reset to XGA and reset to 720p

16 PANEL LOCK Button Press and hold for about 3 seconds to lock/unlock the front panel buttons

# Feature Function

HDMI IN Connectors

Connect to the HDMI source (from 1 to 4)

18 DVI-U IN Connectors Connect to the video source that can be HDMI, VGA, Component or

Composite video (from 1 to 2)

19 HDBT IN Connectors Connect to an HDBT Transmitter (for example, the Kramer TP-580Txr) to pass

audio and video signals as well as serial commands (from 1 to 2)

20 AUDIO Input

Unbalanced

Connectors

HDMI IN 3.5mm Mini Jack Connect to an unbalanced audio source for HDMI 1 to HDMI 4 when using

analog audio instead of embedded audio

DVI-U IN 3.5mm Mini Jack

Connect to the unbalanced stereo audio of the DVI-U source (from 1 to 2)

HDBT IN 3.5mm Mini Jack Connect to the unbalanced stereo audio source for HDBT1 to HDBT 2 when

using analog audio instead of embedded audio

21 MIC 1 6mm Jack Connect to a microphone (see microphone pinout)

COND/DYN MIC DIP-switch

Select between a condenser and a dynamic type microphone

MIC 2

6mm Jack

Connect to a microphone (see microphone pinout).

24 COND/DYN MIC DIP-switch Select between a condenser and a dynamic type microphone

25 AUDIO LINE OUT (L, R) TBC Connect to the L and R balanced stereo audio acceptor

26 SPKR OUT 4-pin Terminal Block Connects to a pair of loudspeakers

S/PDIF OUT RCA Connector

Connect to a digital audio acceptor

28 REMOTE IR 3.5mm Mini Jack (opening)

Covered by a cap. The 3.5mm connector at the

end of the internal IR connection cable fits

through this opening

Connects to an external IR receiver unit for controlling the machine via an IR

remote controller (instead of using the front panel IR receiver), Optional. Can

be used instead of the front panel (built-in) IR receiver to remotely control the

machine (only if the internal IR connection cable has been installed)

29 Channel 1 output

connectors HDBT OUT 1 RJ-45 Connect to an HDBT receiver (for example, Kramer TP-580Rxr) to pass audio

and video signals as well as serial commands

30 HDMI OUT 1 Connect to an HDMI acceptor

31 Channel 2 Output

Connectors HDBT OUT 2 RJ-45 Connect to an HDBT receiver (for example, Kramer TP-580Rxr) to pass audio

and video signals as well as serial commands IR?

HDMI OUT 2

Connect to an HDMI acceptor

33 RS-232 DATA 9-pin D-sub Port Connect to the PC or the remote controller and pass data between this RS-232

port and the serial matrix (see step 8 below)

34 RS-232 CONTROL 9-pin D-sub Port Connect to the PC or the remote controller

USB PROG Connector

Connects to a USB drive to upgrade the firmware

ETHERNET Connector

Connects to the PC or other Controller through computer networking

37 Power Connector with Fuse AC connector, enabling power supply to the unit

POWER Switch

Switch for turning the unit on or off

Step 3: Install the VP-778

To rack mount the machine attach both ear brackets to the machine (by removing the three screws

from each side of the machine and replacing those screws through the ear brackets) or place the

machine on a table.

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your VP-778. For best results, we recommend that you always use

Kramer high-performance cables to connect AV equipment to the VP-778.

Note that you can connect DVI-U to an analog (VGA, composite or component video) or digital (HDMI or DVI) source.

RJ-45 Pinout:

DVI-U Pinout:

For the Ethernet and HDBaseT connectors, see the proper wiring

diagram below

PIN Wire Color

C1 Red / Pb

PIN EIA /TIA 568B

C2 Green / Y / CV

PIN Wire Color C3 Blue / Pr

1 Orange / White C4 Horizontal sync (TTL)

2 Orange C5 Common return

Green / White

Vertical sync (TTL)

Blue

Connect the audio output:

5 Blue / White To a balanced stereo audio acceptor To an unbalanced stereo audio

acceptor

Green

Brown / White

8 Brown

Microphone pinout:

Step 5: Connect the power

Connect AC power to the rear of the VP-778, switch on its power and then switch on the power on each device.

Step 6: Set operation parameters via OSD menu

Menu Item Function

Enter the OSD menu via the MENU button on the

front panel or the IR remote control transmitter.

Select a menu item and set parameters as

required.

Inputs Sets the parameters for each input connector such

as input type, native resolution, color depth, HDCP

mode, audio input level and so on

Layout Sets the display mode, transition settings (transition

speed, mode, effects, direction, and take) and

overlay settings (single window and PIP types), as

well as output resolution and other output settings

If you cannot see any video output, verify that the

display, TV, or projector is in good working order

and is connected to the

VP-778. Verify that the VP-778 is selected as the

source. If you still cannot see any video output,

press and hold the RESET TO XGA/720P button

for 3 seconds to reset the output to XGA or 720p

resolution.

Channel 1 / Channel 2 Sets the parameters for the Channel 1 / Channel 2

output including the source, aspect ratio, color

settings, de-interlacing, noise reduction, projection,

power save settings, test patterns, audio settings

and so on

Misc Displays the information, OSD settings, USR

keypad settings, FW upgrade and factory reset

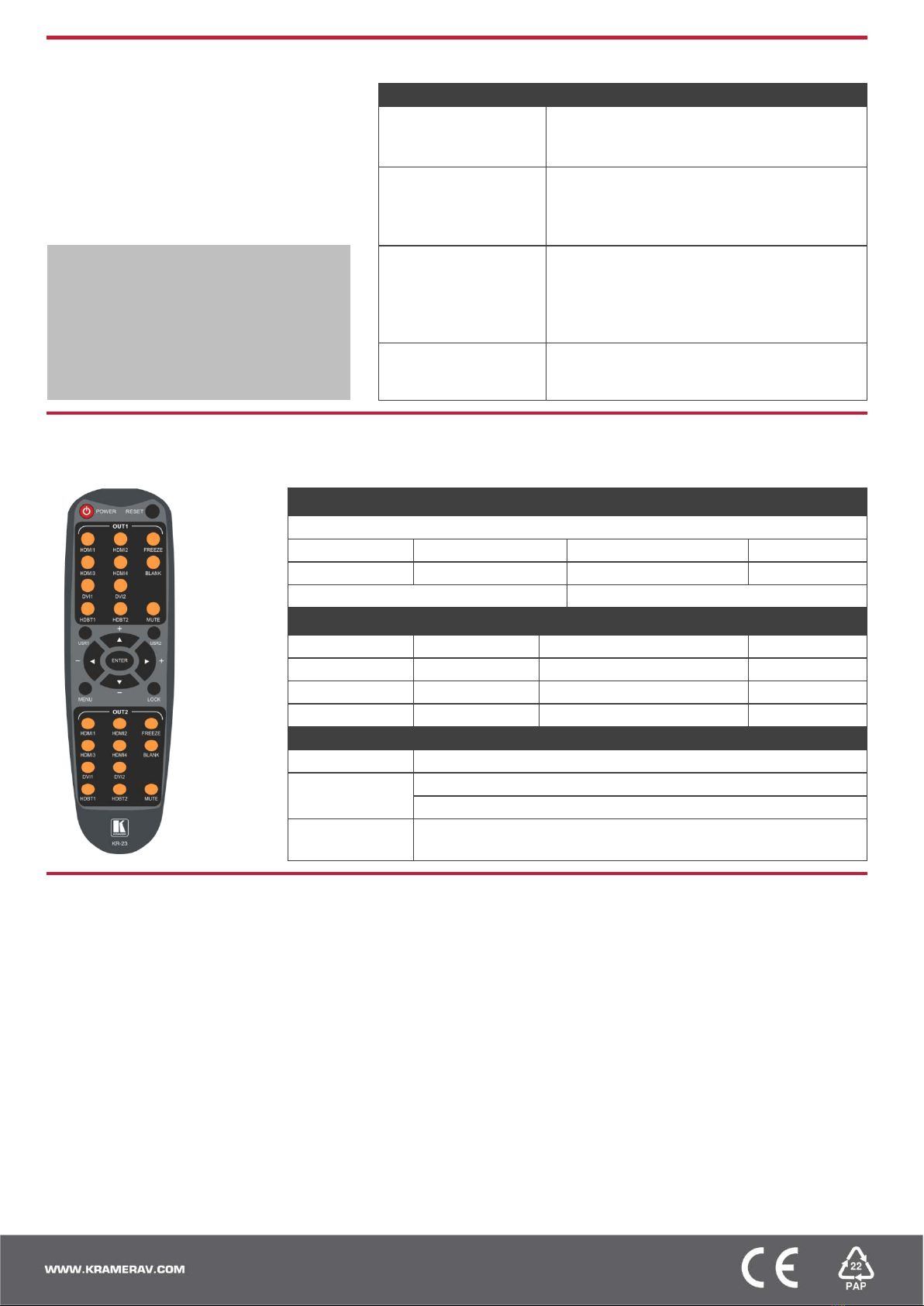

Step 7: Operate via the front panel buttons and via the:

IR remote controller: RS-232 and Ethernet:

RS-232

Protocol 3000

Baud Rate: 115,200 Stop Bits: 1

Data Bits:

Parity:

None

Example (decrease the volume on input 5):

#Y 0,116,-,5<CR>

TCP/IP Parameters

IP Address: 192.168.1.39 UDP Port #: 50000

Subnet mask: 255.255.000.000 Maximum UDP Connections: Unlimited

Default gateway:

192.168.0.1

Maximum TCP Connections:

Unlimited

TCP Port #:

5000

Full Factory Reset

OSD Factory Reset through the Misc menu item

Protocol 3000 Including ETH: use “Factory” command or #Y 0,561,1<CR>

Excluding ETH: use “Factory” command or #Y 0,561,1<CR>

Front panel

buttons

Including ETH: power up the device with the “RESET TO XGA/720P” key

pressed

Step 8: Pass serial data via the device:

The VP-778 lets you route serial data through its various ports in the following ways:

•Serial matrix – up to eight sets of unidirectional connections can be configured for passing serial data from a selected source

to a selected destination.

Select the source/destination ports: port tunneling, the DATA RS-232 port, HDBT IN1, HDBT IN2 HDBT OUT1 or HDBT

OUT2.

•USR buttons – a programmable serial command passes to a selected destination with a press of a USR button.

Select the destination ports: port tunneling, the DATA RS-232 port, HDBT IN1, HDBT IN2 HDBT OUT1, HDBT OUT2 or all
