Kramer TOOLS 810B Manual de usuario
KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
810B
Black Burst/Audio Generator
P/N: 2900-000012 Rev 2
810B – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3Overview 4
3.1 Defining the 810B Black Burst/Audio Generator 4
4Connecting and Adjusting the 810B 5
4.1 Adjusting the Audio Level 6
5Technical Specifications 7
Figures
Figure 1: 810B Black Burst/Audio Generator 4
Figure 2: Connecting the 810B Black Burst/Audio Generator 5
Figure 3: Underside of the 810B Black Burst / Audio Generator 6
810B - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:
Sierra Products.
Congratulations on purchasing your Kramer 810B Black Burst/Audio Generator,
which is ideal for the following typical applications:
Testing and aligning of video equipment, including monitors, recorders and
projectors
2
810B - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer 810B away from moisture, excessive sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!
810B - Getting Started
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
4
810B - Overview
3 Overview
The 810B is a high−performance black burst and 1kHz audio tone generator. It
outputs two composite and one s−Video (Y/C) black burst signals in NTSC or PAL
formats and a 1kHz audio tone simultaneously. In addition, the 810B Black Burst /
Audio Generator features:
1 kHz balanced or unbalanced audio output for audio equipment calibration
A PAL/NTSC selector switch
3.1 Defining the 810B Black Burst/Audio Generator
This section defines the 810B.
Figure 1: 810B Black Burst/Audio Generator
#
Feature
Function
1
1kHz OUT 3-pin Terminal Block
Connector
Connects to a balanced (or unbalanced) audio
input
2
Y/C OUT 4-pin Connector
Connects to an s-Video acceptor
3
OUT 2 BNC Connector
Connects to composite video acceptor 2
4
OUT 1 BNC Connector
Connects to composite video acceptor 1
5
12V DC
+12V DC connector for powering the unit
6
PAL / NTSC Selector Switch
Selects PAL when released; selects NTSC when
pushed in
7
ON LED
Illuminates when receiving power
810B - Connecting and Adjusting the 810B
5

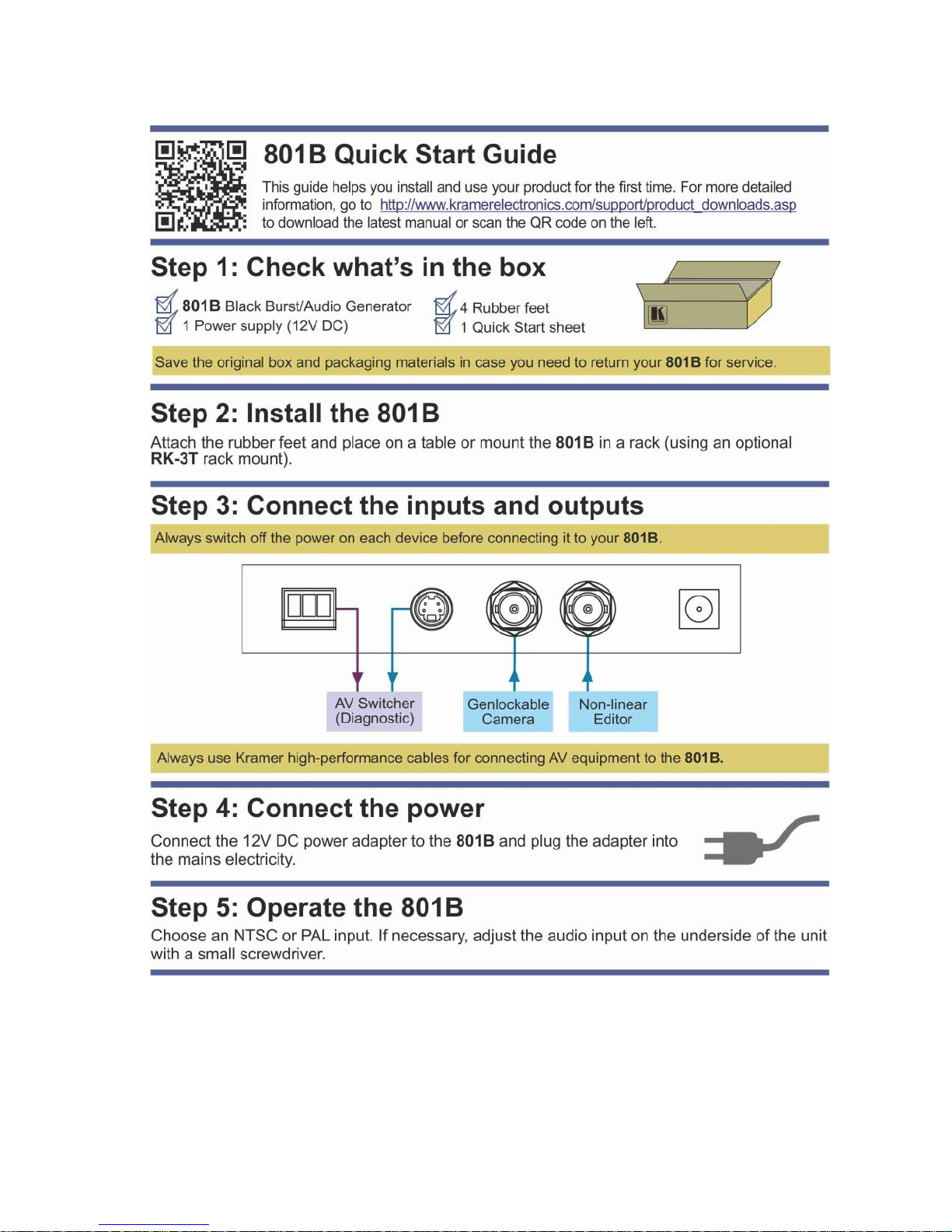

4 Connecting and Adjusting the 810B
Always switch off the power to each device before connecting it to your
810B. After connecting your 810B, connect its power and then switch
on the power to each device.
To connect the 810B as illustrated in the example in Figure 2:
1. Connect the composite video BNC OUT 1 connector to the composite
acceptor (for example, a non-linear editor).
2. Connect the composite video BNC OUT 2 connector to the composite
acceptor (for example, a genlockable camera).
3. Connect the s-Video (Y/C) 4-pin Y/C OUT connector to the s-Video (Y/C)
acceptor (for example, an AV diagnostic switcher).
4. Connect the 3-wire cable to the detachable terminal block 1kHz OUT
connector and to the audio input of the destination unit (for example, the AV
diagnostic switcher).
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
Figure 2: Connecting the 810B Black Burst/Audio Generator
i
6
810B - Connecting and Adjusting the 810B
4.1 Adjusting the Audio Level
The 810B comes factory pre-set at 4dBm. However, you can adjust the audio level
if needed.
To adjust the audio level:
1. Insert a small screwdriver into the small hole on the underneath of the 810B
Black Burst / Audio Generator, enabling access to the trimmer.
2. Carefully rotate the screwdriver, trimming the 810B unit and adjusting the
audio level, as required.
Figure 3 illustrates the position of the small hole on the underneath of the 810B
Black Burst / Audio Generator:
Figure 3: Underside of the 810B Black Burst / Audio Generator
810B - Technical Specifications
7
5 Technical Specifications
VIDEO OUTPUTS:
2 black burst on BNC connectors; 1Vpp / 75Ω
1 black burst on 4-pIN connector, 1Vpp / 75Ω (luma),
0.3Vpp / 75Ω (chroma, PAL)
AUDIO OUTPUTS:
1kHz, 4dBm / 47Ω balanced audio on detachable
terminal block
CONTROL:
PAL / NTSC selector switch
VIDEO S/N RATIO:
62dB
LINE JITTER:
2ns
POWER CONSUMPTION:
12V DC, 160 mA
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
-40° to +70°C (-40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
DIMENSIONS:
12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H
WEIGHT:
0.3kg (0.67lbs) approx
ACCESSORIES:
Power adapter
OPTIONS:
RK−3T 19" rack adapter
Specifications are subject to change without notice at http://www.kramerelectronics.com
