Kramer Electronics, Ltd.

Preliminary

USER MANUAL

Model:

SL-12

Master Room Controller

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 2

3Overview 3

4Your SL-12 Master Room Controller 4

5Connecting the SL-12 Master Room Controller 5

5.1 Using the RC-4 IR transmitter 7

5.2 Connecting the RS-232 Interface 7

5.3 Connecting the RS-485 Interface 7

5.4 Connecting the Ethernet Port 8

5.5 Connecting the K-NET Port 8

6Operating the SL-12 Master Room Controller 9

7Technical Specifications 9

Figures

Figure 1: SL-12 Master Room Controller 4

Figure 2: Connecting the SL-12 Master Room Controller 6

Figure 3: RS-232 Connection 7

Figure 4: RS-485 Connection 7

Figure 5: K-NET Pinout Connection 8

Tables

Table 1: SL-12 Master Room Controller Functions 4

Table 2: SL-12 Master Room Controller Technical Specifications 9

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups1

Thank you for purchasing the Kramer MultiTOOLS®SL-12 Master Room

Controller, which is ideal for:

that are clearly

defined by function.

•Controlling multimedia rooms, such as classrooms, auditoriums,

conference rooms, and so on, while enabling remote control and

management of the AV equipment

•Production studios, rental, and staging

Each package includes the following items:

•The SL-12 Master Room Controller

•Kramer K-Config configuration software

•Power supply and this user manual2

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance high-resolution cables

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

The SL-12 is a highly versatile controller that acts as an all-in-one control

processor for control of A/V equipment—especially projectors and

associated equipment—in any room (such as classrooms, boardrooms, or

auditoriums). It streamlines operations and simplifies control by integrating

audio, video, and computer-video sources into a centralized system.

The SL-12 Master Room Controller features:

•4 general purpose I/O ports that can be configured as analog inputs,

digital inputs, or digital outputs for interfacing with a variety of devices

such as sensors, switches, LEDs, and relays

•4 bidirectional RS-232 ports that control AV equipment such as

projectors, LCD and PDP displays, power amplifiers, switchers and

scalers

•8 relay contact closure ports that control other room items related to the

AV system such as raising and lowering drapes, the screen or the

projector

•IR control on 2 inputs (3.5mm) and 4 outputs (terminal blocks)

•IR Learning that learns commands from any IR remote

•1 RS-485 serial port

•Compatibility with Kramer Site-CTRL software for network remote

control and management over the Ethernet port

•A K-NET™ control channel that connects compatible user interfaces

and supplies power and control data over a single cable

•A USB port for uploading a configuration file

•Status LEDs for all functions

•Flexible control via Ethernet, K-NET™, RS-485, an IR sensor and

external IR commands

To achieve the best performance:

•Use only good quality connection cables1

•Position your Kramer SL-12 away from moisture, excessive sunlight

and dust

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your SL-12 Master Room Controller

4 Your SL-12 Master Room Controller

Figure 1 and Table 1 define the unit.

Figure 1: SL-12 Master Room Controller

Table 1: SL-12 Master Room Controller Functions

Feature

Function

1 ETHERNET RJ-45 Connector Connects to the PC or other serial controller through computer

networking LAN

2 DEFAULT Recessed Pushbutton Press to reset to factory default definitions

IP number −192.168.1.39, Mask – 255.255.0.0,

Gateway – 0.0.0.0

IR Output Terminal Blocks Connect to IR emitter cables (from 1 to 4)

4 GPI/O Terminal Blocks Connect to various analog and digital sensors (from 1 to 4)

5 RELAYS Terminal Blocks Connect to low-voltage relay-driven devices (from 1 to 8)

6 RS-232 Terminal Blocks Connect to the RS-232 devices (from 1 to 4)

7 RS-485 Terminal Block Pins B (-) and A (+) are for RS-485; Pin G may be connected to

the shield (if required)

8 K-NET2PIN GND is for the Ground connectionConnector 3

; PIN B (-) and PIN A

(+) are for RS-485, and PIN +12V is for powering the unit

RS-485 TERM Switch Slides down for RS-485 termination, slides up for not

terminated

10 K-NET TERM Switch Slides down for K-NET termination, slides up for not

terminated

11 PROG. Switch For service use only

1 First disconnect the power supply and then connect it again while pressing the DEFAULT button. The unit powers up and

loads its memory with the factory default definitions and erases all stored presets

2 K-NET is a proprietary Kramer protocol for interconnecting Kramer units

3 The ground connection is sometimes connected to the shield of the RS-485 cable (in most applications, it is not connected)

Connecting the SL-12 Master Room Controller

Feature

Function

12 12V DC 12V DC connector for powering the unit

13 IR INPUTS Sensor and Status LED Accepts IR remote commands

14 IR INPUTS 3.5mm Mini Jacks Connect to remote infrared sensors (1 and 2)

15 RELAYS LEDs Illuminate when an relay is active (1 to 8)

16 IR LEDs Illuminate when an IR port is active

17 NET LED Illuminates when the Ethernet link is active

18 K-NET LED Illuminates while transmitting over K-NET

19 RS-485 LED Illuminates while transmitting/receiving on an RS-485 port

20 RS-232 (Tx/Rx)LEDs Illuminate while transmitting/receiving on an RS-232 port

(1 to 4)

21 GPI/O LEDS Illuminate while transmitting/receiving on a general purpose

I/O port (1 to 4)

22 PROGRAM USB Connector Connect to a computer for unit configuration and firmware

upgrading

5 Connecting the SL-12 Master Room Controller

To connect the SL-12, as the example in Figure 2 illustrates, do the following1

1. Connect the RELAY terminal block connectors as follows:

Connect RELAY 1 and 2 to the projector lift

Connect RELAY 3 and 4 to the screen

Connect RELAY 5 and 6 to the blinds

Connect RELAY 7 and 8 to the lighting system

2. Connect the GPI/O ports as follows:

Connect GPI/O 2 to motion detector 1

Connect GPI/O 4 to motion detector 2

3. Connect the IR outputs as follows:

Connect an IR emitter2

Connect an IR emitter

to IR OUTPUT 1 and attach the emitter to

the DVD player 2to IR OUTPUT 2 and attach the emitter to

the power amplifier

4. Connect the IR sensors as follows:

Connect IR INPUT 1 to IR sensor3

Connect IR INPUT 2 to IR sensor 1

1 Switch OFF the power on each device before connecting it to your SL-12. After connecting your SL-12, switch on its power

and then switch on the power on each device

2 P/N: C-A35/IRE-10; two IR Emitter Extension Cables are also available: a 15 meter cable and a 20 meter cable

3 P/N: 95-0104050

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the SL-12 Master Room Controller

5. Connect the RS-232 ports as follows:

Connect RS-232 port 1 to the projector

Connect RS-232 port 3 to the plasma display

6. Connect the RS-485 to several Kramer matrices, for example1

7. Connect the Ethernet port to a network.

8. Connect the K-NET port to any RC device with K-NET.

Figure 2: Connecting the SL-12 Master Room Controller

1 Not shown in Figure 2

Connecting the SL-12 Master Room Controller

5.1 Using the RC-4 IR transmitter

You can use the optional RC-4 IR transmitter as an auxiliary control panel

and initiate configured control macros—refer to the K-Config configuration

guide—via the built in IR receiver on the front panel, or, instead, via an

optional external wired IR receiver1

5.2 Connecting the RS-232 Interface

, which exists in several cable lengths.

To connect an AV device to the SL-12 using the RS-232 port, connect the

RS-232 9-pin D-sub port on your device to the RS-232 terminal block on

the rear panel of the SL-12 as shown in Figure 3:

Figure 3: RS-232 Connection

5.3 Connecting the RS-485 Interface

To connect an AV device to the SL-12 using the RS-485 port, connect the

RS-485 port on your device to the RS-485 terminal block on the rear panel

of the SL-12 as shown in Figure 4:

Figure 4: RS-485 Connection

1 Model: C-A35M/IRR-50

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the SL-12 Master Room Controller

5.4 Connecting the Ethernet Port

The Ethernet connection of the SL-12 allows you to perform all control

functions of the SL-12 over the Internet using a PC running the Kramer

Site-CTRL control program.

To connect the SL-12 to a network:

1. Connect the Ethernet port of the SL-12 to the Ethernet port on a network hub

or network router, via a straight cable with RJ-45 connectors.

2. At the other end, connect the Internet to a PC running Site-CTRL.

After connecting the Ethernet port, you have to install and configure it. For

detailed instructions on how to install and configure your Ethernet port, see

the K-Config Configuration Guide1

5.5 Connecting the K-NET Port

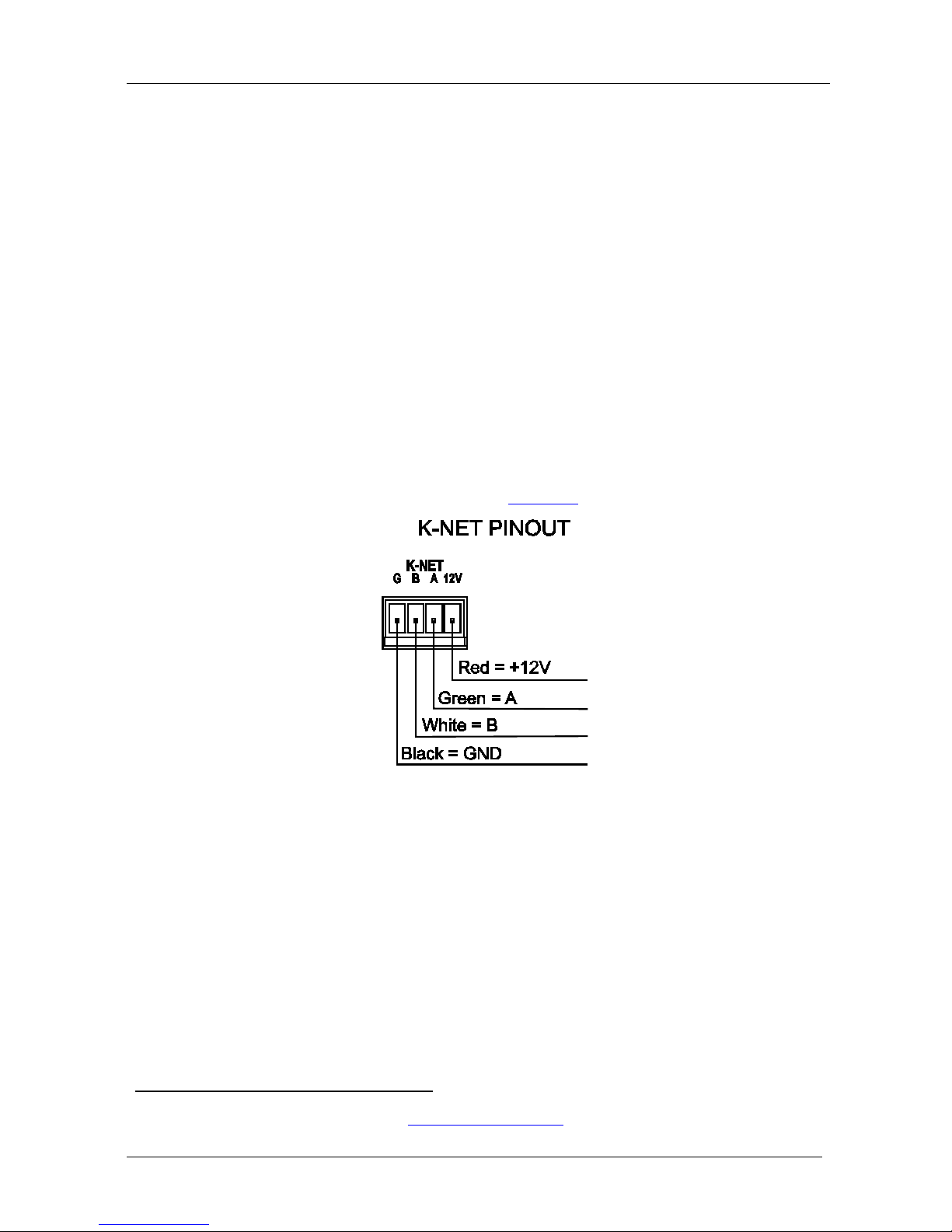

The K-NET port is wired as shown in Figure 5.

Figure 5: K-NET Pinout Connection

1 Available for download at the Kramer Web site: www.kramerelectronics.com
