KPS DMM3000 Manual de usuario

User Manual / MANUAL DEL USUARIO /

Manuel d'utilisation /

Benutzerhandbuch / Manuale Utente

DMM3000

LIMITED

WARRANTY

YEARS

EN All New True RMS Multimeter

Multímetro de valor eficaz verdadero totalmente rediseñado

Multimètre RMS (« valeurs efficaces vraies ») avec tout

nouveau design

Ganz neu gestaltetes True RMS Vielfachmessgerät

Multimetro a vero valore efficace di progettazione

assolutamente nuova

DMM3000

Safety Information

Read First

Understand and follow operating instructions carefully.

WARNING

Identifies hazardous conditions and actions that could cause

BODILY HARM or DEATH.

WARNING

•When using test leads or probes, keep your fingers behind the

finger guards.

•Remove test lead from Meter before opening the battery door or

meter case.

•Use the Meter only as specified in this manual or the protection

by the Meter might be impaired.

•Always use proper terminals, switch position, and range for

measurements.

•Verify the Meter’s operation by measuring a known voltage.

If in doubt, have the Meter serviced.

•Do not apply more than the rated voltage, as marked on Meter,

between terminals or between any terminal and earth ground.

•Only replace the blown fuse with the proper rating as specified

in this manual.

•Use caution with voltages above 30 Vac rms, 42 Vac peak,or 60

Vdc. These voltages pose a shock hazard.

•To avoid false readings that can lead to electric shock and

injury, replace battery as soon as low battery indicator.

•Disconnect circuit power and discharge all high-voltage

capaci-tors before testing resistance, continuity, diodes, or

capacitance.

•Do not use Meter around explosive gas or vapor.

•To reduce the risk of fire or electric shock do not expose this

product to rain or moisture.

CAUTION

Identifies conditions and actions that could DAMAGE the meter or

equipment under test.

DMM3000

CAUTION

•Disconnect the test leads from the test points before changing

the position of the function rotary switch.

•

Do not expose Meter to extremes in temperature or high humidity.

•1HYHUVHWWKHPHWHULQȍ$IXQFWLRQWRPHDVXUHWKH

voltage of a power supply circuit in equipment that could result

in damage the meter and the equipment under test.

Symbols as marked on the meter and

Instruction manual

Risk of electric shock

See instruction manual

DC measurement

Equipment protected by double or reinforced insulation

Battery

Fuse

Earth

AC measurement

Conforms to EU directives

Do not discard this product or throw away

Attention! Magnets might affect the correct functioning

of cardiac pacemakers and implanted defibrillators.

As a user of such medical devices, keep a sufficient

distance to the magnet.

To alert you to the presence of a potentially hazardous voltage,

when the Tester detects a voltage ≧30 V or a voltage overload

(OL) in V, mV, AutoV . The symbol is displayed.

Unsafe Voltage

Do not attempt to repair this Meter.

It contains no user-serviceable parts. Repair or servicing should

only be performed by qualified personnel.

Maintenance

Periodically wipe the case with a dry cloth and detergent.

Do not use abrasives or solvents.

Cleaning

DMM3000

1VoltSeek Light

2LCD Display

3Button

4Rotary Switch

6Common lnput

7A lnput

5V , , , lnput(or ”+”)

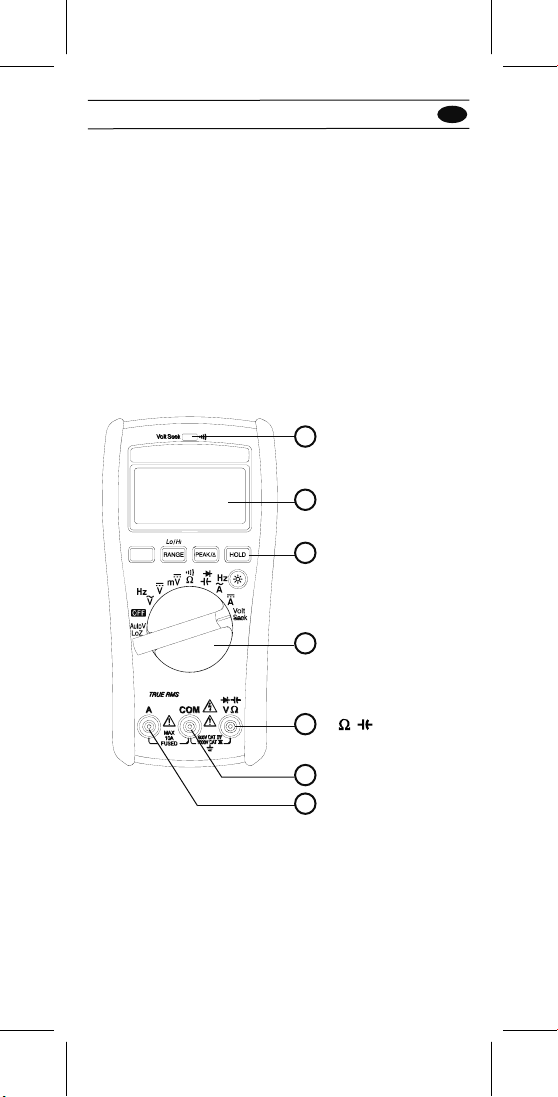

The Meter Description

Front Panel Illustration

1. VoltSeek Light

2. 6,000 counts digital and 60 segments analog display

3. Push-buttons.

4. Rotary switch for turn the Power On / Off and select the

function.

5. Input Terminal for Multi-function.

6. Input Terminal for A.

7. Common (Ground reference) Input Terminal.

Introduction

DMM3000

•6,000 count digital and 60 segments analog display

•Large white LED backlight display

•True RMS measurements on ACV

•LoZ for prevent false reading from ghost voltage

•AutoVolt automatic AC/DC voltage selection

•Auto Ranging

•0.5% DCV accuracy

•Smart Hold

•Peak Hold for capture peak readings

•Relative Function

•Auto Power Off (can be disabled)

•Capacitance measurements

•Frequency Counter on ACV

•Diode Test

•Frequency Counter on ACA

•10Amp ACA/DCA

•11A/1000V High Energy Fuse

•VoltSeekTM for non-contact voltage detection

•EasyStickTM holster with built in magnetic sticker

•ContiVisionTM for visible continuity beeper

•Battery Capacity indication in segments

•Included Holster with Probe Holder, Tilt Stand and Magnetic

sticker

•CAT IV 600V/ CATIII 1000V standard

Features :

Making Basic Measurements

Preparation and Caution Before Measurement

Observe the rules of Warnings and Cautions.

! !!

CAUTION

When connecting the test leads to the DUT (Device Under Test)

connect the common test leads before connecting the live test

leads ; when removing the test leads, remove the live test leads

before removing the common test leads.

DMM3000

Measuring ACV/DCV/AutoV Voltage

Dial the switch to select the measuring function.

Disconnect

Measuring AC/DC Current

Dial the switch to select the measuring function.

DMM3000

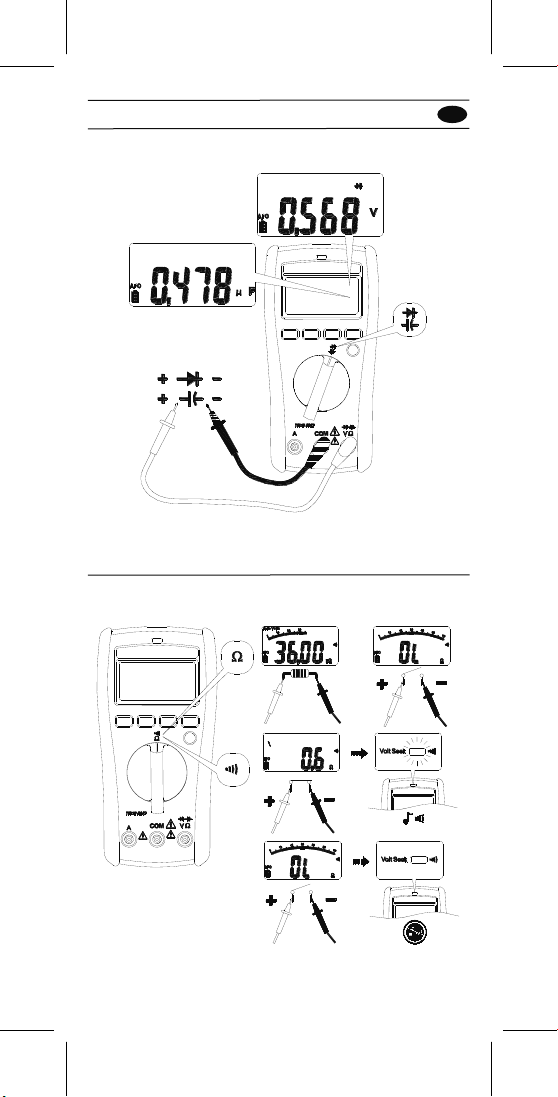

Measuring Capacitance / Diode

Dial the switch and press the Function button to select the

measuring function

Measuring Continuity / Resistance

Red Black

Dial the switch and press the Function button to select the

measuring function.

DMM3000

WARNING

The VoltSeek LED indicates the electric field. If the VoltSeek LED

is not on, voltage could still be present.

VoltSeek

Dial the switch and press the RANGE button to select the

measuring function and sensitivity.

Switch

Position Function

Using the Function

Press the Function button to change the function on the same

switch position.

DMM3000

Press Ragen Button >2 Sec to Auto Mode

123

Range Button

Press

Leave the peak hold mode

Button > 2 sec

Peak Hold (for AC only)

In the Peak Hold function ,the meter records the peak min. value

and the peak max. value when the inputs goes below the recorded

peak min. value or above the recorded peak max. value ,the meter

records the new value . Press Hold button to pause the recording.

DMM3000

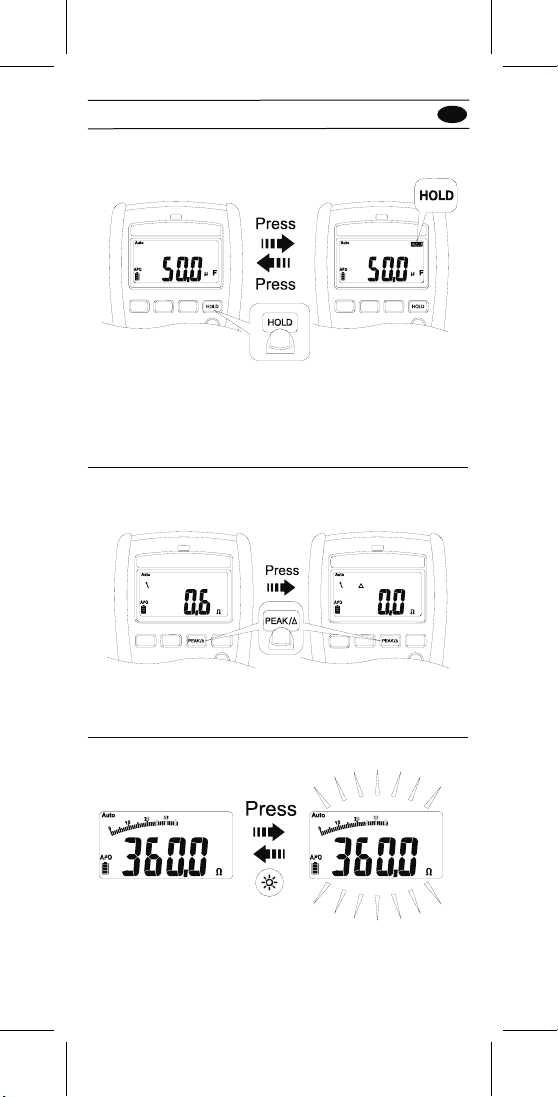

Smart Hold

The meter will beep continuously and the display will flash if the

measured signal is larger than the display reading by 50 counts.

(However ,it can not detect across the AC and DC Voltage /

Current).

5HODWLYHǻ

Press the Relative button to enable/disenable this function.

Backlight

Press the Backlight button to turn the backlight on/off.
