Korenix JetNet 4508 Manual de usuario

JetNet 4508 / 4508f V2

Industrial 8-port Fast Ethernet Managed Switch

Quick Installation Guide

www.korenix.com

V1.0

Introduction

The JetNet 4508/4508f V2 series is an 8-port industrial managed Fast Ethernet Switch

designed with advanced Layer 2 management features and high system reliability, including

MSR and MSTP network redundancy technologies, for ensuring real-time and high quality

connectivity in various networking applications. The Ethernet switch includes 8 10/100Mbps

Fast Ethernet RJ-45 ports (JetNet 4508 V2) or 6 10/100Mbps RJ-45 plus 2 Fast Ethernet

Fiber ports (JetNet 4508f V2) and 32Gbps switch fabric to provide real time non-blocking

transmission performance for satisfying the needs of high bandwidth data transmission

requiring applications while ensuring trafﬁc switching without data loss. Besides, the new

system design includes a hardware based watchdog timer for keeping the operating system

live. It also provides power redundancy with wide range DC10V~60V inputs for ensuring the

power continuity in the system. Combining the outstanding L2 management features along

with the LLDP and the JetView Pro Intelligent NMS into the ruggedized design with IP31

enclosure and -25~70°C (JetNet 4508 V2), -10~70°C (JetNet 4508f V2) and -40~75°C (JetNet

4508 V2-w / 4508f V2-w versions) wide operating temperature, the switches provide highly

reliable and secure data transmission under severe industrial environments.

Package Checklist

Unpack the box, you will ﬁnd

4JetNet 4508 or JetNet 4508f with

DIN Rail kit x1

4Quick Installation Guide

4CD User Manual

4Console Cable (RJ-45 /DB9)

Mounting the Unit

Din-Rail mount: Mount the din-rail clip on the rear of JetNet

4508 / 4508f on the DIN rail. For information about the DIN

Rail installation, please refer to user’s manual.

JetNet 4508 / 4508f V2

Industrial 8-port Fast Ethernet Managed Switch

Quick Installation Guide

www.korenix.com

V1.0

Grounding JetNet 4508 / 4508f V2

There is one grounding screw on the bottom side of

JetNet 4508/4508f V2. Connect the frame grounding

of JetNet 4508/4508f V2 to the grounding surface

to ensure safety and prevent noise to interfere

communication.

Wiring the Power Inputs

1. Insert the positive and negative wires into the V+ and V- contact on the terminal block

connector.

Wiring the Relay Output (DO)

The relay output contacts are in the bottom side as shown on Figure-3. The relay output (DO)

is controlled by the pre-deﬁned operating rules. To activate relay output function, please refer to

the User’s Manual for the Relay Output information.

2. Tighten the wire-clamp screws to prevent the power wires from being loosened.

Notes: The recommended working voltage is DC 24V (Input range: DC10~ 60 V),

maximum power consumption is 10 Watts.

Note: The relay contact only

supports 1A current, DC 24V.

It is not recommended to apply

voltage and current higher than

the speciﬁcations.

Figure-3

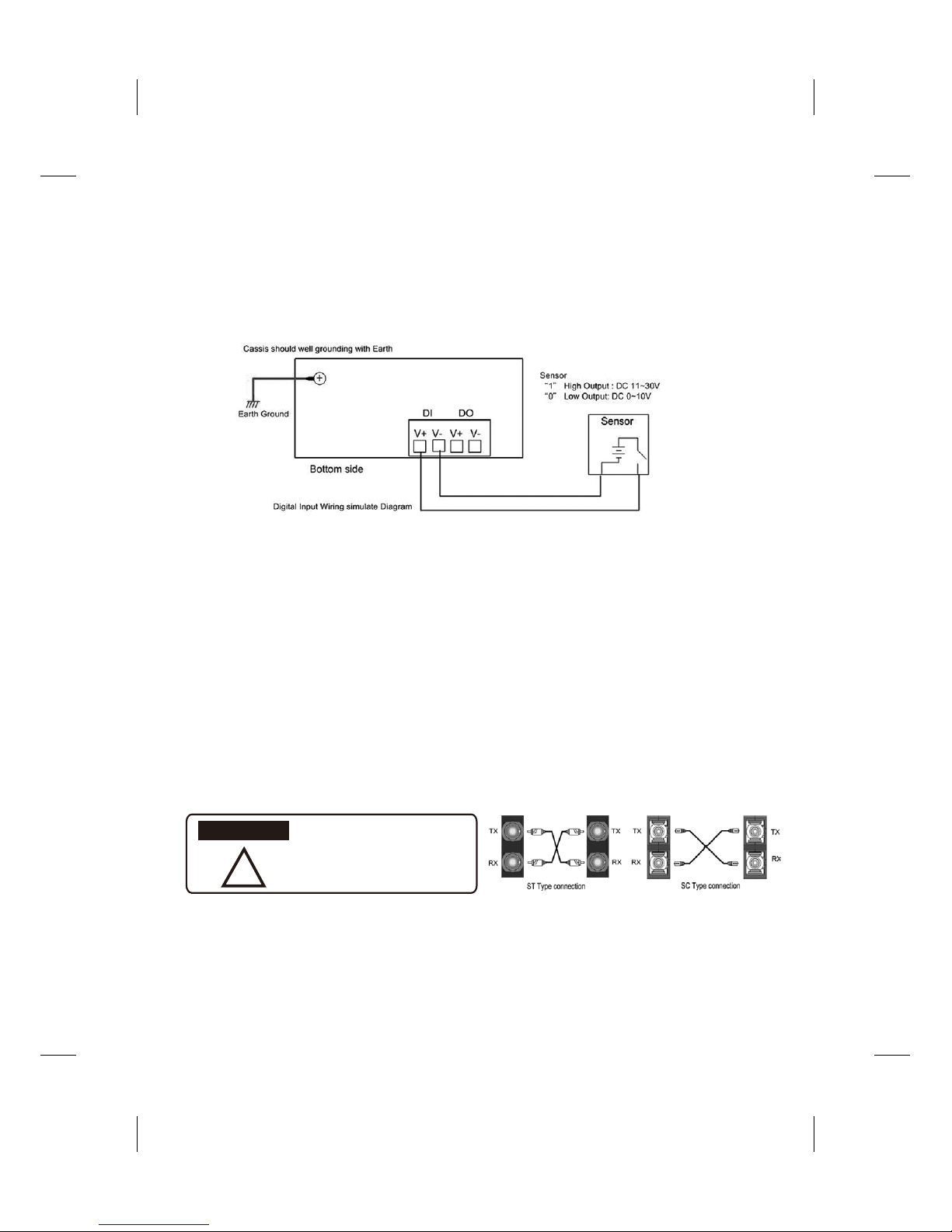

Wiring the Digital Input (DI)

The Digital Input (D.I.) contacts are in the bottom side of the device as shown in Figure-4.

It accepts one external DC type signal input and can be conﬁgured to send alert message

through Ethernet when the signal is changed.

Note: the DI accepts DC type signal and supports isolated input circuit with Digital High

Level input DC 11V~30V and Digital Low Level input DC 0V~10V. Do not apply voltage

higher than the speciﬁcation; it may cause internal circuit damage or a wrong action of DI.

Connecting to Network

1. Connecting the Ethernet Port: Connect the Ethernet port of JetNet 4508 series with

the other Ethernet device by Cat-5/Cat-6 UTP or STP cable, and then the LNK/ACT LED

will turn on and start ﬂashing to indicate the communication is occurred between 2 devices.

2. Connecting the Fiber Port: Cross-connect the transmit channel at each end to the

receive channel at the opposite end as illustrated in the Figure-5.

Figure-5

This is a Class 1 Laser/LED

product. Don’t stare at the

Laser/LED Beam.

ATTENTION

Figure-4

Device Management

JetNet 4508 series Industrial Managed Switch provides both in-band and out-band

configuration methods. You can configure the switch via the RS-232 console with the

attached console cable. Or you can remotely manage the switch via network. You can

choose Telnet/SSH, Web/HTTPS management.

1. Preparation for console management: Attach the RS-232 DB9 connector to your PC’s

COM port. Connect the RJ-45 connector to the console port of the JetNet 4508 Switch.

Go to Start -> Program -> Accessories -> Communication -> Hyper Terminal

Give a name to the new console connection.

Choose the COM name and select the correct serial settings. The serial port settings of

JetNet 4508 are as below: 9600bps, No parity check, 8 Data bits, 1 stop bit

After connected, you will see the Switch login request. Type the username and password and

then you can login. The default username is “admin”, password is “admin”.

Follow the manual to conﬁgure the software features.

2. Preparation for Web management: Before you attempt to use the embedded web interface

to manage switch operation, verify that JetNet 4508 is properly installed on your network and

that every PC on this network can access the switch via the web browser.

Launch the web browser (Internet Explorer or Mozilla Firefox) on the PC.

Type http://4508_IP_Address (The default IP address is 192.168.10.1.), then press Enter.

The login screen will appear next.

Type in the user name and password and click

“OK” button. The welcome page of the Web-Based

management interface will appear then. The default

user name and password is admin/admin.

Korenix Customer Service

KoreCARE is Korenix Technology’s global service center, where our professional staffs are

ready to answer your questions at any time.

Korenix global service center’s e-mail is [email protected]

At the left column of the web management interface

are the software features, where ring column will

list the available settings.

For more operating instructions, please refer to

the User’s manual of JetNet 4508/JetNet 4508f

V2 series included in the packing or downloadable

from the Korenix Website – www.korenix.com.

Tel:+886-2-89111000

Fax:+886-2-29123328

Business service:[email protected]

Customer service:[email protected]

CPQ000N4508000
