Kolpin Outdoors 35-5010 Guía de configuración
© 2021 Kolpin Outdoors Inc. REV 00
FRONT-CONNECT PLOW
MOUNT KIT
FOR YAMAHA VIKING
P/N 35-5010
ASSEMBLY / INSTALLATION MANUAL
Application
FRONT-CONNECT PLOW P SH FRAME NO. 35-0070
Before you begin, please read these instructions and check to be sure all parts and tools are accounted for.
The following instructions contain details required to install and service the contents of this kit.
2
© 2021 Kolpin Outdoors Inc. REV 00
INTRO
Thank you for purchasing Kolpin engineered products. With proper installation, usage, care, and maintenance, your Kolpin product will
last for years to come.
BEFORE YOU BEGIN
• Your Kolpin accessory is exclusively designed for your vehicle.
• Read and understand the entire installation manual, including all installation instructions, operating instructions, safety warnings
and guidelines before installing or operating your accessory. Failure to comply may result in damage to the product and / or
vehicle, and can lead to hazards up to and including death.
• Verify all parts and tools are accounted for. If parts are missing, do not return to the store. Call us for help,
Toll Free 1-77-956- 5746
• Follow all steps correctly and in the sequence described.
• Keep these instructions for future reference or for informational requests.
• To facilitate installation, make sure that your vehicle is clean and free of debris.
• All directions referring to right and left are from the rider perspective when sitting on the machine.
ASSEMBLY TIME
Approximately 24 minutes
SAFETY INFORMATION
Please read and understand all Cautions, Notices, and Warnings in this manual before you begin. In order to protect you and your
ATV / TV, certain parts of the plow system and / or hardware are designed to fail when the equipment is over-stressed.
Follow these guidelines to ensure satisfactory operation:
• Read this manual and your ATV / TV operators manual before use.
• Periodically check for wear and tightness of all fasteners. Replace or re-torque fasteners as necessary.
• Before first use, set plow in the furthest right or left angled position to check for interference with the vehicle.
• Operate with extreme caution on slopes and rough terrain. Be familiar with the area before you plow.
• Be aware of immovable objects that could be hidden in the area you are plowing.
• To avoid damage when pushing snow into a pile, reverse direction before raising the plow blade.
• Do not ram the plow blade into piles of snow.
• For best results, set the suspension preload of your ATV / TV to the stiffest setting.
• To reduce steering effort and increase mobility, set the air pressure of your tires to the maximum pressure specification.
• The plow skids are adjustable. General skid setting is even with the plow wear bar bottom edge, higher settings reduce the
chance of rocks and gravel from being collected.
• To increase traction during plow operation, operators can try: Securing weight to the ATV / TV for additional tire downforce,
reducing tire air pressure, or installing tire chains.
3
© 2021 Kolpin Outdoors Inc. REV 00
REQUIRED SOLD SEPARATELY
Only parts for installation of the Plow Mounting Bracket Kit are included. For complete snow plow system
installation, additional items are required such as a plow push frame, plow blade, winch, and winch
mount. See www.Kolpin.com for products to complete your plow system.
TOOLS REQUIRED
• Safety Glasses
• Socket Set, Metric
• Torque Wrench
• Wrench Set, Metric
• Drill
• 3/8” Drill Bit
WARNING
TO AVOID SERIOUS INJURY OR DEATH:
1. DO NOT EXCEED 5 MPH ( KMH) WITH BLADE INSTALLED
2. OPERATE WITH EXTREME CAUTION ON SLOPES, STEEP GRADES, AND ROUGH TERRAIN
3. ALLOW NO RIDERS ON BLADE OR ATV WHILE MOVING OR STATIONARY
4. KEEP BYSTANDERS AWAY FROM THE BLADE OR ATV WHILE MOVING OR STATIONARY
5. WHEN PUSHING HEAVY MATERIAL, DIRECTION CONTROL MAY BECOME DIFFICULT
6. BEFORE ADJUSTING BLADE: STOP ATV ENGINE; SET AND LOCK BRAKES; RAISE AND LOCK BLADE
7. LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV ARE NOT IN USE
8. READ BLADE INSTRUCTION SHEETS AND ATV OWNER’S MANUAL
! !
4
© 2021 Kolpin Outdoors Inc. REV 00

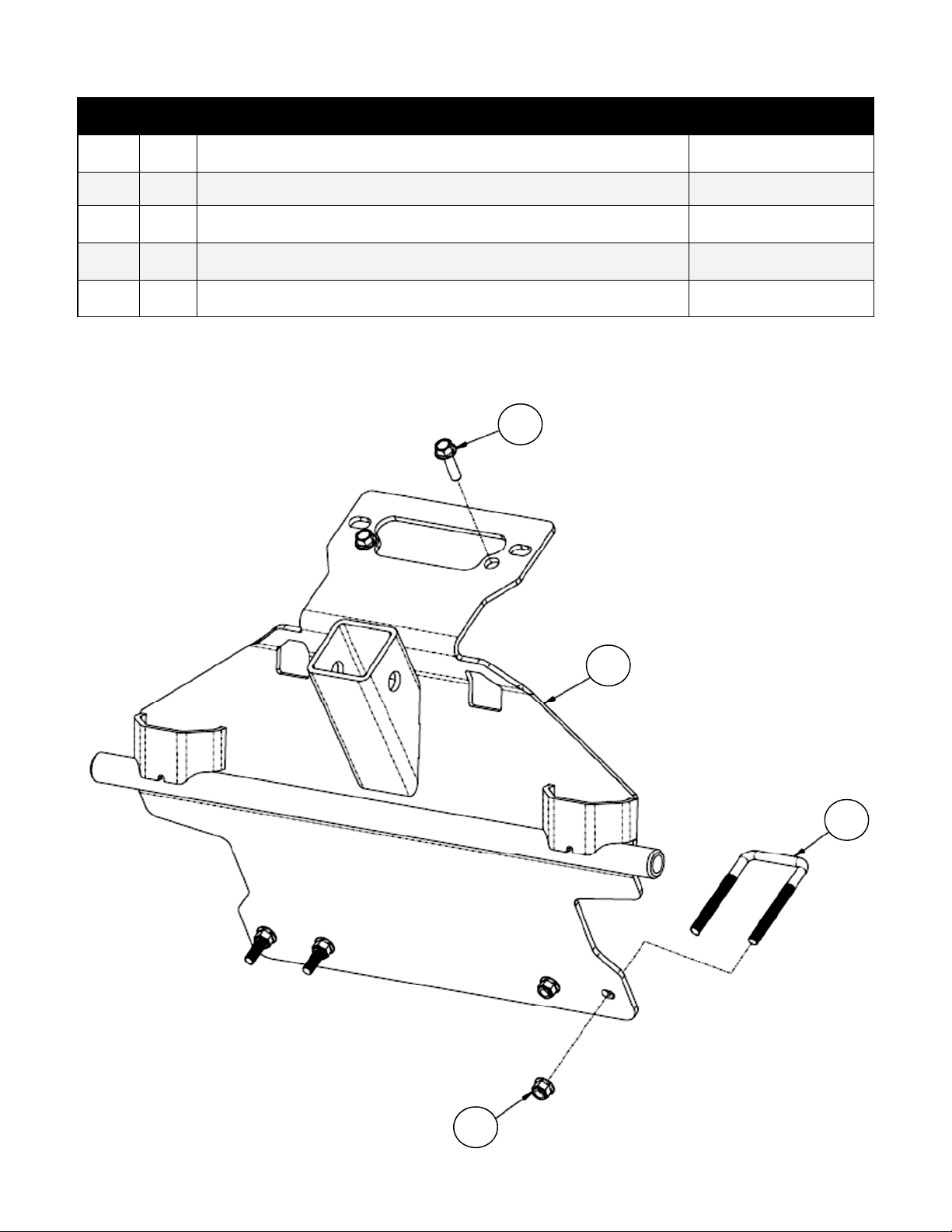

KIT CONTENTS
Item Qty Part Description Part Number
11Viking Mounting Bracket -
22Hex Flange Bolt, Zinc Plated, M8-1.25 x 30mm LG -
34Hex Flange Locknut, Zinc Plated, M8-1.25 -
42Square -Bolt, Zinc Plated, M8-1.25 x 50mm x 90mm LG -
51Instruction Guide (not shown) -
1
2
3
4
5
© 2021 Kolpin Outdoors Inc. REV 00
INSTALLATION INSTRUCTIONS
VEHICLE PREPARATION
GENERAL
1. Park vehicle on a flat surface.
2. Set the parking brake.
3. Turn key to OFF position and remove key.
ACCESSORY INSTALLATION
4. Install your winch mounting bracket using the
instructions provided in the winch mount kit.
Note, this plow mount kit requires Kolpin
winch mount kit 25-5310. f your winch
was already installed, remove the roller
fairlead from the winch mounting bracket,
this will provide access to install the plow
mount.
5. Install the plow mount (item #1) to the winch
mounting bracket using the long M8 screws
(item #2) as shown. Loosely fasten using the
M8 locknuts provided with winch kit. (See
illustrations 1-2 and 1-6). Note, do not fully
tighten at this time. f you have a wider
roller, then you will have to use the top
set of roller mounting holes.
6. Position the mount plate (item #1) up against
the skid plate. sing the mount as a
template, mark the rear mounting holes onto
the plastic skid plate as shown. (See
illustrations 1-2, 1-3 and 1-4). Note, do not
fully tighten at this time.
7. Remove plow mount and drill holes. Note, drilling
access may be easier if skid plate is removed
from vehicle.
Ill. 1-1
Ill. 1-2
Ill. 1-3
1
Ill. 1-4
Remove roller fairlead
Mark drilling holes
Plastic
skid
plate
2
1
Mark drilling holes
Drill marked
holes
FRONT
6
© 2021 Kolpin Outdoors Inc. REV 00
ACCESSORY INSTALLATION
(continued)
8. Repeat step 5 and re-install the
mount plate (item #1) and install the
roller fairlead as shown. The plastic
skid plate fits under the plow mount
(item #1). (See illustrations 1-5 and
1-6). Note, do not fully tighten at
this time.
9. Install u-bolts (item #4) over the
frame tubes and thru the holes just
drilled. Fasten the mount plate to
u-bolts using M8 locknuts (item #3)
as shown. (See illustrations 1-7 and
1-8).
10. Tighten all hardware to
specification.
RECEIVER OPERATION
Ill. 1-5
1
Ill. 1-6
Ill. 1-7
3
1
2
4
1
MM FASTENER TORQUE:
17 ft. lbs. (23 Nm)
Top holes for
wide roller
WARNING
!
Do not exceed maximum capacities.
Exceeding maximum capacities may result
in receiver failure, resulting in death,
serious personal injury, or serious damage
to vehicle or property.
Maximum Tongue Weight: 100 lbs (45 Kg)
Maximum Tow Weight: 1200 lbs (540 Kg)
Ill. 1-8
3
7
© 2021 Kolpin Outdoors Inc. REV 00
Two Year Limited Warranty
For the period of two (2) years from the purchase date, Kolpin will replace for the original purchaser,
free of charge, any part or parts found upon examination by Kolpin to be defective in material,
workmanship, or both.
All transportation costs incurred submitting product to Kolpin for warranty consideration must be
borne by the purchaser. If Kolpin determines that the product must be returned to the factory for
credit, please call 1-877-956-5746 for a Return Merchandise Authorization (RMA) number and
shipping instructions.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse,
improper maintenance, normal wear, or other causes beyond the manufacturer’s control. In order to
protect you and your ATV, certain parts of the plow system and/or hardware are designed to fail
when the equipment is over-stressed. Parts that are lost due to loosening and improper
maintenance are not covered under warranty. This warranty does not cover removal or reinstallation
labor fees of the plow system and related components.
Peripheral products such as engines, electric motors, and actuators may carry an original
manufacturer’s warranty. Most hardware is general in nature and is easily obtained locally. Be sure
to replace with minimum metric class 8.8 specification.
Kolpin Outdoors, Inc.
Telephone: (763)-47 -5 00
Toll Free: ( 77)-956-5746
Fax Number: ( 00)-245-7569
www.kolpin.com
Email: [email protected]
WARRANTY
