Installation Guide

Bath Whirlpool

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page “Français-1”

Español, página “Español-1”

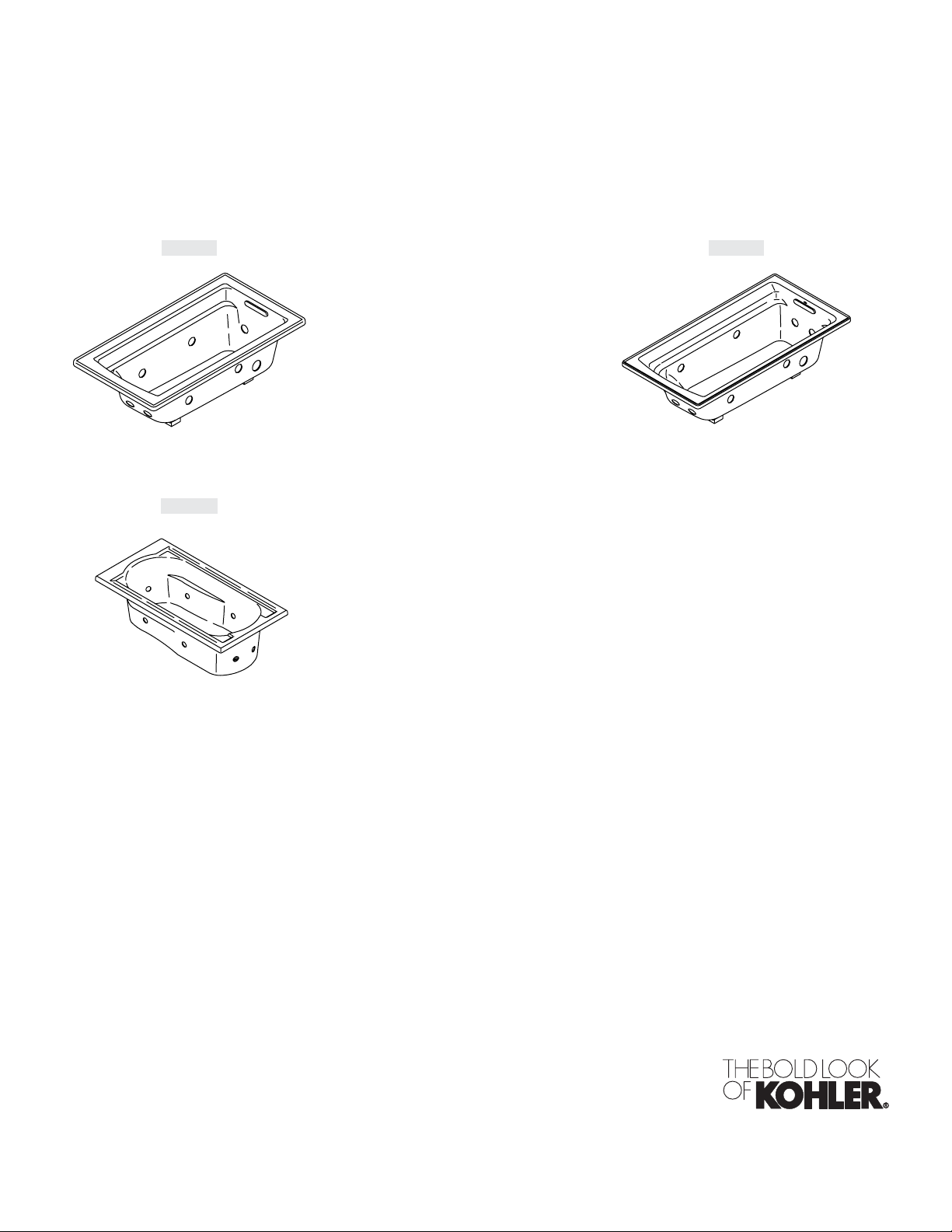

K-1122 K-1124

K-1357

1010997-2-F

Important Information

WARNING: When using electrical products, basic precautions should always be followed,

including the following:

DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault

Circuit-Interrupter (GFCI).

Building materials and wiring should be routed away from the pump body and other heat-producing

components of the unit.

Install to permit access for servicing.

Grounding is required. The unit should be installed by a qualiﬁed service representative, and grounded.

WARNING: Risk of electric shock. A qualiﬁed electrician should make all electrical connections.

WARNING: Risk of electric shock. Disconnect power before servicing.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before

beginning installation, including the following requirements.

NOTICE: Follow all local plumbing and electrical codes.

Product Information

Electrical Requirements

The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device

(RCD). The GFCI or RCD protects against line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated

service for the whirlpool.

″H″models require a separate 120 V, 15 A, 60 Hz dedicated circuit for the in-line heater.

NOTE: If the pump supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualiﬁed persons in order to avoid a hazard. The heater supply cord cannot be replaced. If the

cord is damaged the heater should be replaced.

Product Notices

WARNING: Unauthorized modiﬁcation may cause unsafe operation and poor performance of the

whirlpool. Do not relocate the whirlpool pump, or make other modiﬁcations to the whirlpool

system, as this could adversely affect the performance and safe operation of the whirlpool. Kohler

Co. shall not be liable under its warranty or otherwise for personal injury or damage caused by any

such unauthorized modiﬁcation.

WARNING: Risk of electrical shock. Disconnect power before servicing.

WARNING: Risk of electrical shock. A qualiﬁed electrician should make all electrical connections.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before

beginning installation.

NOTICE: Follow all local plumbing and electrical codes.

Factory-Assembled Features

Factory installed components include pump with power supply cord and air switch transmitter. No

installation is needed.

″H″models are supplied with a factory assembled in-line heater.

The whirlpool pump and piping are factory-assembled.

1010997-2-F 2 Kohler Co.

Product Information (cont.)

Connections and Service Access

Before installation, ensure proper access to the ﬁnal connections.

NOTICE: Provide unrestricted service access to the pump. You must provide access for servicing the

pump and controls. The access must be located immediately next to the pump. Study the Roughing-In

Guide packed with the whirlpool.

Table of Contents

Important Information .............................................................. 2

Product Information ............................................................... 2

Tools and Materials ............................................................... 3

Before You Begin ................................................................. 3

Prepare the Site ................................................................. 4

Prepare the Whirlpool ............................................................. 4

Secure the Unit .................................................................. 5

Cut the Pump Banding Straps ....................................................... 6

Install the Plumbing ............................................................... 6

Make Electrical Connections ......................................................... 7

Test Run the Whirlpool ............................................................. 7

Complete the Finished Deck ......................................................... 8

Clean-Up After Installation .......................................................... 8

Conﬁrm Proper Operation .......................................................... 9

Troubleshooting .................................................................. 9

Tools and Materials

Before You Begin

Inspect the whirlpool for damage before you begin installation.

Conﬁrm adequate mounting and connection space for the faucet speciﬁed for your installation.

Kohler Co. reserves the right to make revisions in the design of products without notice, as speciﬁed

in the Price Book.

Sealant Pencil

Level

Pipe Wrench

Drill

Tin Snips

• Conventional woodworking tools

and materials

• Drop cloth

• #6 large-head galvanized nails

• 2x4's

• Screws or lag bolts

• Construction Adhesive (optional)

• Cement or mortar (optional)

Plus:

Tape

Measure

Safety

Glasses

Kohler Co. 3 1010997-2-F

1. Prepare the Site

NOTICE: Refer to the Roughing-in Guide packed with your whirlpool for the required minimum

lb/square foot (kg/square meter) ﬂoor support loading.

Make sure the ﬂooring offers adequate support for your whirlpool, and verify that the subﬂoor is

ﬂat and level.

NOTICE: The whirlpool should be installed in a drop-in installation.

Construct 2x4 or 2x6 stud framing for your installation.

NOTICE: The whirlpool must be supported by its feet or base. Do not support the load weight of the

whirlpool by the perimeter of the rim.

For a raised installation: Frame the ﬂoor or construct a frame in accordance with the roughing-in

information packed with the whirlpool.

Position the plumbing according to the roughing-in information packed. Cap the supplies, and

check for leaks.

2. Prepare the Whirlpool

Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect

the trap at this time.

Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to

scratch the surface of the whirlpool.

Frame the floor

according to the

roughing-in information.

Position the rough

plumbing.

Construct 2x4 or 2x6

stud framing according

to the roughing-in

information. Verify that the subfloor

offers adequate support,

and is flat and level.

1010997-2-F 4 Kohler Co.

3. Secure the Unit

NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural

support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.

NOTICE: Do not support the load weight of the whirlpool by the perimeter of the rim. The rim perimeter

must be adequately supported, but must not support the load weight of the whirlpool.

If the subﬂoor is not level, shim the whirlpool support blocks as necessary.

Choose the installation option that best applies to your particular installation. Follow the appropriate

instructions.

Option Using a Cement or Mortar Bed

NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an

acceptable, durable bond.

NOTE: The pump support bracket (when the pump banding straps are cut) and support blocks must

rest directly on the subﬂoor.

Spread a 2″(5.1 cm) thick layer of cement or mortar on the subﬂoor where the whirlpool will be set.

This will help secure, level, and support the unit. Clear all the material away from the pump

support bracket and support block locations.

Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,

carefully lift the whirlpool into place, and make sure the pump support bracket and support blocks

do not rest in the bed material.

Secure the drain tailpiece to the trap. Ensure the whirlpool is level and resting on all support blocks.

Option Using Construction Adhesive

Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Ensure the whirlpool is level and resting on all support

blocks.

Option Using Silicone Sealant

With help, carefully lift the whirlpool into position.

Insert the drain tailpiece into the trap. Ensure the whirlpool is level and resting on all support

blocks.

Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant

around the entire rim of the whirlpool.

Clear space for pump.

Spread a 2" (5.1 cm) layer of

cement or mortar bed material.

Clear spaces for

support blocks.

Apply a bead of silicone

sealant around the entire rim.

Apply construction adhesive

to the support blocks.

Kohler Co. 5 1010997-2-F

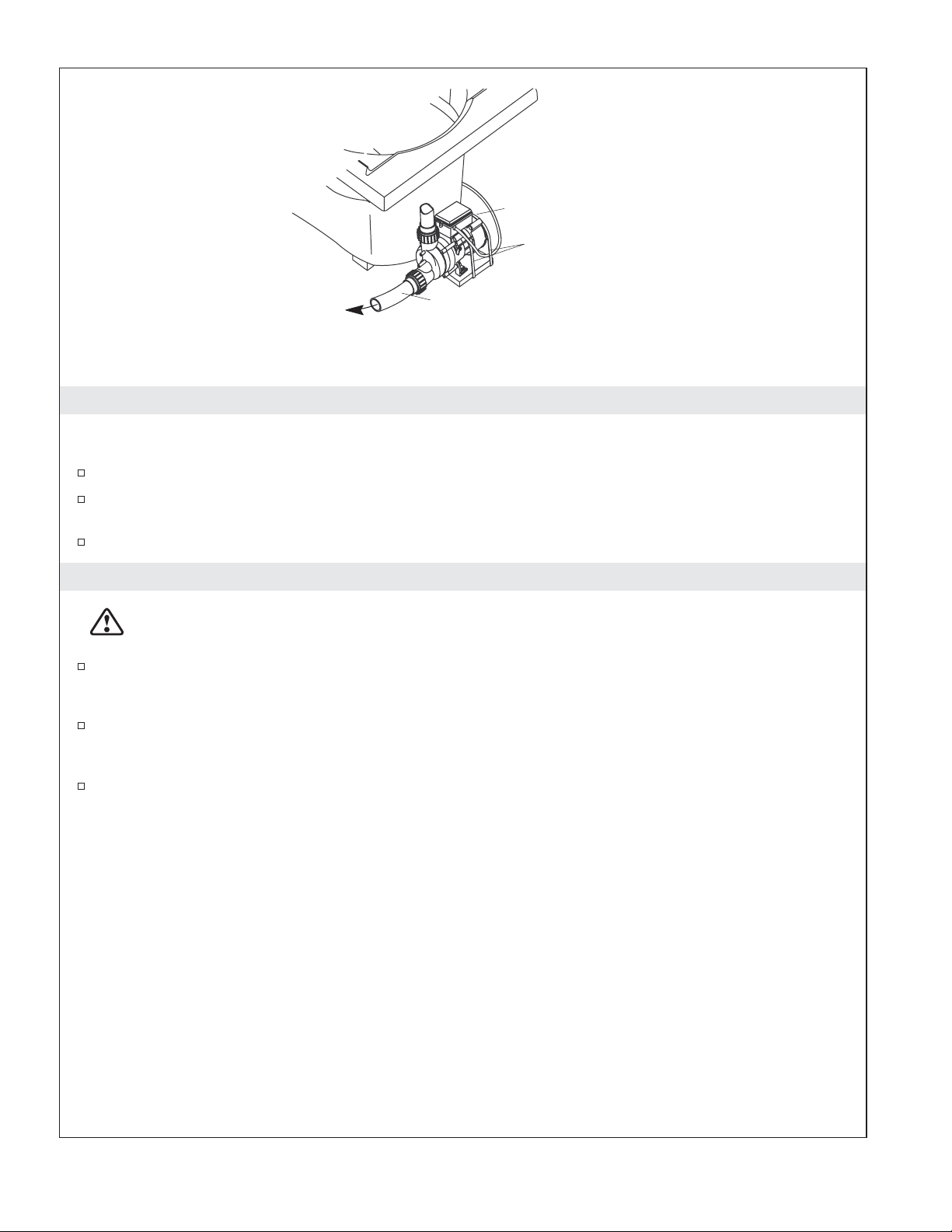

4. Cut the Pump Banding Straps

IMPORTANT! This step is necessary to make your Kohler whirlpool operate more quietly.

Use tin snips to cut the two pump banding straps.

To minimize whirlpool noise and vibration, be sure the pump is not in direct contact with the

shipping bracket after the pump banding straps are cut.

Remove and discard the straps.

5. Install the Plumbing

CAUTION: Risk of property damage. A watertight seal must exist on the whirlpool drain. The

watertight seal will prevent property damage.

Connect the drain to the trap according to the drain manufacturer’s instructions.

NOTICE: An access panel will simplify future maintenance.

Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the

faucet trim until instructed. Open the hot and cold water supplies, and check the supply

connections for leakage.

Run water into the whirlpool, and check the drain connections for leakage.

Drainage Suction Line

Pump

Cut the pump

banding straps.

NOTE:

Pump model illustrated may differ from your

actual product.

1010997-2-F 6 Kohler Co.

6. Make Electrical Connections

WARNING: Risk of electric shock. Make sure the power has been disconnected before performing

the following procedures.

WARNING: Risk of electric shock. Connect the pump and in-line heater (if included) to properly

grounded, grounding-type receptacles protected by Ground-Fault Circuit-Interrupters (GFCI’s) or

Residual Current Devices (RCD’s). Do not remove the grounding pins from the plug. Do not use

grounding adapters.

NOTE: A label identifying the model number and electrical rating of the whirlpool is located near the

whirlpool pump.

NOTICE: The pump (supplied) and heater (if supplied) are equipped with a cord and plug. All wiring for

the heater has been completed at the factory. A qualiﬁed electrician must install a GFCI- or RCD-protected,

120 V, 15 A, grounded outlet. No other load should be on this circuit.

Pump Wiring

Locate the outlet behind the whirlpool, and within 24″(61 cm) of the pump.

Plug the pump into this outlet.

NOTE: Make sure the air actuator tubing is securely attached to the pump, and is not kinked or damaged.

Heater Wiring – “H” Models

Locate the outlet behind the whirlpool, and within 24″(61 cm) of the heater.

Plug the heater into this outlet.

7. Test Run the Whirlpool

Check all electrical connections, and make sure the electrical power to the whirlpool and heater (if

equipped) is on.

Make sure all union connections to the pump and heater are securely hand tightened.

Verify that the pump banding straps have been cut (if applicable), and that the pump is resting

directly on the subﬂoor or whirlpool base.

Fill the whirlpool to a level at least 2″(5.1 cm) above the top of the highest jet. Refer to ″Conﬁrm

Proper Operation″section for additional information.

Operate the whirlpool for 5 minutes, and check all whirlpool piping connections for leaks.

Bond in accordance

with applicable codes.

Install a GFCI-

protected 120 V, 15 A

grounded outlet.

Heater

Plug the pump

into this outlet.

Install second GFCI-

protected outlet for "H"

models for the in-line heater.

Kohler Co. 7 1010997-2-F

8. Complete the Finished Deck

If you have not already done so, carefully remove the protective tape from the whirlpool rim.

Cover the framing with water-resistant deck material. Seal the joints between the whirlpool rim

edge and the water-resistant deck material with silicone sealant.

Tape and mud the water-resistant deck material. Install the ﬁnished deck to the water-resistant deck

material. Seal the joints between the whirlpool rim and the ﬁnished deck material with silicone

sealant.

Install the faucet trim according to the trim manufacturer’s instructions.

9. Clean-Up After Installation

When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the

whirlpool surface. Use warm water and a liquid detergent to clean the surface.

Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners

containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods

of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire

brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild

abrasive action to any residual plaster.

Whirlpool

Framing

Water-Resistant

Deck Material

Apply silicone sealant to the

edges of the water-resistant

deck material and the

finished deck

Finished Deck

Material

1010997-2-F 8 Kohler Co.

10. Conﬁrm Proper Operation

Fill the Whirlpool

Position the jet nozzles so they face down toward the basin. Turn the jet trim rings fully

counterclockwise.

Fill the whirlpool to a water level at least 2″(5.1 cm) above the top of the highest jet.

NOTE: The water temperature in the whirlpool should not exceed 104°F (40°C).

To service oriﬁces insert a pencil into the end of the jet nozzle and push the oriﬁce out. After

removing any blockage, check the oriﬁce to make sure it is clear and press it into the jet housing.

NOTE: Oriﬁces are only installed in whirlpool jets when there are six or more jets in the whirlpool system.

Operating Sequence

Press the air actuator to turn on the whirlpool jets.

Adjust each jet for optimum air/water mixture. Turn the trim ring clockwise to reduce the air ﬂow,

and counterclockwise to increase the air ﬂow.

If equipped with a heater, the heater will engage automatically when the pump is turned on and

will disengage when the pump is turned off. The heater will not turn on if the water temperature

exceeds 104°F (40°C).

Press the air actuator a second time to turn off the whirlpool.

Troubleshooting

NOTICE: This section is for general aid only. A Kohler Authorized Service Representative or qualiﬁed

electrician should correct any electrical problems. For warranty service, contact your dealer or wholesale

distributor.

Symptoms Probable Causes Recommended Action

1. Whirlpool does not start

or stop. A. No power to motor. A. Set/reset the GFCI or RCD;

check wiring.

B. Air actuator does not work. B. Replace air actuator.

C. Air actuator tubing is

disconnected, loose, kinked,

plugged, or damaged.

C. Connect, straighten, clean, or

replace air actuator tubing.

D. Motor/pump does not work. D. Rebuild or replace motor/pump.

2. Motor starts, not all jets

are functioning. A. Jet is closed. A. Rotate jet trim ring

counterclockwise to open.

B. Jets are blocked. B. Remove blockage.

Fill with water at least 2" (5.1 cm)

above the highest jet.

Turn the jet trim ring

clockwise to

decrease the flow. Position the jet

nozzles to direct

the water flow as

desired.

Turn the jet trim ring counterclockwise

to increase the flow.

Press the air actuator to turn

on and off the whirlpool.

Kohler Co. 9 1010997-2-F

Troubleshooting (cont.)

Symptoms Probable Causes Recommended Action

3. Whirlpool stops

automatically before 18

minutes.

A. The GFCI or RCD trips. A. Identify fault source and correct.

B. Suction blocked. B. Remove obstruction.

C. Jets are blocked. C. Remove blockage.

D. Motor overheated and protection

device activated. D. Check for blockage at motor

vents. Remove blockage and

allow motor to cool.

Check for suction blockage.

Remove blockage and allow

motor to cool.

Check for jet blockage. Remove

blockage and allow motor to

cool.

4. Noisy operation. A. Pump banding straps have not

been cut. (Models with support

blocks only.)

A. Cut pump banding straps with

tin snips.

5. Heater does not operate.

(“H” models only) A. No power to heater. A. Reset the GFCI or RCD.

B. Water temperature exceeds 104° F

(40° C). B. Allow water to cool and heater

will reengage.

C. Heater does not work. C. Replace heater.

1010997-2-F 10 Kohler Co.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Bañera de Kohler

Kohler

Kohler Underscore Oval K-5714-XH2G Manual de usuario

Kohler

Kohler K-1360 Instrucciones de montaje

Kohler

Kohler Underscore K-1822-GVB Manual de usuario

Kohler

Kohler K-1209-CB Guía de inicio rápido

Kohler

Kohler K-1227 Guía de inicio rápido

Kohler

Kohler K-1126P Guía de inicio rápido

Kohler

Kohler K-1969 Instrucciones de montaje

Kohler

Kohler K-812 Guía de inicio rápido

Kohler

Kohler Archer K-1947-GHRW Manual de usuario

Kohler

Kohler K-1160P-LA Guía de inicio rápido

Kohler

Kohler K-1492 Guía de inicio rápido

Kohler

Kohler Underscore Cube K-1969-VB Guía del usuario

Kohler

Kohler K-1257 Guía de inicio rápido

Kohler

Kohler K-812-N1 Instrucciones de montaje

Kohler

Kohler Sterling 7112 Series Instrucciones de montaje

Kohler

Kohler K-1166-C1 Instrucciones de montaje

Kohler

Kohler K-1158 Instrucciones de montaje

Kohler

Kohler Roughing-In K-1112-L Manual de usuario

Kohler

Kohler K-1244 Instrucciones de montaje

Kohler

Kohler K-1162-S1CB Guía de inicio rápido

Kohler

Kohler K-1822 Instrucciones de montaje

Kohler

Kohler Birthday Bath K-100 Instrucciones de montaje

Kohler

Kohler STERLING 71100120-96 Instrucciones de montaje

Kohler

Kohler K-1229 Guía de inicio rápido

Manuales populares de Bañera de otras marcas

Agua

Agua BARTOLI-66 Manual de usuario

PAA

PAA PRELUDE Manual de usuario

BETTE

BETTE SILHOUETTE Manual de usuario

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW Manual de usuario

Oliveri

Oliveri Naples Manual de usuario

Lyons

Lyons Elite ETLxx663219 Series Manual de usuario

Woodbridge

Woodbridge BJ500 Instrucciones de montaje

Whirlpool

Whirlpool Ariel ARL-702 Manual de usuario

TEIKO

TEIKO EXCELLENT DUO Manual de usuario

American Standard

American Standard Colony 5-1/2' x 32" Manual de usuario

American Standard

American Standard 3052OD.X0X Guía de inicio rápido

agape

agape MARSIGLIA AVAS1075 Manual de usuario

Kallista

Kallista P50045-G5 Instrucciones de montaje

Ariel

Ariel AM Series Manual de usuario

Agua

Agua BAHLI-60 Manual de usuario

DURAVIT

DURAVIT XViu 700443 Manual de usuario

American Standard

American Standard Colony 2740 Series Manual de usuario

Rapsel

Rapsel OFURO Manual
