Kogan C7 Series Manual de usuario

C7 Cordless 22.2V Stick Vacuum Cleaner (SLV-106)

KAVACSTC07A

Quick Start Guide

Table of Contents

Safety & Warnings......................................................................................................................................................... 2

Overview............................................................................................................................................................................ 3

Assembly Instructions ................................................................................................................................................. 4

Operation .......................................................................................................................................................................... 5

Cleaning & Care .............................................................................................................................................................. 6

Troubleshooting ............................................................................................................................................................. 7

Specification .................................................................................................................................................................... 7

In The Box ......................................................................................................................................................................... 7

Safety & Warnings

•Please read this manual carefully before use.

•Please ensure that the charging cable and charging plug on the cable and unit are

kept dry to avoid the risk of electric shock.

•Keep out of reach of children.

•Please hold the plug when disconnecting charging cable from power. Do not pull on

the cord to disconnect or it may be damaged.

•Please make sure that the dust cup and battery are fitted in the right position before

you start to use the machine.

•Please do not hang the charging cable on a desk corner or door rail due to risk of

damage.

•Keep the unit away from fire or other heat sources such as electric heaters.

•Please do not use this machine to vacuum water, liquid, glass and metal fragments.

•Please do not use this machine to vacuum easily flammable items such as ashes,

cigarette butts, matches and so on.

•Please do not disassemble the main machine or repair and change the machine parts.

•Please do not wash the main machine or soak the main body in water.

•Please stop using the unit if the following occurs:

▪Plug is no longer secure when connected to a power outlet

▪Tube has been damaged

▪Vacuum has been dropped or has contacted water.

This unit contains no user-serviceable parts. Repairs are only to be performed by an

authorised professional. Do not use third party parts during repairs.

Overview

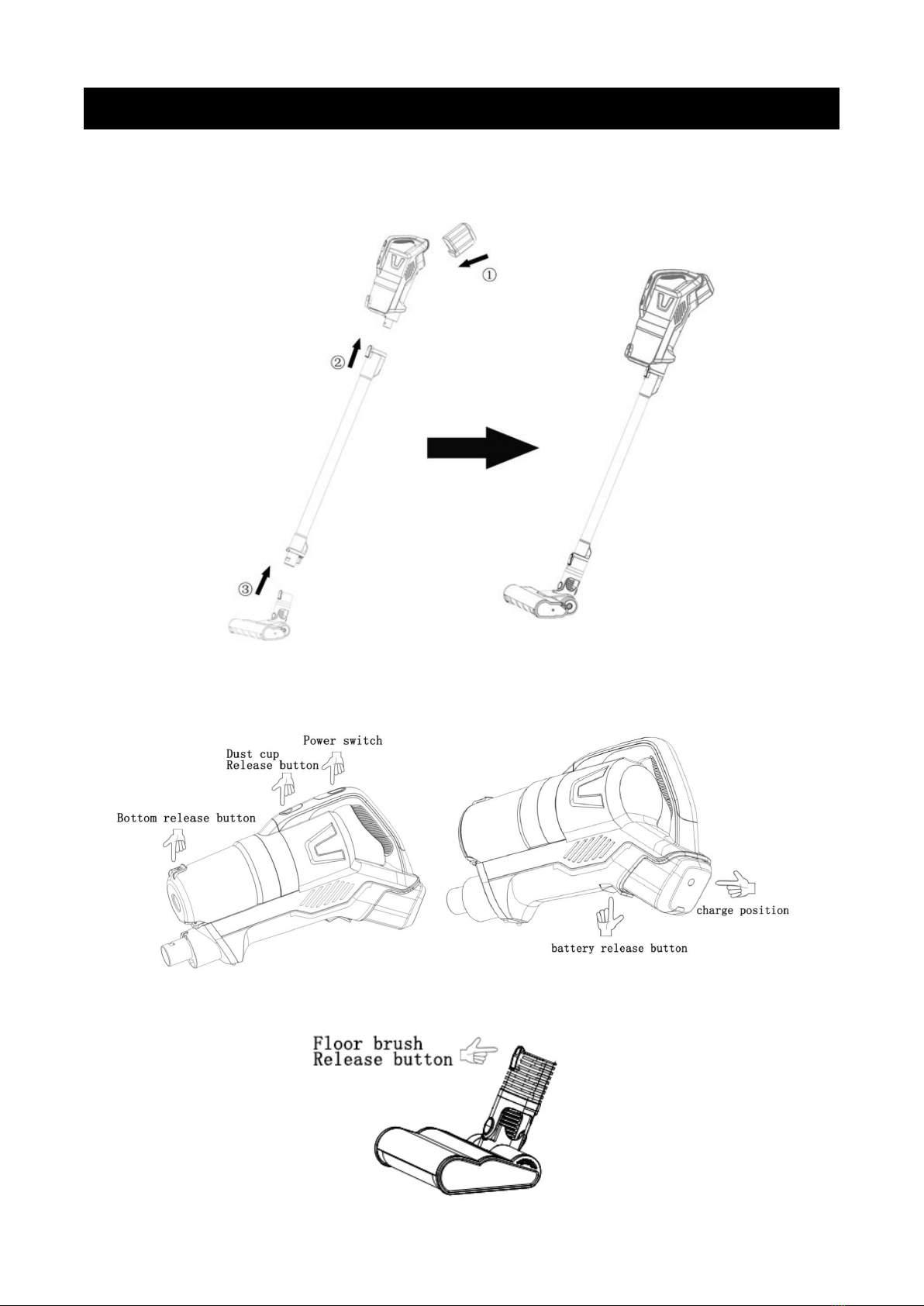

Assembly Instructions

The machine is packed as separated parts. Simple assembly is required as follows:

1. Insert the battery pack into main body.

2. Connect the tube to the main body.

3. Connect the floor brush to the tube.

Functional Buttons

There are 4 functional buttons and one charge connector as follows: Power switch, dust cup

release button, bottom release button, battery pack release button and charger connector.

There is one release button on the floor brush which is used to release the floor brush from the

tube or change other components.

Operation

Charging the Battery

•Ensure only the original power adapter is used to charge the battery, otherwise it may

be damaged.

•The display lights will twinkle when charging is needed. The lights will also twinkle

while charging. If the lights stop twinkling while on charge, this indicates the battery is

full. The machine can be used for about 30 minutes on a full charge.

Turning On and Off

•Press the power switch to turn on the unit.

•Press again to change to a stronger power mode.

•Press again to turn off the unit.

Please note:

As the machine’s motor is rotating several tens of thousands of times every minute, it will

produce heat while it is working and may become hot after working for several minutes.

A new machine may produce a plastic smell. This is normal, safe and not a cause for concern.

To avoid overheating, it is recommended to allow the unit to cool down after 20 minutes of use.

Cleaning & Care

Method One:Press the bottom release button and dump the collected dust into a rubbish bin.

Method two:Press the dust cup release button and take off the dust cup from the main body.

Take off the HEPA filter and whirlwind cone, remove the collected dust and clean the parts.

Reinstall them as shown after the parts have air dried.

Do not use the machine before reinstalling the HEPA filter and whirlwind cone as this may

cause damage.

Storage

Connect the unit to the storage base and store in a cool dry place.

Troubleshooting

Suction Power Is Weak:

The dust cup may be full, or the whirlwind cone or filter have accumulated too much dust or

rubbish and are blocked. Empty and clean the parts.

The floor brush air inlet may be tangled with hair, floss or other rubbish. Remove any tangled

obstructions.

The tube may be blocked. Clear the obstruction.

Not Charging:

The machine may be too hot after working for long time. Allow the unit to cool down.

The power outlet may not be functioning correctly. Try a different outlet.

The charger may be damaged. Contact Kogan.com Support.

Floor Brush Not Working:

The floor brush may be tangled with hair, floss or other rubbish. Remove any tangled

obstructions.

The brush stops working when the floor brush working current too high. Please turn off the

machine and start again.

Specifications

Lithium battery

2200mAH

Voltage

22.2V

Adaptor voltage

~100-240V

Adaptor output

26.5V1A

Power

130W

Noise

Approx. 60dB

Usage time

Approx. 30 minutes

Charging time

Approx. 3 hours

Item size

390mmx220mm

Item weight(kg)

1.44kg

（

Host)

In The Box

1. Main body

2. Tube

3. Floor brush

4. Power adaptor

5. Storage base

6. User’s manual

User manual is subject to change without notice. For the latest version of your user manual, please visit

https://www.kogan.com/usermanuals/
