KOBE IS2336SQ Guía de solución de problemas

KOBE Brand Range Hood

Model No. IS2336SQ

IS2342SQ

IS-123 SERIES – 7” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

Important Safety Instructions……………………………………………………………….

Components of Package.…………………………………………………………………..

Installation……………………………………………………………………………………

Operating Instructions…………………………………...………………………………….

Maintenance………………………………………………………………………………….

Specifications…………………………………………………….……..…………………...

Measurements & Diagrams…………………………………………………………...……

Parts List…………………………………………………………………..………………….

Circuit Diagram………………………………………………………………...…………….

Disclaimer…………………………………………………………………………………….

Warranty…………………………………………………………………...…………………

Product Registration………………………………………………………...………………

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance

with all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other

hidden utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT

SERVICE PANEL.

b) Clean fan, optional filter and grease laden surfaces frequently. To reduce the risk of fire

and to disperse air properly, make sure to vent air outside. DO NOT vent exhaust air into

wall spaces, attics, crawl spaces or garages.

NOTE

- This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence or

any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried

out without the supervision of KOBE RANGE HOODS

authorized agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for

any damages to personal property or real estate or any

bodily injuries whether caused directly or indirectly by

the range hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

Keep fan, filter, if any, and grease-laden surfaces clean.

Always turn hood ON when cooking at high heat.

Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to

medium setting.

Do not leave cooking range unattended when cooking.

Always use cookware and utensils appropriate for the type and amount of food prepared.

Use this unit only in the manner intended by the manufacturer.

Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from switching on accidentally.

Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan,

filter, and oil containers.

What to Do In The Event Of a Range Top Grease Fire

-SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the

flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

- NEVER PICK UP A BURNING PAN – You may get burned.

-DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

- Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company

and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of mercury,

which must be recycled or disposed of according to Local, State, and

Federal Codes.

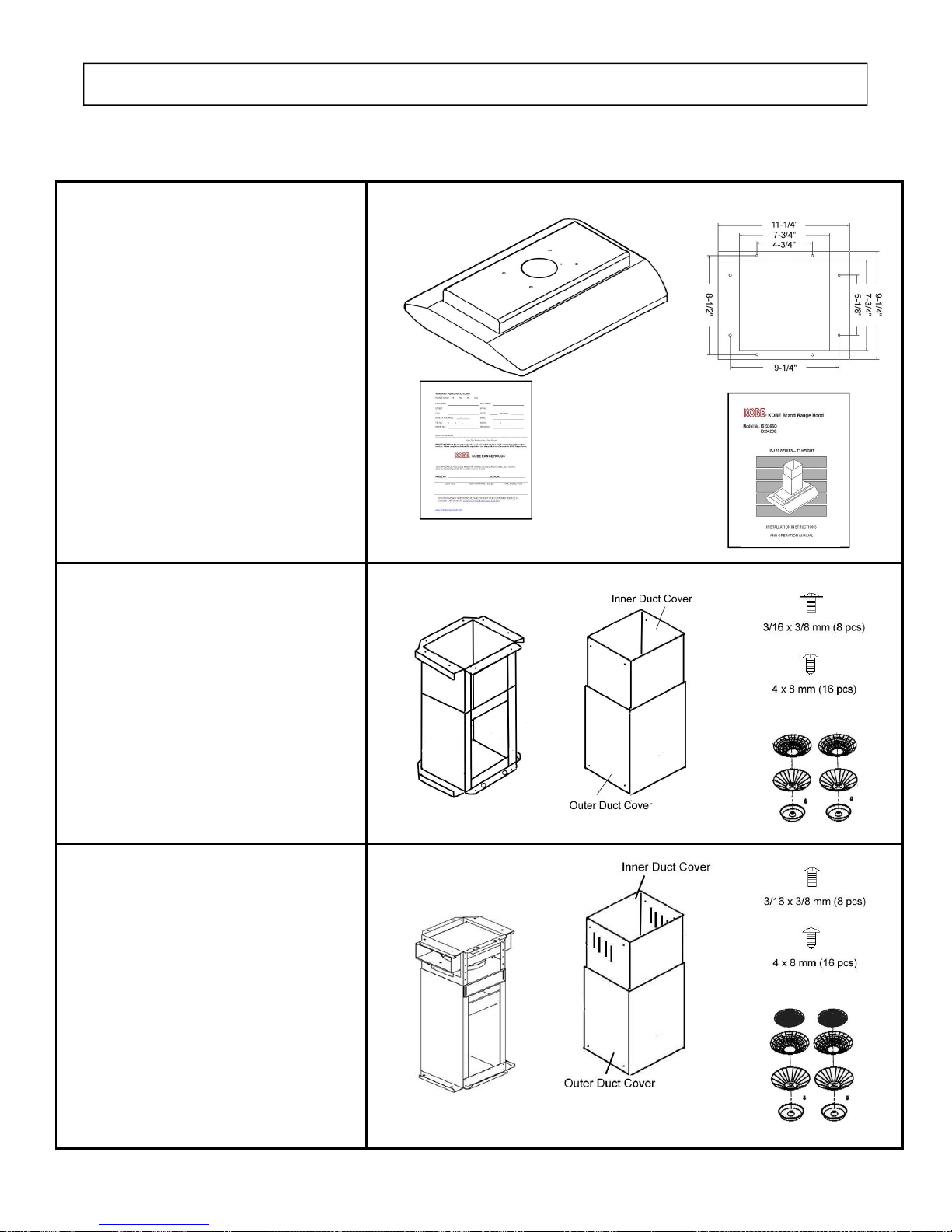

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

BOX 1:

{A} KOBE Range Hood

{B} Mounting Template

{C} Warranty Registration Card

{D} Instructions Manual

{A} {B}

{C} {D}

ORIGINAL KIT

BOX 2 (SOLD SEPARATELY):

{E} Telescopic Stack

{F} Two-Piece Duct Cover

{G} Screws Package

{H} Filter Set

(Model No. IS123F)

- Mesh Filter x 2

- Safety Screen x 2

- Oil Container (Round) x 2

- Screw x 2

{G}

{E} {F}

{H}

RECIRCULATING KIT

BOX 2 (SOLD SEPARATELY):

{E} Telescopic Stack

{F} Two-Piece Duct Cover

{G} Screws Package

{H} Charcoal Filter Set

(Model No. RH-CH01)

- Charcoal Filter x 2

- Mesh Filter x 2

- Safety Screen x 2

- Oil Container (Round) x 2

- Screw x 2

{G}

{E} {F}

{H}

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installations

To calculate the length of the installation, please refer to Table 1. (All calculation is measure in

inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A – (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT

IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR

SERVICING.

Preparations of Ductwork and Location

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as many transitions, elbows, and long run as possible. This may reduce the

performance of the hood.

-Use duct tape to seal the joints between pipe sections.

Figure 1

Telescopic Stack Installation

Note: Duct cover with telescopic stack sold separately.

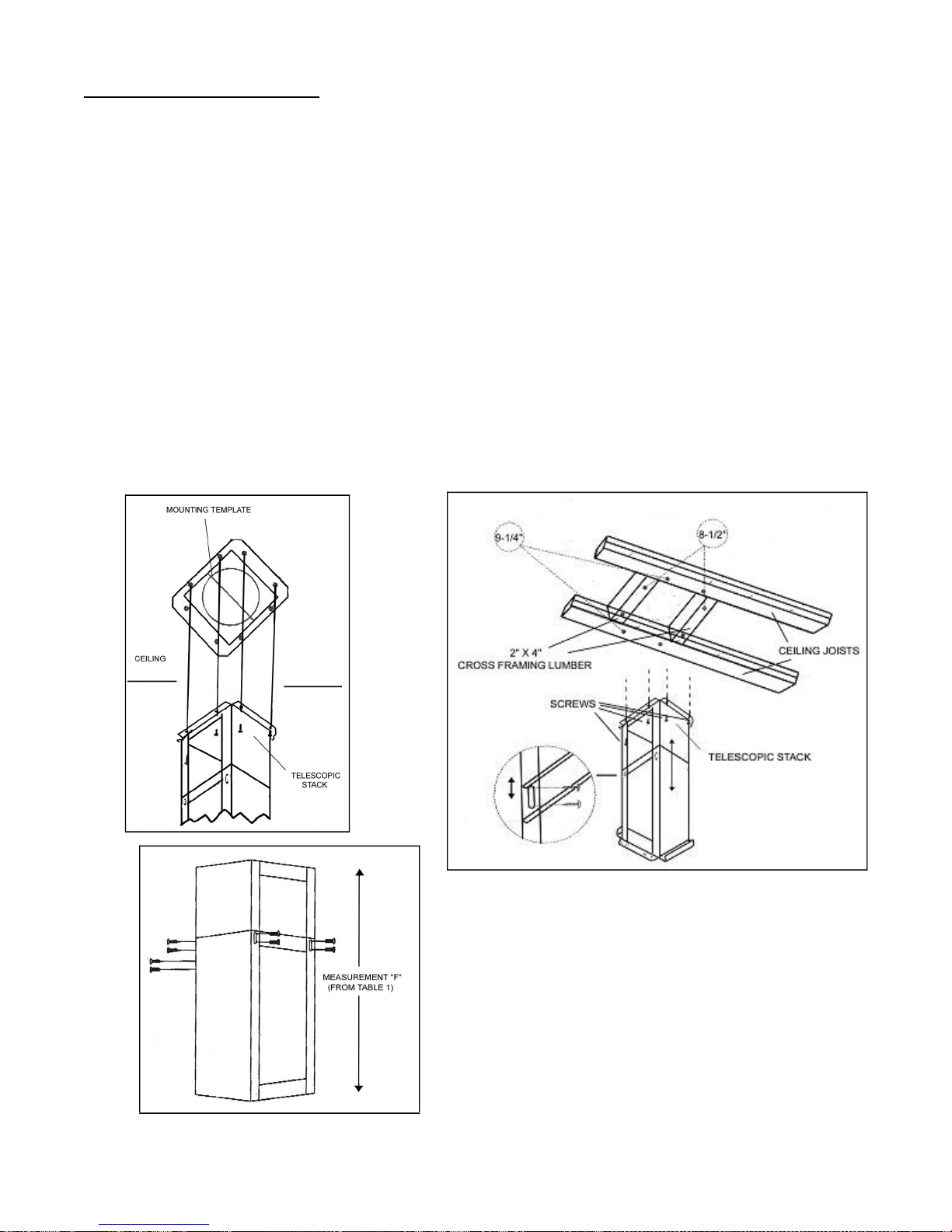

1. Mark centerlines of cook top or range on ceiling above. Use centerlines marked on ceiling

to position the mounting template as shown in Figure 2.

2. Remove and save template. Cut and remove ceiling drywall. Install 2” x 4” cross framing

lumber (not provided) between ceiling joists. Refer to Figure 3. Consult a professional if

you have difficulty or your installation is unique.

3. Finish the ceiling surface. Be sure to mark the location of the ceiling joists and cross

framing, or replace the mounting template in the position of the ceiling joists & cross

framing.

4. Attach the telescopic stack to the ceiling and securely fasten to the joists and cross framing

with eight screws (not provided) as shown in Figure 3. Make sure screws are driven into

center of joists and cross framing for maximum support.

5. Adjust the telescopic stack using reference Fcalculated in Table 1 and measurements on

page 12. Tighten from the side with eight (4x8 mm) screws (provided) as shown in Figure

Figure 2

Figure 3

Figure 4

Duct Cover Installation

6. Slide the duct cover up and secure the inner duct cover to the telescopic stack with four

(4x8 mm) screws (provided). Refer to Figure 5.

Hood Installation

7. Place temporary screws to hold the duct cover up. Install the hood as shown in Figure 6.

8. Use eight (3/16x3/8 mm) screws (provided) to secure hood to telescopic stack. Make sure

to tighten screws securely. Refer to Figure 6.

Figure 6

Figure 5

Wiring to Power Supply

SAFETY W ARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED.

MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING

WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.

9. Remove the wiring box cover as shown in Figure 7. Remove the knockout from the wiring

box.

10. Connect three wires (black, white and green) to house wires and cap with wire connectors

11. Connect according to color. Black to black, white to white, and green to green.

12. Close the wiring box cover and make sure that wires are not pinched between cover and

box.

13. Test the operation of the hood before moving on to next step. Make sure power is supplied

to the hood.

Ductwork Installation

Note: Skip this step if installing recirculating kit.

14. Use 6” round pipe to connect the plastic exhaust on the hood to the ductwork above.

15. Use duct tape to make all joints secure and air tight.

Final Assembly

16. Remove the temporary screws and slide the outer duct cover downward so that it sits

properly on the hood.

17. NOTE: Be careful when using electrical screwdriver, damage to the hood may occur.

Secure the duct cover to hood with four (4x8 mm) screws (provided) as shown in Figure 8.

18. Turn power ON in control panel. Check all lights and fan operation.

19. Make sure to leave this manual for the homeowner.

Figure 7 Figure 8

OPERATING INSTRUCTION

This KOBE hood is equipped with four electronic controls with a 10-second standby startup &

30-second delay shutoff, two powerful centrifugal turbine impellers, and four bright 12-volt 20-

watt halogen lights.

The four control buttons are Light Control, Speed Control A (cycles through Low, Medium, High,

QuietMode), Speed Control B (cycles through Low, QuietMode, High, Medium) and the

Power Control (On/Off). Refer to Figure 9.

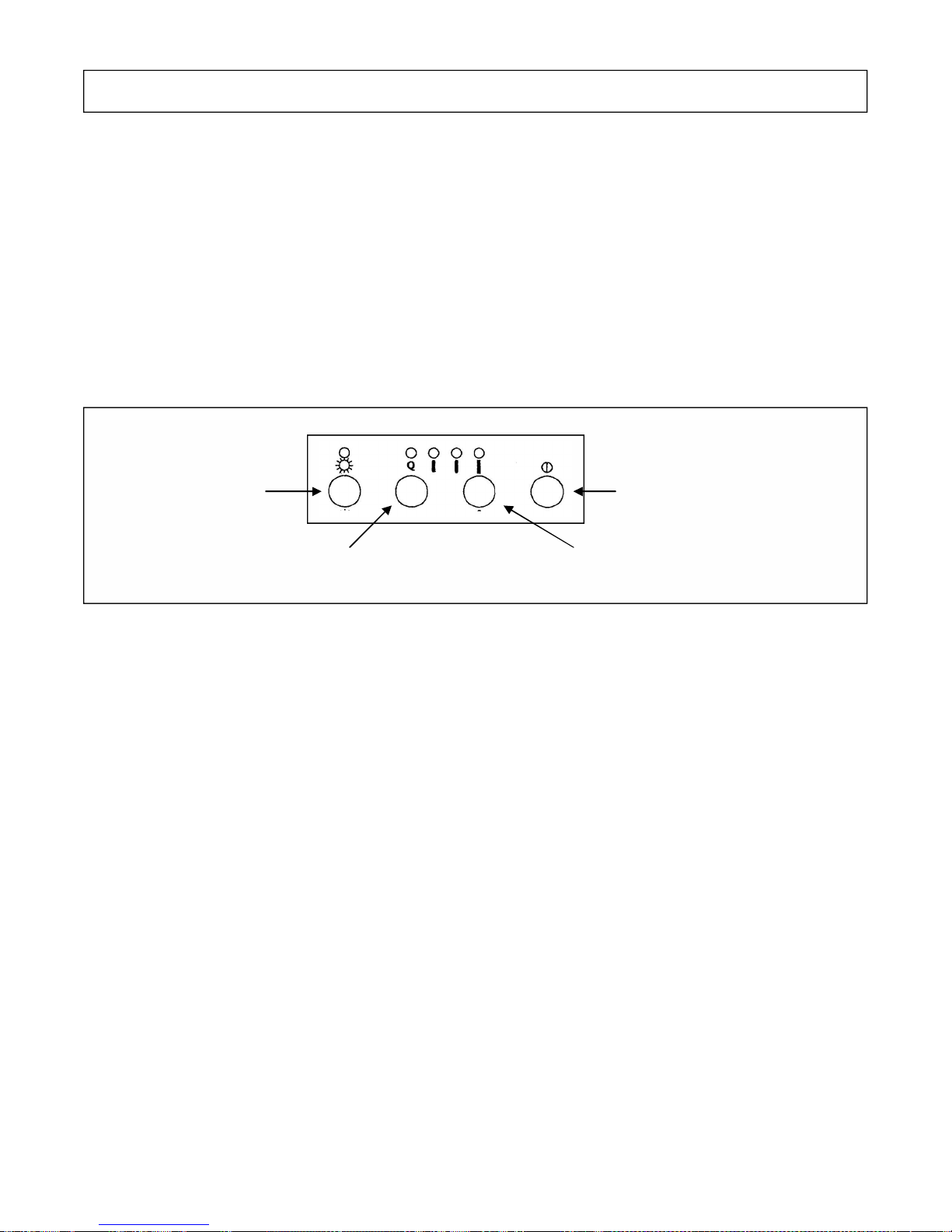

Figure 9

Turn On:

- Press Power Control (On/Off) button once. (If any Control button is not pressed within

10 seconds, power will be automatically turned off).

- The KOBE hood will start on Low speed. Each press of the Speed Control button will

cycle through the various speeds.

- Press Speed Control A button to cycle from Low, Medium, High, or QuietMode.

Press Speed Control B button to cycle from Low, QuietMode, High or Medium.

- Press Light Control button to turn halogen light on.

Turn Off:

- Press Power Control (On/Off) button once, panel lights will flash and power will be

completely shut off after 30 seconds.

- Press Power Control (On/Off) button twice, all power will be shut off immediately.

- If only the lights are on, pressing Power Control (On/Off) button once will turn power

off after 30 seconds.

Speed

ControlA

(Cycles through Low, Medium, High, QuietMode



)

Power Control

Speed

Control B

(Cycles through Low, QuietMode



, High, Medium)

Light Control

Otros manuales para IS2336SQ

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE IN2730SF-1 Guía de solución de problemas

KOBE

KOBE RA9436SQF Guía de solución de problemas

KOBE

KOBE RA92 SQB-1 Manual de usuario

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE CH00 SQB-1 Manual de usuario

KOBE

KOBE CH0030SQB Guía de solución de problemas

KOBE

KOBE Brillia CHX7930SQB-WM-1 Manual de operación y mantenimiento

KOBE

KOBE CH27 SQB-5 Series Guía de solución de problemas

KOBE

KOBE CH91 SQB-1 Series Guía de solución de problemas

KOBE

KOBE CH77 SQB-5 Series Guía de solución de problemas

KOBE

KOBE CHX8136SF Guía de solución de problemas

KOBE

KOBE CHX30 Series Guía de solución de problemas

KOBE

KOBE CHX3830SQBD-3 Guía de solución de problemas

KOBE

KOBE CH8136SQ Guía de solución de problemas

KOBE

KOBE CH2230SQ-1 Guía de solución de problemas

KOBE

KOBE Brillia INX27 SQB-700-3 Series Guía de solución de problemas

KOBE

KOBE Brillia CHX81 SQB-2 Series Guía de solución de problemas

KOBE

KOBE CH22 Series Manual de usuario

KOBE

KOBE Brillia RAX2130SQB-1 (30") Guía de solución de problemas

KOBE

KOBE CH9130SQB-1 Guía de solución de problemas

KOBE

KOBE IN26 SQB-650-5 Series Guía de solución de problemas

KOBE

KOBE CH8136SQB Guía de solución de problemas

KOBE

KOBE CXX8130QF-GBK-1 Manual de usuario

KOBE

KOBE RA92 Series Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
