KOBE RA3830SQ Guía de solución de problemas

KOBE Brand Range Hood



Model No. RA3830SQ

RA3836SQ





RA-038 SERIES – 5” HEIGHT





INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL



- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS..................................................................................1

COMPONENTS OF PACKAGE.................................................................................................3

INSTALLATION ........................................................................................................................4

UNDER THE CABINET INSTALLATION ...........................................................................5

STAND ALONE INSTALLATION........................................................................................8

OPERATING INSTRUCTIONS ...............................................................................................11

MAINTENANCE .....................................................................................................................12

SPECIFICATIONS ...................................................................................................................14

MEASUREMENTS & DIAGRAMS.........................................................................................15

PARTS LIST.............................................................................................................................16

CIRCUIT DIAGRAM...............................................................................................................18

TROUBLE SHOOTING ...........................................................................................................19

DISCLAIMER..........................................................................................................................20

WARRANTY............................................................................................................................21

PRODUCT REGISTRATION ...................................................................................................23



- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES



IMPORTANT SAFETY INSTRUCTIONS



- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -





: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.





: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:



1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.



What to Do In The Event Of a Range Top Grease Fire



• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.



What to Do If You Smell Gas



Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.





1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.







ELECTRICAL SHOCK HAZARD – Can result in serious injury or

death. Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to

Local, State, and Federal Codes.





COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)



Range Hood Box Duct Cover Box (Sold Separately)

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instructions Manual

{D} Oil Containers (Round)

{E} Oil Containers (Oval)

{A}

{B} {C}

{D}

{E}

{F} KOBE Duct Cover (Model No. RA1020DC)

{G} Screws Package

{H} Duct Cover-Mounting Bracket

{I} Hood-Mounting Bracket

{F}

{G} {H}

{I}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.



INSTALLATION





PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING



Calculation before Installation



To calculate installation, please refer to TABLE 1. (All calculation in inches.)



- FOR UNDER THE CABINET -



TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

27” to 30”)

D = Height of Hood

E = Height of the Cabinet



- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -



TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

27” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]





UNDER THE CABINET INSTALLATION





HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

- Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1.

- Temporarily wire the hood to test for proper operation before installing.

- Peel protective film off the hood (if any).

- For installing under the cabinets with recessed bottom, attach 4-inch wide wood filler

strips (not included) on each side. Refer to Figure 2.

- Measure and create access opening for electrical wires under the cabinet.

Figure 1 Figure 2

Hood Installation

CAUTION: If required to move the cooking range to install the hood, turn off the power on an

electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Puncture the knockout holes. Refer to Figure 3.



Figure 3



2. NOTE: Be careful when using electrical screwdriver, damage on the hood might occur.

Unscrew the six screws on the bottom casing. Remove the bottom casing as shown on

Figure 4. If necessary, arrange the electrical wire to run through the 1” diameter hole on

the hood.

3. Using references on Table 1 and measurement on page 16 center the hood in place

beneath the cabinet and flush with the front of the cabinet. Refer to Figure 5.



Figure 4 Figure 5

4. Draw electrical wires through cabinet access opening

5. Place screws (not provided) into the exact center of each hole. Make sure all screws are

in place before tightening screws. CAUTION: MAKE SURE THE HOOD IS SECURE

BEFORE RELEASING.

Ductwork Installation

6. Use aluminum or steel pipe to connect the plastic exhaust on the hood to the ductwork

above. Use duct tape to make all joints secure and air tight.



Wiring to Power Supply



7. Connect the electrical wires.

- If necessary to hide the electrical wire connections, push wires back into the hood.

Access the wire connections underneath the hood by removing the bottom casing from

the six screws. Before reattaching the bottom casing, make sure wires do not slip

between motors, impellers, or any moving parts to prevent any damage.





RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE

SURE THIS IS DONE BY A SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER

FROM BEING SWITCHED ON ACCIDENTALLY.

- Connect three wires (black, white and green) to house wires and cap with wire

connectors.

- Connect according to color: black to black, white to white, and green to green.

- Test the operation of the hood before moving on to next step. Make sure power is

supplied to the hood.

Install Accessories



8. Place the oil container (round) into keyhole under each safety screen. Turn clock-wise

until firmly in place. Refer to Figure 6.

9. Slide oil container (oval) into plastic slot behind each safety screen. Refer to Figure 7.

Figure 6 Figure 7

Final Assembly

10. Turn power ON in control panel. Check all lights and blower operation.

11. Make sure to leave this manual for the homeowner.

STAND ALONE INSTALLATION



***This installation only applied with the purchase of a duct cover.





HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

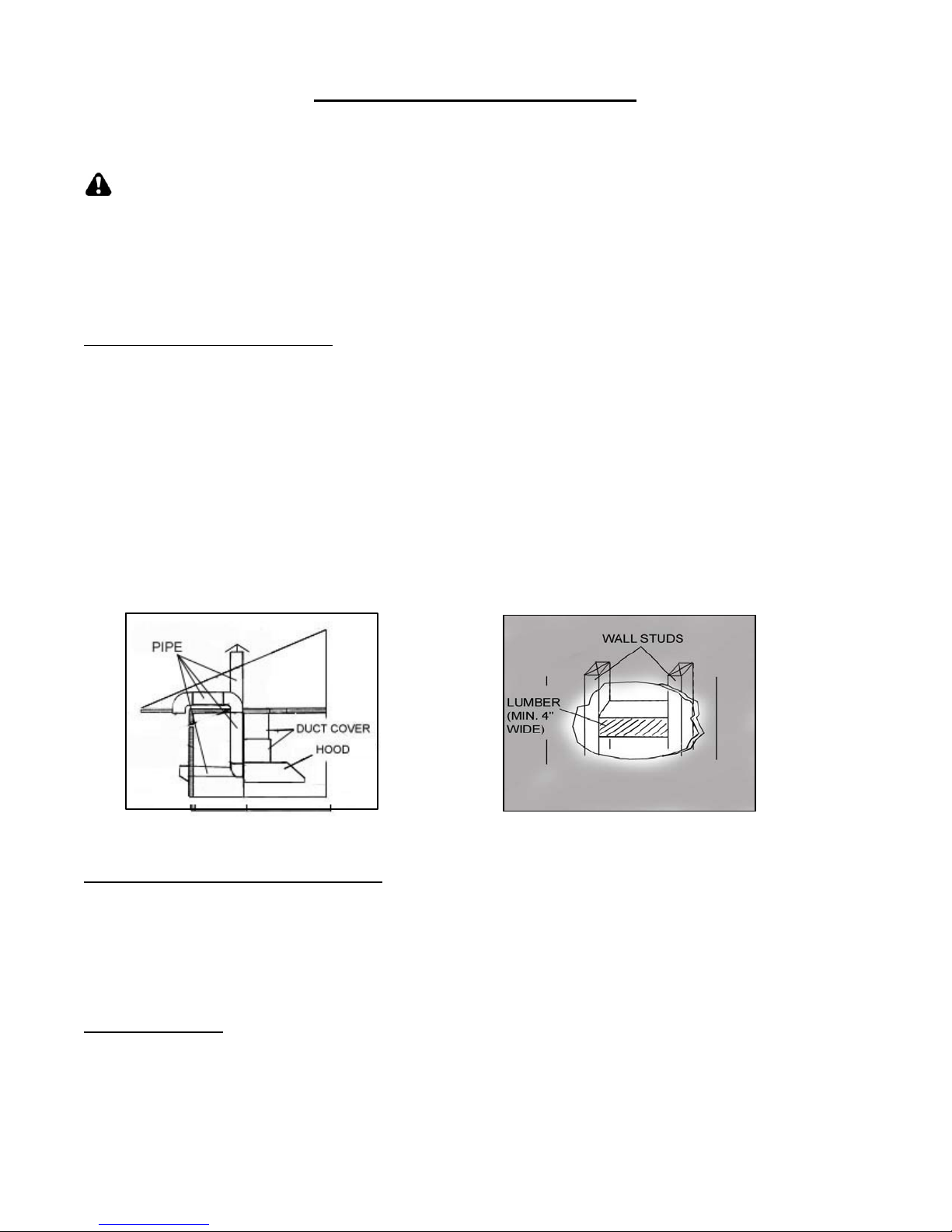

- Decide the ductwork and locations. Refer to Figure 8.

- Decide the location of the venting pipe from the hood to the outside.

- A straight, short venting run will allow the hood to perform more efficiently.

- Try to avoid as much transitions, elbows, and long run as possible. This may reduce the

performance of the hood.

- Use duct tape to seal the joints between pipe sections.

- If necessary, prepare back wall frame with cross framing lumber for secure installation.

Using references on Table 2 and measurement on page 16 decide the level of the

lumber. Refer to Figure 9.

Figure 8 Figure 9

Hood Preparation before Installation

- Temporarily wire the hood to test for proper operation before installing.

- Peel protective film off the hood and the duct cover (if any).

- Attach the hood-mounting bracket behind the hood with (3/16x3/8 mm) screws

(provided) as shown on Figure 10.

Hood Installation

CAUTION: If required to move the cooking range to install the hood, turn off the power on an

electric range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

Otros manuales para RA3830SQ

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE CH2230SQ-1 Guía de solución de problemas

KOBE

KOBE RA0230SQB-DC-5 Guía de solución de problemas

KOBE

KOBE IN26 30SQB-650-5 Series Guía de solución de problemas

KOBE

KOBE Deluxe Series Guía de solución de problemas

KOBE

KOBE RA9230SQB Guía de solución de problemas

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE CH0030SQB-1 Guía de solución de problemas

KOBE

KOBE CX1842GS-8 Guía de solución de problemas

KOBE

KOBE INX2730SQB-700-1Brillia Series Guía de solución de problemas

KOBE

KOBE CH8136SQ Guía de solución de problemas

KOBE

KOBE IN-027 Series Guía de solución de problemas

KOBE

KOBE CH-20 Series Guía de solución de problemas

KOBE

KOBE Brillia CHX91 SQB-2 Series Guía de solución de problemas

KOBE

KOBE CHX-30 Series(400 CFM-LED) Guía de solución de problemas

KOBE

KOBE IN26 SQB-1100-5 Series Guía de solución de problemas

KOBE

KOBE Brillia CHX81 SQB-2 Series Guía de solución de problemas

KOBE

KOBE CHX38 Manual de usuario

KOBE

KOBE CH7730SQB Guía de solución de problemas

KOBE

KOBE IN26 SQB-650-5 Series Guía de solución de problemas

KOBE

KOBE CHX36 SQB-29 Series Guía de solución de problemas

KOBE

KOBE Brillia CHX2730SQF Manual de usuario

KOBE

KOBE CHX91 SQB-1 Manual de usuario

KOBE

KOBE INX2730SQB-700-2 Guía de solución de problemas

KOBE

KOBE CH9730SQB Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
