KOBE Brand Range Hood

Model No. / N

de modèles / Modelo No.

IN2636SQB-1

IN-026 SERIES

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

MANUEL D'INSTALLATION

ET MODE D'EMPLOI

INSTRUCCIONES DE INSTALACIÓN

Y MANUAL DE OPERACIÓN

[ENGLISH] ...................................................................................................................... 1



[FRENCH] ..................................................................................................................... 25



[SPANISH] .................................................................................................................... 49



[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ........................................................................ 2



COMPONENTS OF PACKAGE ...................................................................................... 4



INSTALLATION............................................................................................................... 5



OPERATING INSTRUCTIONS ..................................................................................... 10



MAINTENANCE ............................................................................................................ 13



SPECIFICATIONS ........................................................................................................ 14



MEASUREMENTS & DIAGRAMS................................................................................. 15



PARTS LIST.................................................................................................................. 17



CIRCUIT DIAGRAM...................................................................................................... 19



TROUBLE SHOOTING ................................................................................................. 20



DISCLAIMER ................................................................................................................ 21



WARRANTY.................................................................................................................. 22



PRODUCT REGISTRATION......................................................................................... 24



- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance

with all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or

other hidden utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT

SERVICE PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces,

attics, crawl spaces or garages.

NOTE - This warranty is void without an authorized agent’s receipt or if

unit is damaged due to misuse, poor installation, improper use,

mistreatment, negligence or any other circumstances beyond the

control of KOBE RANGE HOODS authorized agents. Any repair

carried out without the supervision of KOBE RANGE HOODS

authorized agents will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily injuries

whether caused directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean.

Grease should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil

container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If

the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas

Company and Fire Department right away.

CAUTION

1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials

and vapors.

2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper

combustion and exhausting of gases through the flue (chimney) to prevent back drafting.

3. Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4. Activating any switch on may cause ignition or an explosion.

5. Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or

death. Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to

Local, State, and Federal Codes.

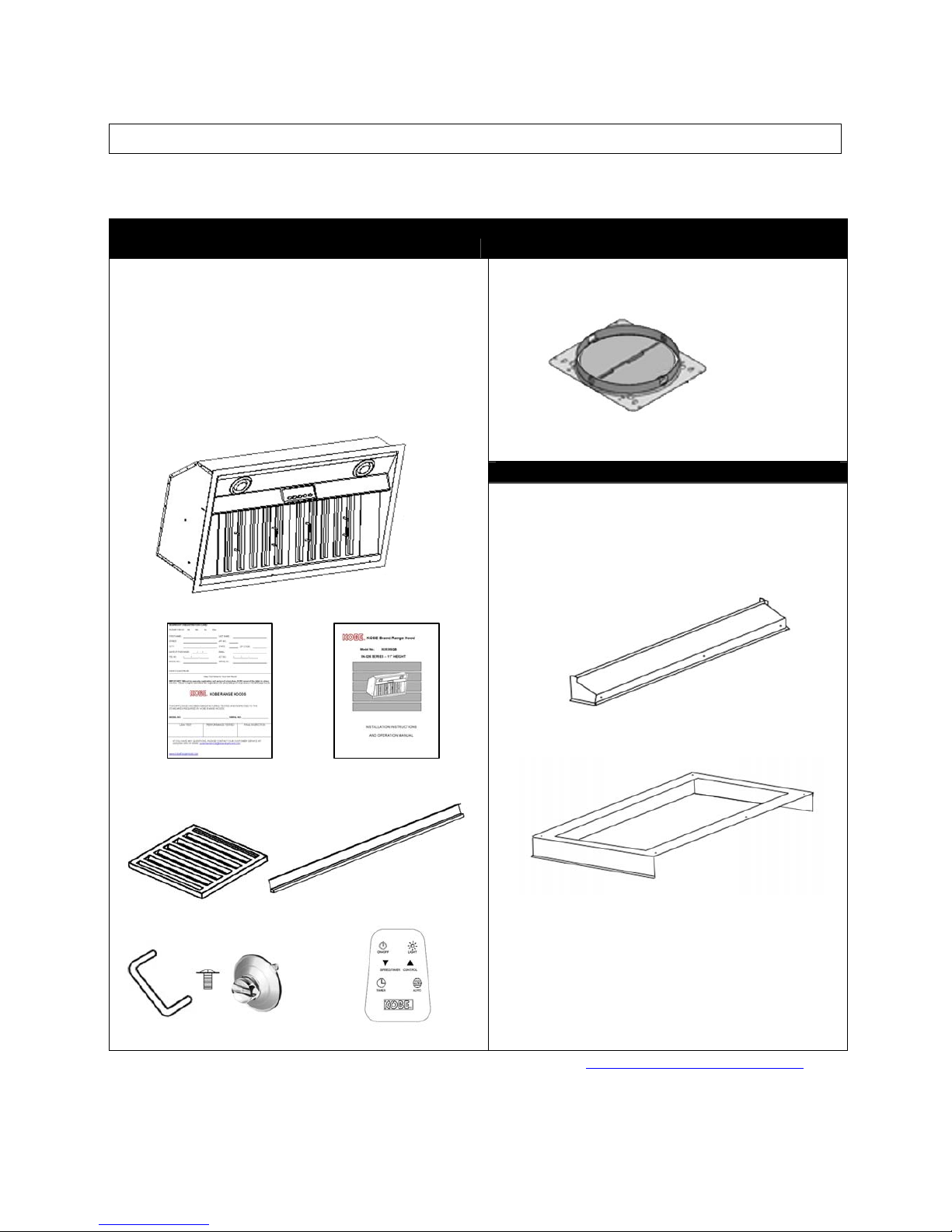

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

Range Hood Box

{H}

Liner (Sold Separately)

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instruction Manual

{D} Baffle Filter – 2

{E} Oil Tunnel – 1

{F} Screws Package – 1

{G} Wireless Control – 1

{H} Exhaust Plate – 1

{A}

{B} {C}

{D} {E}

{F} {G}

{I} Front Section of Liner

{J} Rear Section of Liner

{I}

{J}

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

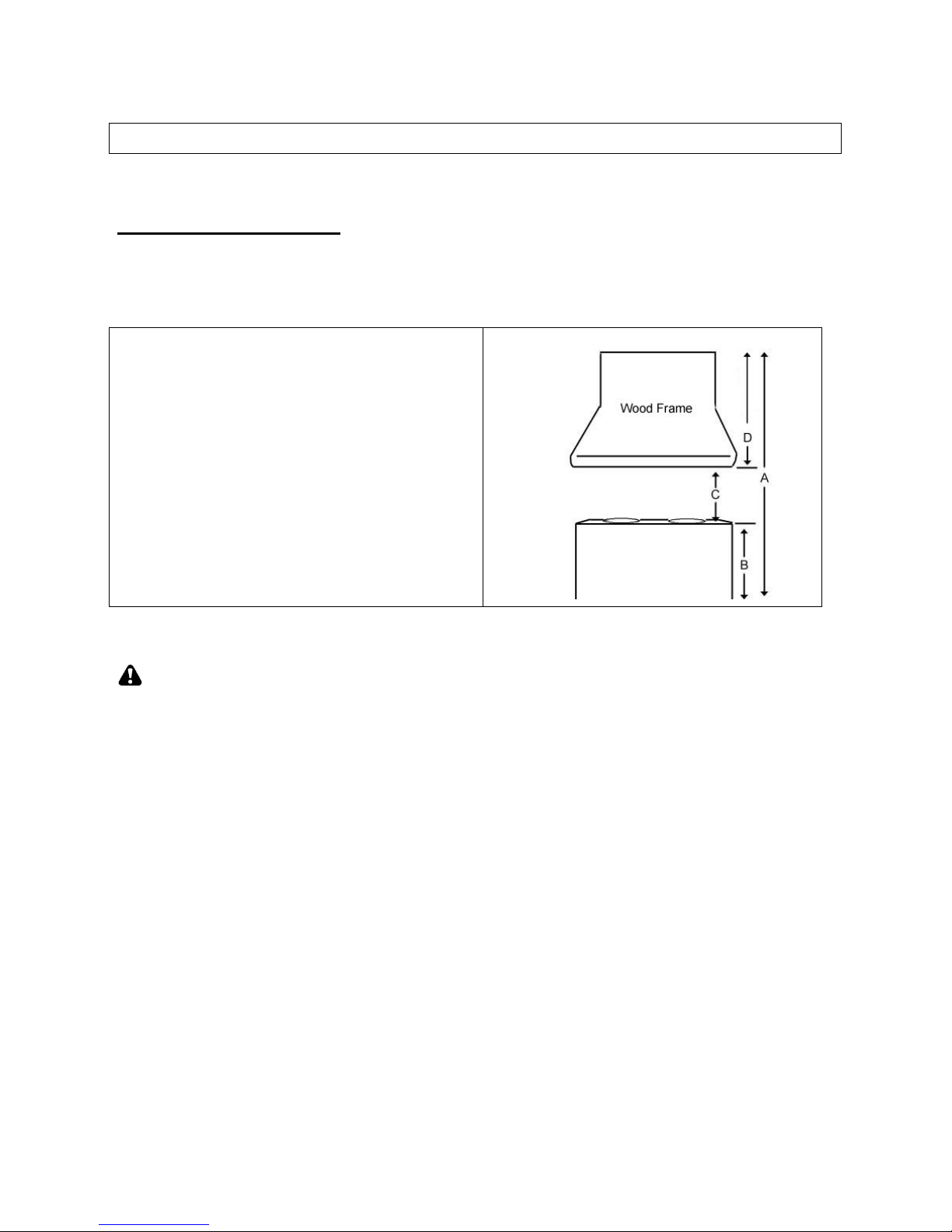

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Height of Counter Top to Wood Frame

Bottom (Minimum 27"to 30")

D = Height of Wood Frame

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

For Insert Installation -

Preparation Before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT OPENING.

•

Decide the location of the venting pipe from the hood to

the outside. Refer to Figure 1.

•

A straight, short vent run will allow the hood to perform

more efficiently.

•

Try to avoid as many transitions, elbows, and long run as

possible. This may reduce the performance of the hood.

•

Temporarily wire the hood to test for proper operation

before installing.

•

Important: Peel protective film off the hood, if any.

•

Use duct tape to seal joints between pipe sections.

CAUTION

: If moving the cooking range is

necessary to install the hood, turn off the power in

an electric range at the main electrical box. SHUT

OFF THE GAS BEFORE MOVING A GAS RANGE.

And use a protective covering to protect cooktop

and/or countertop from damage.

Custom Hood Preparation

1. The custom hood frame must be desgined according to

the shape and the weight of the insert. Refer to

Measurements and Diagrams on Page 15.

2. Install the Exhaust Plate using 4 screws. Refer to

Figure 2.

3. It must have a sturdy base (3/4 inch thick plywood

recommended) to sustain the weight of insert.

4. If an optional liner will be installed, the side of the wood

frame must be sturdy (3/4 inch thick plywood

recommended).

5. It is recommended to install rear & front stud support

(not included). Refer to Figure 3. The rear and front

stud support is located 1-1/2” up from the base of the

wood frame. For safety purposes, extra installation

holes on the side of the insert are provided. Prepare

the side stud support if needed.

Liner Installation

6. The custom wood frame must have a sturdy base to

accommodate the cut-out for the inset. The base must be

recessed to accommodate the height of the liner (See

liner dimension on Page 16)

7. Secure the liner to the bottom of the base using screws

(not included) appropriate for the size and material of your

wood frame.

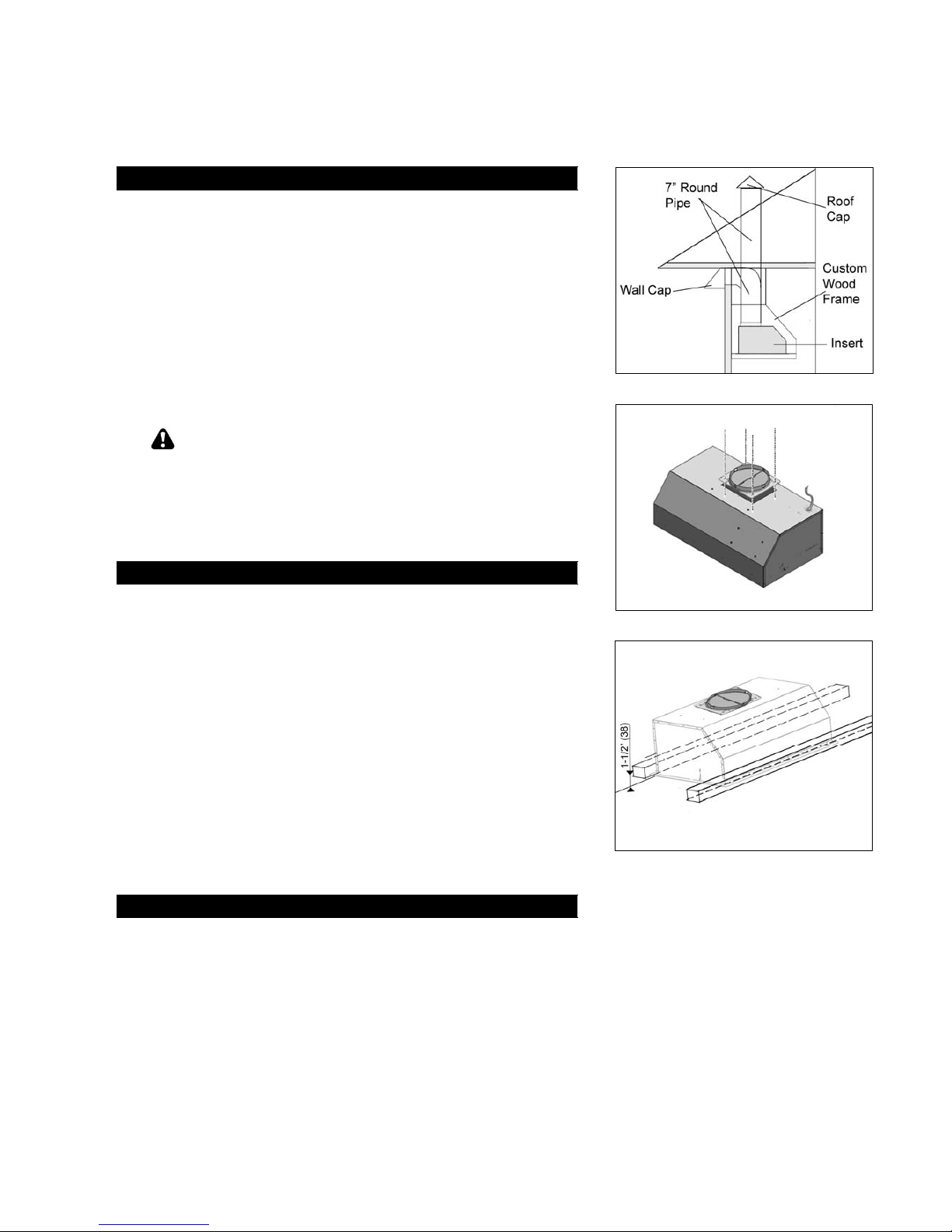

Figure 1

Figure 2

Figure 3

8. Liner is made up of two sections: a large, rear section with

pre-cut for insert and a front section for a total adjustable

depth between 23” and 25-3/4”.

9. Position the rear section of the liner so that it aligns with

the back edge of the custom wood frame. Use a pen to

trace the outline of the pre-cut area. Remove the liner

and proceed to Hood Preparation Before Installation.

10. Install the rear section of the liner with 6 screws (not

included).

11. Install the front section of the liner with 3 screws (not

included)

12. Proceed to Hood Installation on Page 8.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST

BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE

BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES, SWITCH POWER

OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

13. Temporarily wire the hood to test for proper operation

before installing. If the insert does not operate, check

the circuit breaker or house fuse. If the insert is still not

working, disconnect the power supply and check the

continuity of all wiring connections.

14. Connect electrical wires.

15. Connect three wires (black, white and green) to house

wires and cap with wire connectors. Connect wires

according to their colors (i.e. black to black, white to

white, and green to green).

16. Store wires in the wiring box.

Note: Connect all electrical wires before installing insert.

DO NOT turn on the power until installation is complete.

Duct Work Installation

17. Use 8” steel pipe (follow building codes in your area) to

connect the ducting on the hood to the ductwork above.

Use duct tape to seal and secure joints as shown in

Figure 4.

18. Please refer to local codes for the usage of the damper

(not included).

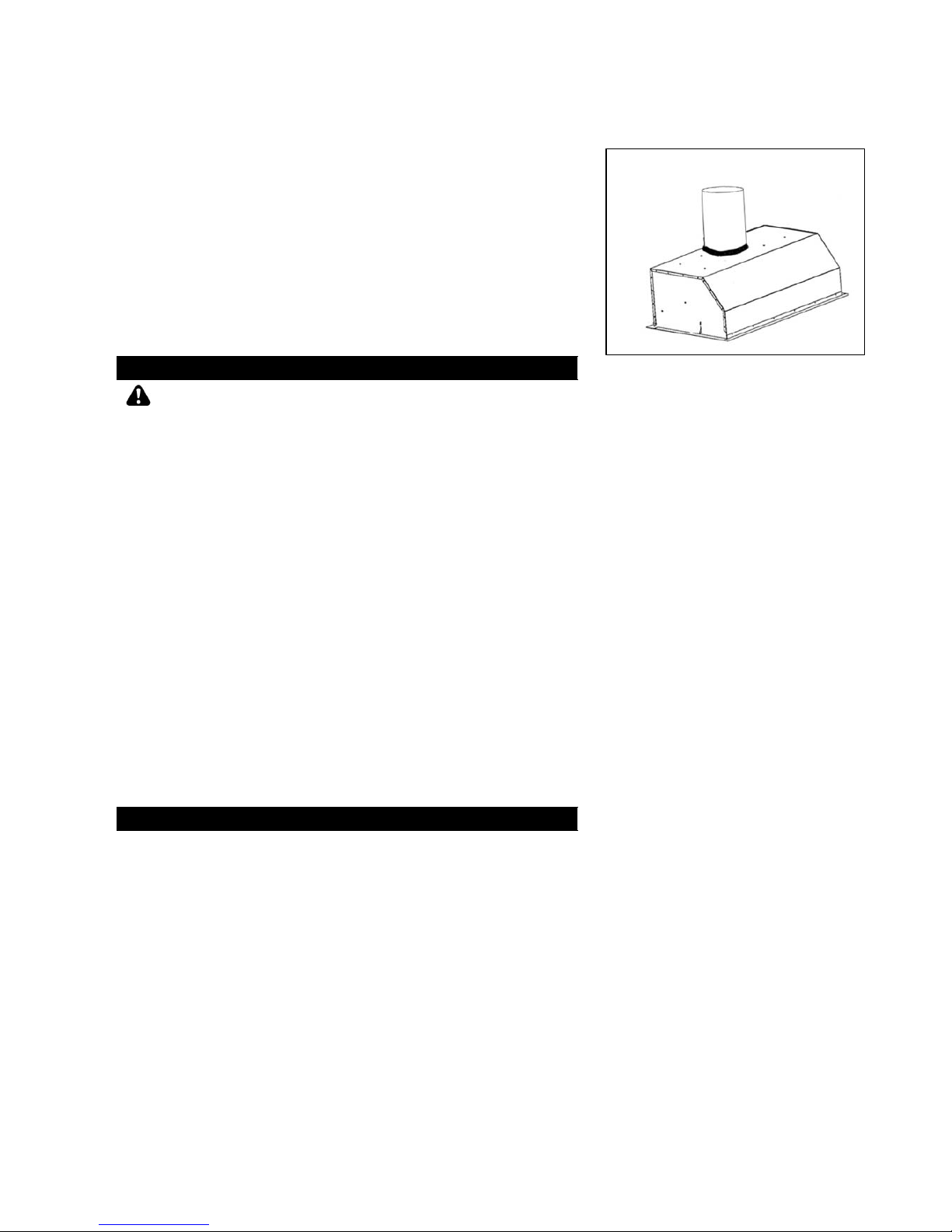

Figure 4

Otros manuales para IN2636SQB-1

Tabla de contenidos

Idiomas:

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE CH8136SQ Guía de solución de problemas

KOBE

KOBE CH2730SQ3 Series Guía de solución de problemas

KOBE

KOBE CHX9130SQB-1 Guía de solución de problemas

KOBE

KOBE RA2830SB Guía de solución de problemas

KOBE

KOBE IN2636SQB-700 Guía de solución de problemas

KOBE

KOBE IS2236SQF Guía de solución de problemas

KOBE

KOBE Premium Series Guía de solución de problemas

KOBE

KOBE CH7730SQ Guía de solución de problemas

KOBE

KOBE Brillia INX27 SQB-700-3 Series Guía de solución de problemas

KOBE

KOBE CH7930SQ Guía de solución de problemas

KOBE

KOBE Brillia CHX91 SQB-2 Series Guía de solución de problemas

KOBE

KOBE RA0230SQB Guía de solución de problemas

KOBE

KOBE PREMIUM IN2630SQB-700 Guía de solución de problemas

KOBE

KOBE IN2730SF Guía de solución de problemas

KOBE

KOBE CHX20 SQB-1 Manual de uso y cuidado

KOBE

KOBE CH7630SQB Guía de solución de problemas

KOBE

KOBE RAX21 SQB-X Series Guía de solución de problemas

KOBE

KOBE CH3830SQB-1 Guía de solución de problemas

KOBE

KOBE Brillia CHX9130SQB-2 Guía de solución de problemas

KOBE

KOBE Brillia CHX2224SQB-1 Guía de solución de problemas

KOBE

KOBE IS2236SQB-DC16-1 Guía de solución de problemas

KOBE

KOBE INX2730SQB-700-1Brillia Series Guía de solución de problemas

KOBE

KOBE RA3830SQ Guía de solución de problemas

KOBE

KOBE IS2336SQ Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
