KOBE IS2136SQB Guía de solución de problemas

KOBE Brand Range Hood

Model No. / N

de modèles / Modelo No.

IS2136SQB

IS2142SQB

IS-21 SERIES – 18” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

MANUEL D'INSTALLATION

ET MODE D'EMPLOI

INSTRUCCIONES DE INSTALACIÓN

Y MANUAL DE OPERACIÓN

[ENGLISH]................................................................................................................................. 1

[FRENCH]................................................................................................................................ 22

[SPANISH]............................................................................................................................... 43

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 2

COMPONENTS OF PACKAGE.................................................................................................. 4

INSTALLATION.......................................................................................................................... 5

OPERATION INSTRUCTIONS................................................................................................... 9

MAINTENANCE....................................................................................................................... 10

SPECIFICATIONS ................................................................................................................... 12

MEASUREMENTS & DIAGRAMS............................................................................................ 13

PARTS LIST............................................................................................................................. 14

CIRCUIT DIAGRAM.................................................................................................................16

TROUBLE SHOOTING............................................................................................................ 17

DISCLAIMER........................................................................................................................... 18

WARRANTY ............................................................................................................................ 19

PRODUCT REGISTRATION.................................................................................................... 21

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8. Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

RANGE HOOD BOX (Box 1 of 2) DUCT COVER BOX (Box 2 of 2)



KOBE Range Hood – 1



Warranty Registration Card –1



Instructions Manual – 1



Baffle Filter

-4 (36” & 42”)



Screw Package 1













Ducting Transition 1



Screw Package 1



Support Frame – 1



Duct Cover – 1



Mounting Template – 1









FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626-775-8880).

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

TABLE 1

A =

Height of Floor to Ceiling

B =

Height of Floor to Counter Top

(Standard: 36”)

C =

Preferred Height of Counter Top to

Hood Bottom

(Recommended 30” to 36”)

D = Height of Hood

E = Height of the Hood Installation

[A - (B+C)]

F = Height of Duct Cover

[E – D]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS

NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.



Decide the location of the venting pipe from the

hood to the outside. Refer to Figure 1.



A straight, short venting run will allow the hood to

perform more efficiently.



Try to avoid as many transitions, elbows, and

long run as possible. This may reduce the

performance of the hood.



Temporary wire the hood to test for proper

operation before installing.



Important: Peel any protective film off the hood.



Use duct tape to seal the joints between pipe

sections.



Attach ducting transition to hood exhaust with six

(3/16” x 1/2”) screws (included). Refer to Figure

Hood Installation

Mark centerlines of cook top or range on ceiling

above. Use centerlines marked on ceiling to

position the mounting template as shown in

Figure 3.

2. Remove and save template. Cut and remove

ceiling drywall. Install 2” x 4” cross framing

lumber (not provided) between ceiling joists.

Refer to Figure 4. Consult a professional if you

have difficulty or your installation is unique.

3. Finish the ceiling surface. Be sure to mark the

location of the ceiling joists and cross framing,

or replace the mounting template in the position

of the ceiling joists & cross framing.

4. Attach the support frame to the ceiling and

securely fasten to the joists and cross framing

with eight screws (not provided) as shown in

Figure 4. Make sure screws are driven into

center of joists and cross framing for maximum

support.

Figure 1

Figure 2

Figure 3

Figure 4

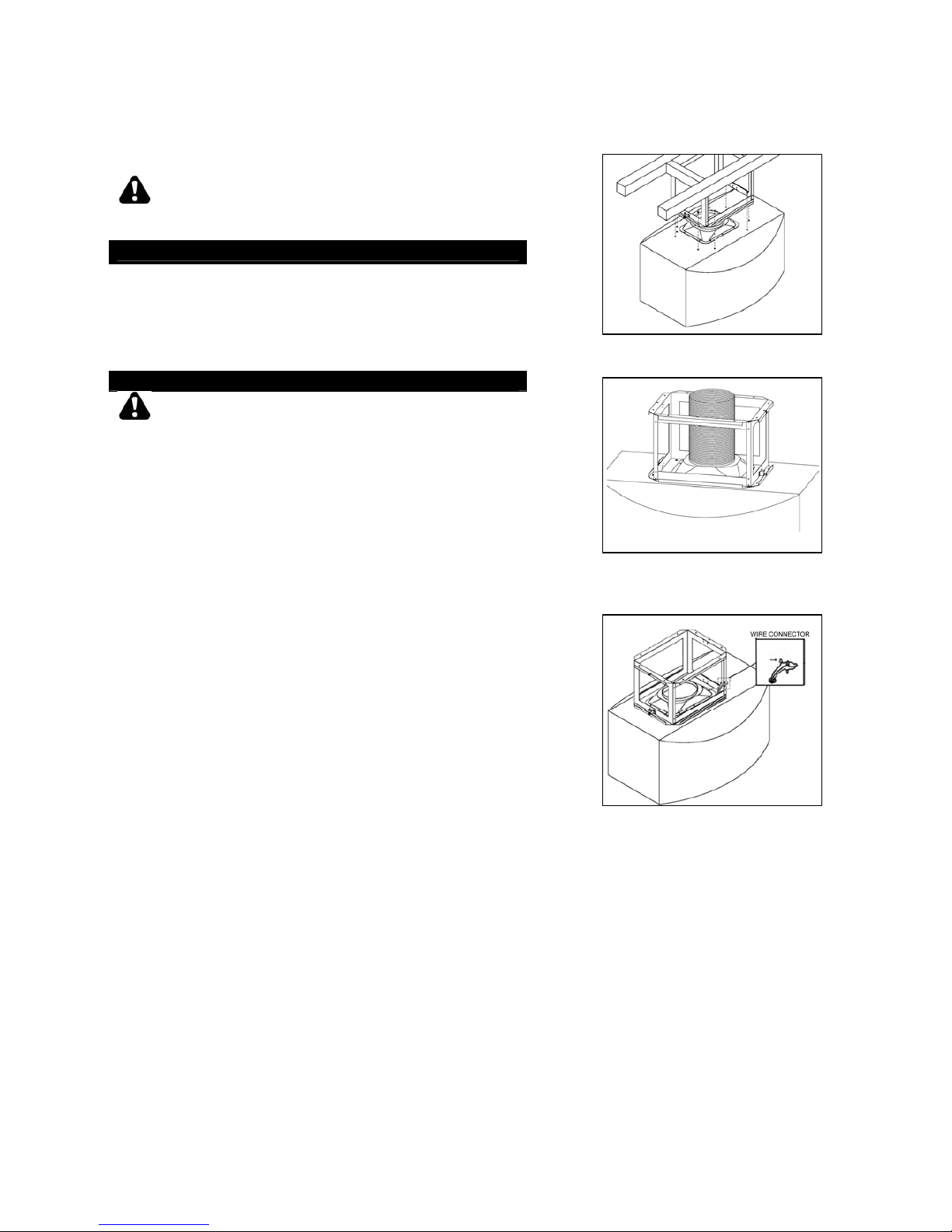

5. Use eight 3/16” x 3/8” screws (provided) to secure

hood to support frame. Make sure to tighten screws

securely. Refer to Figure 5.

CAUTION: MAKE SURE HOOD IS SECURE

BEFORE RELEASING.

Ductwork Installation

6. Use 8” round steel pipe (follow building codes in your

area) to connect the ducting transition on the hood to

the ductwork above. Use duct tape to make all joints

secure and air tight. Refer to Figure 6.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD

MUST BE PROPERLY GROUNDED. MAKE SURE

THIS IS DONE BY SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE NATIONAL

AND LOCAL ELECTRICAL CODES. BEFORE

CONNECTING WIRES, SWITCH POWER OFF AT

SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

7. Connect the electrical wires.

Connect three wires (black, white and green) to

house wires and cap with wire connectors.

Connect according to color: black to black, white

to white, and green to green as shown on Figure

If necessary to hide the electrical wire

connections, push wires back into the wiring box.

Access the wire connections underneath the

hood. Make sure wires do not slip between motor

or any moving parts to prevent any damage.

Figure 5

Figure 6

Figure 7

Duct Cover Installation

Use four 3/16” x 3/4” screws (provided) to attach

duct cover to support frame. Refer to Figure 8 & 9.

Install Accessories

9. Place baffle filters underneath the hood. Refer to

Figure 10.

Final Assembly

10. Turn power ON in control panel. Check all lights and

fan operation.

11. Make sure to leave this manual for the homeowner.

Figure 8

Figure 9

Figure 10

Otros manuales para IS2136SQB

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE RA2230SQB-1 Guía de solución de problemas

KOBE

KOBE INX28 SQ-700-2 Series Guía de solución de problemas

KOBE

KOBE RA9236SQ Guía de solución de problemas

KOBE

KOBE Brillia CHX2224SQB-1 Guía de solución de problemas

KOBE

KOBE CH0330SQB Guía de solución de problemas

KOBE

KOBE IN2630SQB-700-1 Guía de solución de problemas

KOBE

KOBE CHX-30 Series(400 CFM-LED) Guía de solución de problemas

KOBE

KOBE RAX9430SQB-2 Guía de solución de problemas

KOBE

KOBE IN2636SQB Guía de solución de problemas

KOBE

KOBE Brillia RAX2130SQB-1 Guía de solución de problemas

KOBE

KOBE Brillia RAX9430SQB-1 Guía de solución de problemas

KOBE

KOBE CX1842GS-8 Guía de solución de problemas

KOBE

KOBE CH0042SQB-1 Guía de solución de problemas

KOBE

KOBE RAX2830SQB-2 Guía de solución de problemas

KOBE

KOBE CH9630SQB Guía de solución de problemas

KOBE

KOBE CH-30 Series Guía de solución de problemas

KOBE

KOBE RA9230SQB-1 Guía de solución de problemas

KOBE

KOBE CHX3830SQBD-3 Guía de solución de problemas

KOBE

KOBE INX26 SQB-700-3 Series Guía de solución de problemas

KOBE

KOBE RA9236SQ Guía de solución de problemas

KOBE

KOBE CH91 SQB-1 Series Guía de solución de problemas

KOBE

KOBE CH0036SQB Manual de usuario

KOBE

KOBE CH2230SQ Guía de solución de problemas

KOBE

KOBE CH2230SQ-1 Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
