KOBE RA2830SB Guía de solución de problemas

KOBE Brand Range Hood



Model No. / N

de modèles / Modelo No.

RA2830SB

RA2836SB

RA-028 SERIES – 2” HEIGHT





INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

MANUEL D'INSTALLATION

ET MODE D'EMPLOI

INSTRUCCIONES DE INSTALACIÓN

Y MANUAL DE OPERACIÓN



[ENGLISH]..................................................................................................................................1

[FRENCH].................................................................................................................................21

[SPANISH] ................................................................................................................................42











- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .....................................................................................2

COMPONENTS OF PACKAGE...................................................................................................4

INSTALLATION...........................................................................................................................5

OPERATION INSTRUCTIONS....................................................................................................9

MAINTENANCE........................................................................................................................10

SPECIFICATIONS ....................................................................................................................12

MEASUREMENTS & DIAGRAMS.............................................................................................13

PARTS LIST..............................................................................................................................14

CIRCUIT DIAGRAM..................................................................................................................15

TROUBLE SHOOTING .............................................................................................................16

DISCLAIMER............................................................................................................................17

WARRANTY .............................................................................................................................18

PRODUCT REGISTRATION.....................................................................................................20

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -





: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.









: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:



- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

- Clean ventilating fan frequently.



What to Do In The Event Of a Range Top Grease Fire



• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.



What to Do If You Smell Gas



Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.





1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.







ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped,

the fluorescent light bulb contains small amounts of mercury, which

must be recycled or disposed of according to Local, State, and Federal

Codes.



COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

RANGE HOOD BOX

{A} KOBE Range Hood – 1

{B} Warranty Registration Card – 1

{C} Instructions Manual – 1

{D} Baffle Filters - 2

{E} Bottom Casing - 1

{A} {D}

{B} {C} {E}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation



Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of the Cabinet





HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.



Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

Decide the location of the venting pipe

from the hood to the outside. Refer to

Figure 1.

A straight, short venting run will allow

the hood to perform more efficiently.

Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

Temporarily wire the hood to test for

proper operation before installing.

Peel protective film off the hood (if any).

Make sure the cabinet has full access

opening for the hood as shown on

Figure 2.

Hood Installation

CAUTION: If required to move the cooking

range to install the hood, turn off the power

on an electric range at the main electrical

box. SHUT OFF THE GAS BEFORE MOVING

A GAS RANGE.

1. Using references on Table 1 and

measurements on page 11 mark the

leveling point for hood-mounting bracket

inside the cabinet.

2. Secure two hood mounting screws (not

provided) inside the cabinet leaving 1/8”

away from the cabinet as shown on Figure

3. Loosen hood-mounting brackets at the

back of the hood, adjust brackets and

tighten screws as shown in Figure 4.

4. Refer to Figure 5. Align hood-mounting

bracket to the mounting screws inside the

cabinet and hook hood into place. Secure

and tighten the mounting screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Figure 1

Figure 2

Figure 3

Figure 4

Ductwork Installation

5. Use aluminum or steel pipe to connect the

6” round plastic exhaust on the hood to

the ductwork above. Use duct tape to

make all joints secure and air tight. Refer

to Figure 6.

Wiring to Power Supply





RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.



6. Connect the electrical wires.

- Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green

to green as shown on Figure 7.

- If necessary to hide the electrical wire

connections, push wires back into the

wiring box. Access the wire connections

underneath the hood. Make sure wires

do not slip between motor or any

moving parts to prevent any damage.

Install Accessories

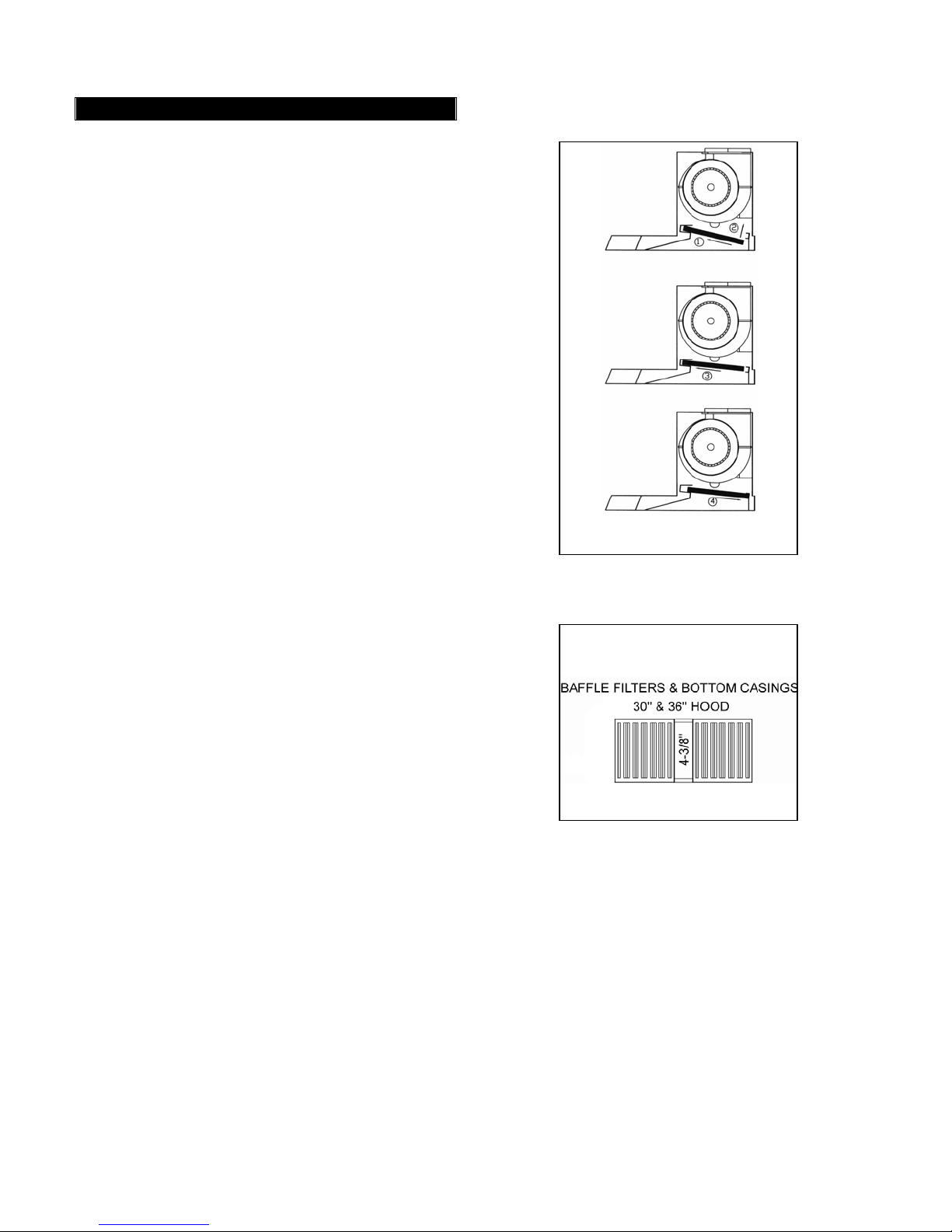

7. Refer to Figure 8. cSlide the baffle filter

into the hood. dPush the baffle filter

upward. eSlide forward. fPull

downward. gFit into place.

8. For bottom casing, repeat above steps.

Refer to Figure 9.

Figure 5

Figure 6

Figure 7

Final Assembly

9. Turn power ON in control panel. Check

all lights and fan operation.

10. Make sure to leave this manual for the

homeowner.

Figure 8

Figure 9
