KOBE Brand Range Hood

Model No. CH0030SQB

CH0036SQB

CH0042SQB

CH0048SQB

CH-100 SERIES – 18” HEIGHT

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

Important Safety Instructions.................................................................................................1

Components Of Package...................................................................................................... 3

Installation............................................................................................................................. 4

Operating Instructions.........................................................................................................11

Maintenance ....................................................................................................................... 12

Specifications...................................................................................................................... 13

Measurements & Diagrams.................................................................................................14

Parts List............................................................................................................................. 16

Circuit Diagram...................................................................................................................21

Disclaimer...........................................................................................................................23

Warranty............................................................................................................................. 24

Product Registration............................................................................................................26

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING M UST BE DONE BY A PRO FESSIONAL AND IN

ACCORDANCE W ITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with

all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other

hidden utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT

SERVICE PANEL.

b) Clean fan, baffles/filters and grease laden surfaces frequently. To reduce the risk of fire and

to disperse air properly, make sure to vent air outside. DO NOT vent exhaust air into wall

spaces, attics, crawl spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence or any

other circumstances beyond the control of KOBE RANGE

HOODS authorized agents. Any repair carried out without

the supervision of KOBE RANGE HOODS authorized agents

will automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any

damages to personal property or real estate or any bodily

injuries whether caused directly or indirectly by the range

hood.

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

1) Keep fan, baffle/filter, if any, and grease-laden surfaces clean.

2) Always turn hood ON when cooking at high heat.

3) Use high settings on cooking range ONLY when necessary. Heat the oil slowly on low to

medium setting.

4) Do not leave cooking range unattended when cooking.

5) Always use cookware and utensils appropriate for the type and amount of food prepared.

6) Use this unit only in the manner intended by the manufacturer.

7) Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

8) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan and

baffles.

What to Do In The Event Of a Range Top Grease Fire

SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the

flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

NEVER PICK UP A BURNING PAN – You May Get Burned.

DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas

Company and Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

Activating any switch on may cause ignition or an explosion.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

RANGE HOOD BOX

ORIGINAL KIT (Sold Separately)

KOBE Range Hood – 1

Warranty Registration Card – 1

Instructions Manual – 1

Baffle Filter - 2 (for 30”, 36”, 42” hood)

- 3 (for 48” hood)

Bottom Casing - 1 (for 30” hood)

- 3 (for 36” & 42” hood)

- 2 (for 48” hood)

7” Round Adapter - 1









Option of:

Model No. CH0030DC-12 for 30” hood

KOBE Duct Cover – 1

Screw Package – 1

Hood-Mounting Bracket – 2

Model No. CH0036DC-12 for 36” hood

KOBE Duct Cover – 1

Screw Package – 1

Hood-Mounting Bracket – 2

Model No. CH0042DC-12 for 42” hood

KOBE Duct Cover – 1

Screw Package – 1

Hood-Mounting Bracket – 2

Model No. CH0048DC-12 for 48” hood

KOBE Duct Cover – 1

Screw Package – 1

Hood-Mounting Bracket – 2







OPTIONAL RECIRCULATING KIT ALSO AVAILABLE.

FOR MORE INFORMATION, PLEASE CONTACT KOBE RANGE HOODS AT (626) 309-1356.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

Calculate the length of the installation, before installing the hood. (All calculation is measure in

inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of the Cabinet

- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

[(A – B] – (D + E)]

D = Height of Hood

E = Height of Duct Cover

SAFETY W ARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS

NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCUR.

Installation Contents

Under the Cabinet.................................................................................................................6

Stand Alone ..........................................................................................................................8

UNDER THE CABINET INSTALLATION

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR

HOOD, PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

Decide the location of the venting pipe

from the hood to the outside. Refer to

Figure 1.

A straight, short venting run will allow

the hood to perform more efficiently.

Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

Temporarily wire the hood to test for

proper operation before installing.

Important: Peel protective film off

the hood (if any).

For installing under the cabinet with

recessed bottom, attach 4-inch wide

wood filler strips (not included) on

each side. Refer to Figure 2.

Measure and create access opening

for electrical wires and plastic exhaust

under the cabinet.

Hood Installation

CAUTION: If required to move the cooking

range to install the hood, turn off the

power on an electric range at the main

electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

1. Puncture the knockout holes on the

hood as shown in Figure 3.

2. Using references on Table 1 and

measurements on page 14-15 center

the hood in place beneath the cabinet

and flush with the front of the cabinet.

3. Draw electrical wires through cabinet

access opening.

4. From the bottom of the hood, place

screw (not provided) into the exact

center of each knockout hole. Make

sure all screws are in place before

tightening screws. CAUTION: MAKE

SURE THE HOOD IS SECURE

BEFORE RELEASING.

5. Make sure to leave this manual for the

homeowner.

Figure 1

Figure 2

Figure 3

Figure 4

Ductwork Installation

6. Use aluminum or steel pipe to connect

the plastic exhaust on the hood to the

ductwork above. Use duct tape to make

all joints secure and air tight as shown

on Figure 4.

7. To convert ductwork to 7” round,

attached 7” round adapter (provided) to

the 6” round plastic exhaust.

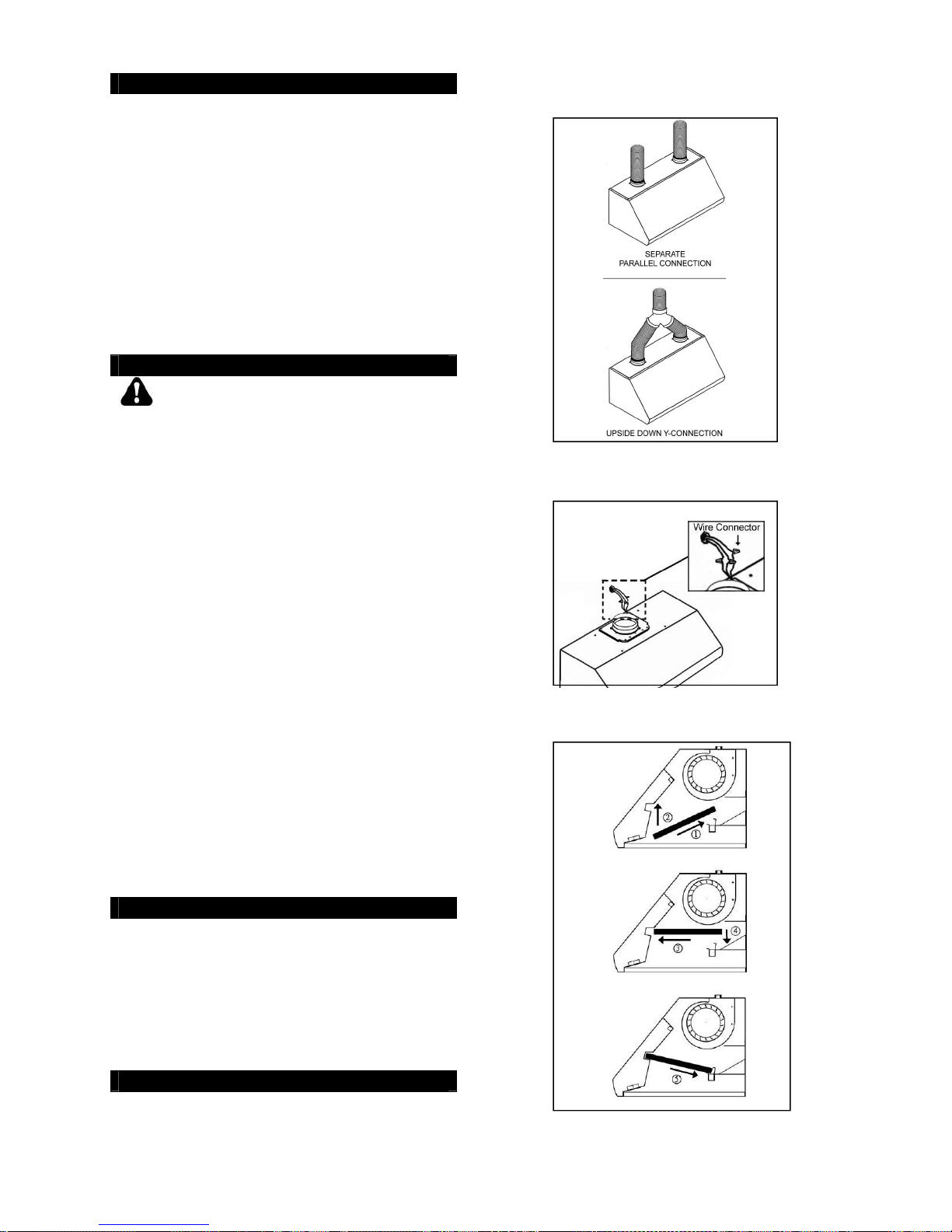

8. For 48” hood, prepare either separate

parallel connection or upside down Y-

connection for proper ductwork

installation. Refer to Figure 5.

Wiring to Power Supply

SAFETY W ARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

9. Connect the electrical wires.

- Connect three wires (black, white and

green) to house wires and cap with

wire connectors. Connect according

to color: black to black, white to white,

and green to green as shown on

Figure 6.

- If necessary to hide the electrical wire

connections, push wires back into the

wiring box. Access the wire

connections underneath the hood.

Make sure wires do not slip between

motor or any moving parts to prevent

any damage.

Install Accessories

10. Refer to Figure 7 Slide the baffle filter

into the hood. Push the baffle filter

upward. Slide forward. Pull

downward. Fit into place.

11. For bottom casing, repeat above steps.

Refer to page 15.

Final Assembly

12. Turn power ON in control panel. Check

all lights and fan operation.

Figure 5

Figure 6

Figure 7

STAND ALONE INSTALLATION

***This installation only applied with the

purchase of an optional duct cover:

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR

HOOD, PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

Decide the location of the venting pipe

from the hood to the outside. Refer to

Figure 8.

A straight, short venting run will allow

the hood to perform more efficiently.

Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

Use duct tape to seal the joints

between pipe sections.

If necessary, prepare back wall frame

with cross framing lumber for secure

installation.

Using references on Table 2 and

measurements on page 14-15, decide

the level of the lumber. Refer to

Figure 9.

Hood Preparation before Installation

Temporarily wire the hood to test for

proper operation before installing.

Important: Peel protective film off

the hood and the duct cover (if any).

Attach the two hood-mounting

brackets to the back of the hood with

(3/16” x 3/8”) screws (provided) as

shown In Figure 10.

Hood Installation

CAUTION: If required to move the cooking

range to install the hood, turn off the

power on an electric range at the main

electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

1. Using references on Table 2 and

measurements on page 14-15, mark the

leveling point of the hood. Position two

mounting screws (not provided) on the

wall, leaving 1/8” away from the wall as

shown in Figure 11.

Figure 8

Figure 9

Figure 10

Figure 11

Otros manuales para CH0030SQB

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de KOBE

KOBE

KOBE RA2230SQB-1 Guía de solución de problemas

KOBE

KOBE INX29 SQBF-500-1 Series Manual de uso y cuidado

KOBE

KOBE AMZ-CHX2030SQB-40 Guía de solución de problemas

KOBE

KOBE RA92 SQB-5 Series Guía de solución de problemas

KOBE

KOBE Brillia RAX9430SQB-1 Guía de solución de problemas

KOBE

KOBE CH2230SQ-1 Guía de solución de problemas

KOBE

KOBE Brillia CHX2730SQF Manual de usuario

KOBE

KOBE IS22 SQB-5 Series Guía de solución de problemas

KOBE

KOBE CHX20 Guía de solución de problemas

KOBE

KOBE RAX21 SQB-X Series Guía de solución de problemas

KOBE

KOBE BRILLIA SERIES INX-026OVS-INX2630SQB-600-40 Guía de solución de problemas

KOBE

KOBE Deluxe Series Guía de solución de problemas

KOBE

KOBE CX1842GS-8 Guía de solución de problemas

KOBE

KOBE CH0030SQB-1 Guía de solución de problemas

KOBE

KOBE INX26 SQB-700-3 Series Guía de solución de problemas

KOBE

KOBE CH0330SQB Guía de solución de problemas

KOBE

KOBE PREMIUM IN2630SQB-700 Guía de solución de problemas

KOBE

KOBE CHX9136SQB-1 Guía de solución de problemas

KOBE

KOBE IN2642SQB-1200-1 Guía de solución de problemas

KOBE

KOBE CX-183 Guía de solución de problemas

KOBE

KOBE CH0036SQB-1 Guía de solución de problemas

KOBE

KOBE RA3830SQD Guía de solución de problemas

KOBE

KOBE IS2236SQB-1 Guía de solución de problemas

KOBE

KOBE RA3830SQ Guía de solución de problemas

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
