Klaxon GP10 Manual de instrucciones

GP6, GP10 and GP12 Sirens

INSTALLATION AND MAINTENANCE

1. Installation

a. Fix siren to a firm level base at a minimum height of 3m above the ground and free

of side or top obstructions.

b. For best all round sound propagation mount the unit at a height of 4.5 to 6m with

50m clear radius all round.

c. Figure 1 overleaf shows a polar plot of the sound output from the sirens in free

space.

Please note that the propagation of sound in air is affected by the following factors

which must be accounted for when calculating the coverage of the siren:

•Variations of the propagation speed in the air

•Attenuation of the sound during propagation

•Wind and turbulence of the atmosphere

•Obstacles placed in the vicinity of siren and listener.

•Ambient noise levels

d. The plot assumes ideal free-field conditions.

The following losses must be taken into account during commissioning:

•Sound attenuation loss over distance in free-field conditions without obstructions.

Distance in Metres 1 30 100 200 500 1000 2000

GP6 135 105 95 89 81 75 69

GP10 140 110 100 94 86 80 74

Audibility

dB(A)

GP12 145 115 105 99 91 85 79

•Attenuation in decibels per kilometre due to absorption of sound in air (10°C,

90%RH).

At 500 Hz frequency the attenuation is 1.6 dB(A)/kilometre

•Absorption due to fog in decibels per kilometre.

At 500 Hz frequency the attenuation is 1.0 dB(A)/kilometre

The two figures provided for sound absorption in clear air and fog are sound losses

in addition to the typical sound losses experienced over distance indicated in the

table above.

e. This equipment should only be connected to the supply voltage marked on the

rating plate.

f. WARNING: The equipment should be protected from access by persons, animals

or foreign bodies to avoid injury to persons or damage to equipment affecting safe

use.

g. WARNING: This equipment contains rotating parts. Please ensure that the

retaining straps on the rotor are left in place until the installation is complete and the

equipment is ready to be tested for the first time.

h. WARNING: Keep well clear of the siren when in operation. Extremely high noise

levels are produced. Unprotected exposure could lead to permanent hearing

damage. Ensure appropriate hearing protection is used when working in close

proximity to siren.

2. Maintenance

a. The siren should be periodically tested for correct function. Typically this could be

quarterly or half yearly.

b. Motor bearings are sealed and rated for a life of 25,000 hours. No maintenance is

required

3. Contacting Klaxon

Klaxon Signals Ltd,

Wrigley St,

Oldham,

England , OL4 1HW

Technical Helpline: +44 (0) 161 287 4029

Sales Hotline: +44 (0) 161 287 5555

Fax: +44 (0) 161 287 5511

E-mail: [email protected]

Web: www.klaxonsignals.com

18-185845/4

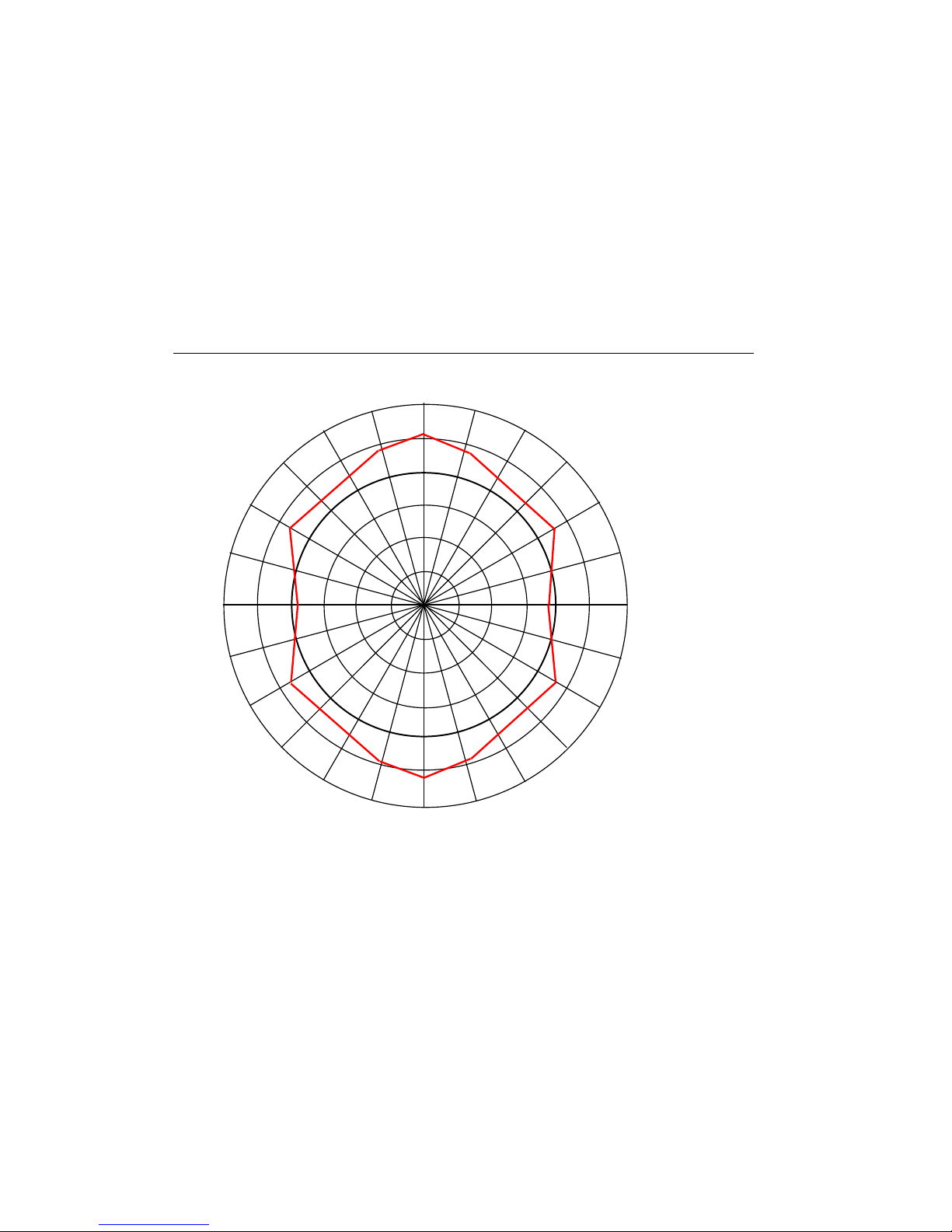

GP6 and GP10 Single Ended Sirens - Polar Plot of Sound Output (dBA @ 1m)

120

125

130

135

140

145

150 015 30

105

120

135

150

165

180

195

210

225

240

255

270

285

300

315

330 345

GP6 Siren

GP10 Siren

GP12 Double Ended Siren – Polar Plot of Sound Output (dbA @ 1m)

225

240

270

285

300

315

330

345

255

210

195 180

105

120

135

150

165
