KitchenAid KICU285HSS Instrucciones de uso

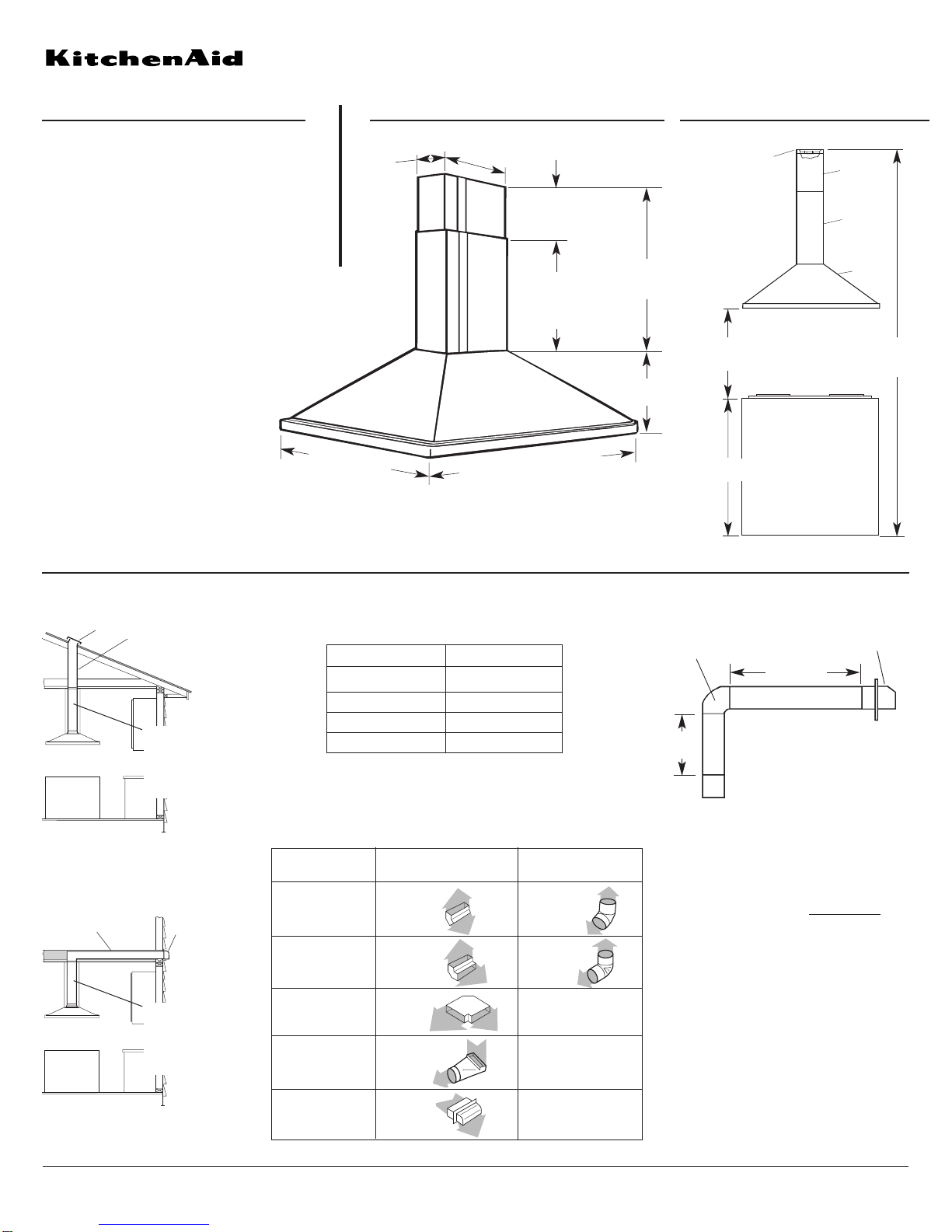

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS CABINET OPENING DIMENSIONS

VENTING REQUIREMENTS

KICU265H

KICU285H

Electrical: 120-volt, 60-Hz, AC-only, 15-amp.

electrical supply. Use copper wire only. A time-

delay fuse or circuit breaker and separate circuit is

recommended.

36" and 48" Island Canopy Range Hood

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 4360369 Rev. C

10-15-02

8’ (2.4 m) min. -

9’ (2.7 m) max.

ceiling to floor

support

structure

24" (61 cm) min.

bottom of canopy to

cooking surface

canopy

lower

chimney

upper

chimney

36" (91.4 cm)

base cabinet

height

3-1/4" x 10"

(8.3 cm x 25 cm)

through

the roof

roof cap

Horizontal wall venting

3-1/4" x 10"

(8.3 cm x 25 cm)

through the wall wall cap

Vertical roof venting

The vent system length should not

exceed the lengths shown in the

chart below.

Vent size Maximum length

3-1/4" x 10" 35 ft. (10.7 m)

(8.3 cm x 25 cm)

7" (17.8 cm) round 40 ft. (12.2 m)

8" (20.3 cm) round 50 ft. (15.2 m)

9" (22.9 cm) round 60 ft. (18.3 m)

Vent Piece 3-1/4" x 10" (8.3 cm x 25 cm) 7" (17.8 cm), 8" (20.3 cm)

Rectangular or 9" (22.9 cm) Round

45° elbow 7.0 feet 2.5 feet

(2.1 m) (0.8 cm)

90° elbow 5.0 feet 5.0 feet

(1.5 m) (1.5 m)

90° flat elbow 12.0 feet

(3.7 m)

transition to round 5.0 feet

(1.5 m)

wall cap 0.0 feet

(0.0 m)

3-1/4" x 10”

(8.3 cm x 25 cm)

elbow

wall

cap

Maximum length = 35 ft. (10.7 m)

1 — 90° elbow = 5 ft. (1.5 m)

8 ft. (2.4 m) straight = 8 ft. (2.4 m)

1 — wall cap = 0 ft. (0 m)

Length of 3-1/4" x 10"

(8.3 cm x 25 cm)

system = 13 ft. (4 m)

6 ft. (1.8 m)

2 ft.

(0.6 m)

3-1/4" x 10"

(8.3 cm x 25 cm)

ent system

To calculate the length of the system you need, add the

equivalent feet for each vent piece used in the system.

Note: Flexible vent is Not

recommended.

If it is used, each foot of flexible vent

used is equivalent to two feet (61 cm)

of straight metal vent when

calculating the vent system length.

(Example: A flexible elbow equals two

standard elbows.)

36" hood 35-3/8" (89.9 cm) or

48" hood 47-1/4" (120 cm)

overall width

23-5/8" (60 cm)

overall depth

24-5/8" (62.5 cm) min. -

34-3/4" (88.3 cm) max.

overall chimney height

23-5/8"

(60 cm)

lower

chimney

height

1" (2.5 cm) min. -

11-1/8" (23.8 cm) max.

upper chimney height

10-1/4" (26 cm)

canopy height

7 1/16"

(17.9 cm)

10 7/8"

(27.6 cm)

Note: 3-1/4" x 10"

(8.3 cm x 25 cm)

rectangular vent must

be used inside chimney

cover. Round vent will

not fit inside chimney

cover.

Note: 3-1/4" x 10"

(8.3 cm x 25 cm)

rectangular vent must

be used inside chimney

cover. Round vent will

not fit inside chimney

cover.
