Instructions for use

Warnings 4

Safeguarding the environment 5

Instructions for installation and use 6

Extraction mode 6

Installation 7

Hood description 10

Functioning 10

Maintenance 11

After-Sales Service 13

• This appliance should not be used by children or people with limited physical or mental

abilities and with no experience or knowledge of its use, unless they are supervised by

someone in charge of their safety or who has taught them how to use the appliance.

• Children should not play with the appliance.

1. Do not connect the appliance to the mains supply until the installation is completely finished.

Before carrying out any cleaning or maintenance work, always disconnect the hood from the mains

supply by pulling out the plug or turning off the mains switch in the house.

2. Do not flambé food under the hood since the flames generated could cause a fire.

3. Do not leave a frying pan unattended when frying food as the cooking oil could catch fire.

4. Constant cleaning and maintenance of your hood will ensure it works properly. Regularly remove all the

ingrained food from dirty surfaces. Regularly remove and clean or change the filter. Do not use

inflammable material to convey exhaust air.

5. If the hood is used in conjunction with other appliances that run on gas or other fuels, the negative

pressure of the room should be no greater than 4Pa (4 x 10-5 bar). This is why you should make sure

the room is well aired.

6. Exhaust air from the hood should not be eliminated through the heating system chimney or appliances

that run on gas or other fuels.

7. The room should be sufficiently ventilated when the hood is used together with other appliances that

run on gas or other fuels.

8. Before touching the light bulbs, make sure they have cooled down.

Note: always use gloves when installing or carrying out maintenance work.

Electrical connection

The mains voltage should correspond with the voltage shown on the specifications label found inside the

hood. If there is no plug, connect the hood to a socket that complies with current legislation and is in an

easily accessible location. If there is no plug (direct connection to the mains supply) or the plug is not in an

easily accessible location, fit a legally complying bi-polar switch that ensures the complete disconnection of

the mains in the event of a category III line surge, in compliance with the installation regulations.

IMPORTANT: before reconnecting the hood circuit to the power supply, check that it is

working properly, that the mains cable has been properly fitted and that it has NOT been

crushed in its holder during installation.

Cleaning the hood

Warning! Failure to remove oil/grease (at least once a month) could lead to a fire breaking out. Use a soft

cloth and mild cleaning product. Never use harsh substances or alcohol.

Before using the hood

To get best performance from the hood, please read these user instructions carefully and keep them for

future reference.

Keep the packaging material (plastic bags, pieces of polystyrene, etc.) out of children’s reach as they can be

dangerous.

Make sure the hood has not been damaged during transportation.

The installation and the electrical connections, replacement of power cables with plug or flexible cable

should be carried out by a qualified technician in compliance with current legislation in force.

This appliance was designed to be used by adults.

Warnings

1. Packing

The packaging material is entirely recyclable and marked with the recycling symbol . Follow local

regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach

of children, as they are potentially dangerous.

2. Product

This appliance is marked according to the European Directive 2002/96/EC, Waste Electrical and Electronic

Equipment (WEEE).

By ensuring that this product is disposed of correctly, you will help prevent potentially negative

consequences for the environment and human health.

The symbol on the product or on the documents accompanying the product indicates that this

appliance may not be treated as household waste. Instead, it should be handed over to the applicable

collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information on treatment, recovery and recycling of this product, contact your local

authority, the household waste disposal service or the shop where you purchased the product.

Safeguarding the environment

Declaration of conformity

This product has been designed, manufactured and marketed according to the following:

- safety objectives of the “Low Voltage” Directive 2006/95/CE (wich replaces 73/23/CEE and subsequent

amendments).

- protection requirements of “EMC” Directive 89/336/EEC amended by Directive 93/68/EEC.

Troubleshooting guide

Hood does not work:

• Is the electrical power supply switched on?

• Is there a power failure?

Insufficient suction power:

• Did you set the right speed?

• Do the filters need to be cleaned or replaced?

• Are the air outlets blocked?

Light does not work:

• Does the bulb need to be replaced?

• Is the bulb correctly fitted?

Warnings

This is an excessively heavy product and the movement and installation of the hood should be done by at

least two or more people.

Follow the instructions in this manual carefully. All responsibility is denied for problems, damage or

fire to the appliance resulting in failure to comply with the instructions in this manual.

Instructions for installation and use

The hood is designed to be used in two

modes: venting exhaust fumes to the

outside, or by passing the air through a

charcoal filter brfore recirculating the air

back into the kitchen

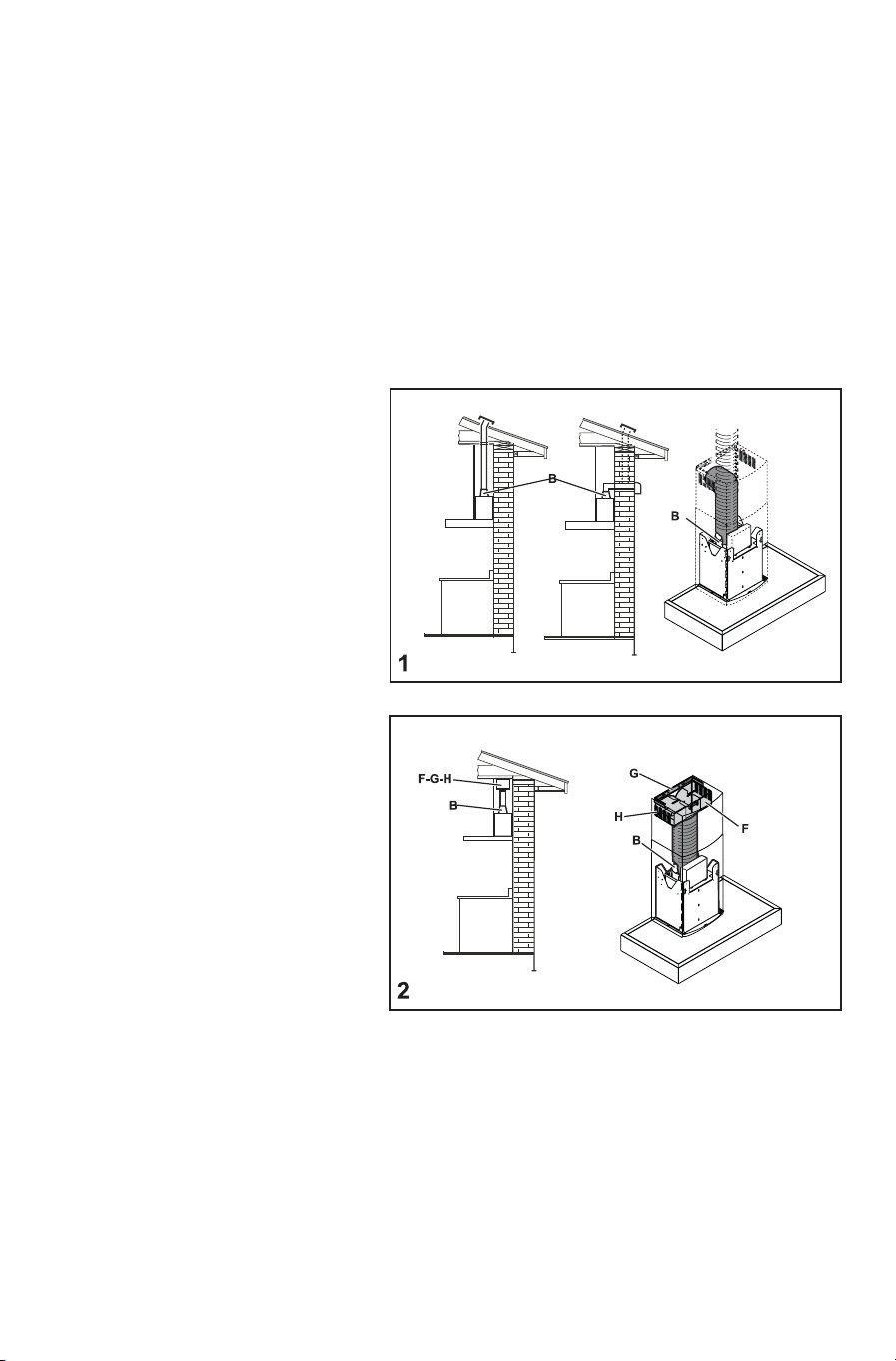

Venting Mode

The hood comes with an upper air outlet

Bfor the discharge of fumes to the

outside (venting exhaust pipe and fixing

straps not supplied). Fig. 1

Recirculating Mode

If the fumes and steam from cooking

cannot be discharged towards the

outside, you can use the recirculation

mode by fitting an activated carbon filter

and the deflector Fon the support

(bracket) G; the fumes and steam are

recirculated via the upper grid Hand an

exhaust pipe connected to the upper air

outlet Band the connection ring fitted to

the deflector F(Venting exhaust pipe and

fixing straps not supplied). Fig. 2

Installation

The minimum distance between the

upper pan support surfaces on the

cooking appliance and the lowest part of

the cooker hood should be no less than

50 cm in the case of electrical cookers

and 70 cm in the case of gas or mixed

cookers. If the installation instructions for

the gas cooking appliance specify a

greater distance, then follow that instruction.

Extraction Modes

ceiling

wall

side cabinet

Venting exhaust

pipe passages

and side cabinet

Cooking surface

centre line

min. width of hood

The hood comes with plugs suitable for most

walls/ceilings. You should however consult a

qualified technician to make sure the installation is

suitable for your kind of wall/ceiling. The wall/roof

should be sufficiently strong to support the weight

of the hood.

Before installation:

• Check that the product purchased is the right

size for the area where it is to be installed.

• To make installation easier, temporarily remove

the grease filters and other parts that can be

removed. These should be refitted when

installation is complete. See the relative

paragraph for dismantling.

• Remove the activated carbon filter/s if provided

(again consult relative paragraph). This/these

should be re-assembled only if you wish to use

the hood in the recirculation mode.

• Check that there are no parts (e.g. bags with

screws, warranty) inside of the hood (for

transport reasons). If there are, remove them

and put to the side.

• If possible, disconnect and remove the

surrounding units and those near the installation

area of the hood so that you have better

accessibility to the ceiling / wall where the hood

is to be installed. Otherwise, protect the units

as much as possible and all the parts relating to

the installation. Choose a flat surface and cover

it with some protection where you can place

the hood and parts.

• Disconnect the hood by turning off the mains

switch in the house when connecting the

electrics.

• Furthermore, check that near the area where

you are installing the hood (in an area accessible

even when the hood is fitted) there is an

electric socket and that you can connect to an

extractor towards the outside (only in the

venting mode).

• Carry out all the building work necessary (e.g.:

installation of an electrical supply and/or hole to

pass the venting exhaust pipe through).

Fig. 3

Pre-assembly of the

chimney support brackets

(only when a 3 part bracket

is provided)

Pre-assemble the 3 parts of

the chimney flue support

bracket with 4 screws; the

width of the bracket should

be identical to the internal

width of the telescopic

chimney flue.

Pre-assembly of the deflector (only when a 3

part deflector is provided) – the deflector should

only be used in the

recirculation mode).

Pre-assemble the 3 parts of

the deflector with 2 screws;

the width of the deflector

should be identical to the

width of the chimney flue

support bracket.

Installation

support

bracket

mounting height reference

centre line

support

bracket

hooks

bottom fastener

locations Ø 8 mm

hooks

REAR VIEW

bottom screw hole

(inside the canopy)

FRONT VIEW

Fig. 4

• Using a pencil, draw a line on the wall up to the

ceiling that corresponds with the centre line;

this will make installation easier.

• Establish the most suitable distance from the

work surfaces according to your needs

(Important! Respect the minimum distances

indicated on p6 of this instruction booklet),

draw a horizontal line on the wall corresponding

to this distance and apply the perforation layout:

the vertical centre line printed on the

perforation layout should correspond with the

centre line drawn on the wall; furthermore the

lower edge of the perforation layout should

correspond with the horizontal line drawn.

• Place the lower support bracket on the

perforation layout making it coincide with the

sketched rectangle. Mark the two external holes

then drill the holes. Remove the perforation

layout and insert 2 wall plugs and fix the hood

support bracket with 2 x45mm screws.

Fig. 5

• Hang the hood on the lower bracket.

• Adjust the distance of the hood from the wall.

• Adjust the horizontal position of the hood.

• From the inside of the hood, make 2 pencil

marks for the holes ready for the final fitting of

the hood.

• Remove the hood from the lower bracket.

• Drill in the points indicated.

• Insert 2 wall plugs.

Installation

Fig. 6

• Attach the chimney flue support bracket Gto

the wall next to the ceiling, using the chimney

support bracket as a template (the small slot

created on the bracket must coincide with the

line previously traced on the wall) mark the 2

holes with a pencil, drill the holes and insert the

2 plugs.

• Fit the chimney support bracket to the wall

with the 2 screws.

Only Vented mode version: fit the deflector to

the chimney support bracket using 4 screws.

Fig. 7

• Hook the hood onto the lower bracket.

• Fit the hood securely to the wall with screws

and washers

• Connect the venting pipe (vent pipe and straps

for fitting are not provided and must be

purchased separately) for the exhaust fumes to

the connection ring found above the motor

suction unit. The other end of the pipe should

be attached to the extractor hood. If you wish

to use the extraction hood in the recirculation

mode, then connect the other end of the pipe

to the connection ring on the deflector F.

• Connect the electrics.

• Attach the chimneys and fit them above using 2

screws to the chimney support bracket, G.

• Lower the lower part of the fully covered

chimney suction unit slide down until it fits into

the specific slot in the hood and attach it to the

hood using 2 screws.

Installation

chimney support bracket

chimney

support bracket

bottom fastener locations

lower support bracket

centre line

Recirculation mode only

upper

duct cover

Fig. 8

1. Control panel

2. Grease filter

3. Handle for unhooking the grease filter

4. Halogen bulbs

5. Steam deflector screen

6. Telescopic chimney

7. Air outlet (only for use with vented mode version)

8. Perimetric suction panel

Hood description

Turn to maximum speed when there is a lot of steam in the kitchen. We would advise you to turn the

suction on 5 minutes before starting to cook and leave it running after you have finished cooking for about

another 15 minutes.

Calibration of the control panel

When you connect the hood to the electrical supply, or after a black out, the Hood control system

calibrates the buttons.

You will see two flashing dots during the calibration.

Calibration lasts for 15 seconds

When the calibration is complete, the two dots stop flashing and only the bottom right hand dot stays on.

1. The ON button (Stand by)/OFF suction/Reset means the filters are finished:

- ON (Stand by) – the display only shows one dot on.

- OFF – the display is completely off: all the controls are off except the light button.

To turn the hood to ON (stand by) or OFF, press the button and wait for the dot to appear or

disappear.

A Reset indication shows that the filter needs to be changed.

Press this button for more than 3 seconds. The hood will only reset the filter indicator when the hood

is on.

2. ON/OFF light button.

3. Button for reducing extraction power (P-intensive, 3, 2, 1).

4. Button for increasing extraction power (1, 2, 3, P-intensive).

Warning!

The intense extraction power is indicated on the display with the letter P on the left and remaining

minutes (and the flashing dot) on the right; it turns itself off after 5 minutes and automatically sets the

suction power at 2.

5. ON/OFF timing button: after selecting the

extraction power desired, press this button to time it:

Extraction power 1: 20 minutes

Extraction power 2: 15 minutes

Extraction power 3: 10 minutes

The display shows the remaining time and the flashing dot

on the right.

The hood will go into stand by when the remaining time

runs out.

Functioning

Tabla de contenidos

Otros manuales de Campana de ventilación de KitchenAid

KitchenAid

KitchenAid KHTU105RSS1 Instrucciones de uso

KitchenAid

KitchenAid 36" (91.4 CM) ISLAND CANOPY RANGE HOOD Hoja de información del producto

KitchenAid

KitchenAid LI3ZFF/W10321799G Manual de usuario

KitchenAid

KitchenAid KHTU705SSS0 Manual de usuario

KitchenAid

KitchenAid 30" (76.2 cm) 36" (91.4 cm) 48" (121.9 cm) Wall-Mount Canopy Range... Manual de usuario

KitchenAid

KitchenAid W10322991C Hoja de información del producto

KitchenAid

KitchenAid WVW53UC6FS Hoja de información del producto

KitchenAid

KitchenAid KXU2836YSS0 Hoja de información del producto

KitchenAid

KitchenAid RangeHood Manual de operación y mantenimiento

KitchenAid

KitchenAid KPEC992M Manual

KitchenAid

KitchenAid KXW9748YSS0 Hoja de información del producto

KitchenAid

KitchenAid W10267109C Hoja de información del producto

KitchenAid

KitchenAid KIRD862VSS0 Hoja de información del producto

KitchenAid

KitchenAid KXW4336YSS Manual

KitchenAid

KitchenAid KIRD801XSS1 Manual de usuario

KitchenAid

KitchenAid KWCU265HWH1 Manual

KitchenAid

KitchenAid KIVD800TOB Manual del propietario

KitchenAid

KitchenAid 30" (76.2 CM) SLIDE-OUT RANGE HOOD Hoja de información del producto

KitchenAid

KitchenAid Pro Line Series Manual de operación y mantenimiento

KitchenAid

KitchenAid KHTU160KBL1 Manual de usuario

KitchenAid

KitchenAid 9760425A Manual

KitchenAid

KitchenAid KWCU320JSS Instrucciones de uso

KitchenAid

KitchenAid KICU465SWH0 Hoja de información del producto

KitchenAid

KitchenAid RANGE HOOD LINER with INTERNAL BLOWER Manual de operación y mantenimiento

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
