CABINET PARTS

For Model: KSSC42QKS01

(Stainless Steel)

5−03 Litho In U.S.A. (tpm) Part No. 8198067

42" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2254714

Use & Care Guide

LIT2221284

Energy Label

LIT2254722

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2215852

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Tube

Crossover

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 2186494B Cap, Water Filter

9 2006442 Mounting Stud,

Grill

10 2005237 Clip, Wire

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

13 488500 Screw

14 3400525 Screw

15 2203221 Filter, Water

16 489399 Screw

17 2005378 Screw, Door Stop

18 2221134 Hinge (Top)

19 489478 Screw

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

23 2209090 Clamp, Filter

Housing

24 2004517 Spring, Door

Closure (2)

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2004992 Bushing,

Adjustable

31 2001415 Screw

32 2209025B Skirt−Grille,

Bottom

33 Extension Arm,

Door Closer

2221095 Right

2221094 Left

34 2209428B Grille Bottom,

Front

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2006960 Bushing,

Extension Arm

41 1163283 Screw

42 2209709 Connector, Water

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (4)

47 Bracket, Cover

2221097 Right

2221096 Left

48 2209449 Cover, Rear

49 488937 Clamp, Tube

CABINET TRIM PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

Illus. Part

No. No. DESCRIPTION

1 2215919S Cabinet, Trim

(Right Side)

3 8281250 Screw

4 2254725 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2003646 Cabinet, Trim Top

7 2215936S Cabinet Trim

(Left Side)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

Illus. Part

No. No. DESCRIPTION

1 2220890 Solid Shelf

2 2220847 Front, Ice

Compartment

3 1113637 Shelf, Fixed (2)

1113565 Shelf, Deep

4 2208194 Basket

5 2220844 Trim, Basket

6 Slide, Basket

2208198 Right Side

2208197 Left Side

7 486194 Screw

REFRIGERATOR LINER PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

REFRIGERATOR LINER PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2221211 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2220888 Meat Pan, Air

Duct Cover

11 2000337 Meat Pan, Air Duct

12 2220993 Release Valve

13 2221175 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2003811 Control Knob,

Meat Pan

16 2003841 Retainer, Knob

17 2221296 Air Baffle

Assembly

18 2209687 Reservoir

19 488280 Screw

21 2208997 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2213442 Thermistor

25 2215728 Cover, Diffuser

26 2003577 Guard, Air Return

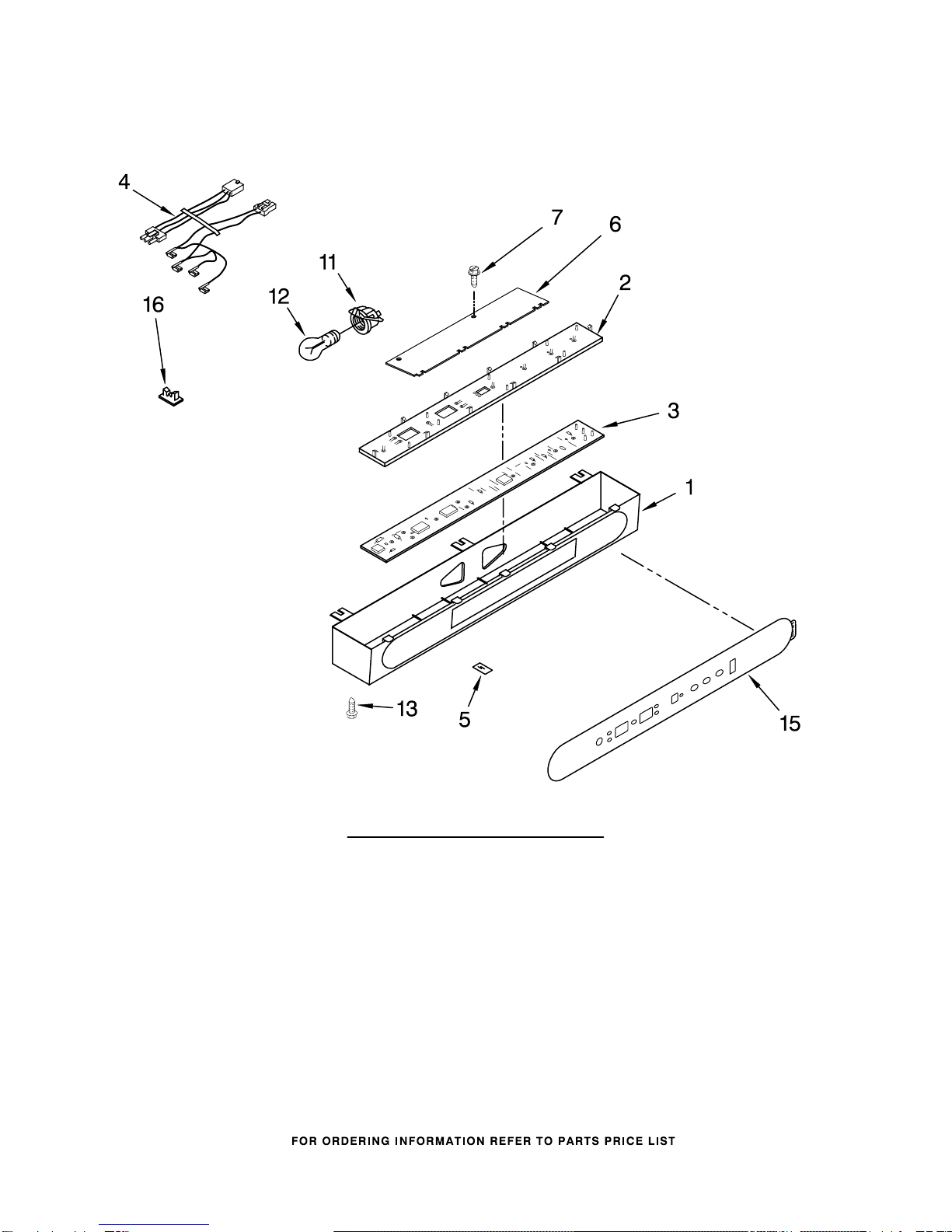

CONTROL PANEL PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

Illus. Part

No. No. DESCRIPTION

1 2215716 Control Box

2 2215670 Insert, Control

Box

3 2209159 Circuit Board,

Housing Control

4 2187424 Control Box

Wire Harness

5 2003841 Retainer, Knob

6 2221121 Support, Control

Box

7 489006 Screw

11 2162085 Socket, Light (2)

12 2160708 Light Bulb (2)

13 486194 Screw

15 2221066 Overlay

16 1115375 Clip, Wiring (3)

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

Illus. Part

No. No. DESCRIPTION

1 2215953S Panel, Decorator

2 2209490 Cover, Unit

3 486194 Screw

4 2215830 Back Panel

5 2209492 Guard, Wiring

6 2005292 Nameplate

8 8201530 Baffle−Air,

Condenser

9 2004333 Nut

10 2221297 Enclosure,

Terminal

11 2005483 Bracket, Louver

12 2215934S Grille, Louver

13 488879 Screw

15 2187429 Wire Assembly,

RC/FC Light Switch

16 489348 Clamp

REFRIGERATOR SHELF PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

REFRIGERATOR SHELF PARTS

For Model: KSSC42QKS01

(Stainless Steel)

8198067

Illus. Part

No. No. DESCRIPTION

1 2174403 Frame, Shelf

2 2003376 Glass, Shelf

3 1113547 Reflector, Shelf

4 1113791 Gasket, Glass (2)

5 2179404 Rack, Wine

6 2216625 Egg Bin

7 2006524 Frame, Assembly

Meat Pan

9 1113894 Cover, Crisper

10 2003379 Glass, Crisper

(Includes #9)

11 2000742 Meat Pan,

Connector

12 2169935 Cover

14 2220896 Crisper Pan (2)

15 2188212 Roller

16 2174478 Eyelet, Roller

17 2003478 Screw

20 2220902 Meat Pan

23 2002181 Retainer, Glass

25 2006515 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 2006516 Crisper Spacer,

Left Side (2)

29 486194 Screw
