CABINET PARTS

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

REFRIGERATOR

3−08 Litho in U.S.A. (CJJ) Part No. W10183185 Rev. B

CABINET PARTS

2W10183185

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10123818

Energy Tag

W10168777

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

M0310729 White

M0310731 Black

4 B5759649 Insulation

5 67006118 Roller Assembly

6 67003868 Foot Brake

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 Cover, Hinge

67001014 White

67001012 Black

11 67006380 Screw (3)

12 67006473 Screw

13 67005064 Label, Fl/Tb

14 67006303 Screw (3)

15 Hinge, Center

67006960 White

67007043 Black

12566604ED

Hinge, Top

17 Cover, Corner

67003484 White

67003485 Black

18 67001067 Clip, Drain Tube

19 67007174 Bracket, Foot

20 67006564 Screw (8)

12575101ED

Back−Mach

22 Grille Assembly

(Includes Clips)

67007004 White

67006954 Black

23 67001098 Cover, Fill Tube

W10164397

Tube, Drain

25 67006425 Screw (9)

26 67003796 Insulation, Sound

27 67001097 Cover, Water Valve

28 12479901 Plate, Cover

29 67006662 Screw

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

FREEZER LINER PARTS

The model(s) number shown may be different than what is printed on the

W10183185

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

FREEZER LINER PARTS

4W10183185

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004261 Shaft

Y12570701

Socket, Light

7 12002497 Gear(Right)

(Includes Item 3)

8 67006473 Screw (8)

9 A0282812 Bulb, Light

10 67001035 Housing, Frz. Light

11 67005872 Cover, Evaporator

12 67006425 Screw (7)

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 Cradle, Basket

67004014 Left

67004015 Right

W10120018

Slide, Drawer

20 67003731 Gasket, Bottom

21 Bracket, Slide

W10128118

Left

W10128119

Right

W10175909

Cover, Fan Shroud

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet (2)

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

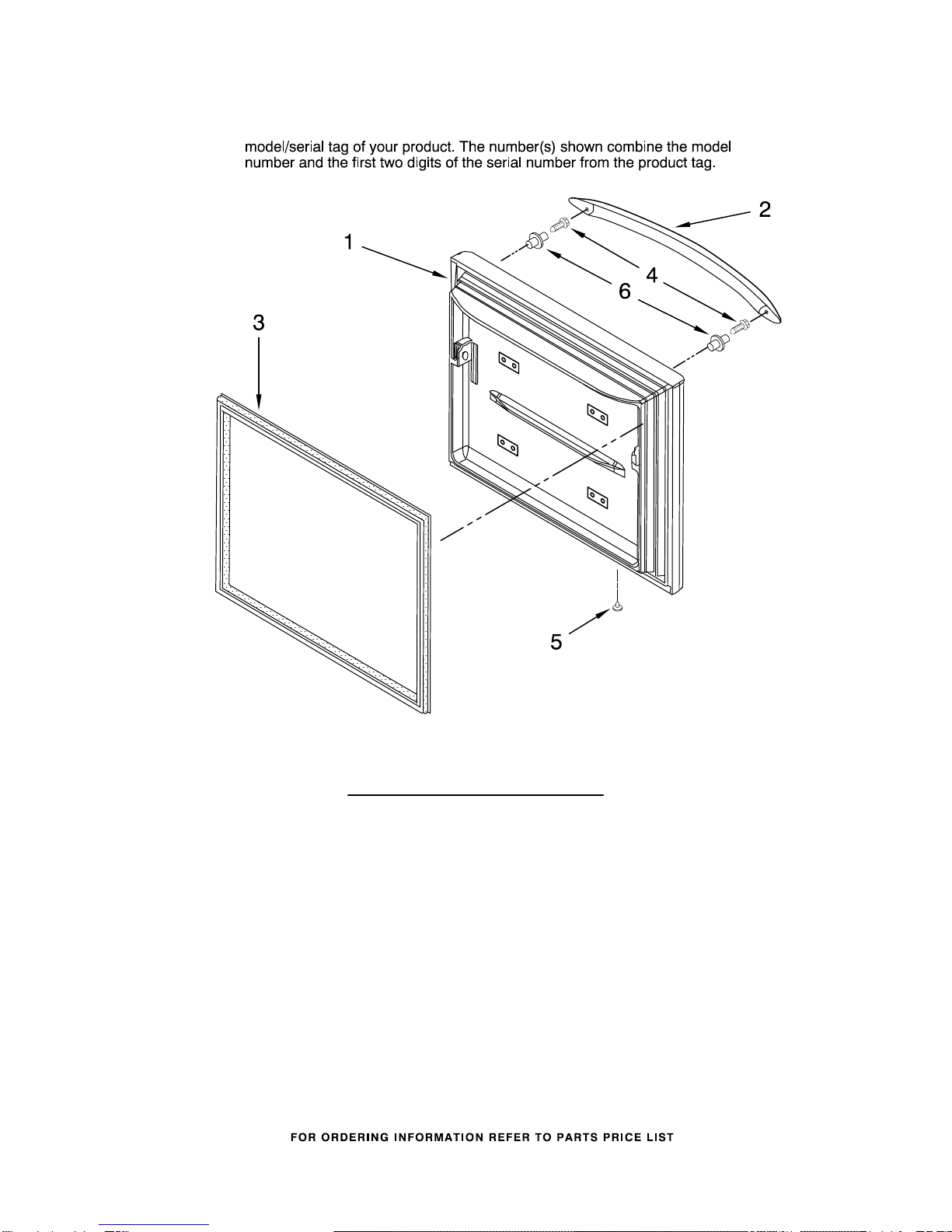

FREEZER DOOR PARTS

The model(s) number shown may be different than what is printed on the

W10183185

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10168778

White

W10168779

Black

W10170543

Stainless Steel

2 Handle

2319727W White

2319727B Black

2319727S Stainless Steel

3 Door Gasket,

Magnetic

W10130894

White

W10130587

Black

4 67002935 Screw, Handle (2)

5 Plug, Button (2)

10712401 White

67004838 Black

6 67006113 Mount−Handle

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

REFRIGERATOR LINER PARTS

6W10183185

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

W10183186

Overlay

4 67005444 Housing,

Electronic Control

5 67005397 Board, Utah

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light

Y12570701

Socket, Light

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002356 Thermistor Kit

17 M0310343 Plug Button

(White)

Following Parts Not Illustrated

67005644 Harness, Controls

(Refrigerator)

(Includes # 16)

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

REFRIGERATOR DOOR PARTS

The model(s) number shown may be different than what is printed on the

W10183185

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

REFRIGERATOR DOOR PARTS

8W10183185

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/Liner)

67004777 White

67004775 Black

W10170544

Stainless Steel

2 67002935 Screw (2)

3 67003819 Door, Compartment

4 67001279 Tray, Dairy

5 67005672 Bucket, Medium

(3)

6 Screw, Handle Hole

67001130 White

67001131 Black

7 Plug, Button

10712401 White

67004838 Black

8 Door Gasket,

Magnetic

W10130893

White

W10131327

Black

9 Door Handle

2319727W White

2319727B Black

2319727S Stainless Steel

10 67003889 Bucket, Tall

11 Door Closure

67003638 White

67003639 Black

W10046670

Nameplate

13 2216624K Egg−Container

14 67001748 Retainer

15 67006287 Screw (2)

16 Bushing

67004977 White

67004978 Black

17 Stop, Door

67003779 White

67003780 Black

18 67005724 Bucket, Short

19 67005626 Caddy−Can

20 67006113 Mount−Handle

21 67004107 Bracket, Tilt Out

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

UNIT PARTS

The model(s) number shown may be different than what is printed on the

W10183185

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)

UNIT PARTS

The model(s) number shown may be different than what is printed on the

W10183185

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005744 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

W10167036

Discharge Tube

W10119857

Harness, Evap.

Heater

8 67004713 Drain Pan

9 61004743 Grommet (3)

10 67001794 Evaporator Heater

W10136415

Clip, Capacitor

W10136414

Start Device

(Includes Relay &

Capacitor)

13 61003210 Gasket

W10165425

Thermostat

W10137529

Grommet (4)

16 67006573 Screw

W10169124

Grommet (4)

18 67006132 Condenser

19 67006432 Screw

20 67001080 Tray, Drip

21 67006737 Screw

22 12001919 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060201 Harness, Unit

(Includes Cord)

27 B2150504 Drier (Service)

W10130129

Compressor

(Includes Items

11, 12, 15,17 & 27)

29 2264017 Capacitor

30 67006434 Axle, Roller

W10153406

Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller

36 10623002 Clip, Evap

37 67005680 Grommet (2)

38 67005718 Box, HV

39 67005719 Spacer, HV

W10183188

Board, HV

41 67005938 Harness, HV

42 67006550 Screw (2)

43 67005421 Cover, HV

44 67006615 Screw, HV

Cover

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)

For Models: KBRS22KTWH01, KBRS22KTBL01, KBRS22KTSS01

(White) (Black) (Stainless Steel)
