KitchenAid KSSC48QMS00 Manual de usuario

CABINET PARTS

For Model: KSSC48QMS00

(Stainless Steel)

Part No. 8198472

48" BUILT IN

REFRIGERATOR

6−06 Litho In U.S.A. (mdg)

CABINET PARTS

For Model: KSSC48QMS00

(Stainless Steel)

8198472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2266808

Use & Care Guide

LIT2266815

Energy Label

LIT2266827

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2266811

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 2186494B Cap, Water Filter

9 2006442 Mounting Stud,

Grill

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

13 934011 Clip, Water Tube

14 3400525 Screw

15 2255709 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

19 489478 Screw

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2002903 Bushing

23 2209090 Clamp, Filter

Housing

24 2004517 Spring, Door

Closure (2)

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2004992 Bushing,

Adjustable

31 8533913 Screw

32 2209026B Skirt−Grille,

Bottom

33 Extension Arm,

Door Closer

2221095 Right

2221094 Left

34 2209431B Grille Bottom,

Front

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2006960 Bushing,

Extension Arm

41 1163283 Screw

42 2209709 Union

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Cover

2221097 Right

2221096 Left

48 2215612 Cover, Rear

49 2221070 Clamp, Tube

CABINET TRIM PARTS

For Model: KSSC48QMS00

(Stainless Steel)

8198472

Illus. Part

No. No. DESCRIPTION

1 2222552S Cabinet, Trim

(Right Side)

3 8281250 Screw

4 2254726 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2257368 Cabinet, Trim Top

7 2222553S Cabinet Trim

(Left Side)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSC48QMS00

(Stainless Steel)

1 2256206 Wire Shelf

3 2259004 Shelf, Fixed (2)

4 2259086 Basket

5 2256271 Trim, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

8198472

REFRIGERATOR LINER PARTS

For Model: KSSC48QMS00

(Stainless Steel)

8198472

REFRIGERATOR LINER PARTS

For Model: KSSC48QMS00

(Stainless Steel)

8198472

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2259372 Spacer,

Air Baffle

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 486194 Screw

10 2257528 Lid, Baffle

Meat Pan

11 2257526 Baffle Control

Assembly

12 2171846 Release Valve

13 2187619 Harness, Air

Baffle

14 488357 Screw

17 2221296 Air Baffle

Assembly

18 2209687 Reservoir

19 488280 Screw

20 2259412 Seal, Air Duct

(Round Hole)

21 2208997 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2213442 Thermistor

24 2259398 Seal, Air Duct

(Square Hole)

25 2215728 Cover, Diffuser

26 2259066 Cover, Air Return

27 487539 Screw

CONTROL PANEL PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSC48QMS00

(Stainless Steel)

8198472

1 8201533 Control Box

2 2215670 Insert, Control

Box

3 2252110 Circuit Board,

Housing Control

4 2187424 Control Box

Wire Harness

5 2258914 Control, Panel

Meat Pan

6 2221121 Support, Control

Box

7 489006 Screw

8 2252067 Touch Pad,

Meat Pan

9 2252068 Display Board,

Ingredient

10 489214 Screw

11 2162085 Socket, Light

12 2255743 Light Bulb (2)

13 486194 Screw

14 8281185 Screw

15 2257520 Overlay

Care Center

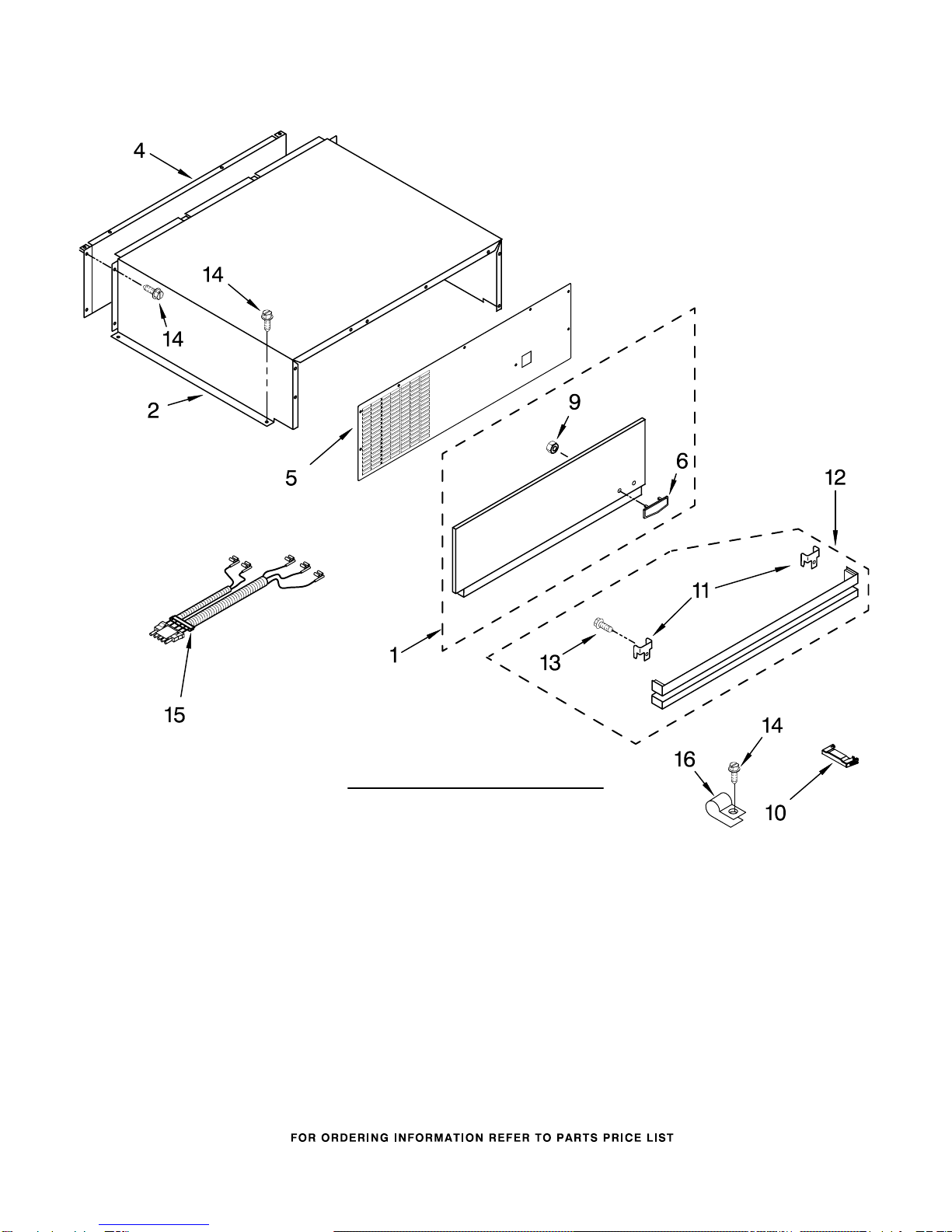

TOP GRILLE AND UNIT COVER PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSC48QMS00

(Stainless Steel)

8198472

1 2257412S Panel, Decorator

2 2259320 Cover, Unit

4 2256466 Back Panel

5 2259095 Cover, Unit

Front

6 2005292 Nameplate

9 2004333 Nut

10 2221297 Enclosure,

Terminal

11 2254759 Bracket, Louver

12 2254762S Grille, Louver

13 488879 Screw

14 487415 Screw

15 2187429 Wire Assembly,

RC/FC Light Switch

16 489348 Clamp

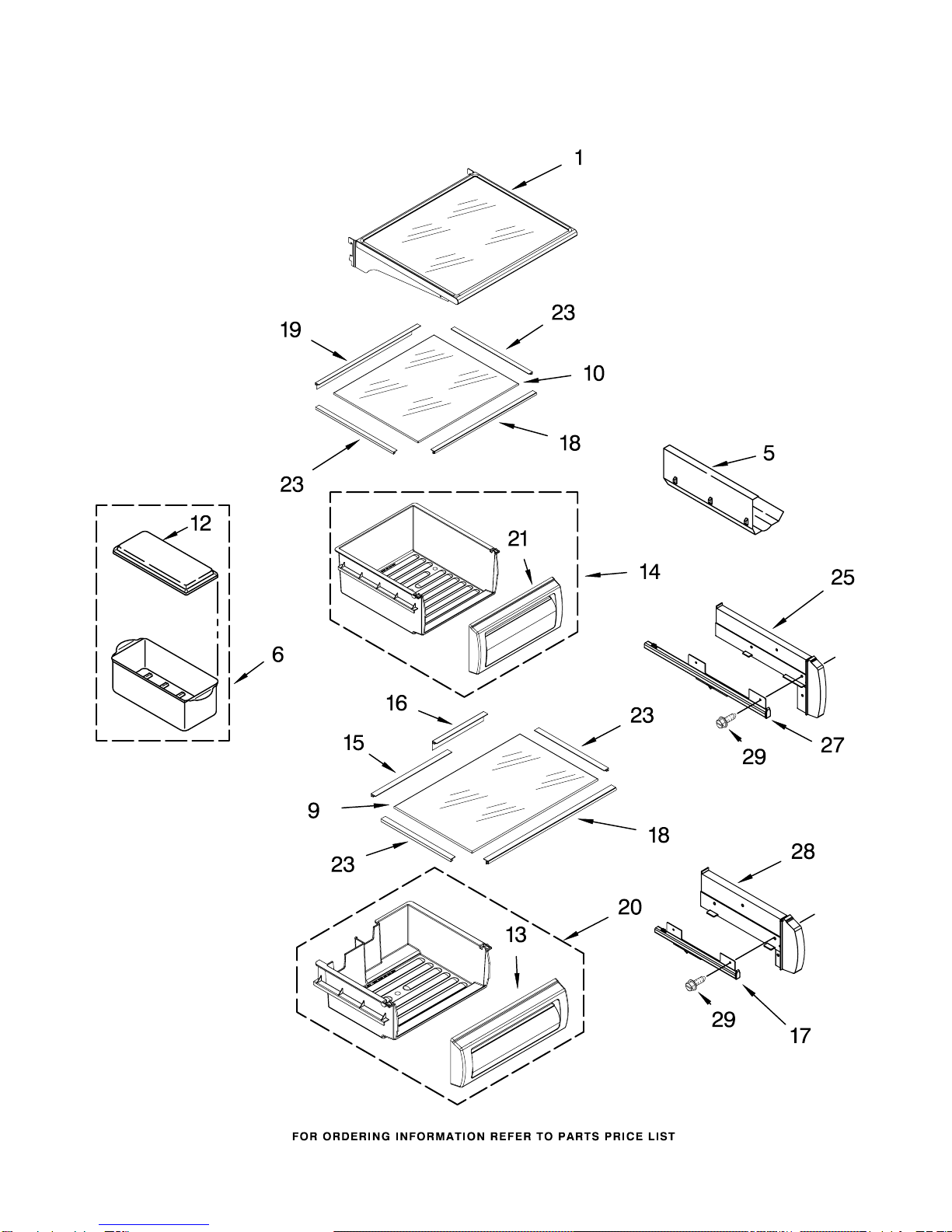

REFRIGERATOR SHELF PARTS

For Model: KSSC48QMS00

(Stainless Steel)

8198472

REFRIGERATOR SHELF PARTS

For Model: KSSC48QMS00

(Stainless Steel)

8198472

Illus. Part

No. No. DESCRIPTION

1 2222593 Frame, Shelf

5 2179404 Rack, Wine

6 2221071 Egg Bin

Meat Pan

9 2256278 Glass, Meat Pan

Cover

10 2256428 Glass, Crisper

Pan Cover

12 2169935 Cover

13 2256367 Front,

Meat Pan

14 2252413 Crisper Pan (2)

15 2257611 Trim, Glass

Rear Side

16 2257583 Trim, Glass

Rear

17 Slide, Meat Pan

2256246 Right Side

2256245 Left Side

18 2256229 Trim, Glass

Front

19 2256255 Trim, Glass

Rear

20 2256370 Meat Pan

21 2256249 Front,

Crisper Pan

23 2252255 Trim, Glass

Side

25 Crisper Spacer,

2256222 Right Side (2)

2256223 Left Side (2)

27 Slide, Crisper

2222988 Right Side (2)

2222987 Left Side (2)

28 Meat Pan Spacer,

2256244 Right Side

2256243 Left Side

29 Screw

8533929 Right Side

8533928 Left Side
