CABINET PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

12−06 Printed In U.S.A. (mat) Part No. W10116327 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318940 Energy Guide

2318586 Owner’s Manual

2303925 Service Sheet

2303929 Wiring Sheet

2220407 Modular Icemaker

Service Sheet

2308395 Instruction Sheet,

Door Removal

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 488500 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

11 8281227 Screw

12 Hinge Cover

2203407W White

2203407T Biscuit

2203407B Black

2203407AP

Apollo Gray

13 2304322 Bottom Hinge (RC)

14 Filler, Wrapper

2304846 White

2304849 Biscuit

2304848 Black

2315169 Apollo Gray

15 Grille

2303292W White

2303292T Biscuit

2303292B Black

2303292AP

Apollo Gray

16 489497 Screw

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Extension Tube

20 1108439 Clip, Drain Tube

21 2188735 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408W White

2203408T Biscuit

2203408B Black

2203408AP

Apollo Gray

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer, RC

27 489483 Screw

28 2260507 Housing, Water

Filter

29 4396841 Water Filter

30 Cap, Water

Filter

2260502W White

2260502T Biscuit

2260502B Black

2260502AP

Apollo Gray

31 489500 Screw

32 3400113 Screw

33 2303141 Bottom Hinge (FC)

34 2260519 Block, Housing

Support

35 2255012 Tube, Filter

Outlet

36 2203770 Hinge Top (FC)

37 2319867 Tube, Filter

Inlet

38 Button, Water

Filter

2260503W White

2260503T Biscuit

2260503B Black

2260503AP

Apollo Gray

39 2223751 Door Closer, FC

40 2305373 Clamp, Cord

REFRIGERATOR LINER PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2255612 Escutcheon, Meat

Pan Control

3 2301339 Slide Meat

Pan Control

4 2257741 Louver

6 2179404 Wine Rack Asm

9 2319866 Shelf Ladder

10 489478 Screw

11 2212240 Cover, Air

Diffuser

12 2301234 Door Control Asm

13 2150331 Cover, Conduit

14 2301235 Slide, Door

Control

15 2216112 Air Diffuser

Assembly

W10004810

Screw

18 2162085 Socket

19 2305226 Reservoir

20 2255743 Light Bulb

21 2209769 Light Lens

22 488280 Screw

23 2256035 Bracket,

Dual Crisper

24 2256037 Wire Harness,

Dual Crisper

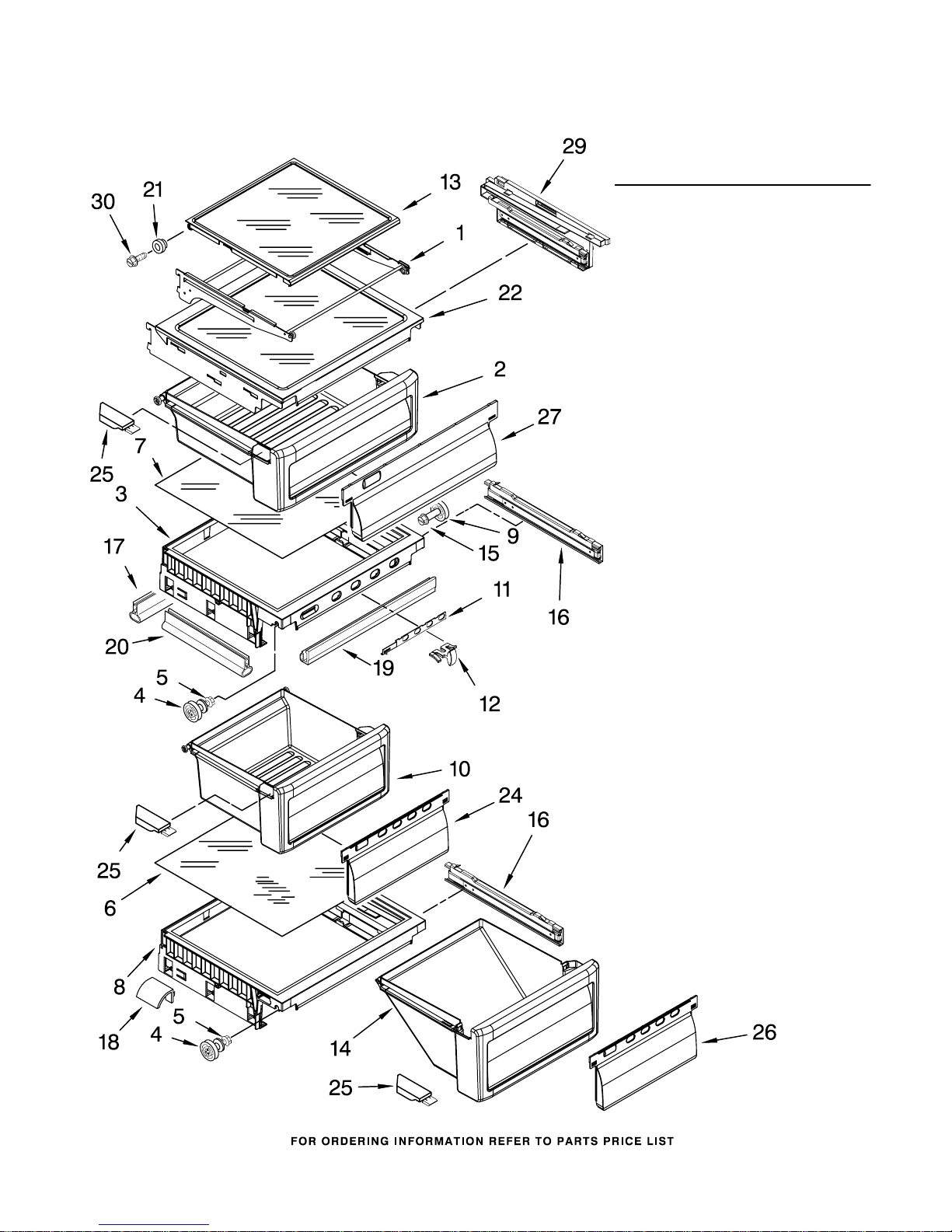

REFRIGERATOR SHELF PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

Illus. Part

No. No. DESCRIPTION

1 2301072 Frame Assembly (2)

2 2301023 Snack Pan Asm

3 2301567 Cover, Crisper

4 2196485 Stud Assembly

5 3400894 Screw

6 2301028 Glass, Meat Cover

7 2301027 Glass, Cover

8 2301568 Cover, Meat Pan

9 2196483 Stud Assembly

10 2301031 Crisper Pan Asm

(Includes 24 & 25)

11 2301026 Slide, Humidity

Control

12 2301025 Knob, Humidity

Control

13 2301084 Shelf and Roller

Assembly (2)

14 2301022 Meat Pan Asm

(Includes 25 & 26)

15 8281158 Screw

16 Glide Assembly

2301548 Right Side

2301549 Left Side

17 2301115 Gasket, Rear

18 2301126 Deflector

19 2301116 Gasket, Front

20 2301117 Gasket, Side (2)

21 2188212 Roller (2)

22 2301566 Shelf Assembly

24 2301001 Window, Crisper

25 Cap, Corner

2301016 Right Side

2301017 Left Side

26 2301227 Window, Meat Pan

27 2301006 Window, Snack Pan

29 Support Assembly

2301569 Right Side

2301570 Left Side

30 489439 Screw (2)

FREEZER LINER PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

FREEZER LINER PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2301138 Top Basket

3 2198697 Gasket

4 Glide Assembly,

Top Basket

2301540 Right Side

2301541 Left Side

6 2301139 Basket, Tall

8 Glide Assembly,

Middle/Bottom

Basket

2301542 Right Side

2301543 Left Side

11 3400893 Screw

12 2301134K Front, Basket

14 2205837K Shelf (2)

15 2301140 Basket, Sloped

16 8534064 Screw (12)

17 842534 Clip, Air Duct (2)

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2255590 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255561 Cover, Receiver

37 2301340 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2320024 Left Side

2320025 Right Side

46 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

Illus. Part

No. No. DESCRIPTION

1 2305336 Ice Bin

2 2305294 Crusher Bin

3 2258222 Auger

4 2258220 Washer, Auger

5 1119007 Spacer, Flat (4)

6 2305244 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2305382 Rubber Boot

20 2305441 Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Assembly,

IDI Motor

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

29 2198607 Spring

30 2305243 Drive Shaft

32 2252130 Dispenser, Motor

33 2305208 Bracket, Motor

35 8281163 Screw

36 2212365 Sleeve, Coupling

100 2305425 Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

REFRIGERATOR DOOR PARTS

For Models: KSRS25CSWH01, KSRS25CSBT01, KSRS25CSBL01, KSRS25CSSS01, KSRS25CSMK01, KSRS25CSMS01

(White) (Biscuit) (Black) (Stainless Steel) (Monochromatic (Monochromatic

Stainless) Stainless)

W10116327

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2301168W White

2301168T Biscuit

2301168B Black

2301168SB

Stainless Steel

2301168SUA

Monochromatic

Stainless

2 2301486 Door Compartment

(Includes #15)

3 2223434K Door Bin (4)

4 3400012 Screw

5 2219698 Stud, Handle

6 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

7 2193409K Beverage Holder

8 Handle

2319727W White

2319727T Biscuit

2319727B Black

2319727S Stainless Steel

9 488208 Screw

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2200082 Chrome

2200082B Black

13 Screw

W10010140

Chrome

W10010150

Black

15 2159124 Gasket

16 Nameplate

2318942W White

2318942T Biscuit

2318942B Black

2318942S Stainless Steel
