KitchenAid KBRC36FTS00 Manual de usuario

CABINET PARTS

For Model: KBRC36FTS00

(Stainless Steel)

10−07 Litho In U.S.A. (dmm) Part No. W10137112 Rev. B

36" BOTTOM MOUNT

BUILT IN REFRIGERATOR

CABINET PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2320682 Use & Care Guide

2309318 Energy Guide

2309310 Service & Wiring

Sheet

2324934 Main Control

Service Sheet

628370 Modular Icemaker

Service Sheet

2320680 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2307584 Grommet, Crossover

Tube

W10138054

Roller,

Front & Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

8 8281164 Screw

9 2307640 Mounting Bracket,

Grill

11 2005921 Screw

W10129069

Clip (4)

13 2314064 Tube, Drain

15 487415 Screw, 8−18 x 3/8

16 2305274 Clamp, Tube

18 2257644 Hinge, Door

Refrigerator Top

19 2005783 Cam−Closer,

Door

20 2221070 Clamp, Tube

21 2006617 Bracket,

Support Door

22 2300082 Bushing

23 2260526 Housing,

Water Filter

24 2004517 Spring,

Door Closure

25 486194 Screw

26 4396841 Filter, Water

27 2266880 Bushing−Arm,

Extension

28 2318190 Brakcet, Mounting

(Filter)

29 2005101 Hinge, Bottom

Refrigerator Door

30 489464 Screw, 8−18 x 1/2

31 489282 Screw

32 2209024B Skirt, Grille

(Bottom)

33 2006346 Washer

34 2325187B Grille Base,

Front

35 2215612 Cover, Air Duct

36 2266882 Arm, Extension

37 2221097 Bracket, Switch

38 2215938 Cover, Switch

39 2260518B Cap, Water Filter

40 8533913 Screw

41 1118894 Switch,

Rocker Arm (2)

W10005050

Screw, 8−18 x 1/2

43 8281163 Screw, 8−16 x 1/2

44 2260503B Button, Filter

45 2318189 Tray, Drip

Filter

46 2006388 Gap, Cover BTM

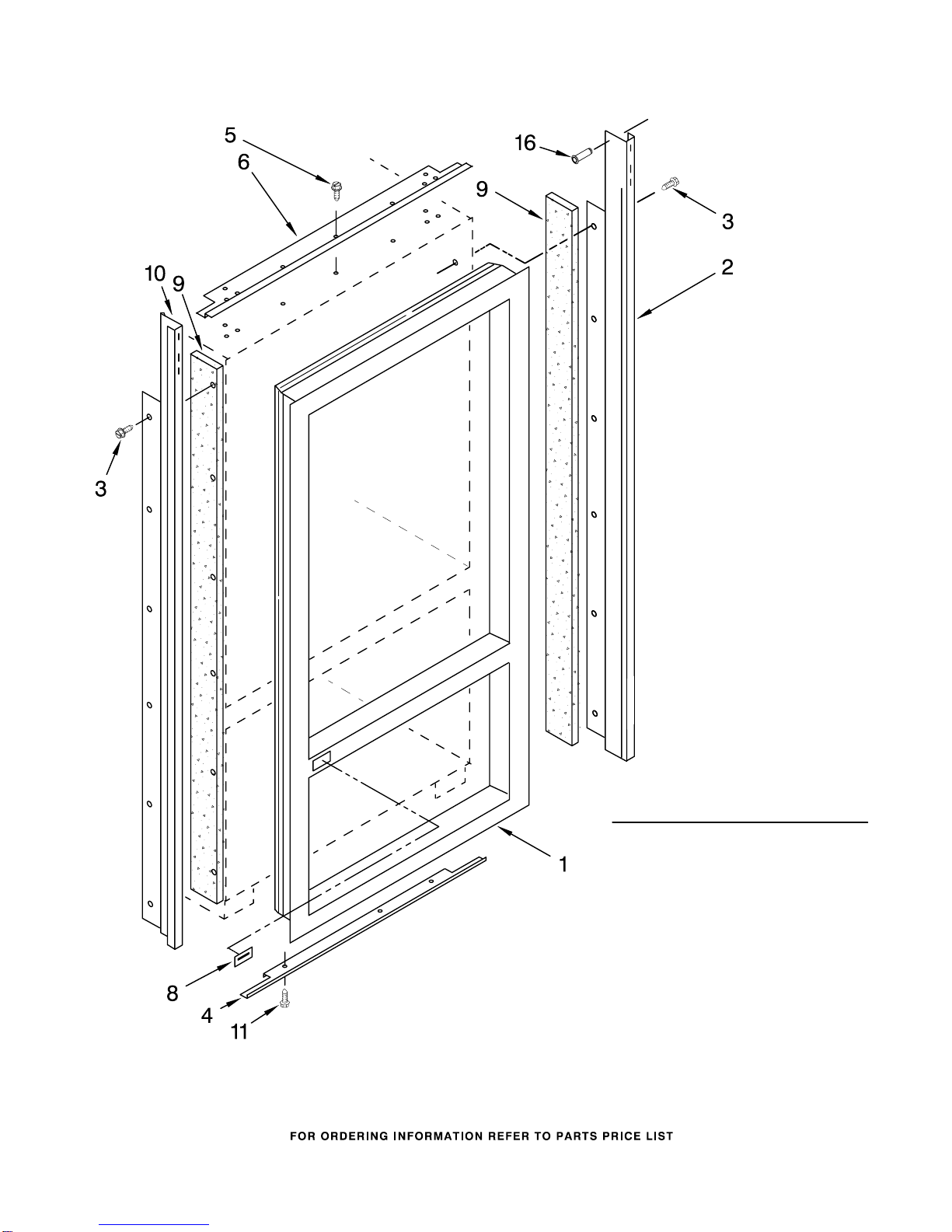

CABINET AND BREAKER TRIM PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

Illus. Part

No. No. DESCRIPTION

1 Breaker, Trim

(Not Serviced)

W10132472

Cabinet Trim,

Right Side

3 1163283 Screw

4 2316686 Cabinet Trim,

Bottom

5 486194 Screw

6 2314019 Cabinet Trim, Top

8 2005782 Cover, Hinge

9 2005925 Seal−Trim,Side

W10132541

Cabinet Trim,

Left Side

11 489464 Screw, 8−18 x 1/2

W10121451

Nutsert (4)

TOP GRILLE AND UNIT COVER PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

Illus. Part

No. No. DESCRIPTION

1 2316739S Top Grille

Assembly

2 2320502 Cover, Unit

3 2317881 Grille, Condenser

4 2256466 Back Panel

5 2307682 Front,

Unit Cover

6 487415 Screw

7 2187894 Wire Assembly,

Light Switch

8 2317923S Nameplate

9 489348 Clamp

10 489399 Screw (5)

11 2004333 Nut (2)

REFRIGERATOR LINER PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

REFRIGERATOR LINER PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

Illus. Part

No. No. DESCRIPTION

1 Liner,

Refrigerator

(Not Servicable)

2 2317004 Cover,

Air Return (2)

3 2309267 Control Box,

Complete

4 2317000 Clip, Control Box

5 2324970 Bracket,

Control Box

6 2309270 Shield, Light

7 487539 Screw, 8−15 x 1/2

8 488163 Screw

9 2223857 Socket, Light (3)

10 2309101 Bulb, Light (3)

11 2317917 Clip,

Diffuser Cover

12 2320523 Diffuser Assembly

13 2320519 Cover, Diffuser

14 2188820 Thermistor

16 2317105 Cover, Thermistor

17 2310164 Wire, Jumper

19 Spacer, Crisper

2309411 Left

2309410 Right

20 Spacer, Deli

2268411 Left

2268412 Right

21 Slide, Crisper Pan

2302952 Left (2)

2302953 Right (2)

22 2302788 Support,

Crisper Cover

23 Slide, Deli Pan

2302956 Left (2)

2302957 Right (2)

27 8533929 Screw

28 2171931 Valve, Tube−Body

FREEZER LINER PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

FREEZER LINER PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

Illus. Part

No. No. DESCRIPTION

1 Liner, Freezer

(Not Servicable)

2 2306425 Mounting Bracket,

Drawer Slide (2)

W10071460

Screw

4 2320616 Drawer Slide,

Freezer Basket (2)

W10061370

Screw

6 2314022 Cover,

Light Switch

7 1118894 Switch, Rocker

8 486194 Screw

9 2223857 Socket, Light

10 2309101 Bulb, Light

11 2268299 Switch Assembly,

Icemaker (Includes

Emitter)

12 2306187 Cover, Wiring

(Icemaker)

13 2317006 Duct, Air Flow

(Icemaker)

14 2317829 Cover, Evaporator

15 2317829 Cover,

Evaporator Fan

16 487539 Screw

17 2306106 Spacer, Drawer

(Right Side)

18 Slide, Freezer Bin

2306117 Left (2)

2306116 Right (2)

19 488163 Screw

20 2317925 Divider,

Freezer Bins

(Includes

Receiver)

21 2306104 Support, Slide

(Right)

22 2317927 Shield

23 2306105 Support, Slide

(Left)

24 Bracket,

Evaporator Cover

2320512 Left Side

2327339 Right Side

25 488163 Screw

26 2317902 Bracket,

Air Return

28 2317105 Cover, Thermistor

29 2188820 Thermistor

W10075920

Washer

32 8533928 Screw

W10135431

Air Deflector Asy

34 2198643 Lens, Receiver

SHELF PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

SHELF PARTS

For Model: KBRC36FTS00

(Stainless Steel)

W10137112

Illus. Part

No. No. DESCRIPTION

1 2256375 Crisper Pan

Assembly

(Includes # 2)

2 2256374 Front, Crisper Pan

3 2268397 Deli Pan Assembly

(Incl. #4 & 5)

4 2257548 Front, Deli Pan

5 2307810 Duct, Deli Pan

6 Clip, Bin

2327394 Left

2327393 Right

7 2179404 Rack, Wine

9 2306174 Ice Pan Assembly

(Includes # 10)

10 2306175 Front, Ice Pan

11 2327512 Freezer Pan

Assembly

(Includes # 12)

12 2268383 Front, Freezer Pan

13 2327314 Ladder, Shelf (4)

14 520965 Support, Ladder

15 2309376 Shelf (4)

16 2308605 Cover, Deli Bin

2327413 Insulation, Deli

17 2309399 Gasket, Rear

18 2268413 Cover, Crisper

19 2309397 Gasket, Front

(Crisper Cover)

20 2309397 Gasket, Front

(Deli Cover)

21 8281251 Screw

22 2006475 Screw

23 488886 Screw, 8−18 x 1/2

25 2309398 Gasket, Rear

26 2256474 Divider,

(Crisper Pan)
