CABINET PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

9−05 Litho In U.S.A. (mek) Part No. 8199108

36" BOTTOM MOUNT

BUILT IN REFRIGERATOR

CABINET PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2309067 Use & Care Guide

2307360 Energy Label

2306322 Service & Wiring

Sheet

2302865 Service Sheet,

Main Control

628370 Modular Icemaker

Service Sheet

2307890 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2005004 Grommet, Crossover

Tube

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 489399 Screw

9 2006442 Mounting Bracket,

Grill

10 2005921 Screw

11 1112849 Cap, Grommet

12 2004514 Clamp

13 2204516 Tube, Drain

Condensate

14 2207470 Shim−Hinge, Door

15 2209090 Clamp, Filter

Housing

16 2208136 Clamp, Tube

17 2001295 Screw, Door Stop

18 2257644 Hinge, Door

Refrigerator Top

19 2005783 Cam−Closer,

Door

20 1157158 Screw

21 2006617 Bracket, Support

Door

22 2002903 Bushing

23 2209022 Housing, Water

Filter

24 2004517 Spring, Door

Closure

25 486194 Screw

26 2255709 Filter, Water

27 2266880 Bushing−Arm,

Extension

28 2307806 Gap, Cover

(Bottom)

29 2005101 Hinge, Bottom

Refrigerator

30 489464 Screw, 8−18 x 1/2

31 489282 Screw

32 2209024B Skirt, Grille−

Bottom

33 2006346 Washer

34 2215889B Grille Base,

Front

36 2215612 Cover, Air Duct

37 1113122 Grommet, Wiring

38 2266882 Arm, Extension

39 2221097 Bracket, Switch

40 2215938 Cover, Switch

42 2186494B Cap, Water Filter

43 8533913 Screw (4)

44 487415 Screw, 8−18 x 3/8

45 1118894 Switch, Rocker Arm

46 9791833 Clip

49 2221070 Clamp, Tube

CABINET AND BREAKER TRIM PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

Illus. Part

No. No. DESCRIPTION

1 Cabinet Trim,

Right Side

2257688X Etched Aluminum

3 1163283 Screw

4 2254724 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2257366 Cabinet Trim, Top

7 Breaker Trim

(Not Serviced)

8 2005782 Cover, Hinge

9 2005925 Seal−Trim,Side

10 Cabinet Trim,

Left Side

2257689X Etched Aluminum

11 489464 Screw, 8−18 x 1/2

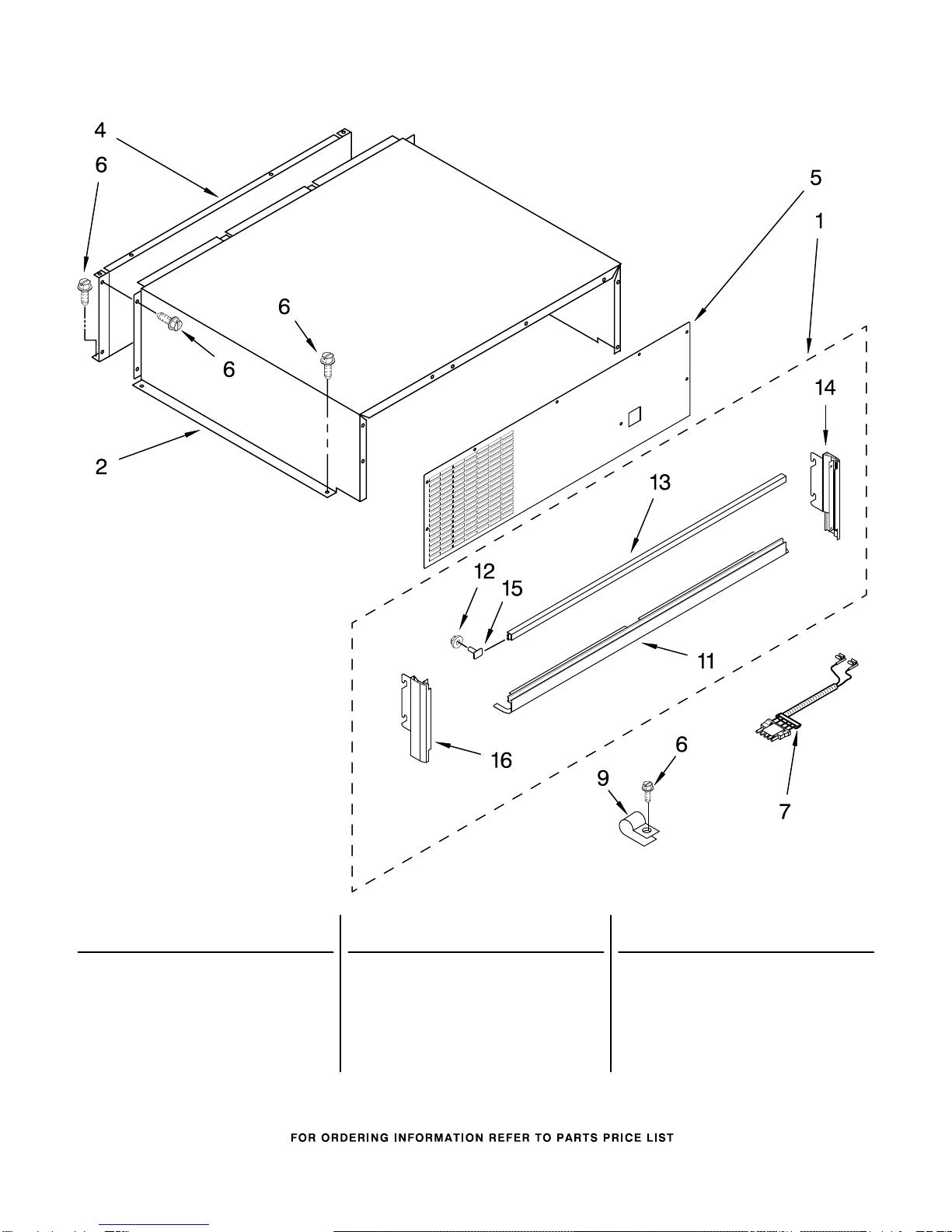

TOP GRILLE AND UNIT COVER PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Top Grille

Assembly

2259426X Etched Aluminum

2 2259320 Cover, Unit

4 2256466 Back Panel

5 2302974 Front,

Unit Cover

6 487415 Screw

7 2187423 Wire Assembly

9 489348 Clamp

11 2259437X Grille−Trim,

Bottom

12 1161548 Nut

13 2259440X Grille−Trim, Top

14 2259420X Grille−Trim,

Right Side

15 2003347 Screw 8−32 x 7/16

16 2259421X Grille−Trim,

Left Side

LINER PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

LINER PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner,

Refrigerator

(Not Servicable)

2 Liner,Freezer

(Not Servicable)

3 2215610 Cover, Heat

Exchanger

4 2215827 Diffuser Cap,

Left Side

5 2005931 Diffuser Cap,

Right Side

6 2171846 Release Valve

7 487539 Screw, 8−15 x 1/2

8 486194 Screw

9 2223986 Motor, Grommet

10 2006148 Wiring Channel,

Freezer Rear

11 2215844 Foam, Fan Shroud

12 2215910 Grommet, Flexible

13 2215606 Shroud, Evaporator

Fan

14 2169142 Blade, Fan

15 2259385 Motor, Fan

16 2223733 Retainer,

Fan Motor

17 2221296 Air Baffle

Assembly

18 2215503 Bracket

19 8201595 Wiring Channel

20 2187621 Wiring Harness,

Freezer

(Includes Item 49)

21 2306391 Cover, Evaporator

Assembly

22 1116793 Cover, Thermistor

23 2188820 Thermistor

24 2209208 Drain Tube,

Condensate

25 2215530 Insulation, Baffle

26 2215531 Cover, Air

Diffuser

27 2306386 Heater−Tube,

Drain

28 2204538 Insulation, Tube

Drain

29 2204537 Cover, Tube

Drain

30 486194 Screw

31 2215835 Housing, Switch

32 1157158 Screw, 8−18 x 3/8

33 2307215 Shield, Light

35 2209204 Clip, Thermistor

37 2302774 Control Panel

38 2257521 Overlay, Control

Panel

39 2302913 Circuit Board

(User Interface)

40 2303938 Insert,

Control Box

(User Interface)

42 2162085 Socket, Light

43 2257556 Light Bulb

44 2187424 Harness, Control

Box

45 8201534 Cover, Wiring

Freezer Light

46 1115375 Clip, Wiring

47 1115373 Switch, Rocker

48 2005792 Wiring Cover,

Icemaker

49 2187378 Defrost Bi−Metal

50 2215829 Diffuser Assembly

51 2221121 Support,

Control Box

52 489006 Screw

REFRIGERATOR SHELF PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

REFRIGERATOR SHELF PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

Illus. Part

No. No. DESCRIPTION

1 Slide, Freezer

Basket

2257355 Right Side

2257356 Left Side

2 2006475 Screw, 8−15 x 1.00

4 Spacer, Crisper

2256443 Right Side

2256442 Left Side

5 2179404 Rack, Wine

6 2221071 Egg Bin

7 Bracket, Freezer

Basket

2257327 Right Side

2257326 Left Side

12 2257562 Trim−Glass,

Side

13 2256474 Divider,

Crisper Pan

14 8533929 Screw

15 Slide, Crisper

2256440 Left Side

2256441 Right Side

16 2302788 Support, Crisper

Cover

17 8533928 Screw

18 2258973 Shelf (4)

19 2257563 Trim−Glass,

Side

21 2302839 Deli Shelf Assy.

29 2256375 Cripser Pan

Assembly

(Includes #30)

30 2256374 Front,

Crisper Pan

33 2257548 Front,

Deli Pan

37 2302837 Crisper Shelf

Assembly

38 2257564 Trim−Glass,

Rear

39 Trim−Glass, Front

(Not Serviceable)

43 Slide, Deli

2257544 Left Side

2257545 Right Side

44 Spacer, Deli

2257531 Left Side

2257532 Right Side

47 2257535 Deli Pan

Assembly

(Includes #33)

48 2005410 Ladder, Shelf (4)

49 2006475 Screw,

FREEZER DOOR AND BASKET PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

FREEZER DOOR AND BASKET PARTS

For Model: KBRO36FMX01

(Etched Aluminum)

8199108

Illus. Part

No. No. DESCRIPTION

1 2300085 Freezer Door

Panel (Includes

Item 9)

2 2204525 Divider, Basket

3 2207429 Clamp, Divider

4 2207415 Nut, Crimp

5 3190699 Screw

6 2258903 Trim−Door, Corner

7 2258901X Trim−Door, Side

8 2258902X Trim−Door,

Top & Bottom

9 2300185 Door Gasket,

Magnetic

10 2259363X Cover−Screw,

Top & Bottom

12 2204542 Roller

13 2259364X Cover−Screw, Side

14 Screw, 8−15 x 1/2

8281250 Stainless Steel

15 2257426 Bracket Assembly,

Freezer Basket

17 2257442 Basket, Upper

18 2174124 Pan, Ice Cube

19 2207454 Nut, Hex

20 2207471 Bushing

21 3400507 Screw

22 2257331 Basket, Freezer

Lower
