KitchenAid KSRG25FKBL18 Manual de usuario

CABINET PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

06−06 Printed In U.S.A. (kdr) Part No. 8214943

REFRIGERATOR

CABINET PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318581 Use & Care Guide

2255385 Service & Wiring

Sheet

2318618 Energy Guide

2220407 Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top, RC

10 3400113 Screw

11 Hinge Cover, FC

2203407W White

2203407B Black

2203407T Biscuit

12 2304322 Hinge Bottom

13 Filler, Wrapper

2196094 White

2196097 Black

2196150 Biscuit

14 Grille

2198468W White

2198468B Black

2198468T Biscuit

15 489497 Screw

16 2203770 Hinge, Top FC

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Tube, Extension

20 1108439 Clip, Drain Tube

21 2252036 Cover, Unit

22 Hinge Cover, RC

2203408W White

2203408B Black

2203408T Biscuit

23 549193 Clamp, Service

Cord

24 489084 Screw

25 2155311 Door Closer,

Lower Cam (2)

26 489483 Screw

27 2186443 Housing, Water

Filter

28 4396508 Water Filter

29 489500 Screw

30 Cap, Water

Filter

2186494W White

2186494B Black

2186494T Biscuit

31 Cabinet (Not A

Serviceable Part)

32 8281227 Screw

34 2255012 Tube, Filter

Outlet

35 2304697 Tube, Filter

Inlet

REFRIGERATOR LINER PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2255612 Escutcheon, Meat

Pan Control

3 2301339 Slide Meat

Pan Control

4 2257741 Louver

5 2256035 Bracket, Dual

Crisper Lights

7 2256037 Wire Harness,

Dual Crisper

Lights

9 2206273 Ladder, Shelf (2)

W10004810

Screw (2)

12 489478 Screw

16 2179404 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2209754 Air Diffuser

Assembly

25 2152019 Air Diffuser

Cover

26 2150331 Cover, Conduit

29 2162085 Socket

31 2217199 Reservoir

33 2255743 Light Bulb

34 2209769 Light Lens

37 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

Illus. Part

No. No. DESCRIPTION

1 2195975 Frame Assembly,

Slide Out (2)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2223357 Cover, Meat Pan

(Includes Items

13, 14 & 15)

6 2305595 Snack Pan

(Includes #7)

7 2179243 Trim, Handle

8 2255144 Glass, Cover

9 2301484 Cover, Crisper

(Includes 2,

3, 4, 11, 12,

13, 14 & 19)

10 2255143 Glass, Cover

11 2223361 Gasket (Front)

12 2223362 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2188212 Roller

15 489211 Screw

16 2301481 Crisper Pan

(Includes 13,

14, 18, 19 & 21)

17 2301482 Meat Pan

(Includes 13,

14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2223286 Right Side

2223285 Left Side

22 2174362 Window, Meat Pan

24 2216102 Shelf Assembly,

Slide Out (2)

25 2196485 Stud Assembly

26 2206346 Shelf, Snack Pan

27 3400894 Screw

28 2196483 Stud Assembly

29 8281158 Screw

FREEZER LINER PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

FREEZER LINER PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 941839 Hole Plug

3 3400893 Screw

6 2301190 Basket, Tall

7 Track, Basket−Dual

2301293 Right Side

2301294 Left Side

9 2211746K Shelf, Slide Out

Upper

12 2305580K Basket, Front

13 Track, Basket

2301289 Right Side

2301290 Left Side

14 2205837K Shelf (2)

15 2301191 Basket, Sloped

W10004810

Screw

17 842534 Clip, Air Duct

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2255590 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255561 Cover, Receiver

37 2301340 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2198609 Left Side

2198610 Right Side

46 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

MOTOR AND ICE CONTAINER PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2255580 Crusher Bin

3 2258222 Auger

4 2258220 Washer

5 1119007 Spacer, Flat (4)

6 2255460 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2188918 Coupling

17 8281164 Screw

18 3400065 Screw

19 2301345 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw

23 8281163 Screw

24 2188919 Holder

26 2198628 Seal

30 2188916 Drive Shaft

31 2256154 Enclosure, Motor

32 2315544 Motor, Dispenser

33 2212305 Cover

36 2315559 Sleeve, Coupling

100 2315954 Ice Container

(Complete)

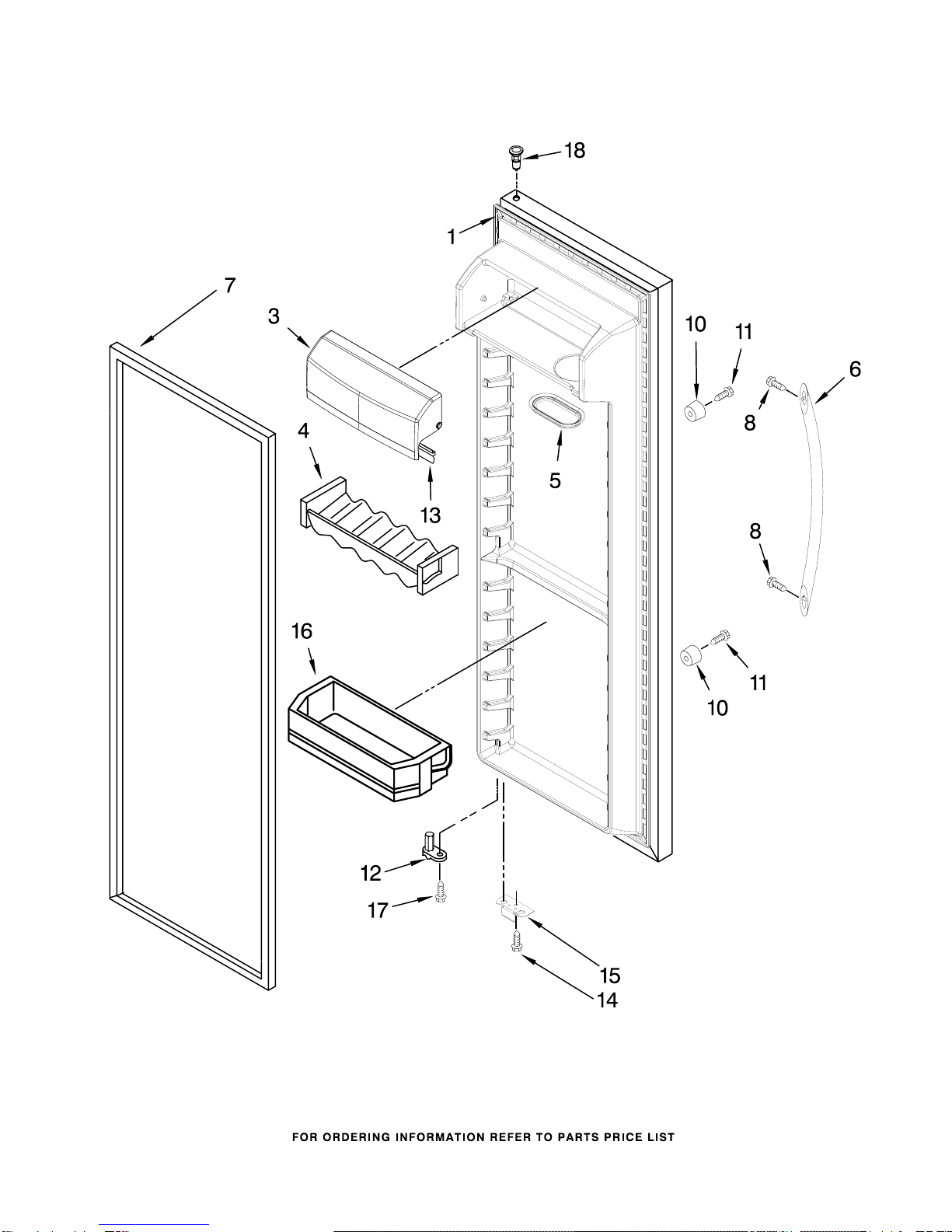

REFRIGERATOR DOOR PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

REFRIGERATOR DOOR PARTS

For Models: KSRG25FKWH18, KSRG25FKBL18, KSRG25FKBT18

(White) (Black) (Biscuit)

8214943

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #7)

2301184W White

2301184B Black

2301184T Biscuit

3 2301486 Door, Compartment

4 2193409K Beverage Holder(2)

5 2165792K Butter Dish

6 Handle

2304832W White

2304832B Black

2304832T Biscuit

7 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

W10010140

Screw

10 2219698 Stud

11 488208 Screw

12 2182178 Door Closer,

Upper Cam

13 2159124 Gasket

14 489420 Screw

15 Bracket, Door Stop

2206629 Chrome

2206629B Black

16 2171063K Door Bin (4)

17 3400012 Screw

18 2308091 Thimble, Top
