KitchenAid KBLS22KTSS11 Manual de usuario

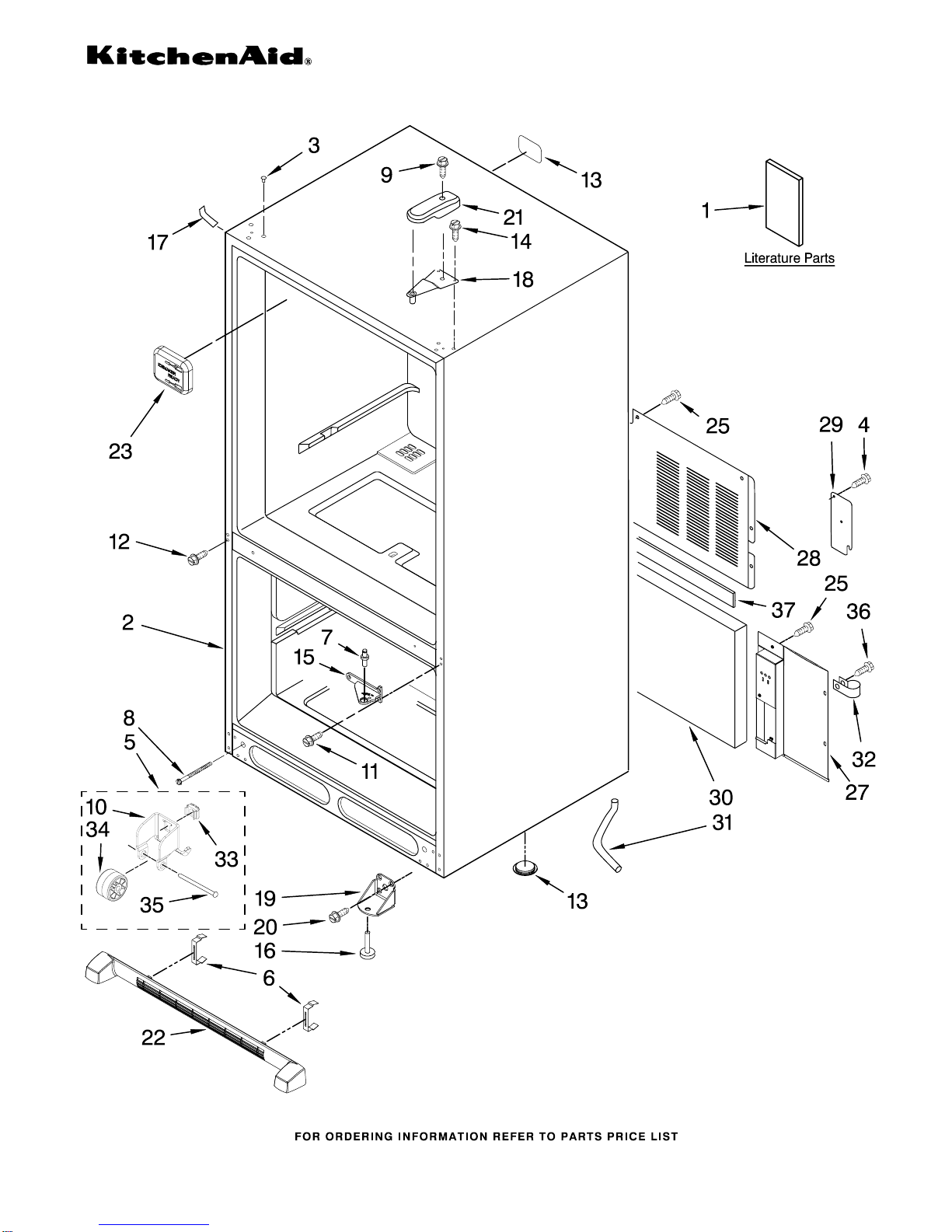

CABINET PARTS

For Models: KBLS22KTSS01

(Stainless Steel−LH)

3−08 Litho In U.S.A. (cjj) Part No. W10183698 Rev.B

REFRIGERATOR

CABINET PARTS

2W10183698

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Owners Manual

W10123818

Energy Tag

W10168777

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001131 Black

4 67006662 Screw

5 67006118 Roller Assembly

6 12627302 Clip, Grille

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Rear)

9 67006521 Screw

10 12456801 Bracket, Roller

11 67006380 Screw

12 67006473 Screw

13 67005064 Label, Fill Tube

14 67006303 Screw

15 Hinge, Center

67007043 Black

16 67003868 Foot Brake

17 Cover, Corner

67003485 Black

12566604ED

Hinge, Top

19 67007174 Bracket, Foot

20 67006473 Screw

21 Cover, Hinge

67001012 Black

22 Grille Assembly

67006954 Black

23 67001098 Cover, Fill Tube

25 67006425 Screw (9)

27 67001097 Cover, Water Valve

12575101ED

Cover, Unit

29 12479901 Plate, Cover

30 67003796 Insulation, Sound

W10164397

Tube, Drain

32 67001067 Clip, Drain Tube

33 M0286708 Nut, Speed

34 67005127 Roller

35 M1205302 Pin

36 67006737 Screw

37 B5759649 Gasket

For Models: KBLS22KTSS01

(Stainless Steel−LH)

REFRIGERATOR LINER PARTS

W10183698

For Models: KBLS22KTSS01

(Stainless Steel−LH)

REFRIGERATOR LINER PARTS

4W10183698

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

W10183186

Overlay

4 67005444 Housing,

Electronic Control

5 67005397 Electronic Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

Following Parts Not Illustrated

67005644 Harness, Controls

(Refrigerator)

(Includes # 16)

For Models: KBLS22KTSS01

(Stainless Steel−LH)

FREEZER LINER PARTS

W10183698

For Models: KBLS22KTSS01

(Stainless Steel−LH)

FREEZER LINER PARTS

6W10183698

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (2)

(Includes RH & LH)

4 67003905 Cover, Light

5 67004261 Shaft

Y12570701

Socket, Light

8 67006473 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Frz. Light

11 67005872 Cover, Evaporator

12 67006425 Screw

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

18 Bracket, Basket

67004014 Left

67004015 Right

W10120018

Slide, Drawer (2)

20 67001776 Gasket, Bottom

21 Bracket, Slide

W10128118

Left

W10128119

Right

W10175909

Cover, Fan Shroud

W10167023

Shroud, Evap.Fan

24 2169142 Fan, Evaporator

W10121318

Grommet

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

For Models: KBLS22KTSS01

(Stainless Steel−LH)

REFRIGERATOR DOOR PARTS

W10183698

For Models: KBLS22KTSS01

(Stainless Steel−LH)

REFRIGERATOR DOOR PARTS

8W10183698

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

W10170545

Stainless Steel−LH

2 Plug, Vent

67004838 Black

3 67003819 Door, Compartment

4 67001279 Tray, Dairy

5 67005672 Bin, Shelf (3)

(Medium)

6 Nameplate

W10146610

Grey

7 Gasket, Door

Magnetic

W10131327

Black

8 Handle, Door

2319727S Stainless Steel

9 67002935 Screw

10 Closure, Door

67003639 Black

11 67005724 Bin, Shelf (1)

(Small)

12 Bushing

67004978 Black

13 67001748 Retainer

14 67006287 Screw (2)

15 Stop, Door

67003780 Black

16 67006113 Mount, Handle

17 67005626 Caddy, Can

W10136387

Bin, Egg

19 Plug, Button

67004838 Black

For Models: KBLS22KTSS01

(Stainless Steel−LH)

FREEZER DOOR PARTS

W10183698

For Models: KBLS22KTSS01

(Stainless Steel−LH)

FREEZER DOOR PARTS

10 W10183698

Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10170543

Stainless Steel

2 Handle, Door

2319727S Stainless Steel

3 67006113 Mount, Handle

4 Gasket, Door

W10130587

Black

5 67002935 Screw

6 Plug, Vent (2)

67004938 Black

For Models: KBLS22KTSS01

(Stainless Steel−LH)
