KitchenAid KSRS25CNBL00 Manual de usuario

CABINET PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

4−04 Printed In U.S.A. (kdj) Part No. 8199023

REFRIGERATOR

CABINET PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

1 2305642 Energy Guide

2305802 Use & Care Guide

2301270 Service & Wiring

Sheet

2220407 Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

787316 Icemaker

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

10 3400103 Screw

11 8281227 Screw

12 Hinge Cover

2203407W White

2203407T Biscuit

2203407B Black

2203407ES

European Silver

13 2217075 Hinge Bottom (2)

14 Filler, Wrapper

2196094 White

2196150 Biscuit

2196097 Black

2301252 European Silver

15 Grille

2198468W White

2198468T Biscuit

2198468B Black

2198468ES

European Silver

16 489497 Screw

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Extension Tube

20 1108439 Clip, Drain Tube

21 2188739 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408W White

2203408T Biscuit

2203408B Black

2203408ES

European Silver

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer,

Lower Cam (2)

27 489483 Screw

28 2186443 Housing, Water

Filter

29 2255519 Water Filter

30 Cap, Water

Filter

2186494W White

2186494T Biscuit

2186494B Black

2186494ES

European Silver

31 489500 Screw

32 2203098 Plate, Screw

33 3400113 Screw

34 2255012 Tube, Filter

Outlet

35 2305536 Tube, Filter

Inlet

36 2203770 Hinge Top (FC)

REFRIGERATOR LINER PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2255612 Escutcheon, Meat

Pan Control

3 2301339 Slide Meat

Pan Control

4 2257741 Louver

5 2301234 Housing, Door

Control

6 2301235 Slide, Door

Control

7 2256037 Wire Harness,

Dual Crisper

Lights

9 2206273 Shelf Ladder

10 487539 Screw

11 486298 Screw (2)

13 2188819 Thermistor

14 2256035 Bracket, Dual

Crisper Lights

15 2216112 Air Diffuser

Assembly

16 2212240 Air Diffuser

Cover

17 2150331 Cover, Wiring

18 2162085 Socket

19 2217199 Reservoir

20 2255743 Light Bulb

21 2209769 Light Lens

22 488280 Screw

23 2179404 Rack, Wine & Egg

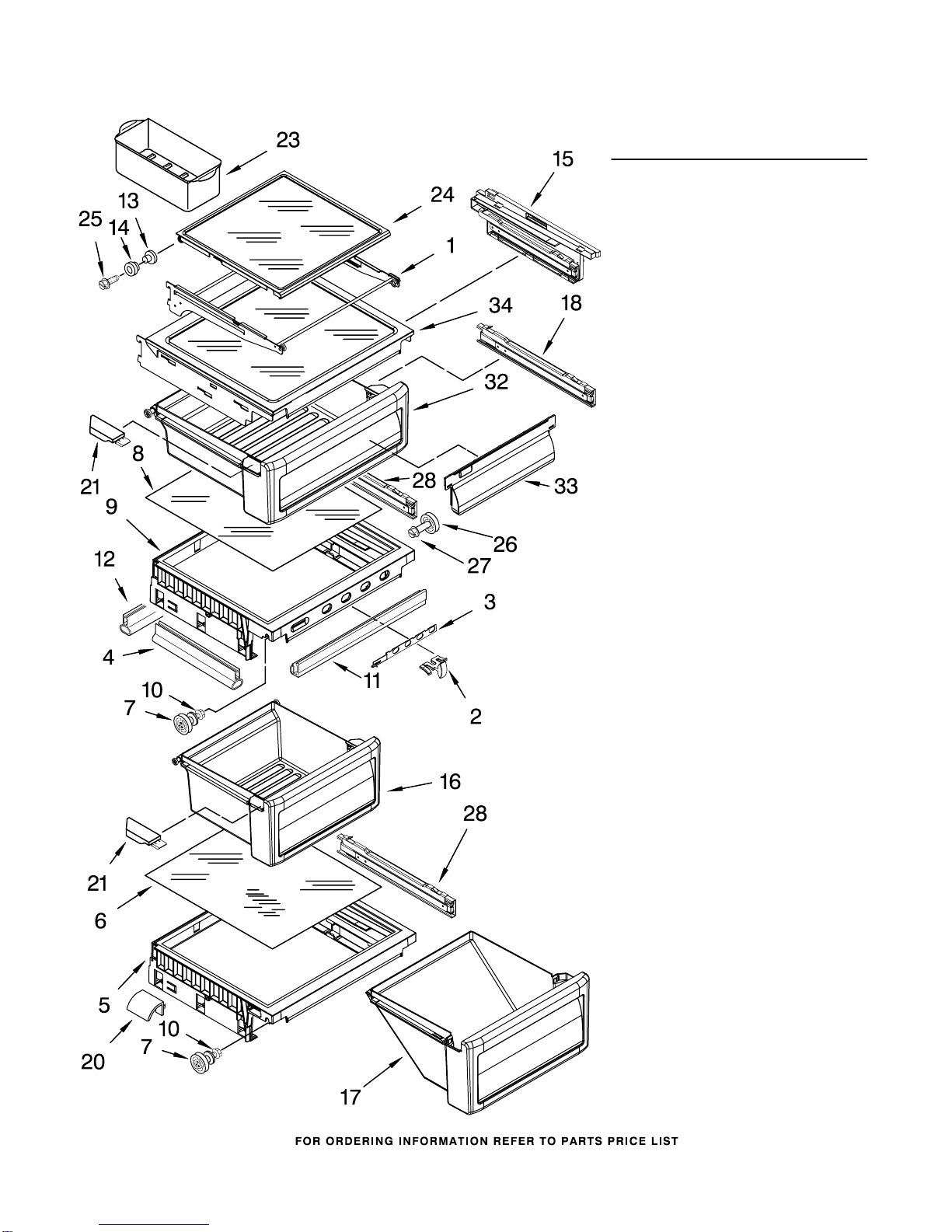

REFRIGERATOR SHELF PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

Illus. Part

No. No. DESCRIPTION

1 2301072 Shelf Assembly,

Cantilever (2)

2 2301025 Knob, Humidity

3 2301026 Slide, Humidity

4 2301117 Gasket, Side (2)

5 2301568 Cover, Meat Pan

(Includes 20 & 28)

6 2301028 Glass, Meat Pan

Cover

7 2196485 Stud Assembly

8 2301027 Glass, Crisper

Cover

9 2301567 Cover, Crisper

(Includes 2, 3,

4, 11, 12 & 28)

10 3400894 Screw

11 2301116 Gasket, Front

12 2301115 Gasket, Rear

13 2174478 Eyelet, Roller

14 2188212 Roller

15 Support Assembly

2301569 Right Side

2301570 Left Side

16 2301031 Crisper Pan

(Includes #21)

17 2301022 Meat Pan

18 Glide Assembly,

Snack Pan

2301550 Right Side

2301551 Left Side

20 2301126 Deflector

21 Cap, Pan

2301016 Right Side

2301017 Left Side

23 2216624 Egg Bin

24 2301084 Shelf & Roller

Assembly (2)

25 489439 Screw

26 2196483 Stud Assembly

27 8281158 Screw

28 Glide Asm, Pan

2301548 Right Side

2301549 Left Side

32 2301023 Snack, Pan

(Includes 21 & 33)

33 2301006 Window, Snack Pan

34 2301566 Shelf, Snack Pan

(Includes #15)

FREEZER LINER PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

FREEZER LINER PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2198697 Gasket

3 3400893 Screw

4 2196483 Stud Assembly

5 2301143 Basket, Top

(Includes #12)

6 2301144 Basket, Deep

(Includes #12)

7 8281158 Screw

12 2301134 Front, Assembly

Basket

13 Glide Assy, Basket

Top

2301540 Right Side

2301541 Left Side

14 2205837 Shelf

15 2301145 Basket, Sloped

(Includes #12)

16 8533982 Screw (12)

17 842534 Clip, Air Duct (2)

18 Glide Assy, Basket

Middle/Bottom

2301542 Right Side

2301543 Left Side

19 2198587 Cover, Emitter

22 2198635 Spring

23 2198634 Pin

25 1115373 Switch, Rocker Arm

26 2220398 P.C. Board

Emitter

27 2255590 Cover, Ice Maker

28 2212321 Slide, Ice Maker

Mounting

29 489478 Screw

30 489214 Screw

32 2162085 Light Socket

33 2255743 Light Bulb

34 8281185 Screw

35 2198633 Flipper

36 2255561 Cover, Receiver

37 2301340 Slide, Ice Maker

Shut Off

38 2255114 P.C. Board,

Receiver

39 2198643 Lens

40 2198589 Light Shield

41 2212340 Light Lens

42 2198641 Bracket, Ice Maker

Cover

43 2155597 Socket, Light

45 Ladder

2198609 Left Side

2198610 Right Side

46 2219878 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

MOTOR AND ICE CONTAINER PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

Illus. Part

No. No. DESCRIPTION

1 2198573 Ice Bin

2 2255580 Crusher Bin

3 2211590 Auger

4 2257021 Blade, Stirring

5 1119007 Spacer, Flat (6)

6 2255460 Cover, Crusher

7 1119013 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 1119012 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 1119006 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2301345 Button, Bin

20 2212371 Latch, Bin

21 2198608 Spring, Latch

22 2198671 Screw (2)

23 8281163 Screw

24 2212369 Holder

25 2220458 Coupling, Bottom

26 2198628 Seal

27 2212370 Washer

28 2187725 Wire Harness,

IDI Motor

29 2198607 Spring

30 999536 Drive Shaft

31 2198655 Bracket, Motor

32 2252129 Dispenser, Motor

33 2198626 Cover

34 8281162 Screw

35 489478 Screw

36 2212365 Sleeve, Coupling

REFRIGERATOR DOOR PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

REFRIGERATOR DOOR PARTS

For Models: KSRS25CNWH00, KSRS25CNBT00, KSRS25CNBL00, KSRS25CNSS00, KSRS25CNLK00

(White) (Biscuit) (Black) (Stainless Steel) (Lake Blue)

8199023

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2207183W White

2207183T Biscuit

2207183B Black

2207183S Stainless

2207183LK

Lake Blue

2 2301486 Compartment Door

3 2223434 Door Bin (4)

4 3400012 Screw

5 Screw

3400898 White

8281135 Biscuit

3400899 Black

3400897 Chrome

6 Door Gasket,

Magnetic

2221302 Mist Beige

2221313 Black

7 2165792 Butter Dish

8 Handle

2220238W White

2220238T Biscuit

2220238B Black

2220238S Stainless

2220238ES

European Silver

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2200082 Chrome

2200082B Black

13 Endcap, Bottom

2207111W White

2207111T Biscuit

2207111B Black

2207111ES

European Silver

14 2159124 Gasket

15 2193409 Beverage Holder
