OVEN PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

8−08 Litho in U.S.A. (amd) (psw) Part No. W10207236 Rev. A

27" BUILT−IN ELECTRIC

COMBO OVEN

THERMAL CONVECTION

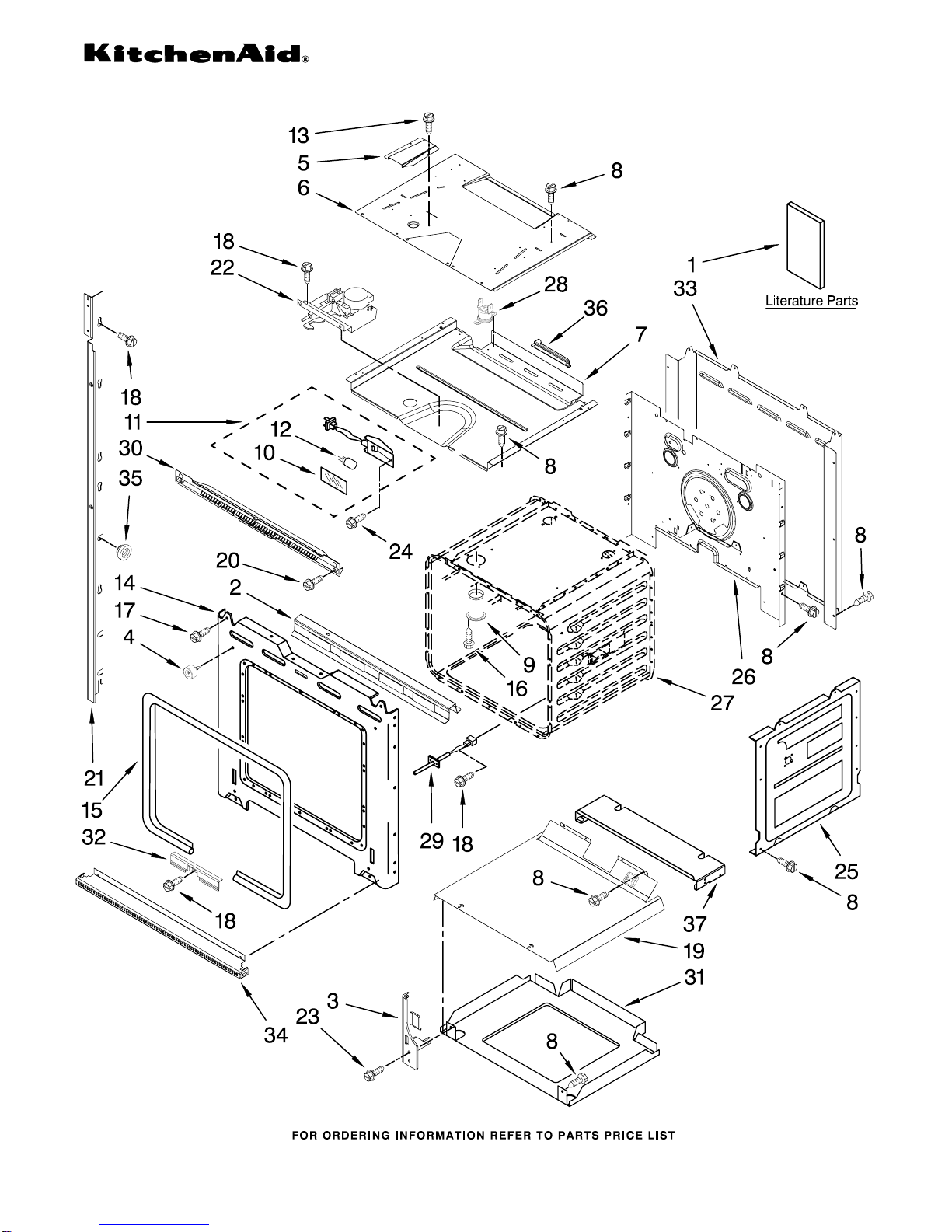

OVEN PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304337 Installation

Instructions

Use & Care Guide

W10162223

Combo

W10162181

Microwave

Tech Sheet

W10185205

English

W10185206

French

Easy Set Guide

8304338 Oven

8304375 Microwave

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

W10181198

Divider,

Center Vent

W10204469

Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10169756

Lens, Light

W10009940

Assembly,

Oven Light

W10169757

Bulb, Light

13 3400832 Screw (2)

14 8304629 Frame, Front

15 8304494 Gasket, Door

16 3196176 Screw

17 4449040 Screw

18 3400893 Screw

19 4451477 Support, Insulation

20 4450038 Screw (2)

21 Mounting Rail,Side

Right

8303679BL

Black

8303679WH

White

Left

8303680BL

Black

8303680WH

White

22 8303692 Latch, Motorized

23 4449743 Screw

24 4449748 Screw

25 4455641 Side, Chassis

26 8304304 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse

W10131825

Sensor

30 8303724 Vent, Center

31 8303772 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

34 Trim, Bottom

8303706BL

Black

8303706WH

White

W10165444

Stainless

35 4448444 Grommet,

Mounting Rail

W10169348

Bracket,

Thermostat

37 8304570 Support,

Microwave Module

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303966 Insulation, Wrap

8303968 Insulation, Back

CONTROL PANEL PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8303717BL

Black

8303717WH

White

W10165446

Stainless

2 8304441 Resistor, Drop

3 8303797 Bracket, Glass

Touch

4 8303881 Keyboard,

Glass Touch

W10118734

Oven, User

Interface

6 8303720 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400832 Screw

W10119143

Appliance Manager

W10118735

Microwave, User

Interface

12 9760749 Bumper

OVEN DOOR PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8303738BL

Door Liner

W10174288

Hinge, Door (2)

3 3196183 Screw

8304580BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

6 Cover, Hinge

W10137044

Right

W10137043

Left

7 8303732 Glass, Inner

8 4449154 Screw

10 8304523 Seal

8304361BL

Bracket, Handle

12 Door Glass,

Assembly

Includes #17

8304001 Black

8304003 White

8303999 Stainless

13 Door Handle

8303775BL

Black

8303775WH

White

8303775SS

Stainless

8303745BL

Frame, Door Side

16 8303754 Door, Top Bracket

17 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

18 8304522 Bumper, Glass

INTERNAL OVEN PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION

1 8304602 Element, Broil

Shield

2 9760774 Element, Broil

3 8303842 Rack, Oven

4 9760768 Element, Bake

5 4455036 Tray, Bake

6 4449154 Screw

7 4450039 Cover, Bake Tray

8 4449809 Screw

8304422BU

Cover, Fan

10 9760769 Element,

Convection

W10116351

Blade, Fan

W10116349

Nut

W10196895

Motor,

Convection Fan

14 9755543 Jack, Meat Probe

15 9755542 Probe, Meat

16 9755547 Washer, Lock

17 9755546 Nut, Hidden

18 8303840 Oven Rack

(Sliding)

TOP VENTING PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION

1 4449154 Screw

2 4454949 Holder, Fuse

3 4449809 Screw

4 8303972 Blower

6 8304643 Duct, Air Outlet

7 9762053 Transformer,

Control

8 8285593 Control Cover

9 4449868 Block, Terminal

W10017410

Fuse

11 8304509 Back Chassis

Panel

12 Side, Combo

8304546 Right

8303539 Left

13 8303538 Channel, Rear

Combo

14 8303802 Cover, Top

7103P027−60

Nut,

Terminal Block

16 3400080 Screw

CABINET AND STIRRER PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

CABINET AND STIRRER PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10120227

Control, Electric

2 8205669 Support

W10130892

Plate, Air

W10130901

Insulation, Side

Left

W10120471

Cover, Side Left

W10120223

Thermostat

W10120224

Element,

Convection

8 4375418 Fan

W10120233

Nut, Speed

W10130891

Holder

W10120220

Noise Filter

W10120228

Control, Electric

Converter

W10130909

Bracket, Support

W10131249

Screw

15 8205692 Transformer

16 4375427 Actuator

17 4375321 Fuse

18 4375231 Block, Fuse

W10130897

Bracket, Support

20 8205653 Filter, Noise

21 8205654 Thermostat

W10120113

Magnetron

W10130895

Plate, Air

24 4375319 Spring, Lamp

25 8205685 Spring

26 8205658 Housing, Lamp

27 4375348 Lamp

W10120222

Thermostat

W10131248

Switch

30 8205683 Holder, Switch

31 4375320 Reflector

32 4375318 Lens, Lamp

W10120231

Clip, Spring

W10120476

Top Vent

36 Trim, Side

W10120472

Right

W10120474

Left

W10120469

Bushing

W10130905

Bracket, Support

39 8205708 Bracket, Support

40 8205682 Shaft, Turntable

Turntable

41 8205681 Cover, Motor

Turntable

W10120234

Cover

43 4375252 Gasket, Shaft

44 8205655 Motor, Turntable

45 4375202 Screw

46 8205707 Support

W10120478

Hinge, Door

W10130903

Cover, Plate

W10130904

Cover, Rear

50 8205680 Cover, Side Right

W10120221

Convection, Motor

Assmebly

52 8205721 Blower Assembly

W10130907

Cover, Inverter

W10120229

Inverter

W10130906

Holder, Inverter

W10130890

Screw

W10130908

Baffle, Air

W10130899

Plate, Air

W10120235

Rod, Release

W10120225

Sensor

61 8205685 Spring

64 8205683 Interlock

W10130900

Insulation

66 8205704 Spring

W10130902

Insulation

68 8205689 Spring

69 8205688 Arm

70 8205686 Support

W10120236

Arm

W10120470

Pin, Damper

73 8205690 Sensor

W10130898

Duct, Magnetron

INTERNAL MICROWAVE PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION

W10120480

Crisp Plate

W10120484

Steamer

W10120486

Plate, Baking

W10120483

Rack

6 8205676 Turntable

7 8205678 Ring

8 8205677 Drive, Turn Table

W10120481

Handle, Pan

W10120226

Grill Heater

W10120230

Cover, Plates (2)

W10120232

Bracket, Mounting

MICROWAVE DOOR PARTS

For Models:KEMS378SBL02, KEMS378SWH02, KEMS378SSS02

(BLACK) (WHITE) (STAINLESS)

W10207236

Illus. Part

No. No. DESCRIPTION

8304588BL

Button, Plug (2)

2 4449809 Screw

W10120488

Door, Microwave

4 4449154 Screw (4)

5 8303033 Bracket, Handle

6 Glass Assembly

8304030 Black

8304031 White

8304029 Stainless

7 Handle, Door

8303775BL

Black

8303775WH

White

8303775SS

Stainless

W10143304

Screw
