OVEN PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

3−08 Litho in U.S.A. (dmm) Part No. 8186458

30" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION LOWER

MICROWAVE CONVECTION UPPER

OVEN PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8300653 Installation

Instructions

8304066 Use & Care Guide

(Oven)

8304067 Use & Care Guide

(Microwave)

4450786 Cooking Guide

(Lable)

8303852 Tech Sheet (Oven)

4449264 Easy Set Guide

Safer Cooking Tips

3191638 English

9759133 French

4451052 Easy Use Guide

(Microwave)

3 Hinge Reciever

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 Trim, Side

4455430 RH Black

4455434 RH Biscuit

4455432 RH White

4452083 RH S. Steel

4455431 LH Black

4455435 LH Biscuit

4455433 LH White

4452084 LH S. Steel

6 4452490 Spacer, Foam

7 8303099 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 9752759 Relay

14 9759060 Frame, Front

15 4455382 Gasket, Door

16 4449040 Screw, 8−18 x 3/8

17 4449743 Screw, 8−32 x 3/8

18 3196176 Screw, 8−18 x 1/2

19 4451478 Support, Insulation

20 4451605 Cap, Spacer

21 Rail, Side

4450583 Right Side

4450584 Left Side

4448444 Grommet

22 Screw

8281236 Black

694091 White

23 3400832 Screw

24 4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452234 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 4448444 Grommet

29 4455636 Sensor

30 4449845 Bracket, Support

31 4450038 Screw

32 4452152 Bracket, Mounting

33 9760677 Deflector, Vent

34 8302592 Vent, Center

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 Trim, Bottom

4455443 Black

4455445 White

4455447 Biscuit

4455147 Stainless Steel

52 4451756 Chassis, Back

53 4452492 Insulation,

Convection Top

54 4452491 Insulation,

Convection Grill

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

4452337 Insulation,

Bottom Vent

CONTROL PANEL PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION

1 Panel. Control

4452604 Black

4452605 White

4452974 Biscuit

4451791 Stainless Steel

2 Switch Membrane

8302670 Black

8302674 White

8302672 Biscuit

8302660 Stainless Steel

3 3400832 Screw

4 4451592 Filter

5 4452260 Spacer, Foam

6 4451632 Bracket, Filter

7 8302346 Assy, Control

8 4449745 Screw

9 3400832 Screw

10 4449809 Screw, 8−18 x 3/8

OVEN DOOR PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9759413 Door Liner

2 Hinge, Door

9760575 Rt Side (clear)

9760576 Lft Side (clear)

3 4449259 Glass, Inner

4 4451722 Insulation, Door

5 4449743 Screw

6 4449809 Screw

7 9759225 Glass, Inner

12 Door Glass, Assy

4455391 Black

4455390 White

4455395 Biscuit

4452316 Stainless Steel

13 Door Handle

4452502 Black

4452503 White

4452871 Biscuit

4455851 Stainless Steel

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

15 9759229 Bracket(2nd Glass)

16 3196184 Screw

19 4457103 Shield, Heat

20 4457132 Retainer, Glass

21 4451668 Retainer, Glass

22 4457114 Shield, Heat(Btm)

23 Retainer, Glass−Clip

4450863 Black

4450864 White

4452119 Biscuit

4451432 Stainless Steel

24 9759228 Glass, Inner

25 4452326 Seal, Pano

26 9759230 Bracket(3rd Glass)

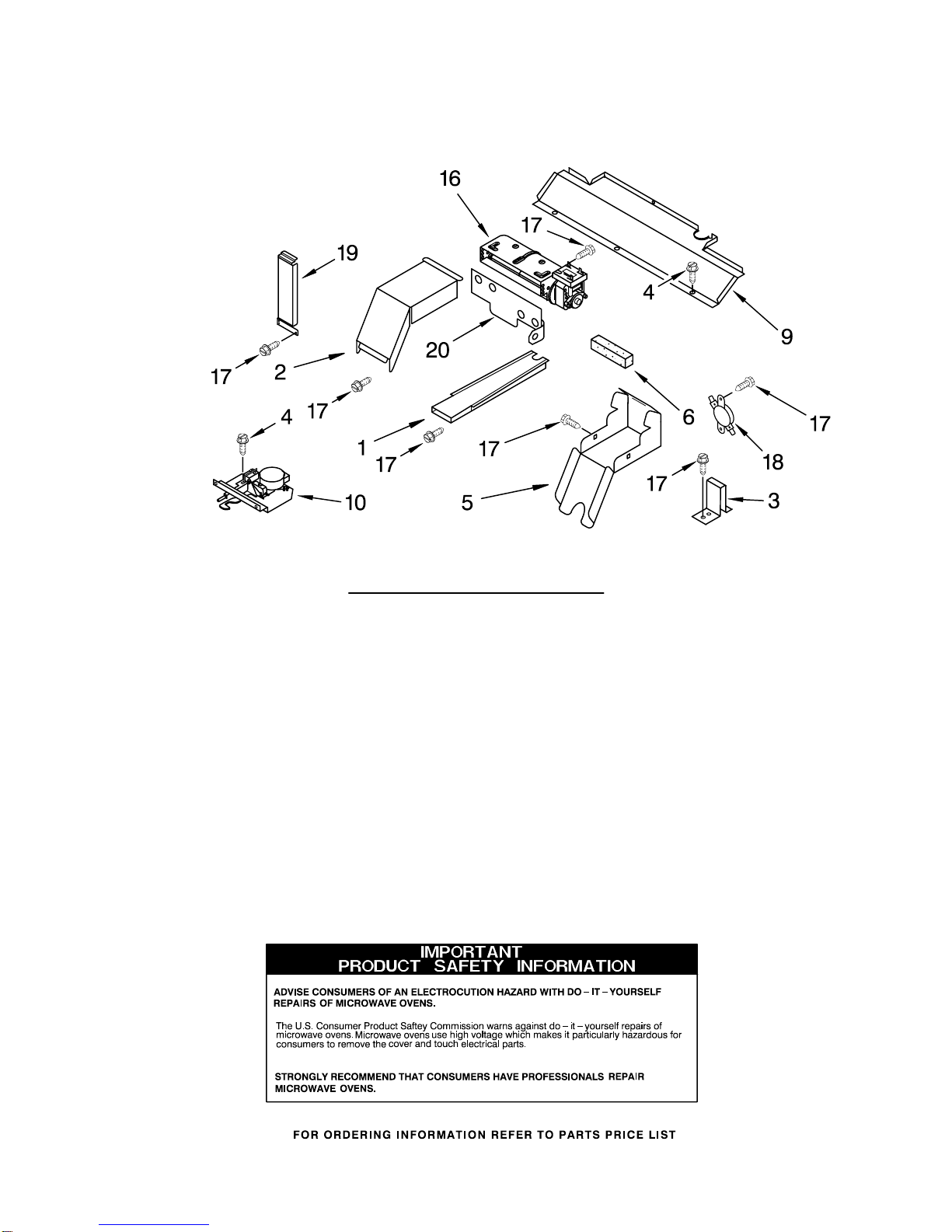

LATCH PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 8300791 Bracket, Combo

Chassis

4 4449154 Screw

5 4455177 Elbow, Vent−Bottom

6 4451758 Seal, Foam

9 4450408 Baffle, Rear

10 9760888 Latch, Motorized

16 6610168 Blower

17 4449809 Screw

18 9759243 Thermostat,

(SPST, 120c)

19 4449906 EXT Filler

20 4455191 Plate, Service

INTERNAL OVEN PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION

2 4456104 Element, Broil

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 3181534 Rack, Roasting

6 4448717 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Convection, Motor

10 4452226 Blade, Fan

11 4448882 Washer, Lock

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4455037 Tray, Bake

17 4450039 Cover, Bake Tray

18 4449809 Screw

20 4452157 Element,

Convection

21 4448418 Cover, Fan

22 4449154 Screw

CABINET AND STIRRER PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

CABINET AND STIRRER PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375437 Bracket, Capacitor

3 4375252 Rubber Ring

4 4375038 Screw

5 4375314 Air Duct, Magnetron

6 4375253 Support, Tube

7 4375421 Plug, Ceramic

8 4375255 Bushing

9 4375256 Reflector

10 4375257 Chamber, Reflector

12 4375450 Duct, Inlet

13 4375316 Insulation, Switch

14 4375322 Fan Wheel

15 4375317 Duct, Air

16 4375415 Block, Slide

17 4375248 Cover Plate, Upper

18 4375251 Screw

19 4375318 Lens, Lamp

20 4375319 Spring

21 4375320 Reflector

23 4375276 Rack

24 4393536 Crisp Plate

25 4375436 Capacitor

26 4375424 Magnetron

27 4375321 Fuse

28 4375231 Block, Fuse

29 4375278 Motor, Blower

30 4375279 Thermostat

31 4375423 Thermostat

32 4375281 Thermostat

33 4375408 Q Tube Assembly

34 4375438 Transformer

35 4375406 Ring, Turntable

36 4375407 Shaft, Turntable

39 Bracket, Hinge

4375412 Left

4375413 Right

42 4375331 Plate, Grill

43 4375332 Bracket

44 4375441 Fan Cap

46 Switch Holder

4375412 Left

4375413 Right

47 4375258 Nut

48 Insulation

4375409 Left Side

4375410 Right Side

49 4375411 Plate, Side

Bottom

50 4375425 Valve

51 4375428 Screw To Valve

52 4375427 Thermoactuator

53 4375426 Air Bleed

54 4375439 Shield, Heat

Right

55 4375422 Sensor, Temp.

56 4375420 Insulation

57 4375419 Duct, Heater

58 4375416 Washer

59 4375417 Element, Heater

60 4375418 Fan

61 4375429 Motor, Fan

62 Left−Threaded Nut

Serviced With

Motor Item 61

63 4375430 Thermostat

64 4375431 Shield, Heat

65 4375432 Insulation

66 4375433 Chamber, Heat

67 4375437 Isolation Plate

68 4375338 Cover Plate

71 Side Plate

4375341 Left

4375342 Right

72 4455915 Turntable

73 4375346 Switch

74 4375347 Motor, Turntable

75 4375348 Lamp

76 4375349 Rectifier

77 4452220 Rack, Convection

MICROWAVE COMPARTMENT PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION

1 Support Rails

4452551 Right Side

4452552 Left Side

2 4449809 Screw

3 4452548 Rear Channel

4 4449154 Screw

TOP VENTING PARTS

For Models: KEMC308KBL04, KEMC308KWH04, KEMC308KBT04, KEMC308KSS04

(Black) (White) (Biscuit) (Stainless Steel)

8186458

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4450378 Cover, Top

2 4448935 Baffle, Blower

3 4450920 Blower

4 4451789 Plate, Mounting

5 4452104 Transformer,

(Lights)

6 4451634 Exhaust Duct

7 4450027 Bracket, Duct

8 4449964 Grommet

9 4454949 Holder, Fuse

10 4454976 Fuse

11 4449868 Block, Terminal

12 4452559 Side, Combo

13 4456145 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 4452244 Back, Control

16 4450551 Cover, Top Rear

17 4448664 Clamp

18 4452367 Cover, Top Front

19 4455038 Transformer,

Control

20 4452247 Cover, Plate

21 4451934 Suppressor

22 4449809 Screw, 8−18 x 3/8

23 4449154 Screw

24 3400080 Screw

25 4450038 Screw

26 313806 Screw, 6−32 x 3/8

27 112432 Nut
