OVEN PARTS

For Models: KEBC167MSS00

(Stainless Steel)

1−04 Litho in U.S.A.(cre) Part No. 8186173

36" BUILT−IN

ELECTRIC OVEN

THERMAL CONVECTION

OVEN PARTS

For Models: KEBC167MSS00

(Stainless Steel)

8186173

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Literature Parts

LIT8301807

Installation

Instructions

LIT8302334

Use & Care Guide

(Oven)

LIT8301808

Tech Sheet

LIT4449264

Easy Set Guide

LIT8302333

Installation/

Undercounter

LIT3191638

Safer Cooking Tips

2 Trim, Side

4452079 (Right Hand)

4452080 (Left Hand)

694091 Screw

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 4452489 Deflector,

Vent Box

6 8300154 Insulation

7 8301784 Top, Chassis

4449809 Screw

8 4452490 Spacer, Foam

9 4452158 Tube, Vent

3196176 Screw

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

14 8300150 Frame, Front

4449040 Screw

4450118 Nut

15 8300142 Gasket, Door

16 Bracket, Deflector

8302338 R.Hand

8302339 L.Hand

3400805 Screw (2)

19 8300184 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450579 Right Side

4450580 Left Side

4448444 Grommet

4449154 Screw

22 8302474 Latch, Motorized

25 4455641 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 8302199 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

4449154 Screw

33 8301780 Deflector, Vent

37 4451442 Thermostat (TOD)

(Temp.) SPST

43 8302327 Base, Chassis

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

53 4449845 Support, Bracket

4449809 Screw

55 8301788 Trim, Bottom

56 4452152 Bracket, Mounting

Bottom Trim

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8300158 Insulation, Wrap

8300159 Insulation, Back

OVEN DOOR PARTS

For Models: KEBC167MSS00

(Stainless Steel)

8186173

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 8300152 Door Liner

2 Hinge, Door

8300579 R.Side (Orange)

8300580 L.Side (Orange)

4449743 Screw

3 4449259 Glass, Inner

4 8300797 Insulation, Door

7 4449263 Glass, Inner

4449809 Screw

12 8302468 Door Glass, Assy

13 4455852 Door Handle

14 Bracket, Handle

4455803 Stainless Steel

4455804 Stainless Steel

3196184 Screw

19 8301089 Shield, Heat

4449809 Screw

20 8300190 Retainer, Glass

4449809 Screw

21 8300153 Seal, Door Top

23 4451432 Retainer, Clip

INTERNAL OVEN PARTS

For Models: KEBC167MSS00

(Stainless Steel)

8186173

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 8301514 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 8300796 Rack, Oven

7 8300204 Element, Bake

4449154 Screw

8 4452157 Element, Convect.

4449154 Screw

9 4451583 Motor Convection

4449154 Screw

10 4452226 Blade, Fan

11 4448882 Lock Washer

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448881 Hex Nut

15 4448418 Cover, Fan

4449154 Screw

16 8300799 Tray, Hidden Bake

17 8300800 Cover, Hidden Bake

4449809 Screw

18 4448948 Meat Probe

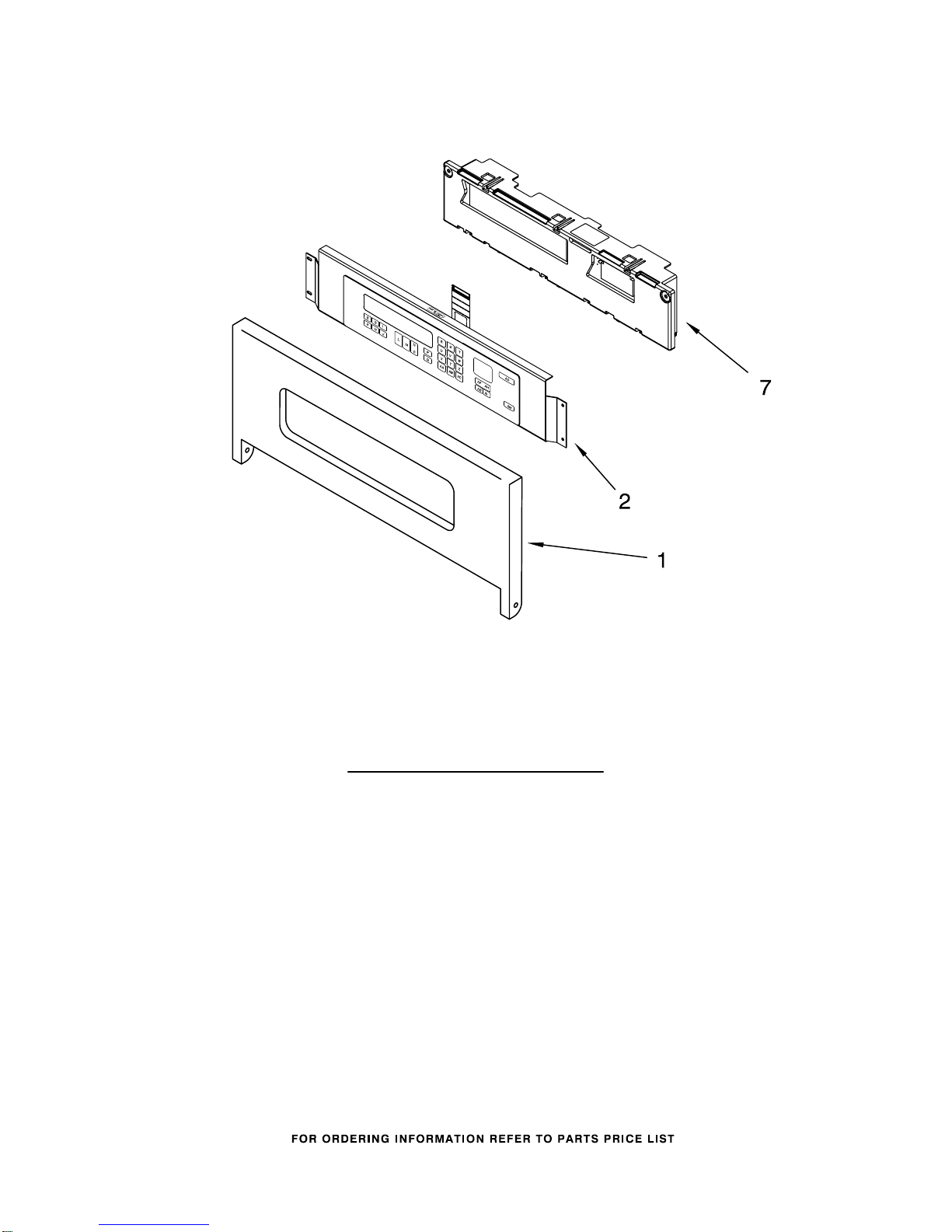

CONTROL PANEL PARTS

For Models: KEBC167MSS00

(Stainless Steel)

8186173

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 8301226 Panel, Control

2 8301236 Switch Membrane

7 8302322 Assy, Control

4449745 Screw

TOP VENTING PARTS

For Models: KEBC167MSS00

(Stainless Steel)

8186173

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451759 Vent, Exhaust

4449809 Screw

2 4455178 Elbow, Vent−Top

3 8300223 Blower

4455352 Bracket

4449809 Screw

4 4451758 Block, Foam

5 6610122 Transformer, Light

6 4451985 Suppressor,

Transient

8 4455177 Elbow, Vent−Bottom

11 4449868 Block, Terminal

3400080 Screw

13 8301778 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Top

4451597 Right

4451598 Left

4449809 Screw

4449154 Screw

15 8302583 Back, Control

4449809 Screw

16 8301222 Cover, Top Front

4449809 Screw

18 8301223 Cover, Top Rear

4449809 Screw

19 8300642 Transformer,

Control

OPTIONAL PARTS

For Models: KEBC167MSS00

(Stainless Steel)

8186173

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

4392899 Biscuit

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

4392901 Biscuit

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

8301237 Harness, Wire

(Main)

4450952 Conduit

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4451761 Support, Wiring

4454842 Tie, Cable

4454835 Tie, Cable

4452222 Spacer, Harness

4452400 Lead, Ground

Miscellaneous

814381 Hinge Pin Kit

4448950 Screw, Install (4)

2261590 Cleaner, S.Steel
