KitchenAid KEBC167MSS02 Manual de usuario

OVEN PARTS

For Models: KEBC167MSS02

(Stainless)

2−07 Litho in U.S.A. (amd) Part No. 8186924 Rev. A

36" BUILT−IN

ELECTRIC OVEN

THERMAL CONVECTION

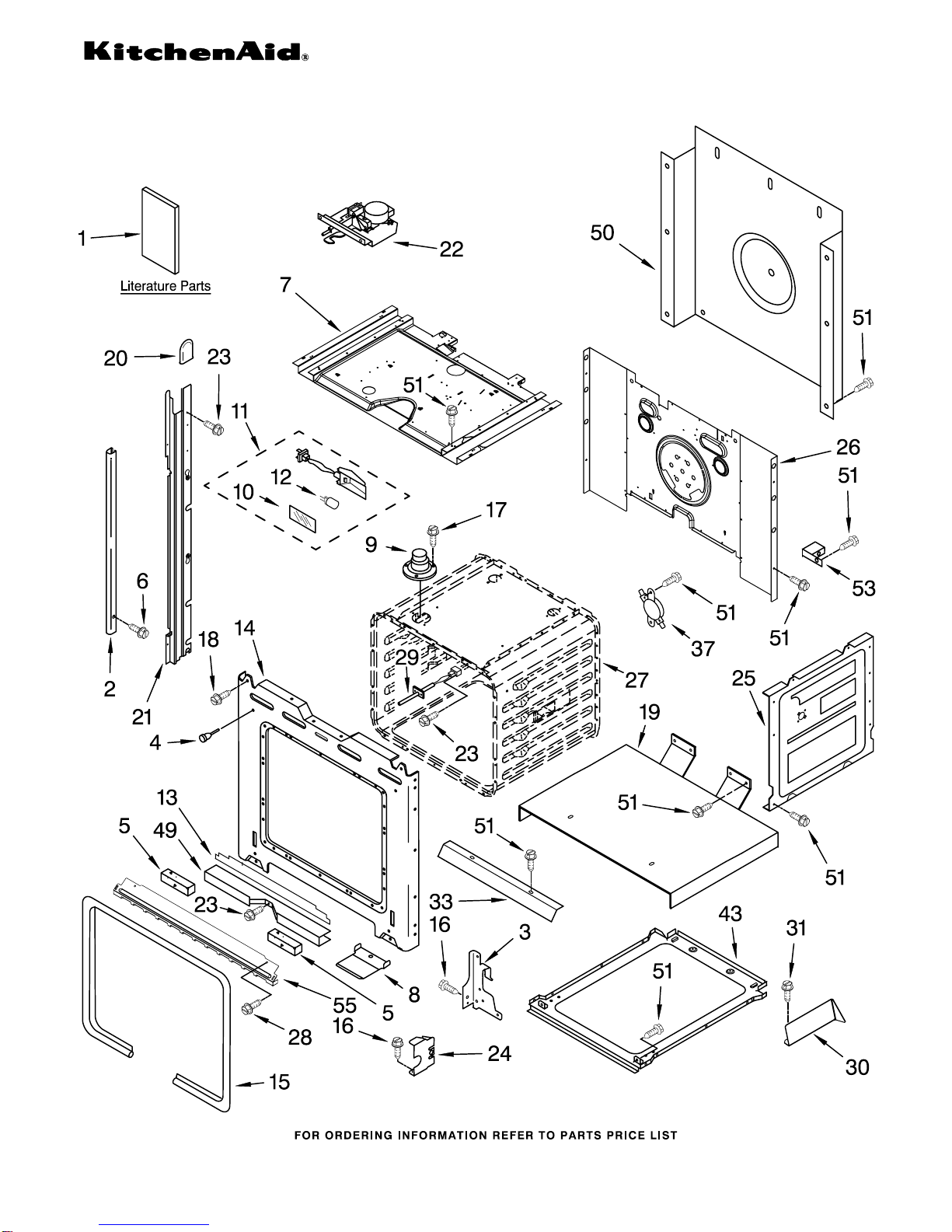

OVEN PARTS

For Models: KEBC167MSS02

(Stainless)

8186924

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304426 Installation

Instructions

8304459 Use & Care Guide

Tech Sheet (Oven)

8304480 English

8304481 French

8303946 Installation/

Undercounter

Easy Set Guide

4449264 English

4448687 French

Safer Cooking Tips

3191638 English

9759133 French

2 Trim, Side

(Stainless Only)

4452079 Right

4452080 Left

3 Hinge Receiver

4455606 Right

4455605 Left

4 9760749 Bumper, Door

5 4452490 Spacer, Foam

6 694091 Screw

7 8301784 Top Chassis

8 Deflector, Vent

4452489 Stainless

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

12 4452164 Bulb, Light

13 8300154 Insulation,

Bottom Vent

14 9760757 Frame, Front

15 8300142 Gasket, Door

16 4449743 Screw

17 3196176 Screw

18 4449040 Screw

19 8300184 Support, Insulation

20 4451605 Cap, Spacer

21 Rail, Side

4450579 Right Side

4450580 Left Side

22 9760888 Latch, Motorized

23 4449154 Screw

24 4452152 Bracket, Mounting

25 4455641 Side, Chassis

26 8302199 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 3400832 Screw

29 4455636 Sensor

30 Bracket, Deflector

8302338 Right

8302339 Left

31 3400805 Screw

33 8301780 Deflector, Vent

37 9759243 Thermostat (120c)

43 8302327 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 4449809 Screw

53 4449845 Support, Bracket

55 8301229 Trim, Bottom

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8300158 Insulation, Wrap

8300159 Insulation, Back

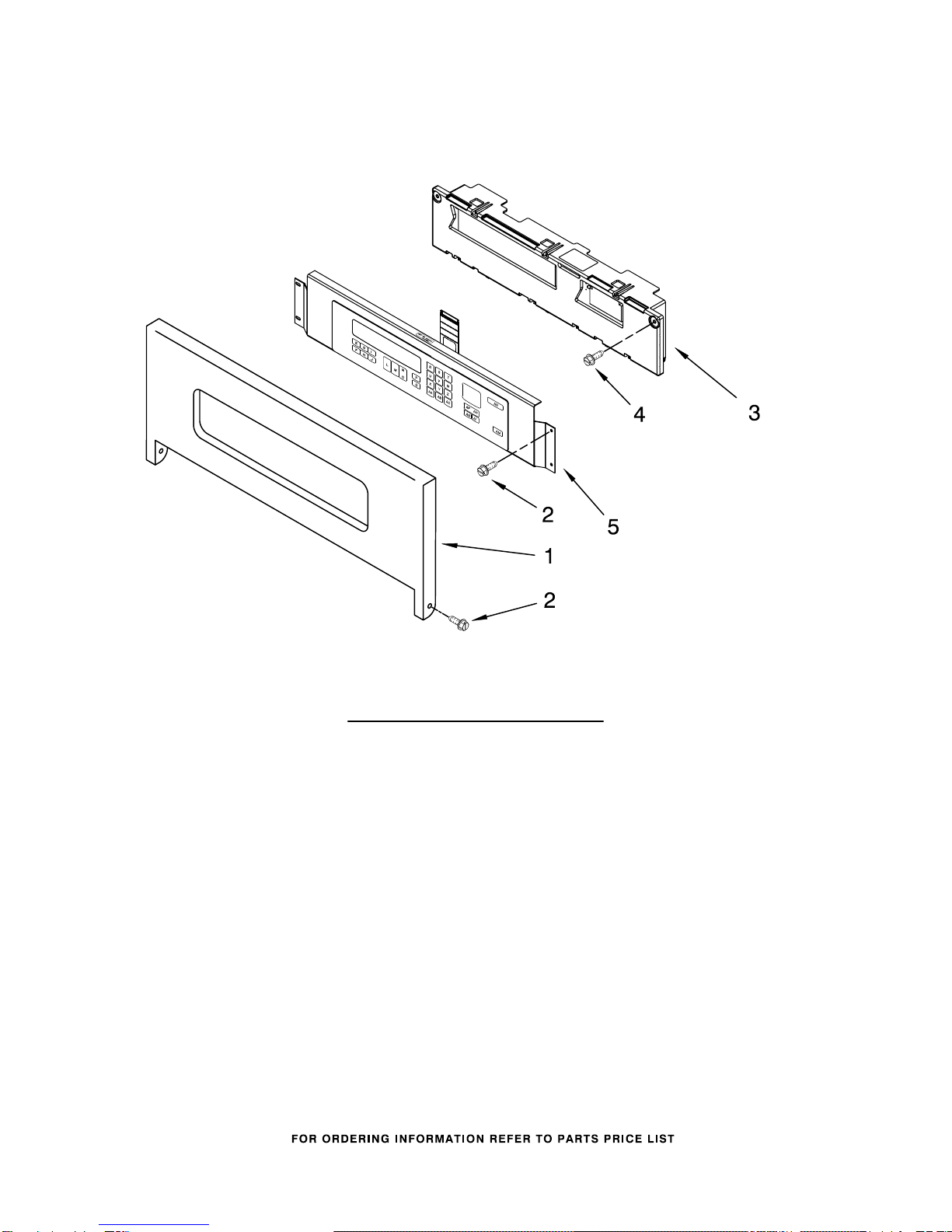

CONTROL PANEL PARTS

For Models: KEBC167MSS02

(Stainless)

8186924

Illus. Part

No. No. DESCRIPTION

1 8302595 Panel, Control

2 3400832 Screw

3 8302322 Control Assembly

4 4449745 Screw

5 8302764 Switch, Membrane

INTERNAL OVEN PARTS

For Models: KEBC167MSS02

(Stainless)

8186924

Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 3181534 Rack, Roasting

6 8300796 Rack, Oven

7 9760770 Element, Bake

8 4449809 Screw

9 9760769 Element,Convection

10 9755543 Jack, Meat Probe

11 4448882 Lock Washer

12 9755546 Nut

13 4451583 Motor, Convection

14 4452226 Blade, Fan

15 8300799 Tray, Bake

16 4452227 Nut

17 8300800 Cover, Bake Tray

18 9755542 Probe, Meat

19 4448418 Cover, Fan

OVEN DOOR PARTS

For Models: KEBC167MSS02

(Stainless)

8186924

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300152 Door Liner

2 Hinge, Door

9760579 Right (Orange)

9760580 Left (Orange)

3 4449259 Glass, Inner

4 8300797 Insulation, Door

5 4449743 Screw

6 3196184 Screw

7 4449263 Glass, Inner

8 3400832 Screw

9 4448520 Bumper, Door

10 4449809 Screw

12 8302468 Door Glass, Assy

13 9760548 Door Handle

14 Bracket, Handle

4455803 Right

4455804 Left

15 8302092 Bracket(2nd Glass)

16 8302094 Bracket(3rd Glass)

19 8301089 Shield, Heat

20 8300190 Retainer, Glass

21 8300153 Seal, Door Top

23 Retainer, Clip

4451432 Stainless Model

TOP VENTING PARTS

For Models: KEBC167MSS02

(Stainless)

8186924

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 8300223 Blower 60MM

4 4451758 Block, Foam

5 9760588 Transformer, Light

6 4451985 Suppressor

7 3400080 Screw

8 4455177 Elbow, Vent−Bottom

9 4455352 Bracket, Blower

10 8300642 Transformer,

Control

11 4449868 Block, Terminal

12 3400080 Screw

13 8301778 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 8302583 Back, Control

16 8301223 Cover, Top Rear

17 4449809 Screw

18 8301222 Cover, Top Front

19 4450038 Screw

OPTIONAL PARTS

For Models: KEBC167MSS02

(Stainless)

8186924

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8301237 Harness, Wire

(Main)

4450952 Conduit

4448664 Clamp

4449809 Screw

4450800 Screw, Ground

112432 Nut

4451761 Support, Wiring

4454842 Tie, Cable

4452222 Spacer−Harness

4454835 Tie, Cable

4452400 Harness, Wire

(Ground)

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)

Door, Complete

9759307 Black

9759306 White

9759310 Stainless

8537055 Stainless Cleaner
