KitchenAid KECD805EAL0 Manual de usuario

COOKTOP PARTS

For Models: KECD805EBL0, KECD805EWH0, KECD805EAL0

(Black) (White) (Almond)

6−98 Litho in U.S.A. (jf) Part No. 885238

30" ELECTRIC

BUILT−IN

DOWNDRDAFT COOKTOP

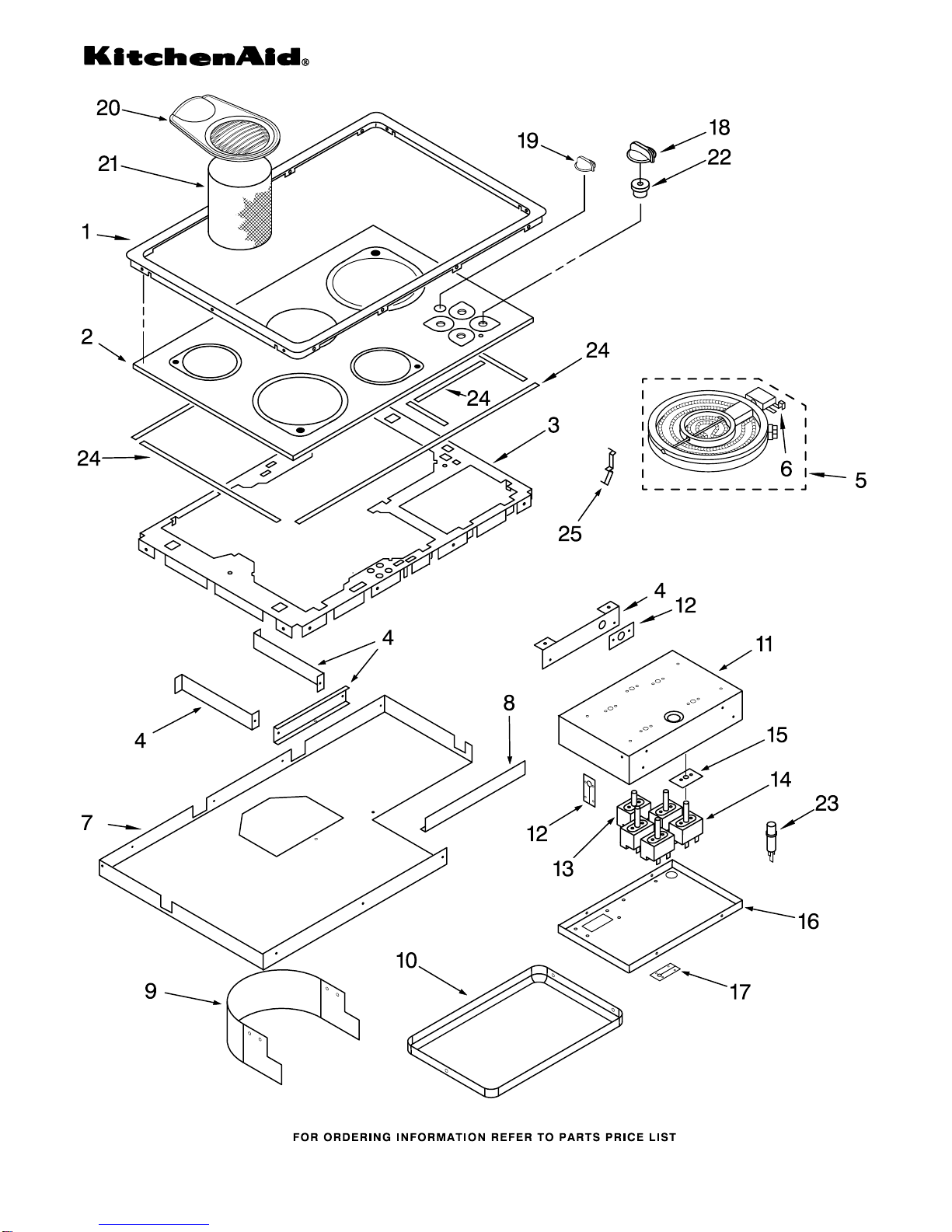

COOKTOP PARTS

For Models: KECD805EBL0, KECD805EWH0, KECD805EAL0

(Black) (White) (Almond)

885238

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim Ring, Cooktop

3190462 Black Mdl

3190463 White Mdl

3190464 Almond Mdl

2 Glass, Cooktop

3190465 Black Mdl

3190466 White Mdl

3190467 Almond Mdl

3 3190487 Plate, Backer

3196537 Screw #8 x 3/8

4 Bracket,

Vent Shield

3190673 Right side

3190674 Left side

3190675 Front

5 Element, Surface

(Includes Limiter)

3196428 L.R. (1200W)

3189896 L.F. (2100W)

3189895 R.R. (1700W)

3189894 R.F. (1400W)

246119 Screw #6−32

6 Limiter

3190248 L.R. (1200W)

3190252 L.F. (2100W)

3190250 R.R. (1700W)

3190253 R.F. (1400W)

7 3190488 Cover, Bottom

3196537 Screw

8 3190728 Bracket,

Element Shield

3196537 Screw

9 3190658 Shield, Vent

3196537 Screw

10 3190656 Drip Bowl, Grease

3196537 Screw

11 3189543 Bracket, mounting

Control

3196537 Screw

12 3190669 Grommet, Nomex

3196537 Screw

13 3190639 Switch, Speed

Control

14 Switch, Infinite

3191049 LR & RF

3191050 RR & LF

311865 Screw

15 3183956 Seal, Switch

16 3190526 Cover, switch

bottom

595095 Screw

17 3190963 Plate, Cord Mtg

3196537 Screw

18 Knob, Infinite

9750372FF

Black mdl

9750372FW

White mdl

9750372FT

Almond mdl

19 Knob, Blower

switch

3190723 Black mdl

3190724 White mdl

3190725 Almond mdl

20 3190662 Grille, Air

21 3190671 Filter, Grease

22 3191387 Seal, switch

23 4454437 Light, Indicator

24 Seal, Cooktop

3185590 Front & Rear

3190666 Sides, Lt & Rt

3190667 Blower box sides

3188852 Blower box front

& control rear

3190665 Control side

25 3189165 Clip, Spring

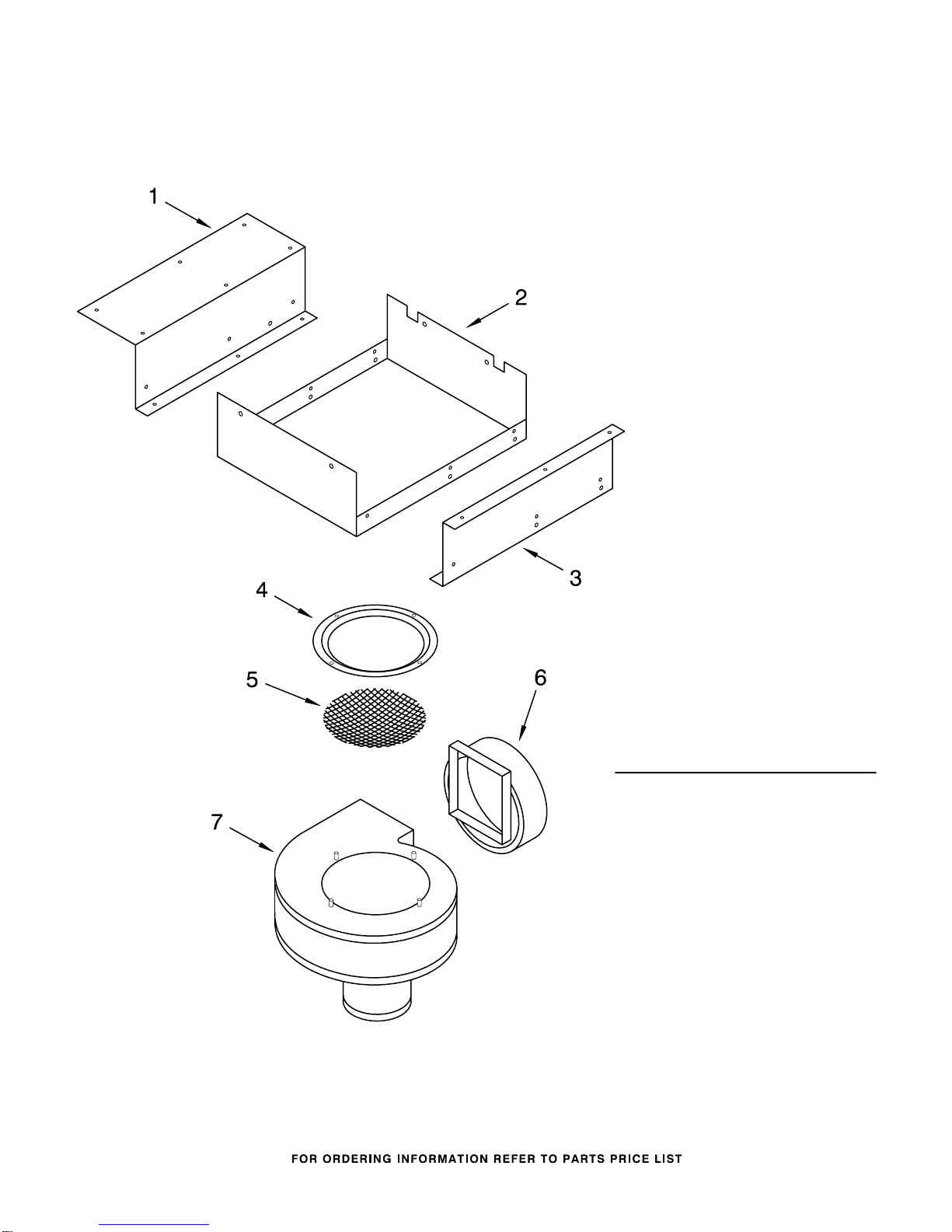

BLOWER UNIT PARTS

For Models: KECD805EBL0, KECD805EWH0, KECD805EAL0

(Black) (White) (Almond)

885238

Illus. Part

No. No. DESCRIPTION

1 3190734 Bracket, Mtg.

(Left)

3196537 Screw

2 3190732 Bracket, Mtg.

(Bottom)

3196537 Screw

3 3190733 Bracket, Mtg.

(Right)

3196537 Screw

4 3190735 Ring, Inlet

3196537 Screw

5 3190947 Screen, Inlet

6 3190736 Adapter, Vent

3196537 Screw

7 3190737 Blower Motor Asm.

(includes fan asm)

MISCELLANEOUS PARTS

For Models: KECD805EBL0, KECD805EWH0, KECD805EAL0

(Black) (White) (Almond)

885238

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3190637

Installation

Instructions

LIT3190641

Wiring Diagram

LIT3190635

Use & Care Guide

Miscellaneous

3172515 Hardware, Mounting

FOLLOWING PARTS

NOT ILLUSTRATED

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3184477 Cleaner, Glass

3183488 Scraper, Glass

WIRING HARNESS PARTS

3191019 Harness, Wire

(Ceran Downdraft)

3190722 Harness, Wire

(Blower/Switch)

98997 Clip

3190652 Harness, Wire

(W/Hot Surface

Lights attached)

3190962 Strain Relief

3191020 Guard, Screw
