KitchenAid KECC568RPB02 Manual de usuario

COOKTOP PARTS

For Models: KECC568RPB02, KECC568RPW02, KECC568RPT02, KECC568RPS02

(Black) (White) (Biscuit) (Stainless)

1−07 Litho in U.S.A. (amd) Part No. W10121462 Rev. A

36" ELECTRIC

BUILT−IN

CERAN COOKTOP

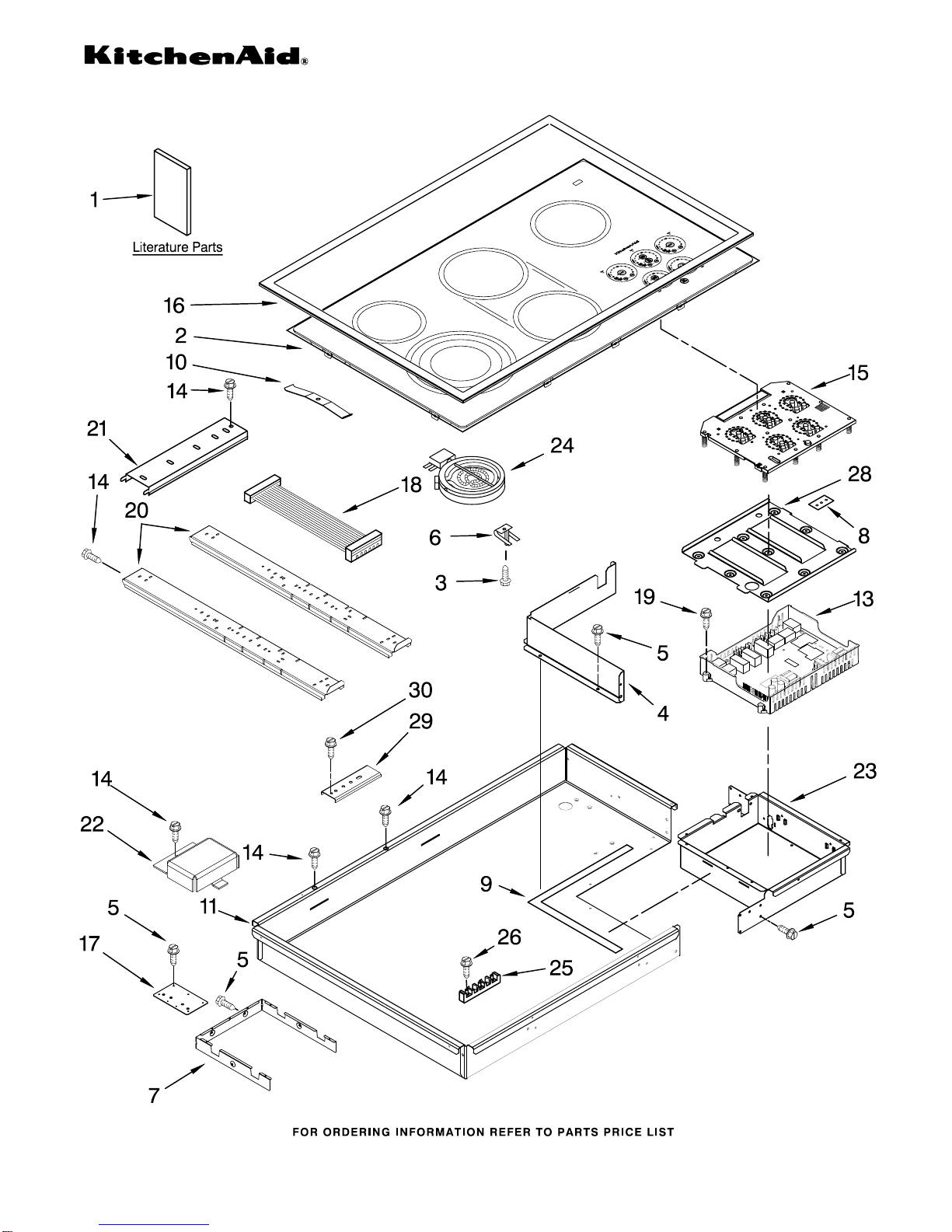

COOKTOP PARTS

For Models: KECC568RPB02, KECC568RPW02, KECC568RPT02, KECC568RPS02

(Black) (White) (Biscuit) (Stainless)

W10121462

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

8286066 Cooktop

8304571 Undercounter Oven

8286064 Tech Sheet

8286608 Use & Care Guide

Safer Cooking Tips

3191638 English

9759133 French

2 Cooktop, Glass

W10048690

Black

W10048700

White

W10048710

Biscuit

3 246119 Screw

4 8286578 Wall, Inside

5 3196160 Screw

6 9759094 Spring Locator(10)

7 8285817 Shield, Heat

8 3192439 Seal, Switch

9 8285242 Seal, Heat Shield

10 8286582 Spring Clip,

Bridge (3)

11 8286555 Box, Burner

13 8286645 Board, Power

14 3196537 Screw

15 8285924 Board, Control

16 8285708 Frame, Cooktop

(Stainless Only)

17 8286535 Bracket, Bottom

18 8285323 Cable Assembly

19 4449745 Screw

20 9763517 Rail, Element

21 8286345 Rail, Element

22 8285593 Cover, Harness

23 8286576 Box, Touch Control

24 Element, Surface

8285847 2500/1800/900W LF

8285230 1200W LR

8285849 4300W Center

4453907 1500W RR

25 4449868 Block, Terminal

26 3196163 Screw

28 4456922 Support, Module

29 4455917 Bracket, Mounting

30 3400093 Screw

OPTIONAL PARTS

For Models: KECC568RPB02, KECC568RPW02, KECC568RPT02, KECC568RPS02

(Black) (White) (Biscuit) (Stainless)

W10121462

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

Miscellaneous

3192408 Bracket,

Support (2)

8286642 Tape, Foam

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

FE02313 Bushing

ACCESSORY PARTS

4456147 Cleaner, Glass

8285439 Seal, Foam

WIRING HARNESS PARTS

8286381 Harness, Main

8286382 Clip, Harness

3400015 Screw, Ground

W10105820

Conduit
