Installation Note N9020-90204 3

Additional Removable Disk Drive

This document provides detailed instructions for the use and maintenance of an additional disk

drive in an X-Series signal analyzer. Please be sure to read this entire document before attempting

to put this additional disk drive into use.

Contents

Tools Required

—TorxDriverT-10

—USBMouse

—USBKeyboard

— USB storage device with > 2 GB free memory

Quantity Description

1 Installation Note

1 Programmed Solid State Disk Drive Tray Assembly

4Installation Note N9020-90204

Additional Removable Disk Drive

What you will find in this User’s Guide

Overview page 5

Disk Drive Interconnect Life Expectancy page 5

Putting the Additional Disk Drive Into Service page 6

Initializing the Instrument Operating System page 7

Calibration Data Backup and Restore page 9

Backup Calibration Data page 9

Restore Calibration Data page 10

Disk Drive Removal and Installation page 11

Software Updates page 12

Instrument Security Information page 13

Secure Usage Scenarios page 13

Removing an Instrument from a Secure Environment page 13

Returning an Instrument to a Secure Environment page 13

Removing an Inoperative Instrument from a Secure Environment page 14

Installation Note N9020-90204 5

Additional Removable Disk Drive

Overview

This option provides a additional removable solid state disk drive for your X-Series Signal Analyzer.

Since this option was ordered along with an instrument purchase the factory calibration data for

that instrument will also have been copied onto this drive at the factory.

The instrument model and serial numbers, as well as all installed license keys, will not need to be

transferred to the new disk drive, as the master copy of all of these is stored on the instrument A7

Midplane board assembly.

Disk Drive Interconnect Life Expectancy

If this upgrade has been ordered to use as an additional solid state disk drive for use when the

original solid state drive must be left inside of a controlled secure environment you will want to be

aware of the following information with regards to the life expectancy of the interconnect between

the removable disk drive and the instrument.

The life expectancy of both the connector on the removable disk drive and the mating connector

internal to the instrument is 1,500 cycles. If this is exceeded it is very likely that a failure will occur

between these connections. Keysight highly recommends that this cycle limit not be exceeded to

prevent an unwanted failure of the instrument.

Should an incorrect version of the X Series calibration file(s) be installed in an

instrument, no error messages will be displayed. The instrument may however

perform outside of the warranted specifications for that instrument. It is therefore

extremely important to ensure that the instrument specific calibration data is

properly copied onto this drive before the instrument is used for making any

measurements.

6Installation Note N9020-90204

Additional Removable Disk Drive

Putting the Additional Disk Drive Into Service

When ordered at the time of an instrument purchase, the additional disk drive will have the

following already installed on it:

1. The currently shipping version of instrument software that is also installed in the instrument.

So no instrument software updating will be required at this time.

2. A duplicate copy of the instrument factory calibration data file that is also in the instrument.

So no copying of the instrument calibration data file will be required at this time.

Since this additional disk drive also includes a copy of a Windows operating system on it, and thus

an additional license as well, when this disk drive is first used it will also require that you initialize

the operating system. See the “Initializing the Instrument Operating System” section in the guide.

It is recommended that once the instrument is first powered up with the disk drive that it left the

factory with, and the operating system has been initialized, that this additional disk drive then be

installed in the instrument and its operating system be initialized as well. This way both disk drives

will be in the same state, and either one can then be used as necessary. For instructions on

removing and replacing the disk drive see the “Disk Drive Removal and Installation” section in this

guide. If the instrument is going to be used in a secure environment this will also allow the

instrument to be easily put into service once it is removed from the secure environment.

Installation Note N9020-90204 7

Additional Removable Disk Drive

Initializing the Instrument Operating System

1. Connect a mouse to one of the instrument USB ports.

2. The Keysight Technologies screen appears followed by a screen that automatically loads the

operating system.

3. The Welcome dialog box as shown in Figure 1 appears, providing you information regarding

the operating system End-User License Agreement.

Figure 1 Welcome Dialog Box

Select OK to continue, or Cancel to turn off the instrument before initializing the software.

4. After the instrument restarts, a status window as shown in Figure 2 appears while the

instrument application software loads:

Figure 2 Application Launch Status Window

5. The anti-virus notification as shown in Figure 3 will then appear.

During the initial power-on process, the instrument may turn itself off and restart

a number of times. This is normal and only happens during the initial installation

process.

The instrument may require more than 5 minutes to power-on. This is affected by

the operating system initial start-up requirements.

After launching the setup, do not turn off the instrument or remove power before

the setup routine completes and the system restarts. Turning off the instrument

may corrupt the system and the instrument software may need to be recovered.

8Installation Note N9020-90204

Additional Removable Disk Drive

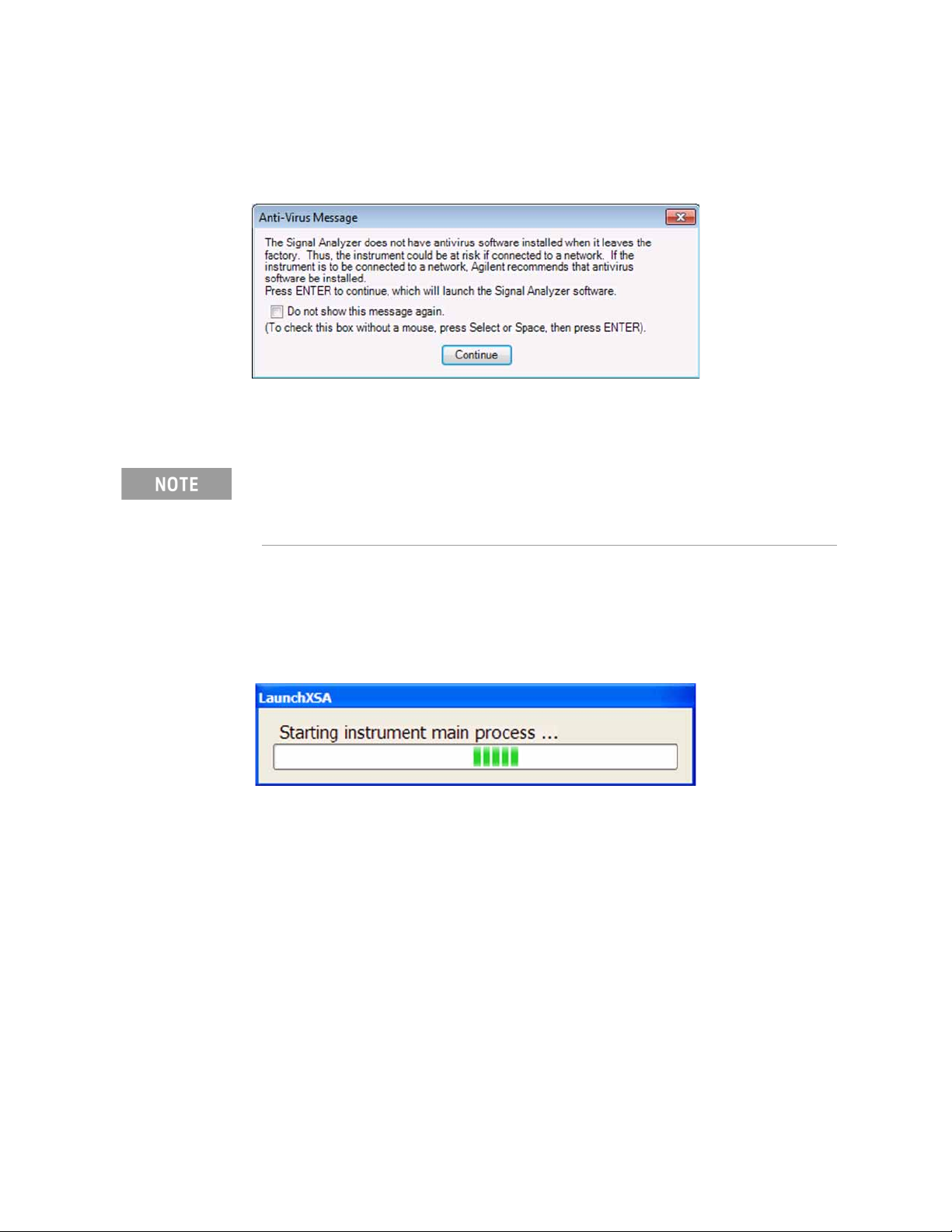

Figure 3 Anti-Virus Message

6. Select Continue.

7. Further status messages similar to Figure 4 will continue to appear while the instrument

application software continues to load:

Figure 4 Continued Application Launch Status Window

8. Once the instrument application software completes loading the instrument initialization will

be completed. Continue with the next step for putting the new disk drive into service.

If you do not check the “Do not show this message again” check box, this message

will be displayed each time the instrument is turned on. No application will start

while this message is displayed. Before continuing, make sure that you carefully

read the Anti-Virus message and determine what action is appropriate.

Installation Note N9020-90204 9

Additional Removable Disk Drive

Calibration Data Backup and Restore

In order to maintain the same level of instrument performance and measurement accuracy with all

disk drives used in any particular instrument, the instrument specific calibration data will

occasionally need to be transferred from one disk drive to another. The following procedures will

outline the steps required to do this.

Backup Calibration Data

1. With the instrument turned on and the signal analyzer application running as normal, connect

a USB mouse to one of the available instrument USB ports.

2. Locate a USB storage device and insert it into one of the available instrument USB ports.

(Perform a virus scan on this device before use)

3. On the front panel of the instrument press System, Alignments, Backup or Restore Align

Data...

4. The Alignment Data Wizard window as shown in Figure 5 will appear.

Figure 5 Alignment Data Wizard

5. Follow the on-screen instructions to Backup the calibration data to the USB storage device.

10 Installation Note N9020-90204

Additional Removable Disk Drive

Restore Calibration Data

1. With the instrument turned on and the signal analyzer application running as normal, connect

a USB mouse to one of the available instrument USB ports.

2. Connect the USB storage device that the calibration data was previously saved on to one of

the available instrument USB ports.

3. On the front panel of the instrument press System, Alignments, Backup or Restore Align

Data...

4. The Alignment Data Wizard window as shown in Figure 5 will appear.

5. Follow the on-screen instruction to Restore the calibration data from the previously saved file

on the USB storage device.
