Keysight Technologies N9340B Manual de usuario

Keysight Technologies

N9340B Handheld Spectrum

Analyzer (HSA)

Conguration Guide

Congure your Keysight N9340B Handheld Spectrum Analyzer (HSA)

This step-by-step process will help you congure your N9340B HSA. Capabilities that are listed as standard come with the instrument

at no additional charge. Tailor the performance, and service packages to meet your requirements. Ordering optional capabilities at the

time of purchase provides the lowest overall cost.

For performance information, refer to the N9340B Handheld Spectrum Analyzer Data Sheet.

Description Option number Additional information

Step 1. Add a preamplier

Preamplier, 1 MHz to 3 GHz N9340B-PA3

Step 2. Add a tracking generator

Tracking generator, 5 MHz to 7 GHz N9340B-TG3 Output level -25 dBm to 0 dBm, 1 dB step

Step 3. Add optional measurement features

Low frequency performance enhancement and

AM/FM In-Band On-Channel IBOC measurement

N9340B-IBC Adds in-band on-channel (IBOC) measurement capability through a dedicated

measurement application and selected hardware improvements

Spectrogram monitoring N9340B-INM Adds dual-display (spectrogram and trace), continuous spectrogram monitoring

and unlimited data logging

AM/FM modulation analysis N9340B-AMA Provides modulation metrics, including carrier power, modulation rate, and AM

depth/FM deviation.

ASK/FSK modulation analysis N9340B-DMA Provides modulation metrics, including carrier power, ASK depth/index, and FSK

deviation.

Step 4. Add an accessory

Spare battery N9340B-BAT Lithium ion, 10.8 V, 4.56 A-hr

Spare external battery charger N9340B-BCG

Spare AC/DC adapter N9340B-ADP 1 output: 15 V, 5.33 A

Automotive 12 V DC adapter N9340B-1DC Provides DC power supply, no charging

Automotive 12 V DC adapter and charger N9340B-1DN Provides DC power supply and power charging

Hard transit case N9340B-1TC

Adaptor, 50 Ω to 75 Ω N9340B-TAD Type N(m) 50 Ω to type N(f) 75 Ω

Calibrator N9311x-201 Precision mechanical calibrator, 3-in-1 OSL, DC to 7 GHz, N(m)

Antenna N9311x-500 70 MHz to 1000 MHz, 65 g, 180 degree tilt angle adjustable, N(m) telescopic

whip antenna

Antenna N9311x-501 700 MHz to 2500 MHz, 70 g, 210 mm x 20 mm, omni-directional, N(m)

Antenna N9311x-504 700 MHz to 4 GHz, 4 dBi gain, 270 g, 340 mm x 200 mm x 25 mm, logarithmic-

periodic, N(m)

Antenna N9311x-508 680 MHz to 8 GHz, 5 dBi gain, 250 g, 340 mm x 200 mm x 25 mm, logarithmic-

periodic, N(m)

Antenna N9311x-518 680 MHz to 18 GHz, 5 dBi gain, 250 g, 340 mm x 200 mm x 25 mm, logarithmic-

periodic, N(m)

Bandpass lter N9311x-550 –3 dB passband 814 to 850 MHz

–rejection ≥ 36 dBc at 740 MHz/≥ 36 dBc at 915 MHz

–insertion loss ≤ 0.5 dB

–VSWR ≤ 1.5

This conguration guide will help you determine which performance options, measurement application software, accessories, and

services to include with the Keysight Technologies, Inc. N9340B HSA, or to add as upgrades to an existing N9340B HSA.

2 | Keysight | N9340B Handheld Spectrum Analyzer (HSA) - Configuration Guide

Congure your Keysight N9340B Handheld Spectrum Analyzer (HSA) (continued)

Description Option number Additional information

Step 4. Add an accessory (continued)

Bandpass lter N9311x-551 –3 dB passband 880 to 915 MHz

–rejection ≥ 35 dBc at 826 MHz/≥ 36 dBc at 932 MHz

–insertion loss ≤ 1 dB

–VSWR ≤ 1.5

Bandpass lter N9311x-552 –3 dB passband 1707.5 to 1787.5 MHz,

–rejection ≥ 35 dBc at 1550 MHz/≥ 35 dBc at 1925 MHz

–insertion loss ≤ 0.4 dB

–VSWR ≤ 1.5

Bandpass lter N9311x-553 –3 dB passband 1845 to 1915 MHz

–rejection ≥ 35 dBc at 1770 MHz/≥ 35 dBc at 1986 MHz

–insertion loss ≤ 0.6 dB

–VSWR ≤ 1.5

Bandpass lter N9311x-554 –3 dB passband 1910 to 1990 MHz,

–rejection ≥ 35 dBc at 1825 MHz/≥ 35 dBc at 2070 MHz,

–insertion loss ≤ 0.6 dB

–VSWR ≤ 1.5

Adapter N9311x-540 Type-N(m) to BNC(f), DC to 2 GHz

Adapter N9311x-541 Type-N(m) to SMA(f), DC to 12.4 GHz

Adapter N9311x-542 Type-N(f) to 7/16 DIN(f), DC to 7.5 GHz

Adapter N9311x-543 Type-N(f) to BNC(m), DC to 4 GHz

Adapter N9311x-544 Type-N(f) to 7/16 DIN(m), DC to 7.5 GHz

Adapter N9311x-545 Type-N(f) to SMA(m), DC to 12.4 GHz

Adapter N9311x-546 Type-N(f) to Type-N(f), DC to 18 GHz

Adapter N9311x-547 Type-N(m) to DIN(f), DC to 7.5 GHz

Cable N9311x-580 Phase stable, 1.5 m, N(m) to N(m)

Cable N9311x-581 Phase stable, 3 m, N(m) to N(m)

Cable N9311x-582 1.5 m, SMA(m) to SMA(m)

Cable N9311x-583 1.5 m, BNC(m) to BNC(m)

Cable N9311x-585 Phase stable, 1.5 m, N(m) to DIN(f)

Cable N9311x-586 Phase stable, 1.5 m, N(m) to N(f)

Attenuator N9311x-560 40 dB, N(m) to N(f), 10 watts average

Attenuator N9311x-561 40 dB, N(m) to N(f), 50 watts average

Attenuator N9311x-562 40 dB, N(m) to N(f), 100 watts average

Step 5. Add calibration service

Select Keysight calibration plan

Commercial calibration certicate with test data N9340B-UK6 Keysight provides a commercial calibration certication; only available at

time of purchase; provides measurement results

3-year calibration assurance plan

(return to Keysight)

R-50C-011-3 Priority calibration service covering all calibration costs for

3 years; 15% cheaper than buying stand-alone calibrations

5-year calibration assurance plan

(return to Keysight)

R-50C-011-5 Priority calibration service covering all calibration costs for

5 years; 20% cheaper than buying stand-alone calibrations

3 | Keysight | N9340B Handheld Spectrum Analyzer (HSA) - Configuration Guide

Instrument Upgrades

Upgrade your existing Keysight N9340B (HSA)

Keysight provides a fast upgrade process for performance options that do not require additional hardware.

1. Place an order for the upgrade with Keysight and ask to receive the option upgrade entitlement certicate through email.

2. Redeem the certicate through the Web by following the instructions on the certicate.

3. Install the license le and latest software on the N9340B.

4. Begin using the new capability.

Installation, calibration, and verication information is available at: www.keysight.com/nd/N9340B_upgrades

Description Option number Additional information

Instrument upgrades

Preamplier, 1 MHz to 3 GHz N9340BK-PA3

Tracking generator, 5 MHz to 7 GHz N9340BK-TG3 Output level -25 dBm to 0 dBm, 1 dB step

Spectrogram monitoring N9340BK-INM Adds dual-display (spectrogram and trace), continuous spectrogram monitoring and

unlimited data logging

AM/FM modulation analysis N9340BK-AMA Provides modulation metrics, including carrier power, modulation rate, and AM

depth/FM deviation

ASK/FSK modulation analysis N9340BK-DMA Provides modulation metrics, including carrier power, ASK depth/index, and FSK

deviation

Hardware Upgrades

Add additional accessories to your existing Keysight N934xC (HSA)

Description Option number Additional information

Hardware upgrades

Spare battery N9910X-870 Lithium ion, 11.1 V, 4.6 A-hr

Spare external battery charger N9340BK-BCG

Spare AC/DC adapter N9340BK-ADP 1 output: 15 V, 5.33 A

Automotive 12 V DC adapter N9340BK-1DC Provides DC power supply, no charging

Automotive 12 V DC adapter and charger N9340BK-1DN Provides DC power supply and power charging

Hard transit case N9340BK-1TC

Adaptor, 50 to 75 Ω N9340BK-TAD Type N(m) 50 Ω to type N(f) 75 Ω

4 | Keysight | N9340B Handheld Spectrum Analyzer (HSA) - Configuration Guide

Other Information

Additional Resources

Related Keysight literature

Publication

Publication number Publication title

5989-7847EN Keysight N9340B Handheld Spectrum Analyzer Technical Overview

Description

Connectivity (standard)

1 USB 2.0 type A port, female N9340B behaves like a host controller, USB 2.0 compatible port

1 USB 2.0 type-mini AB port, female N9340B behaves like a host controller, USB 2.0 compatible port

10 Base-T LAN interface

HSA PC software An easy-to-use, PC-based remote control tool for your N9340B handheld spectrum analyzer (HSA)

Instrument weight and dimensions

Dimensions (W x H x D) 318 mm x 207 mm x 69 mm (12.5 in x 8.15 in x 2.7 in)

Weight (with battery) 3.5 kg (7.7 lbs)

Hard transit case weight and dimensions

Dimensions (W x H x D) 580 mm x 300 mm x 230 mm

Weight (empty) 10.5 kg (23.1 lbs)

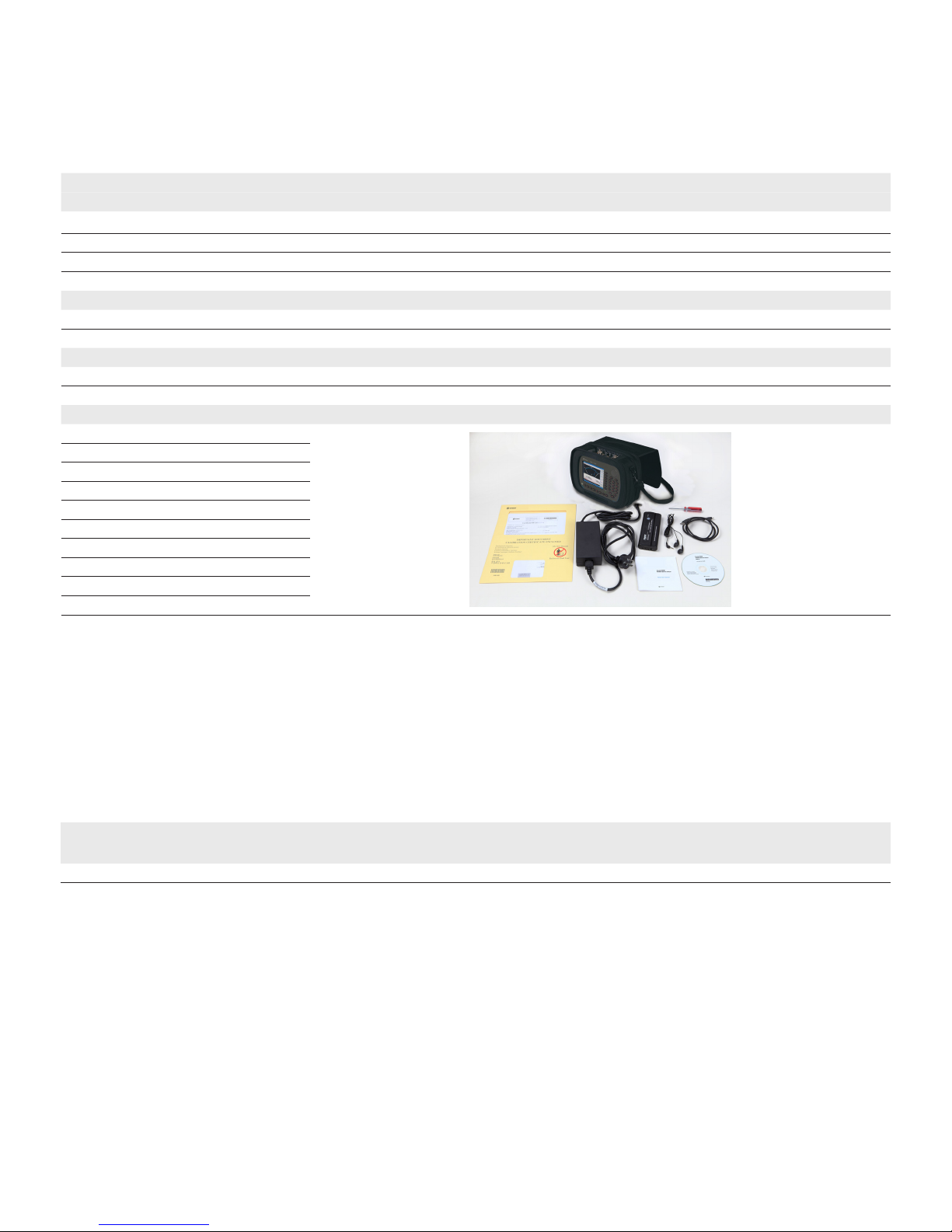

Standard shipped items

N9340B HSA

RoHS addendum

USB cable

Battery Li-Ion

Screwdriver

Help kit CD

Ear phone

AC/DC power supply

Quick start tutorial

Soft carrying case
