TABLE OF CONTENTS
BEFORE USING YOUR NEW VACUUM CLEANER
Please read this guide. It will help you assemble and operate your new Kenmore
vacuum cleaner in the safest and most effective way.
For more information about vacuum cleaner care and operation, call your
nearest Sears store. You will need the complete model and serial numbers when
requesting information.
Your vacuum cleaner’s model and serial numbers are located on the Model and
Serial Number Plate.
Use the space below to record the model number and serial number of your new
Kenmore vacuum cleaner.
Model No. ____________________________________________
Serial No. ____________________________________________
Date of Purchase ______________________________________
Keep this book and your sales check (receipt) in a safe place for future reference.
Before Using Your New Vacuum
Cleaner ........................................... 2
Kenmore Vacuum Cleaner Warranty
3
Important Safety Instructions.....4-5
Parts and Features......................... 6
Assembly Instructions ................ 7-8
Operating Instructions ................ 8-9
Power Cord .................................. 8
Floor/ Carpet Cleaning................. 9
Vacuum Cleaner Care ............. 10-13
Dust Bin Removal and
Replacement……....................... 10
Motor Filter Removal and
Replacement .............................. 11
Exhaust Filter Removal and
Replacement .............................. 11
Belt or Brushroll Removal and
Replacement .............................. 12
Light Bulb Replacement............. 13
Pet Handimate Maintenance...... 13
Troubleshooting ........................... 14
Master Protection Agreements ... 15
Requesting Service.......(back page)
3
ENGLISH
KENMORE VACUUM CLEANER WARRANTY
3
ONE YEAR LIMITED WARRANTY ON KENMORE VACUUM CLEANER
When installed, operated and maintained according to all instructions
supplied with the product, if this appliance fails due to a defect in material and
workmanship within one year from the date of purchase, return it
to any Sears store for replacement of the same item. Appliance
must be used for private family purposes, or warranty is void.
This warranty covers only defects in material and workmanship. Sears
will NOT pay for:
1. Expendable items that can wear out from normal use, including but not
limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation,
operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or
maintained according to the all instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse
or use for other than its intended purpose.
6. Damage to or failure of this product caused by the use of detergents,
cleaners, chemicals or utensils other than those recommended in all
instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized
modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Implied warranties, including warranties of merchantability or fitness for a
particular purpose, are limited to one year or the shortest period allowed by
law. Sears shall not be liable for incidental or consequential damages. Some
states and provinces do not allow the exclusion or limitation of incidental or
consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to
you.
This warranty applies only while this appliance is used in Canada.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
4
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS IN
THIS MANUAL BEFORE
ASSEMBLING OR USING YOUR
VACUUM CLEANER.
Do not use outdoors or on wet
surfaces. Electrical shock could
occur.
Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
Use only as described in this manual.
Only use attachments designed for
this vacuum.
Do not use with damaged cord or
plug. If appliance is not working as
it should, has been dropped,
damaged, left outdoors, or dropped
into water, return it to a Sears or
other qualified service center for
inspection.
Do not pull or carry by cord, use cord
as handle, close a door on a cord,
or pull cord around sharp edges or
corners. Do not run appliance over
cord. Keep cord away from heated
surfaces.
Do not unplug by pulling on cord.
To unplug, grasp the plug, not the
cord.
Do not leave appliance when
plugged in. Unplug from outlet when
not in use and before servicing.
Do not handle plug or
appliance with wet hands.
Do not put any objects into
openings.
Do not use with any opening
blocked; keep free of dust, lint, hair,
and anything that may reduce air
flow.
Keep hair, loose clothing, fingers,
and all parts of body away from
openings and moving parts.
Do not pick up anything that
is burning or smoking, such as
cigarettes, matches, or hot ashes.
Do not use without Dust Bin and
filters in place.
Turn off all controls before
unplugging.
Do not use to pick-up flammable
or combustible liquids, such as
gasoline,
or use in areas where they may be
present.
Keep the vacuum cleaner on the
floor. Do not use on stairs.
Do not use an extension cord with
this vacuum cleaner.
Store the vacuum cleaner indoors.
Put vacuum cleaner away after use
to prevent tripping accidents.
WARNING
Your safety is important to us. To reduce the risk of fire,
electrical shock, injury to persons or damage when using
your vacuum cleaner, follow basic safety precautions
including the following:
5
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
WARNING : The cords, wires,
and/or cables supplied with this
product contains chemicals,
including lead or lead compounds,
known to the state of California
to cause cancer and birth defects
or other reproductive harm. Wash
hands after using.
Using improper voltage may result
in damage to the motor and
possible injury to the user. Proper
voltage is listed on the cleaner
plate.
SAVE THESE INSTRUCTIONS
Proper assembly and safe use of your vacuum cleaner are your
responsibilities. Your vacuum cleaner is intended only for Household
use. Read this Use & Care Guide carefully for important use and safety
information. This guide contains safety statements under warning and
caution symbols. Please pay special attention to these boxes and follow any
instructions given.
6
Crevice Tool
Extension
Wand

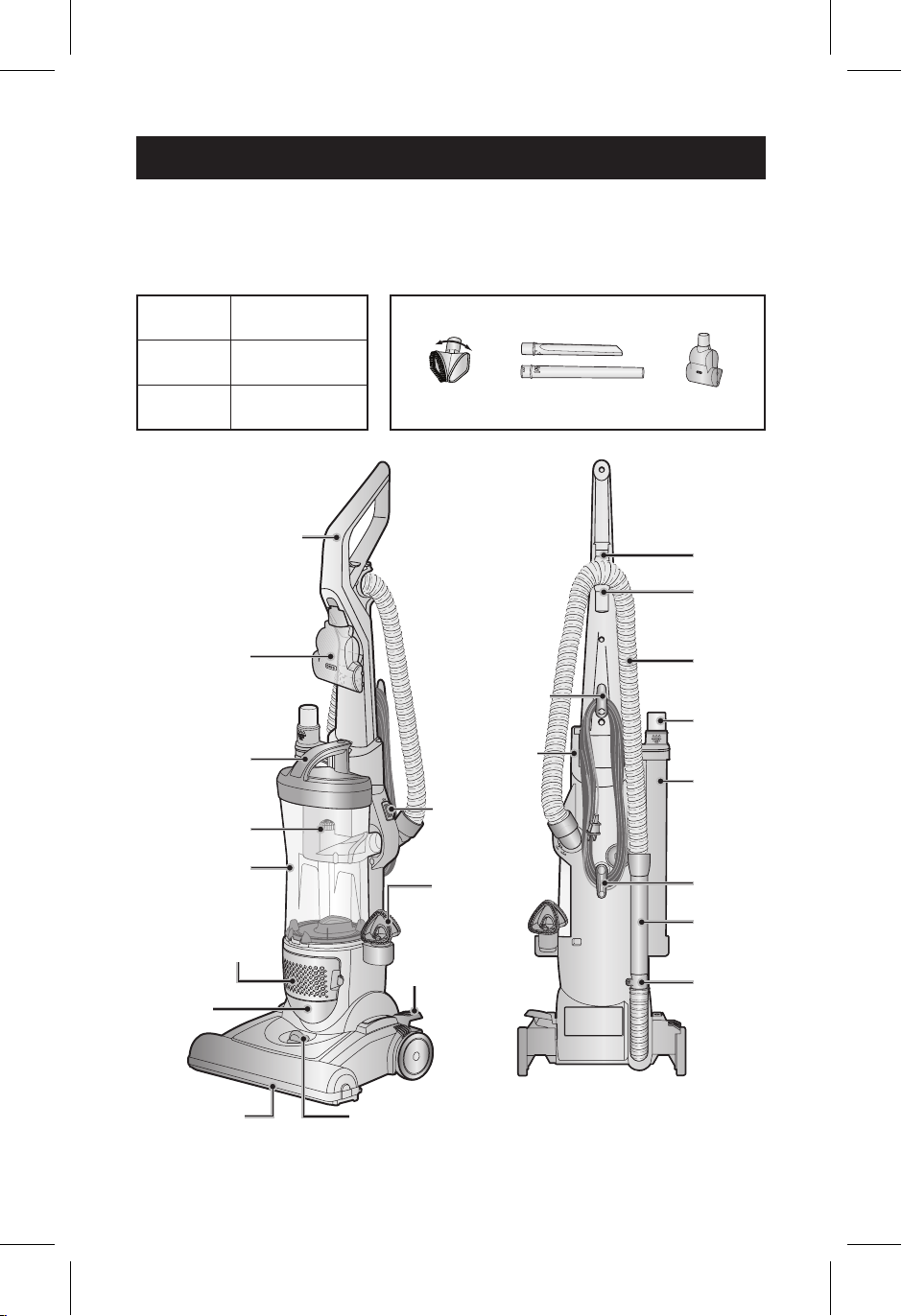

PARTS AND FEATURES
It is important to know your vacuum cleaner’s parts and features
to assure its proper and safe use. Review these before using your
vacuum cleaner.
Item
Headlight DJ47-00004A
Belt 6602-001724
Part No. Accessories
Dust Brush/
Upholstery Tool Pet
Handimate
Cord Clip
Hose Clip
Vacuum
Hose
Crevice
Tool
Extension
Wand
Hose
Wand
Hose
Wand
Base
Quick
Release
Upper Cord
Wrap
Power
Cord
Combination
Dust Brush/
Upholstery Tool
Power
Switch
Handle
Release
Pedal
Handle
Carry Handle
(Dust Bin
Handle)
Pet Handimate
Cyclone
Grille
Dust Bin
Power Nozzle Height
Adjustment
Knob
Exhaust Filter
(Exhaust Filter
is located behind
the door.)
Lower Cord
Wrap
Headlight
7
ENGLISH
2
1
Please pay special attention to these hazard alert boxes, and follow any
instructions given. WARNING statements alert you to such dangers as fire,
electric shock, burns and personal injury. CAUTION statements alert you to
such dangerous personal injury and/or property damage.

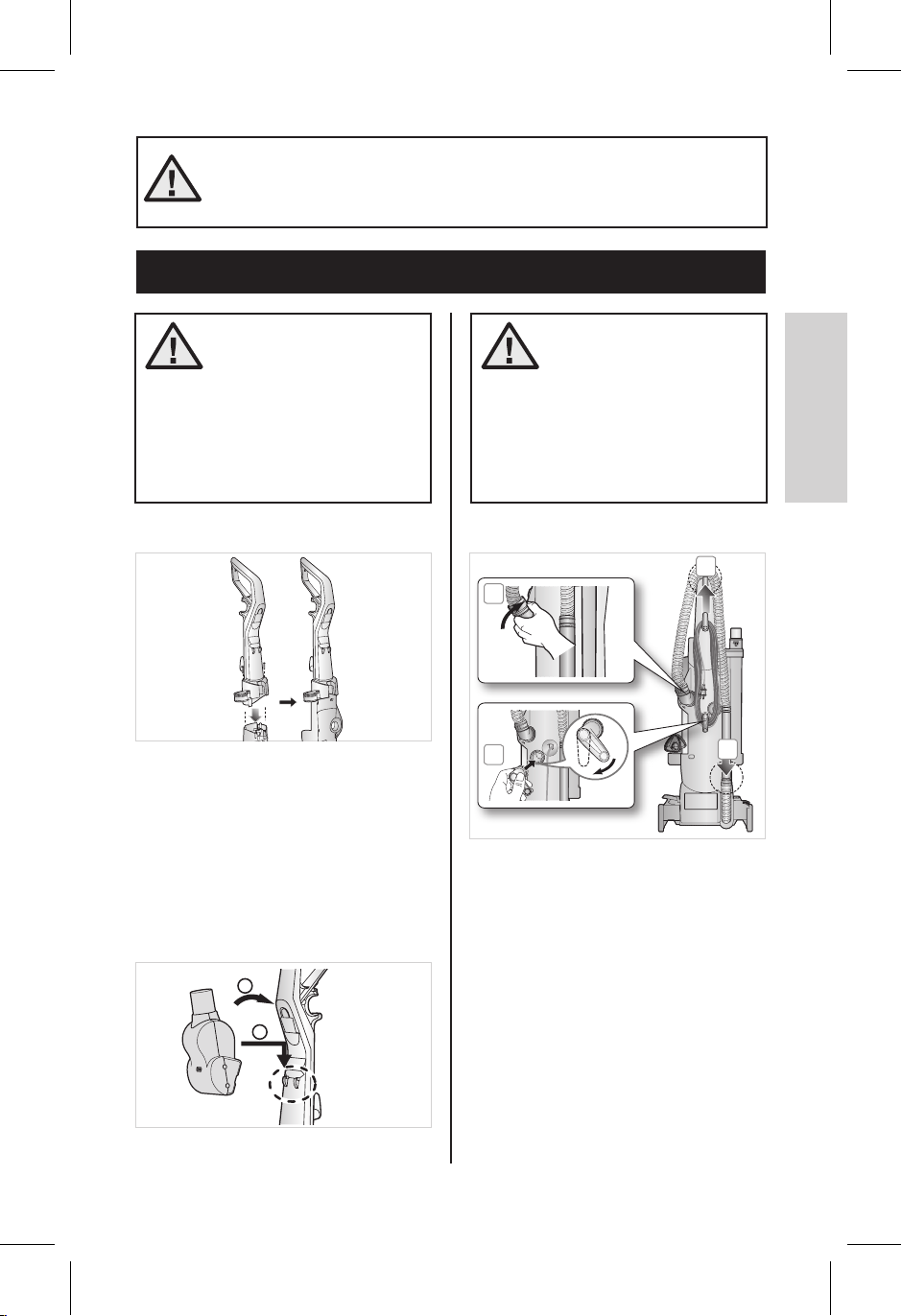

ASSEMBLY INSTRUCTIONS
WARNING
Electrical Shock Hazard
Do not plug into the electrical
supply until the assembly is
complete. Failure to do so could
result in electrical shock or injury.
CAUTION
Do not overtighten.
Overtightening could strip the
screw holes.
Do not operate the vacuum cleaner
without the screws in place.
1.
Stand the vacuum upright and slide
the base of the handle firmly into the
grooves at the top of the vacuum body.
2. Check to be sure the handle is fitted
to the vacuum body. If there is a
gap, continue to push firmly until the
handle is flush.
3. Tighten securely with a screwdriver.
Place the pet handimate on the front of
the handle and push back to snap into
place as shown.
HANDLE ASSEMBLY
PET HANDIMATE PLACEMENT
HOSE ASSEMBLY
1. Align tabs on end of hose with slots
in edge of hose attachment hole on
back of vacuum. Push hose end in
and turn clockwise to lock into place.
2. Slide the end of the hose wand onto
the hose wand base.
Note: The vacuum will not operate
properly unless the hose wand
is firmly attached.
3. Snap the hose into the hose clip on
the back of the vacuum handle.
4. Attach the lower cord wrap by lining
up the tab on the base with the
corresponding notch on the back of
the vacuum and turn it clockwise as
shown.
1
4
3
2
8
ASSEMBLY INSTRUCTIONS
EXTENSION WAND
PLACEMENT
Place the crevice tool (A) in the top of
the extension wand. Place the
extension wand (B) in the wand holder
on the side of the vacuum cleaner.
A
B
2. Unclip the power cord plug from the
power cord. Place the power cord
into the cord clip on the body as
shown. This helps keep the power
cord out from under the vacuum
cleaner nozzle.
3. Plug the polarized power cord into a
120 Volt outlet located near the floor.
4. To store cord, turn upper cord wrap
to the up position, then wrap cord.

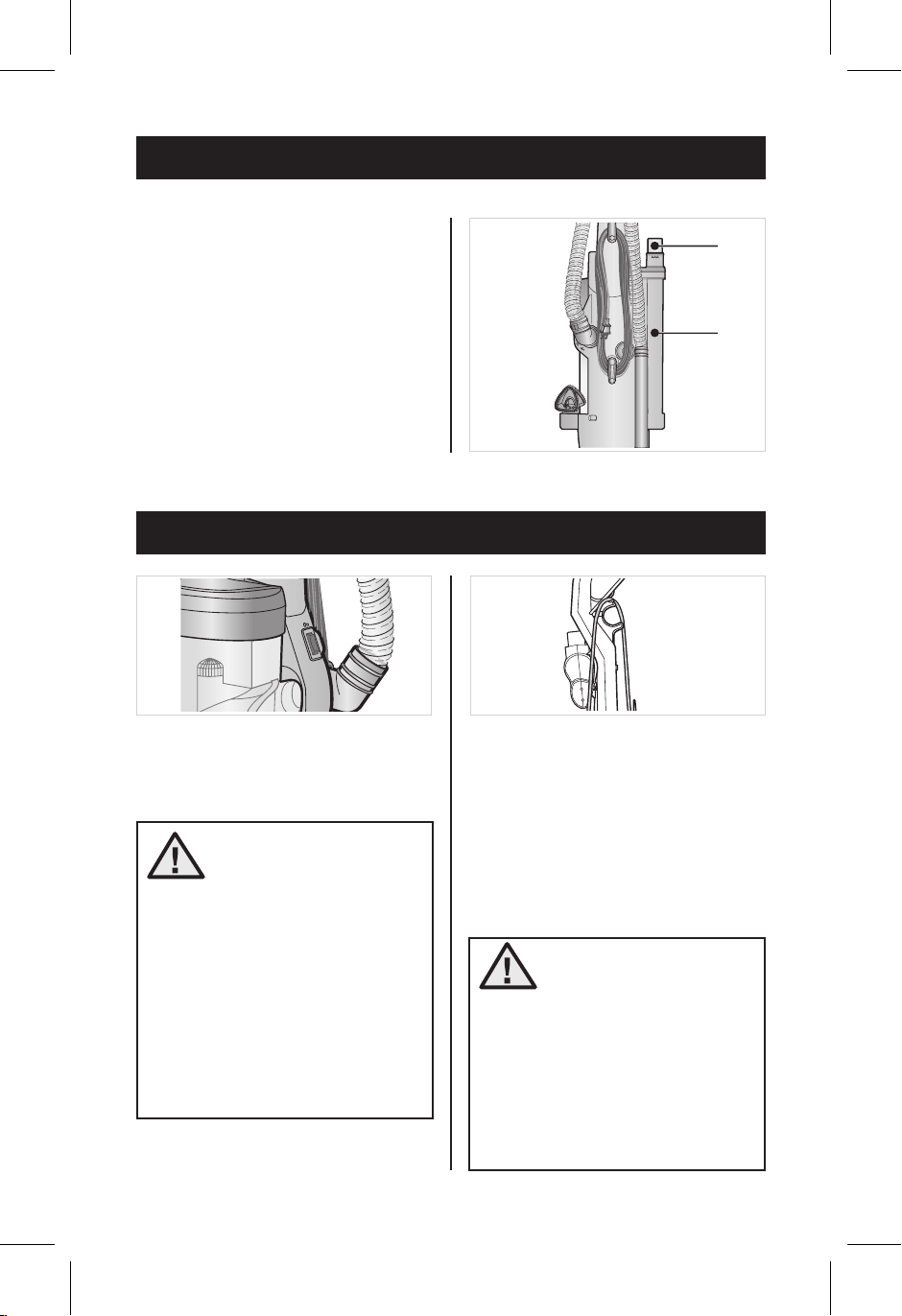

1. The power switch is located on the
side of the vacuum. Push the rocker
switch “ON” to vacuum, and “OFF”
when cleaning is complete.
POWER CORD
OPERATING INSTRUCTIONS
WARNING
To reduce the risk of electric
shock, this appliance has a
polarized plug (one blade is wider
than the other). This plug will fit in
a polarized outlet only one way.
If the plug does not fit fully in the
outlet, reverse the plug. If it still
does not fit, contact a qualified
electrician to install the proper
outlet. Do not change the plug in
any way.
WARNING
Personal Injury and Product
Damage Hazard
• DO NOT plug in if switch is in the
ON position. Personal injury or
damage could result.
• DO NOT use outlets above
counters. Damage from cord to
items in surrounding area could
occur.
9
ENGLISH

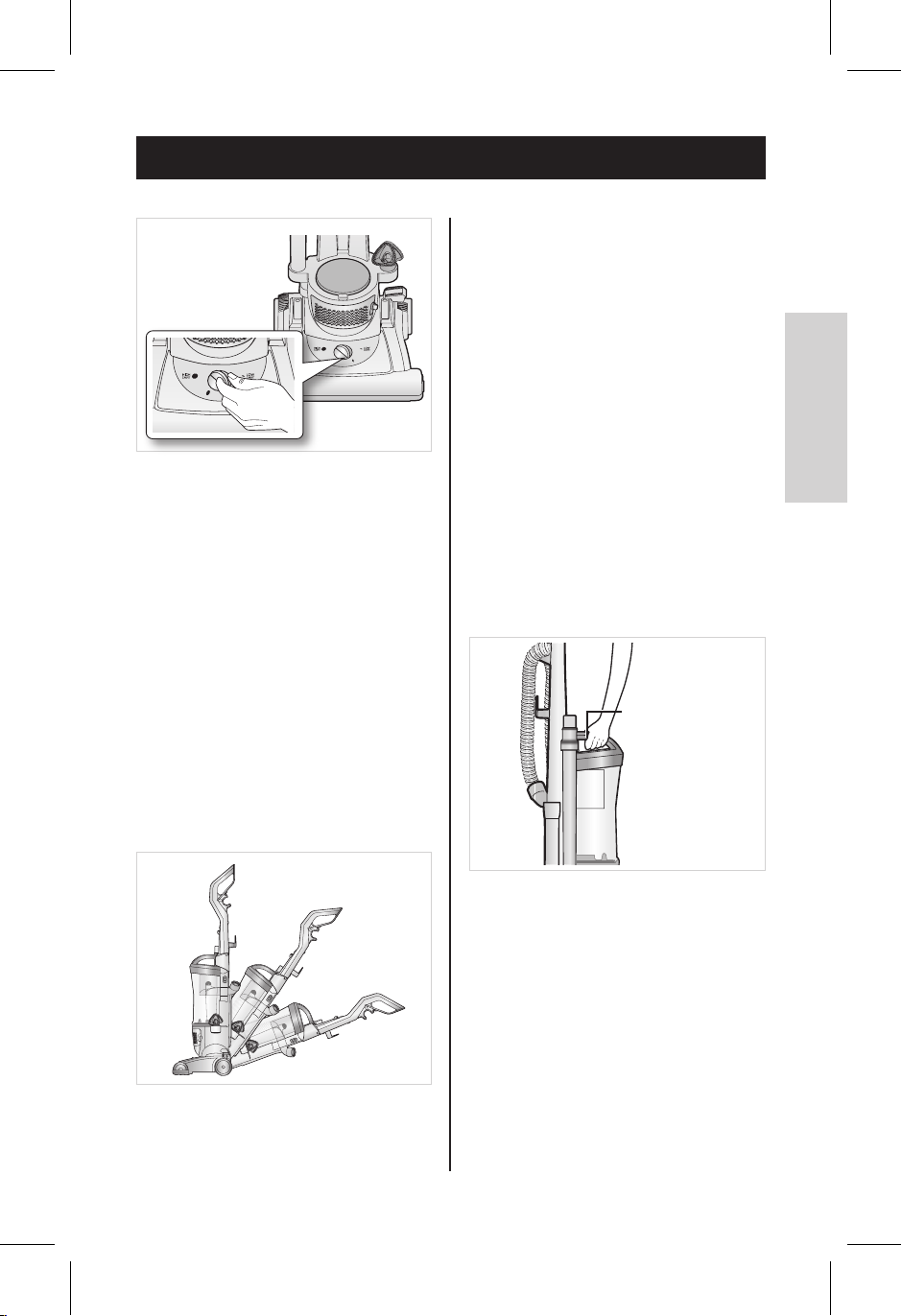

FLOOR/CARPET CLEANING
HEIGHT ADJUST KNOB
The power nozzle brushroll can be
adjusted to clean several floor surfaces.
Note : For optimal cleaning
performance, adjust to the
lowest practical setting. If your
cleaner is difficult to push, adjust
to the next higher setting.
1. Turn Height Adjustment Knob to
desired setting.
Lowest Setting
– For bare floors
Intermediate Setting
– For short and medium pile carpets
Highest Setting
– For plush pile carpet
1. Upright
– For storage and above floor
cleaning with tools.
2. Normal Cleaning
– Press handle release pedal once.
Position used for most household
floor cleaning tasks.
3. Low Cleaning
– With the vacuum in normal cleaning
position, press handle release
pedal again. Use for reaching
under low furniture such as tables,
chairs or beds.
Press the handle release pedal, located
on the lower left side of the vacuum,
with your foot to place your vacuum
into one of three cleaning positions.
A
B
C
CARRY HANDLE
(DUST BIN HANDLE)
Use the dust bin handle to carry from
room to room.
Carry Handle
(Dust Bin Handle)
10
Cyclone
Grille

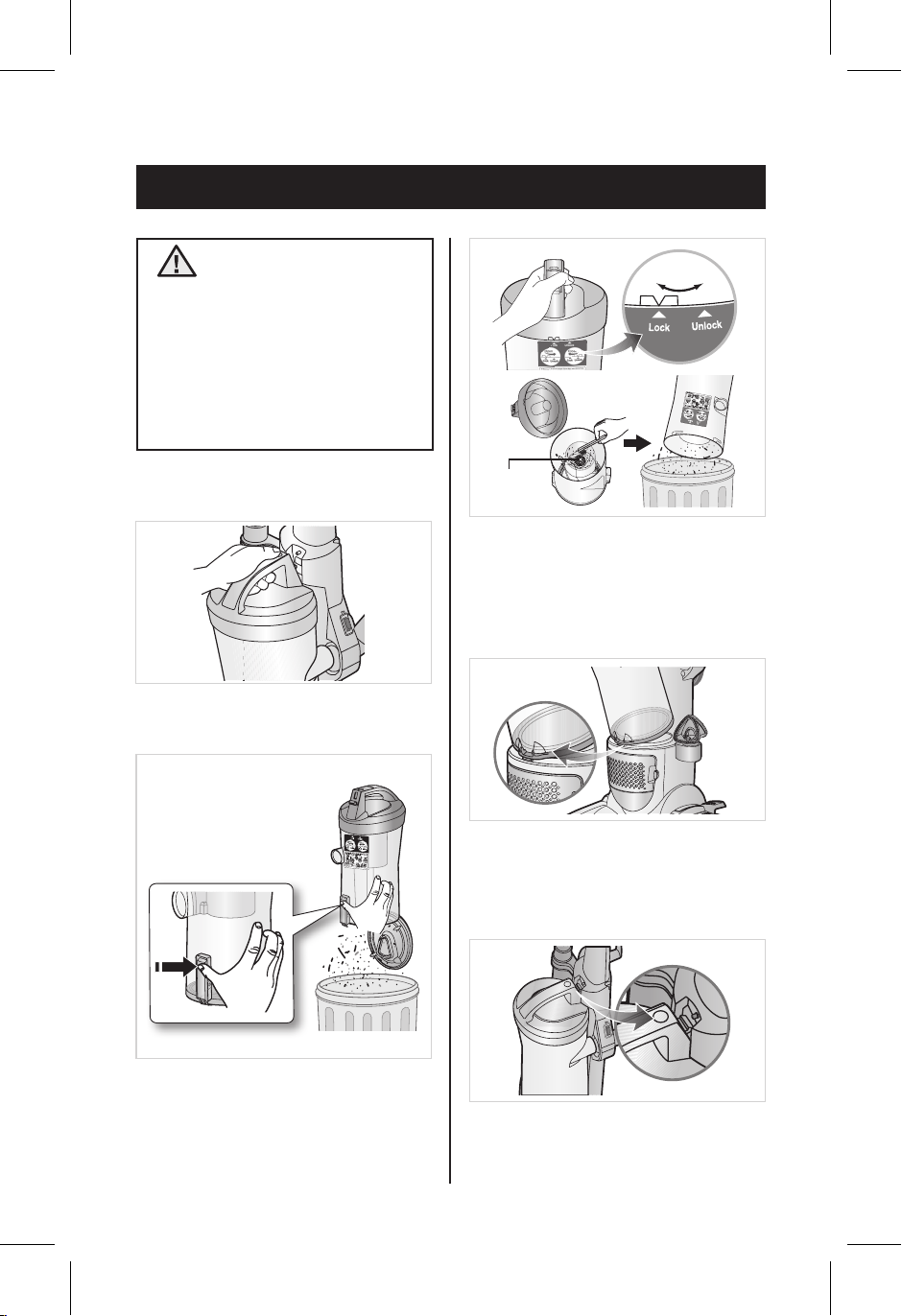

DUST BIN REMOVAL AND REPLACEMENT
WARNING
Electrical Shock and Personal Injury
Hazard
Disconnect electrical supply before
servicing or cleaning the unit.
Failure to do so could result in
electrical shock or personal injury
from vacuum cleaner suddenly
starting.
VACUUM CLEANER CARE
EMPTY DUST BIN
To remove the dust bin from the cleaner
body, push the dust bin release button.
Hold dust bin over waste receptacle
and push the thumb button to release
contents.
If the suction is weak although the dust
bin is empty, open the cover and clean
the cyclone grille.
After emptying dust bin, ensure that
dust bin is attached to body properly.
After emptying dirt, fit the groove
located on the lower front side of the
dust bin to the hook located on the
cleaner body.
Attach the hook located on the dust bin
handle to the vacuum body.
Tabla de contenidos
Idiomas:
Otros manuales de Aspiradora de Kenmore
Kenmore
Kenmore 1T6.31100 Manual de usuario
Kenmore
Kenmore 125.10340 Manual de usuario
Kenmore
Kenmore 400 series Manual de usuario
Kenmore
Kenmore Sears 175.8690090 Hom? cleaning system Manual de usuario
Kenmore
Kenmore 114.85925 Manual de usuario
Kenmore
Kenmore Intuition BU4050 Manual de usuario
Kenmore
Kenmore 116.21614 Manual de usuario
Kenmore
Kenmore FeatherLite DU1099 Manual de usuario
Kenmore
Kenmore Central Vacuum System Manual de usuario
Kenmore
Kenmore ASPIRADORA 116.31591 Manual de usuario
Kenmore
Kenmore 175.869039 Manual de usuario
Kenmore
Kenmore Crossover Max DU3018 Manual de usuario
Kenmore
Kenmore AllergenSeal DU2109 Manual de usuario
Kenmore
Kenmore 125.31150610 Manual de usuario
Kenmore
Kenmore Intuition BU4020 Manual de usuario
Kenmore
Kenmore 1!6O31040 Manual de usuario
Kenmore
Kenmore Elite 81714 Manual de usuario
Kenmore
Kenmore 116.22803C Manual de usuario
Kenmore
Kenmore 116.20212 Manual de usuario
Kenmore
Kenmore 125.22614610 Manual de usuario
