Flexlite TX

Operating manual - EN

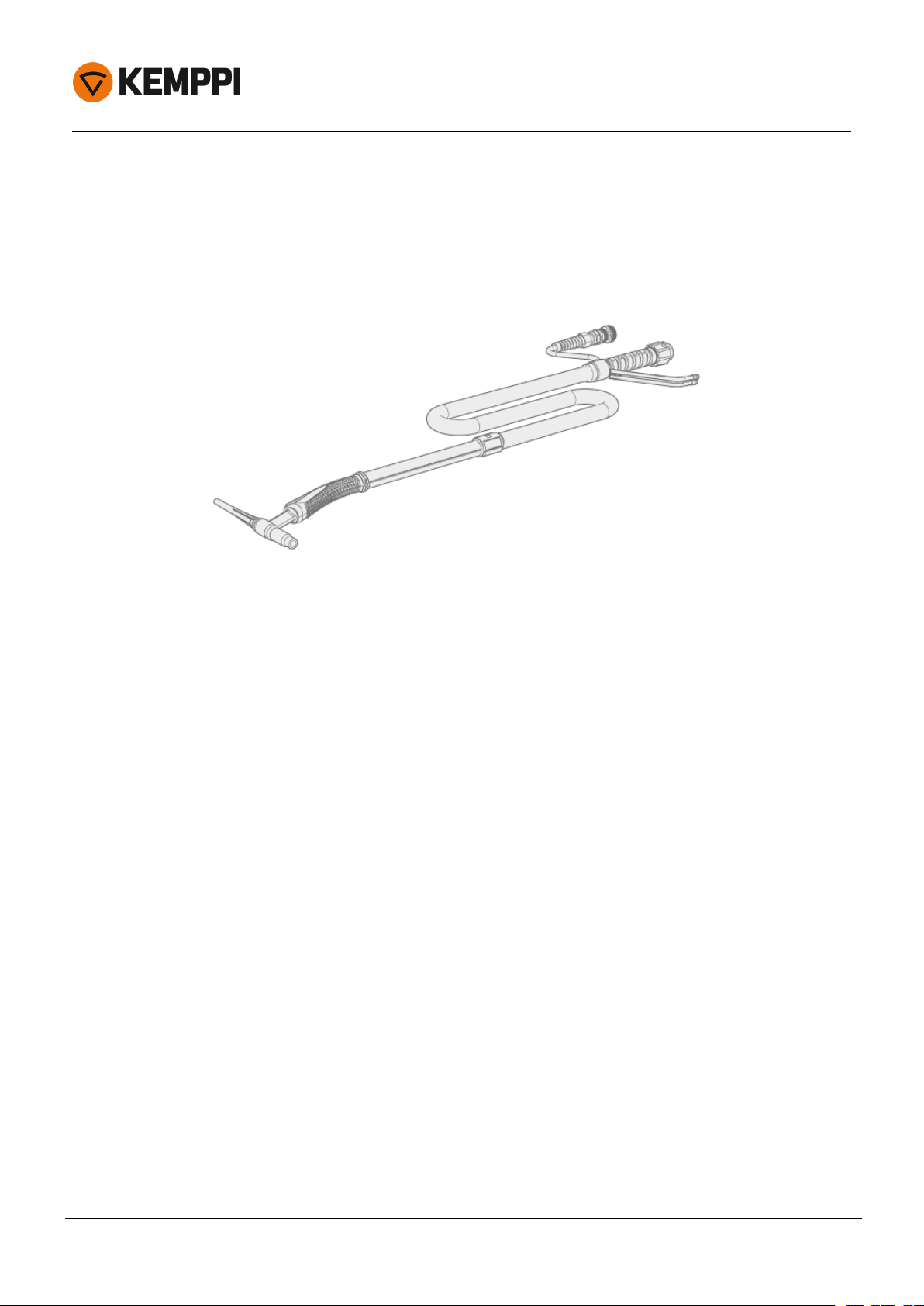

FLEXLITE TX

Flexlite TX

Operating manual - EN

CONTENTS

1. Flexlite TX 4

2. About equipment 5

3. Installation 7

3.1 Assembling torch 8

3.2 Installing torch remote 10

3.3 Installing start switch extension 12

3.4 Connecting torch 14

4. Operation 17

4.1 Consumable and gas flow selection 18

4.2 Electrode tip 19

5. Maintenance 21

5.1 Troubleshooting 23

5.2 Disposal of machine 25

6. Technical data 26

6.1 Technical data TX 133 27

6.2 Technical data TX 135 28

6.3 Technical data TX 163 29

6.4 Technical data TX 165 30

6.5 Technical data TX 223 and TX 253 31

6.6 Technical data TX 225 and TX 255 32

6.7 Technical data TX 303 and TX 353 33

6.8 Technical data TX 305 and TX 355 34

6.9 Technical data TX E 223, TX E 253 and TX E 353 35

7. Ordering codes 36

Flexlite TX

Operating manual - EN

1. FLEXLITE TX

These instructions describe the use of Kemppi's Flexlite TX TIG welding torches. Flexlite TX torches are designed for

manual welding in demanding industrial use and they are compatible with Kemppi TIG welding equipment with 4-

pin or 7-pin connectors. Flexlite TX range covers both water-cooled and gas-cooled models.

Flexlite TX torches are available in two different levels, K3 and K5, each designed to serve specific welding needs.

K3 level K5 level

TX 133 TX 135

TX 163 TX 165

TX 223 TX 225

TX 253 TX 255

TX 303 TX 305

TX 353 TX 355

Important notes

Read the instructions through carefully. For your own safety, and that of your working environment, pay particular

attention to the safety instructions delivered with the equipment.

Items in the manual that require particular attention in order to minimize damage and harm are indicated with the

below symbols. Read these sections carefully and follow their instructions.

Note: Gives the user a useful piece of information.

Caution: Describes a situation that may result in damage to the equipment or system.

Warning: Describes a potentially dangerous situation. If not avoided, it will result in personal damage or fatal injury.

DISCLAIMER

While every effort has been made to ensure that the information contained in this guide is accurate and com-

plete, no liability can be accepted for any errors or omissions. Kemppi reserves the right to change the spe-

cification of the product described at any time without prior notice. Do not copy, record, reproduce or

transmit the contents of this guide without prior permission from Kemppi.

Flexlite TX

Operating manual - EN

2. ABOUT EQUIPMENT

The Flexlite TX TIG welding torches are packed with features designed to support professional welding. The equip-

ment consists of:

1. Gas nozzle

2. Collet body

3. Collet

4. Insulating ring*

5. Torch body

6. Electrode back cap

7. Control cable connector (start and remote signals)

8. Welding cable connector (shielding gas and welding current)

9. Coolant outlet and inlet hose connectors (water-cooled models only)

K3 level torches differ from K5 level torches in connectors, for example. For information on K3 level torch connectors,

refer to "Connecting torch" on page14.

10. ON/OFF switch

11. Switch cover

12. Torch handle

Flexlite TX

Operating manual - EN

* Some Flexlite TX torch models also include a back cap insulating ring, in addition to the gas nozzle insulating ring.

Separate K3 level torches with a DIX connector and a manual gas valve in the torch body are also available. Use these

torches with MMA power sources for scratch and TouchArc TIG ignition.

Dedicated lens models of the collet body and the gas nozzle exist for laminar flow welding. Bigger lens consumables

require an additional insulating ring.

EQUIPMENT IDENTIFICATION

Serial number

Serial number of the device is marked on the rating plate or in another distinctive location on the device. It is

important to make correct reference to the serial number of the product when ordering spare parts or mak-

ing repairs for example.

Quick Response (QR) code

The serial number and other device-related identification information may also be saved in the form of a QR

code (or a barcode) on the device. Such code can be read by a smartphone camera or with a dedicated code

reader device providing fast access to the device-specific information.

Flexlite TX

Operating manual - EN

3. INSTALLATION

Ensure that the welding equipment is not connected to the mains or that the welding torch is not connected to the

welding machine at this stage.

Protect the equipment from rain and direct sunshine.

"Assembling torch" on the next page

"Installing torch remote" on page10

"Installing start switch extension" on page12

"Connecting torch" on page14

Before installation and use

Ensure compliance with your local and national safety requirements regarding the installation and use of high

voltage units.

Check the contents of the packages and make sure the parts are not damaged.

Do not connect welding equipment to the mains before the installation is complete.

Flexlite TX

Operating manual - EN

3.1 Assembling torch

This chapter describes a typical Flexlite TX welding torch assembly. The details shown may vary depending on the

exact torch setup.

1. Install the insulating ring and collet body.

Some Flexlite TX torch models also include a back cap insulating ring, in addition to the gas nozzle insulating ring.

2. Install the gas nozzle and the collet.

Flexlite TX

Operating manual - EN

3. Prior to installing the tungsten electrode, grind the electrode tip to the appropriate dimensions for your welding

application. For more information, refer to the section "Electrode tip" on page19.

4. Push the electrode into the torch and through the collet and gas nozzle.

5. Install the electrode back cap. Tighten the back cap to lock the electrode in place.

Do not use excessive force. Overtightening may damage the torch components.

By loosening the electrode back cap, the electrode can be installed also by pushing it into the torch from the other side.

Flexlite TX

Operating manual - EN

3.2 Installing torch remote

You can install a torch remote on a K5 level torch only.

Many Flexlite TX welding torches are equipped as standard with ON/OFF start/stop switches. Optional remote control

devices can be fitted to these TX torch models, allowing both start/stop function and welding current adjustment.

Ensure that the welding equipment is not connected to the mains or that the welding torch is not connected to the

welding machine at this stage.

1. Open the switch cover by releasing the screws in the rear section of the cover and remove the cover.

2. Take the existing circuit board out of its slot in the handle and unplug the connector.

Flexlite TX

Operating manual - EN

3. Connect the torch remote control circuit board to the connector and place it in its slot in the handle. (Rocker

switch model shown on the left and roller switch model on the right:)

4. Install the new switch cover by placing the front end of the cover in first and then pushing the rear end of the

cover down. (Rocker switch model shown on the left and roller switch model on the right:)

5. Secure the switch cover in place with the two screws in the rear section of the cover.
