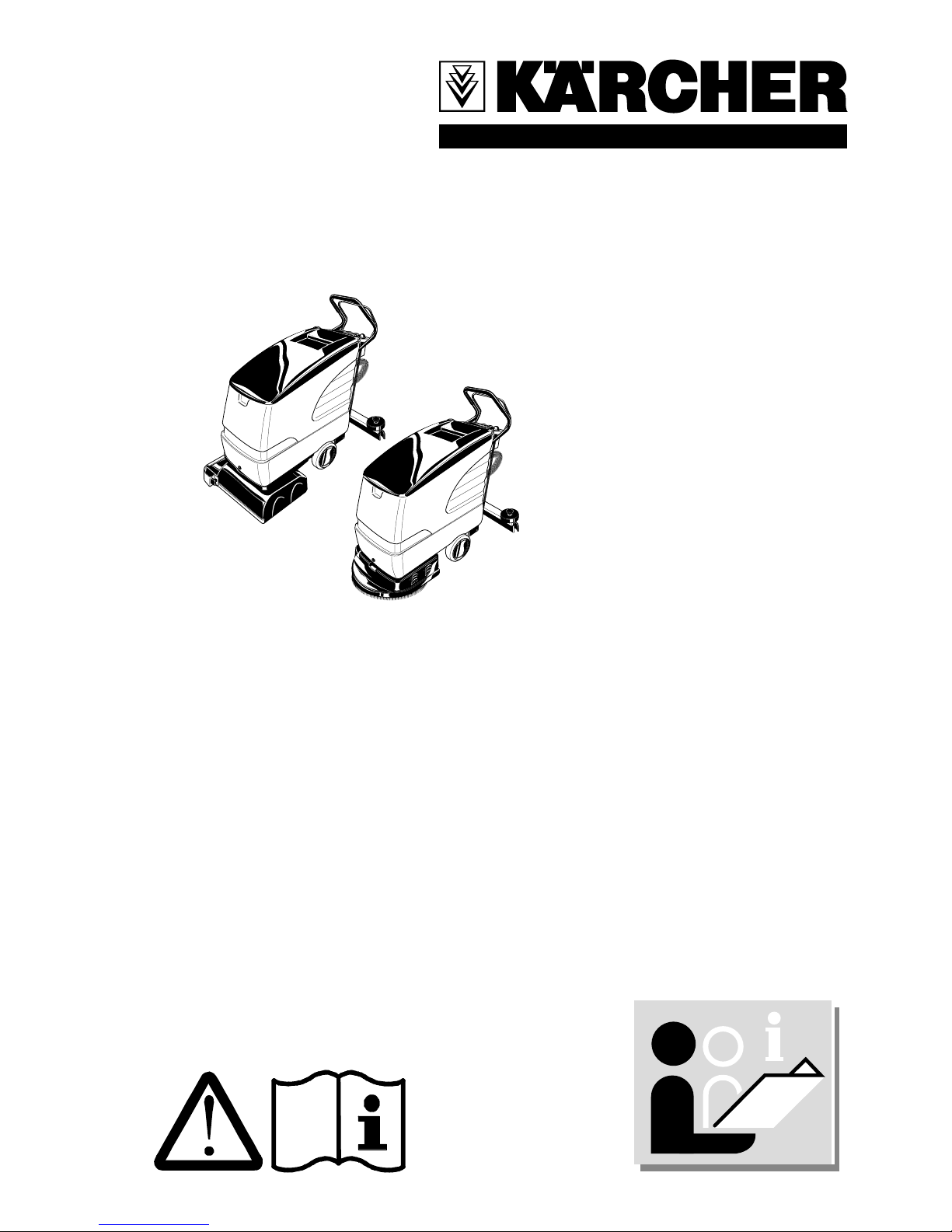

Kärcher BR 530 BAT Package Manual de usuario

www.karcher.com

BR/BD 530 BAT

BR/BD 530 XL BAT

BR/BD 530 BAT Package

BR/BD 530 XL BAT Package

BR/BD 530 F BAT Package

BR/BD 530 XL F BAT Package

5.956-850 A2006901 11/03

Deutsch

English

Français

Italiano

Nederlands

Español

Português

Dansk

Norsk

Svenska

Suomi

Ελληνικά

Türkçe

Pуccкий

Magyar

Česky

Slovensky

Polski

Româneşte

Slovensko

Hrvatski

Srpski

Бългapcки

105

123

139

155

170

186

205

221

241

257

273

289

306

322

338

354

370

Operating Instructions BR/BD 530/530 XL/F BAT/Package English

Safety notes

Before using the unit, please read and

comply with the operating instructions and

the enclosed brochure “Safety instructions

for brush cleaning units and spray

extraction units”, No. 5.956-251.

It is permitted to operate the unit on

surfaces with no more than a 2 % incline.

The unit must not be operated until the

tanks and all covers have been closed.

Symbols

The following symbols are used in these

operating instructions:

Danger!

Indicates imminent danger.

Non-compliance with this warning may

result in death or serious injury.

Caution!

Indicates a potentially dangerous

situation. Non-compliance with this warning

may result in slight injury or damage to

property.

Information:

Indicates application tips and

important product information.

Function

BR/BD 530 BAT package or

BR/BD 530 XL-BAT is used for wet-

cleaning of level floors. It can easily be

adapted to the particular cleaning task by

adjustment of the water flow rate and the

dirty water pick-up.

An operating width of up to 460 mm or

530 mm (XL-model) and an 40 l fresh-water

tank and dirty-water tank enable effective

cleaning over a prolonged period.

The batteries can be charged with a battery

charger connected to a mains socket.

A battery charger is already installed in the

BR/BD 530 BAT Package and

BR/BD 530 XL BAT Package

Appropriate use

Use this unit exclusively in accordance with

the information in these operating

instructions.

– The unit may be used for cleaning non-

moisture-sensitive smooth floors only.

– The unit is not suitable for cleaning

frozen floors (e.g. in cold-storage

depots).

– The unit may be fitted with original

accessories and spare parts only.

Protection of the

environment

Please dispose of packaging in an

environmentally friendly manner

The packaging materials can be

recycled. Please do not dispose of the

packaging with domestic refuse but

have it recycled.

Please dispose of old units in an

environmentally friendly manner

Old units contain valuable recyclable

materials which should be reclaimed.

Batteries, oil and similar substances

must not pollute the environment. Please

therefore dispose of old units via suitable

collection systems.

English Operating Instructions BR/BD 530/530 XL/F BAT/Package

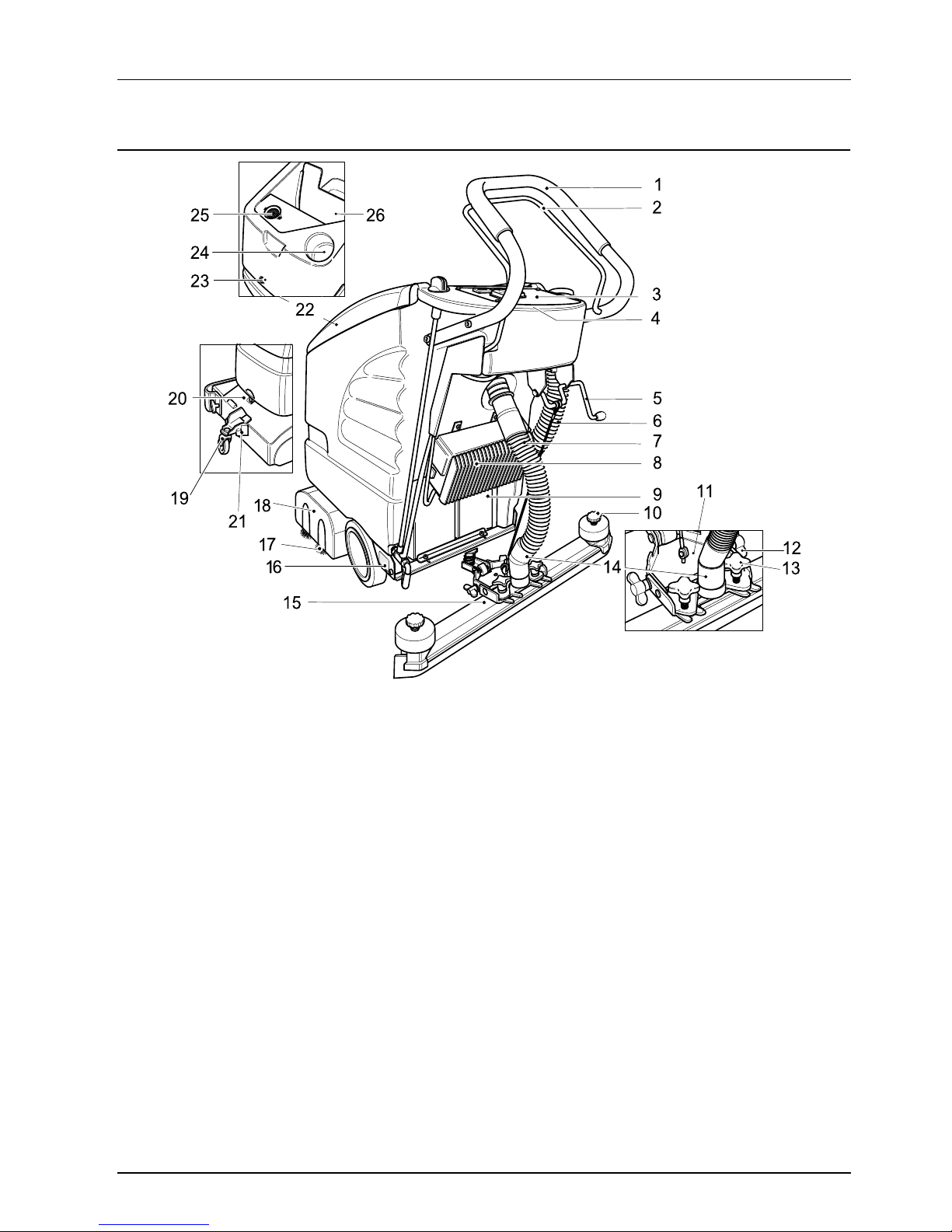

Operating and function controls

1 Push handle

2 Trigger lever for brush mode

3 Control console

4 Electronics module and fuses

(unter the control console)

5 Lever for raising/lowering the suction

bar

6 Drainage hose for dirty water

7 Suction hose

8 Battery charger (package model)

9 Battery (package model)

10 Star knobs for replacing the squeegee

blades

11 Suction-bar suspension device

12 Wing nut for inclining the suction bar

13 Star knob for attachment and angular

positioning of the suction bar

14 Suction hose–suction motor connection

15 Suction bar**

16 Rating plate

17 Roller brushes (BR model)

Disc brushes (BD model)*

18 Cleaning head

19 Running gear

20 Handle

21 Locking device

22 Cover

23 Screw for locking the container;

in the container: batteries*

Under the cover:

24 Fresh-water filler inlet

25 Fluff strainer

26 Dirty-water tank

* not illustrated

** not supplied with the appliance

Operating Instructions BR/BD 530/530 XL/F BAT/Package English

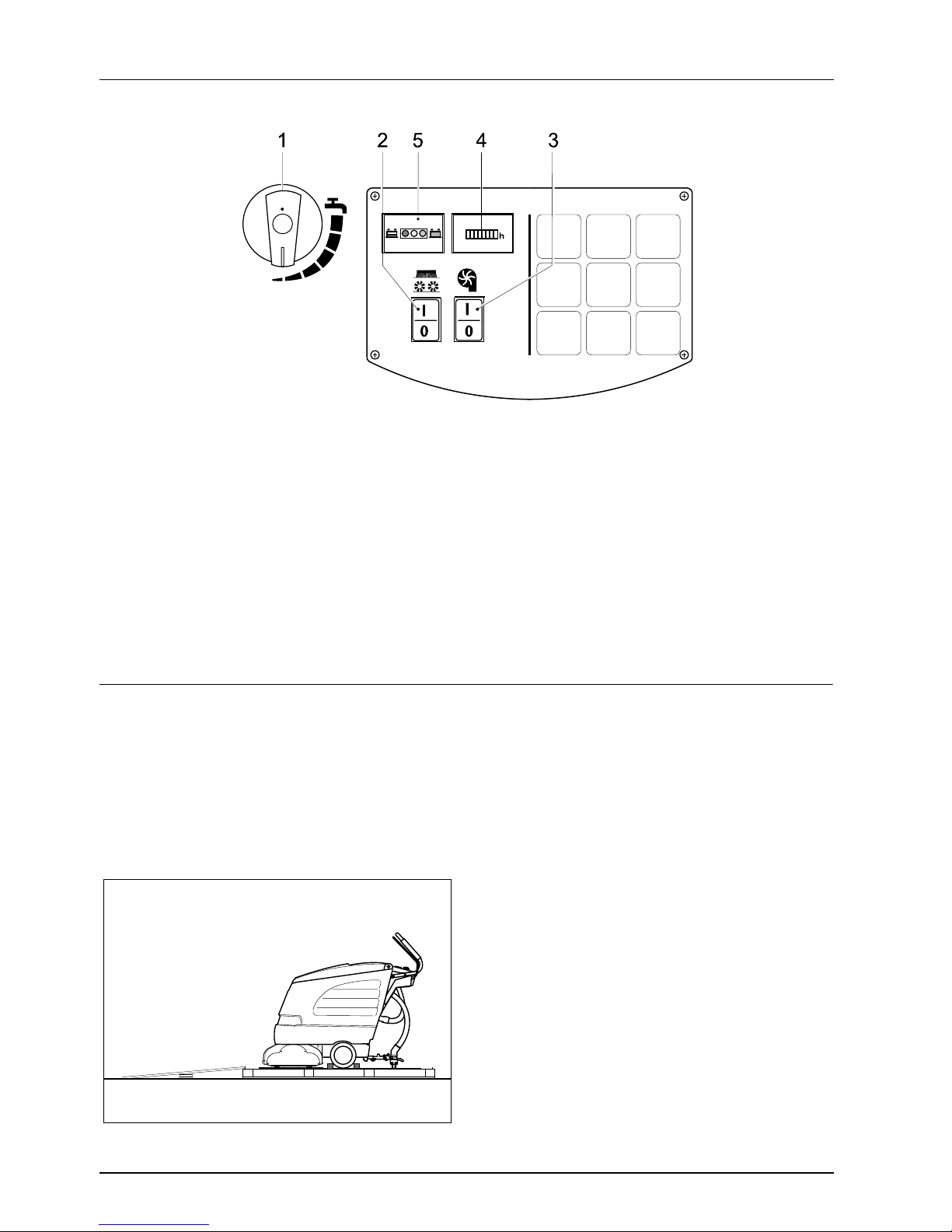

Instrument panel

1 Detergent metering

2 Brush mode switch

3 Suction motor switch

4 Hours counter (package version)

5 Battery indicator display

Before switching on the unit

Unloading the unit

!Attach push handle with the 4 supplied

screws and fit the caps.

!Place the long, lateral planks from the

packaging on the pallet and form

a ramp.

!Secure the planks with nails.

!Support the ramp by placing the shorter

planks underneath.

!Remove the wooden laths.

!Raise the cleaning head and remove the

cardboard packaging.

!The unit can now be moved down the

ramp.

green: Batteries fully charged

yellow: Batteries partially

discharged

red,

flashing: Batteries exhausted

red,

continuous:

Deep-discharge

protection

English Operating Instructions BR/BD 530/530 XL/F BAT/Package

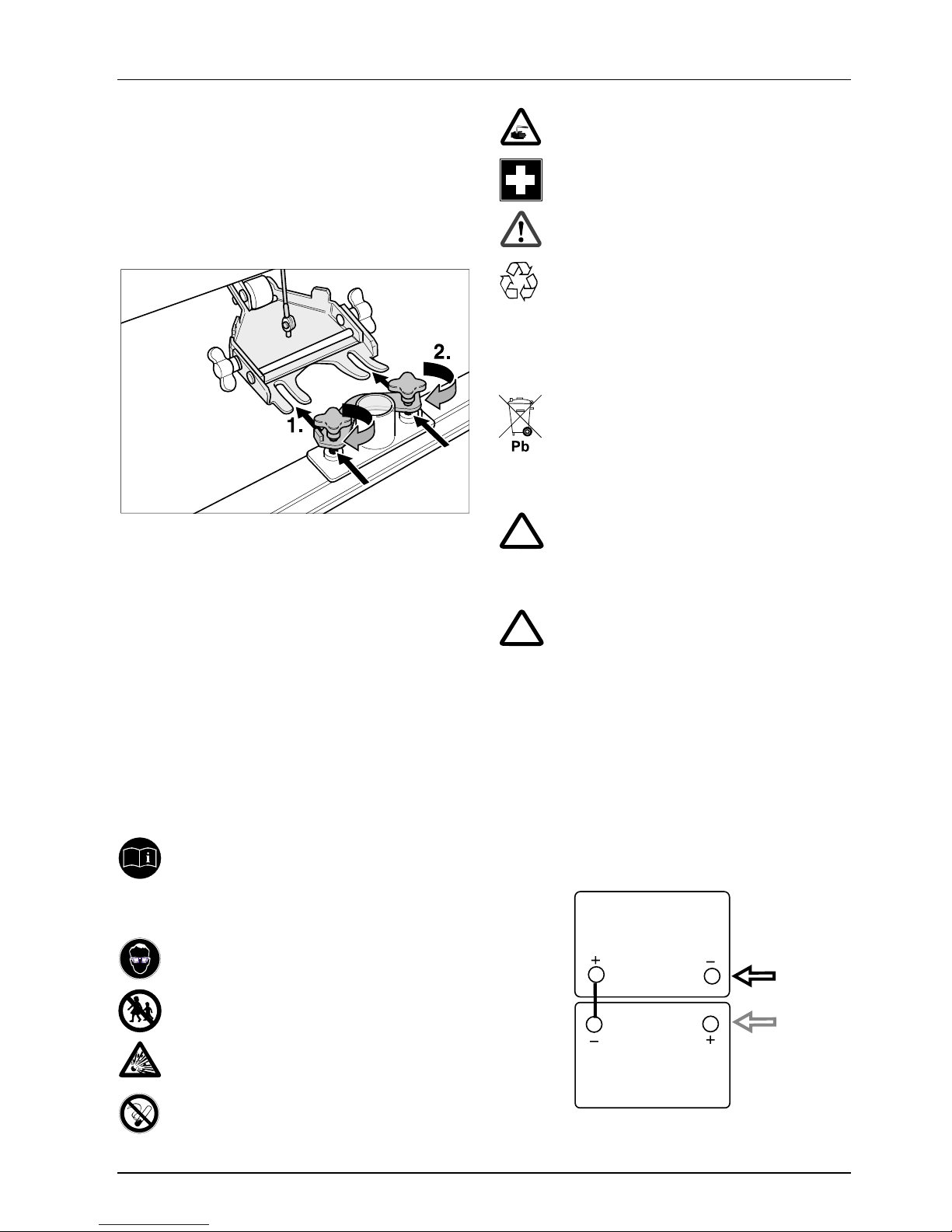

Attaching the suction bar

!Insert the suction bar into the suction-

bar suspension device, ensuring that the

profiled sheet is situated over the

suspension device.

!Tighten the star knobs.

!Attach the suction hose.

Attaching the brushes

BD 530 BAT Package or BD 530 XL BAT

Package

Before switching on the unit, the disc

brushes must be attached (see

“Maintenance procedures”).

Batteries

When handling batteries, comply with the

following warning symbols:

Comply with the information on the

battery, in the operating instructions

and in the vehicle operating

instructions.

Wear eye protection

Keep children away from acid and

batteries

Danger of explosion

No naked flames, sparks or naked

lights and no smoking

Risk of chemical burns

First Aid

Warning

Disposal

Please dispose of battery

or rechargeable battery in an

environmentally friendly manner

Batteries and rechargeable batteries

contain substances which must not

pollute the environment. Please

therefore dispose of batteries via suitable

collection systems.

Danger of explosion!

Do not place any tools or similar

objects on the battery, i.e. on the terminals

and intercell connectors.

Risk of injury!

Do not bring any wounds into contact

with lead; after working with batteries,

always wash hands.

Inserting and connecting batteries

!Loosen the screw and open the container.

!Insert the batteries into the container

flush with the cleaning head.

!Grease the terminals and connect to the

enclosed cables.

Operating Instructions BR/BD 530/530 XL/F BAT/Package English

Caution!

Ensure that the polarity is correct!

!Clamp the supplied connection cable to

the remaining free battery terminals (+)

and (–).

!Close the container and tighten the screw.

Caution!

Before switching on the unit, charge

the batteries!

Charging the batteries

Danger of explosion!

Lead-acid batteries may only be

charged when the container is open.

Danger of electric shock!

Note power supply system and fusing

– see “Battery charger”.

Never use the battery charger in rain, in

high atmospheric humidity or in damp

rooms!

Information:

The unit features deep-discharge

protection, i.e. if the still permitted minimum

capacity value is reached, the brush motors

and the turbine are switched off. In this

case the battery charge status display on

the control console illuminates red.

The battery charging process lasts on

average 10–15 hours. The recommended

battery chargers (which correspond to the

utilised batteries) are electronically

controlled and end the charging process

automatically.

All functions of the unit are automatically

interrupted during the charging process.

!Push the battery charger directly onto

the charging station.

Charging process for BR/BD 530 BAT

Package and for BR/BD 530 XL BAT

Package

!Insert the connection cable plug into the

socket.

Charging process BR/BD 530 BAT

!Disconnect the suction hose from the

suction bar.

!Loosen the screw and open the

container.

!Remove the battery connector and

connect to the charger cable.

!Switch on battery charger.

Non-maintenance-free batteries

!One hour before the end of the charging

process, add distilled water, ensuring

that the acid level is correct. Batteries

are identified accordingly.

Risk of injury!

If a discharged battery is refilled with

water, acid may escape!

When handling battery acid, wear protective

goggles and follow the instructions to prevent

injury and damage to clothing.

Immediately wash off any acid splashes on

the skin or clothing using plenty of water.

Caution!

Use only chemically pure battery acid

(in compliance with VDE 0510), concen-

tration 1.28 kg/l.

Refill the batteries with distilled or

demineralised water only (VDE 0510).

Do not use additives (so-called enhancing

agents), otherwise any warranty will be

invalidated.

English Operating Instructions BR/BD 530/530 XL/F BAT/Package

Recommended batteries

Recommended battery chargers

Batteries and battery chargers are

available from specialist outlets.

Caution!

Use only maintenance-free batteries

with package battery chargers.

Operation

Caution!

Before reversing, raise the suction

bar.

Information:

The unit is designed with the brush

head projecting from the right side,

enabling the operator to clean up to the

very edge.

Adding detergent

Caution!

Use the recommended detergents

only. If other detergents are used, the

operator increases the risk of malfunctions

and accidents.

Detergents must not contain solvents,

hydrochloric acid or hydrofluoric acid.

Information:

Do not use detergents which foam

vigorously.

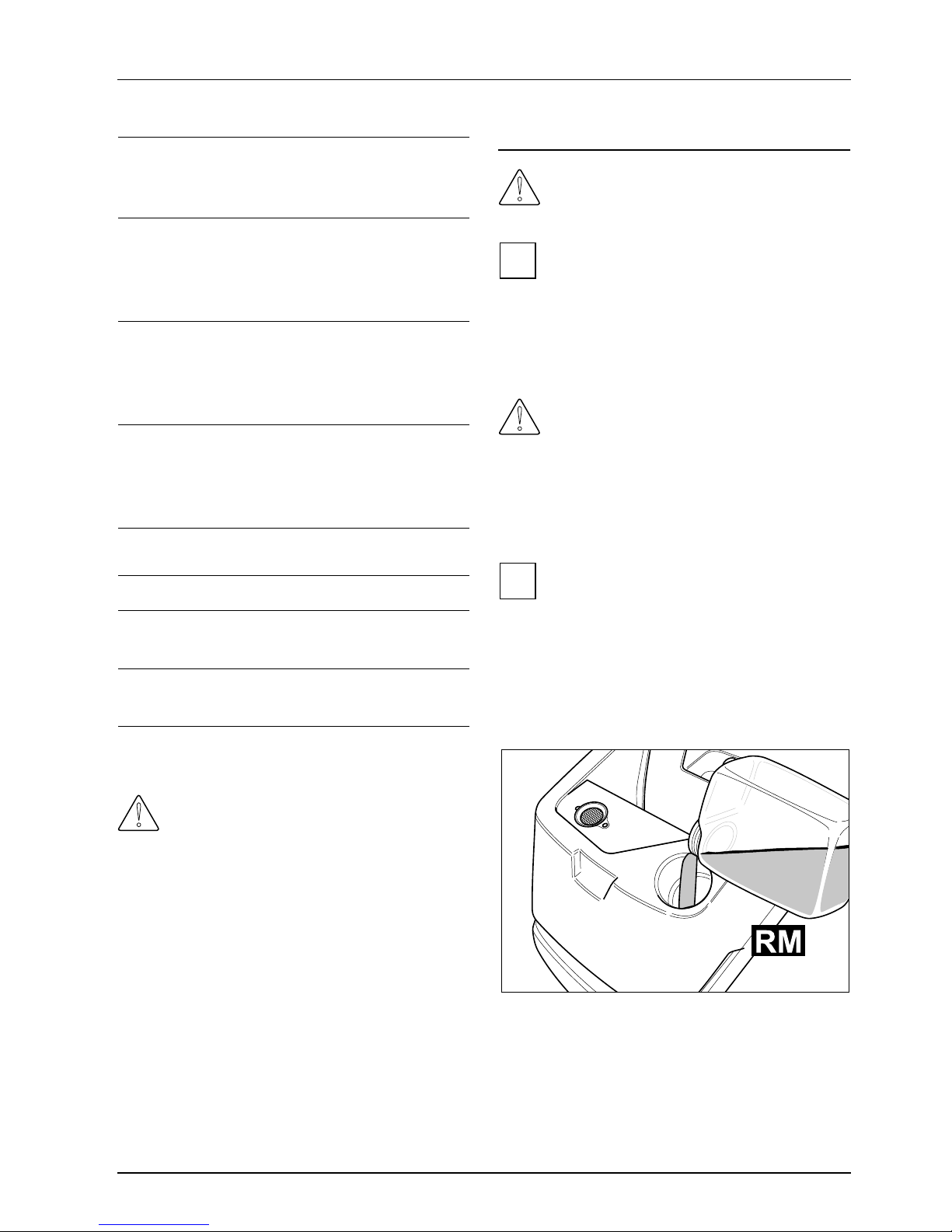

!Open the cover.

!Fill with fresh water (maximum 60 °C).

!Add detergent.

Comply with the metering information.

Manufacturer

Kärcher order

no.

Description

DETA

6.654-097

12 V GIS 80

low-maintenance

Capacity: 80 Ah

Voltage: 12 V

DETA

6.654-093

12 V GIV 75 DT

maintenance-free

Capacity: 75 Ah

Voltage: 12 V

SONNEN-

SCHEIN

12 V / 70 Ah

maintenance-free

Capacity: 70 Ah

Voltage: 12 V

Manufacturer Description

KÄRCHER

6.654-102

for maintenance-free

batteries 6.654-102

KÄRCHER

6.654-067

for low-maintenance

batteries 6.654-067

Operating Instructions BR/BD 530/530 XL/F BAT/Package English

Recommended detergents

Detergents are available from specialist

outlets.

Driving

!Close the cover.

!Switch on the brush mode switch and

suction motor.

Information:

If the brush motor does not start when

switched on, unload the brush motor by

pulling back the unit.

Running gear

Down: Transportation

Up: Cleaning

!Raise the unit slightly with the handle.

!Pull out the locking device.

!Swivel the running gear into the desired

position.

!Engage the locking device.

Driving to the place of work

!Swivel down the running gear and lock.

!Push the unit to the place of work.

Cleaning

!Swivel up the running gear and lock.

!Clean the unit.

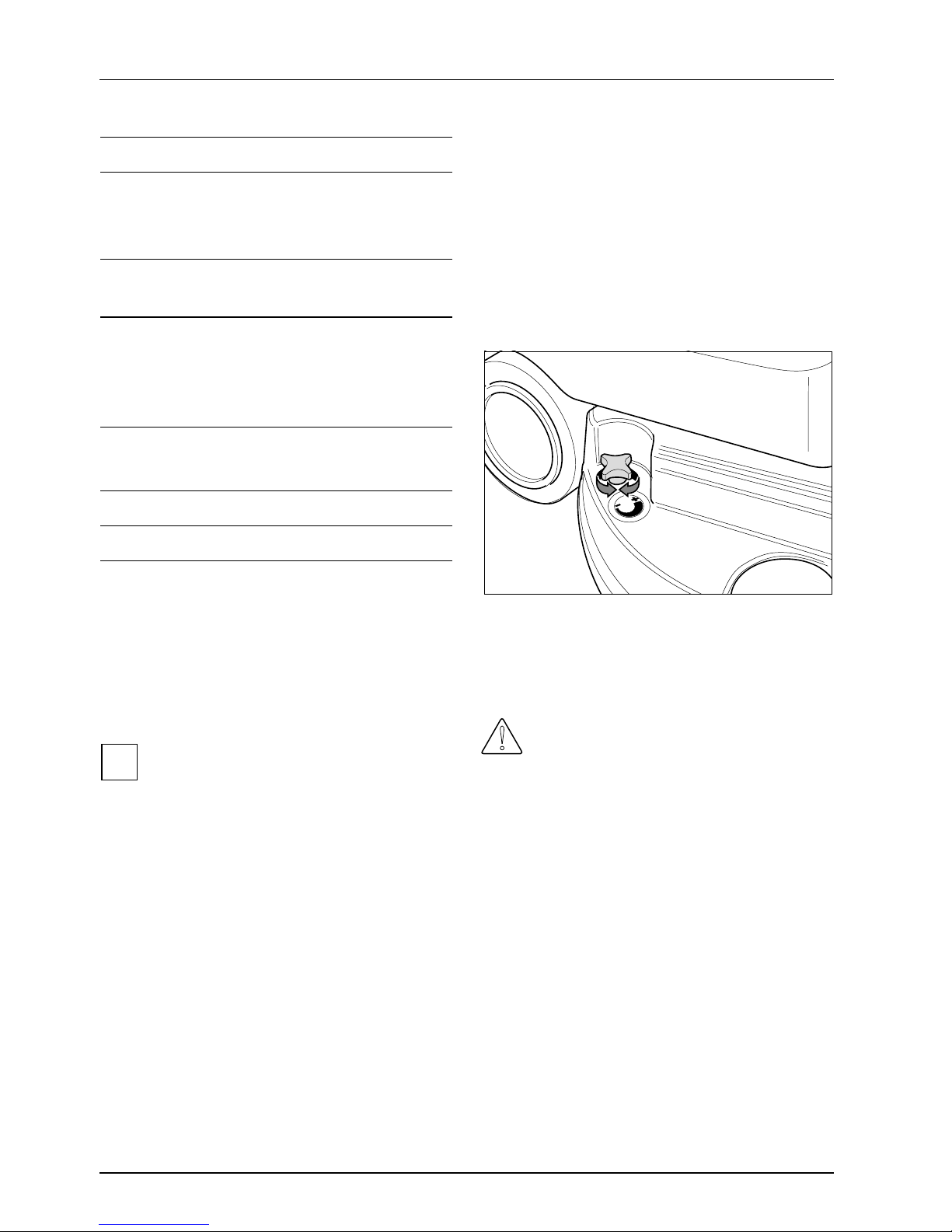

Adjust the propulsion speed

(only BD 530 BAT or BD 530 XL BAT)

!Throttle speed:

rotate knob towards –.

!Increase speed:

rotate knob towards +.

Caution!

Before removing the brush, reduce

the speed.

Application: Detergent

Maintenance cleaning

(also for alkaline-sensitive

floors)

RM 745

RM 746

Cleaning greasy dirt

deposits

RM 69 ES ASF

RM 69 ASF

Basic cleaning

(stripping) alkaline-

resistant hard floor

coverings

RM 752

Basic cleaning

stripping linoleum

RM 754

Sanitary cleaner RM 25 ASF

Disinfectant cleaner RM 732

Otros manuales para BR 530 BAT Package

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Máquina de piso de Kärcher

Kärcher

Kärcher KM 90/60 R Bp Manual de usuario

Kärcher

Kärcher BD 50/50 Bp Classic Manual de usuario

Kärcher

Kärcher BRC 30/15 C *JP Manual de usuario

Kärcher

Kärcher B 80 W Manual de usuario

Kärcher

Kärcher BR 35/12 C BP Manual de usuario

Kärcher

Kärcher BR 530 BAT Package Manual de usuario

Kärcher

Kärcher BR 40/25 C Bp Pack Manual de usuario

Kärcher

Kärcher KM 100 R B Manual de usuario

Kärcher

Kärcher BD 38/12 C Bp Manual de usuario

Kärcher

Kärcher BR 35/12 C BP Manual de usuario

Kärcher

Kärcher BRC 30/15 C *JP Manual de usuario

Kärcher

Kärcher BDS 33/190 C Manual de usuario

Kärcher

Kärcher BR 30/4 C Adv Manual de usuario

Kärcher

Kärcher BR 40 Manual de usuario

Kärcher

Kärcher B 140 R Manual de usuario

Kärcher

Kärcher B 80 W Bp Manual de usuario

Kärcher

Kärcher KM 120/150 R G Manual de usuario

Kärcher

Kärcher KSM 750 B Manual de usuario

Kärcher

Kärcher KM 150/500 R Bp Manual de usuario

Kärcher

Kärcher KMR 1550 B Manual de usuario

Kärcher

Kärcher BD 530 Manual de usuario

Kärcher

Kärcher KM 85/50 W Comfort Manual de usuario

Kärcher

Kärcher BR 100 R Manual de usuario

Kärcher

Kärcher KM 70 C Manual de usuario

Manuales populares de Máquina de piso de otras marcas

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manual de usuario

Numatic

Numatic ET 4045 Manual de usuario

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manual de usuario

Mytee

Mytee 8070 Mytee-Lite Manual de usuario

Triple S

Triple S Ace 26T1 Manual de usuario

Nilfisk-Advance

Nilfisk-Advance SW 750 Manual de usuario

Tornado

Tornado Marathon 2000 98190 Manual

Windsor

Windsor ADMIRAL Admiral 8 Manual de usuario

Numatic

Numatic TTB 1117/100 Manual de usuario

Tennant

Tennant 8210D Manual de usuario

Nobles

Nobles Frontier Manual del producto

lavina

lavina 21-X Manual de usuario

KENT

KENT Edge 28B Manual de usuario

Tennant

Tennant 215 Manual del producto

Windsor

Windsor BDP 51/2000C Manual de usuario

CleanFreak

CleanFreak DURA-18HD Manual de usuario

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guía del administrador

BETCO

BETCO PB24 Manual de usuario
