Kapro PROLASER LAYOUT SET Manual de usuario

PROLASER®LAYOUT SET

Model No. 875

4 AA

Not Included

Up to 50m (165’)

User Manual

Manual del usuario

Manuel d'utilisation

Руководство по эксплуатации

Thank you for purchasing Kapro’s 875 Prolaser®Layout set.

You now own one of the most advanced laser tools available.

This manual will show you how to get the most out of your

laser tool.

Applications

The 875 Prolaser®Layout set is a laser level with 6 red

diodes. The laser is innovatively designed for a very broad

range of professional and DIY jobs, including:

• Hanging cabinets and shelves.

• Setting oor and wall tiles

• Drywall installation and hanging acoustic ceilings

• Framing and aligning windows and doors

• Leveling electrical outlets, plumbing and studs

• Accurately laying out right angles for ooring, fences, gates,

decks and pergolas.

• Leveling slopes for stairs, rails, roofs and more.

(manual mode)

NOTE

Keep this user manual for future reference.

4 AA

Not Included

Up to 50m (165’)

CONTENTS

• Features 4

• Safety instructions 5-6

• Battery installation & Safety 7-8

• Overview 9-10

• Operating instructions 11-13

• Maintenance 14

• Field calibration test 15-25

• Speciﬁcations 26

• Warranty 27

• This Laser tool automatically determines the horizontal and

vertical plans.

• The laser projects simultaneously 1 horizontal and 4

orthogonal Vertical red beams, intersected forward and on

the ceiling, plus plumb down dot.

• In automatic mode the laser is Self-leveled when it is

positioned within its self-leveling range, which is ±2.5º.

• Visual and audible warning will be heard, when the laser is

positioned beyond the self-leveling range.

• In pulse mode the laser emits pulses that can be detected

by a detector. The max. detectable range of the laser is 50 m (165’).

• The laser can be operated in manual mode. This allows

angular layout/marking.

• Locking mechanism to protect the pendulum during transportation.

• Armored shock resistant rubber casing.

• 5/8" tripod adaptor

• Height-adjustable support legs

• 360° micro-adjustable rotation.

• Operate by Li – ion battery pack, or 4 AA alkaline batteries

• Micro USB port for charging lithium battery

• Includes: Li – ion battery pack, beam nder glasses, laser target,

carrying bag

FEATURES

NOTE

This device contains precision components

that are sensitive to external shock, impact or

drop that may compromise its functionality –

handle with care to maintain its accuracy.

SAFETY INSTRUCTIONS

WARNING

This product is emitting radiation that is classiﬁed

As class II according to EN 60825 -1

The laser radiation can cause serious eye injury

• Do not stare into the laser beam

• Do not position the laser beam so that it unintentionally

blinds you or others.

• Do not operate the laser level near children or let children

operate the laser level.

• Do not look into a laser beam using magnifying optical

devices such as binoculars or a telescope, as this will

increase the level of eye injury.

WARNING: This product contains lead in solder and

certain Electrical parts contain chemicals which are

known to the State of California to cause cancer, birth

defects or other Reproductive harm.

(California Health & Safety Code Section 25249.6- Proposition 65)

NOTE

The red goggles are intended to enhance the

visibility of the Laser beam. They will not

protect your eyes against laser radiation.

• Do not remove or deface warning labels on the laser level.

• Do not disassemble the laser level, laser radiation can

cause serious eye injury.

• Do not drop the unit.

• Do not use solvents to clean the laser unit.

• Do not use in temperatures below -10°C or above 45°C

(14°F to 113°F)

• Do not operate the laser in explosive atmospheres such

as ammable liquids, gases or dust. Sparks from the tool

can cause ignition.

• When not in use remove the batteries, engage the

pendulum lock and place the laser in the carrying pouch.

• Make sure the pendulum lock mechanism is engaged

before transporting the laser.

NOTE

If the Pendulum lock mechanism is not

engaged before Transportation, internal

mechanical damage can occur.

BATTERY INSTALLATION & SAFETY

This tool can be operated either by designated Li – ion battery

pack, or 4 AA alkaline batteries.

Installation of the Lithium – ion Battery pack

1. Press down the latch and pull the battery cover.

2. Insert the lithium- ion battery pack with the contact terminal

towards the 2 small pins in the battery compartment.

3. Reclose the battery cover.

4. Use a standard 3.5 – 5.3 Volt charger (1Amp. - 2mp.), with

micro USB connector to charge the lithium – ion battery pack.

5. The rechargeable battery pack can be charged outside or in

side the laser battery compartment.

6. Charge the battery pack at least 2 hours before using the

laser tool for the rst time.

Installation of the 4 -AA Batteries

1. Press down the latch of the cover and pull the battery cover.

2. Insert 4 new AA batteries of the same brand, according to

the polarity diagram on the inside of the battery compartment.

3. Reclose the battery cover.

WARNING: Batteries can deteriorate, leak or explode, and

can cause injury or re.

1. Do not shorten the battery terminals.

2. Do not charge Alkaline batteries.

3. Do not mix old and new batteries.

4. Do not dispose of batteries into household waste.

5. Do not dispose batteries in re.

6. Defective or dead batteries must be disposed according to

local regulations.

7. Keep the batteries out of reach from children.

NOTE

If the laser level will not be used for a long

period, remove the batteries from the battery

compartment. This will prevent batteries from

leaking and corrosion damage.

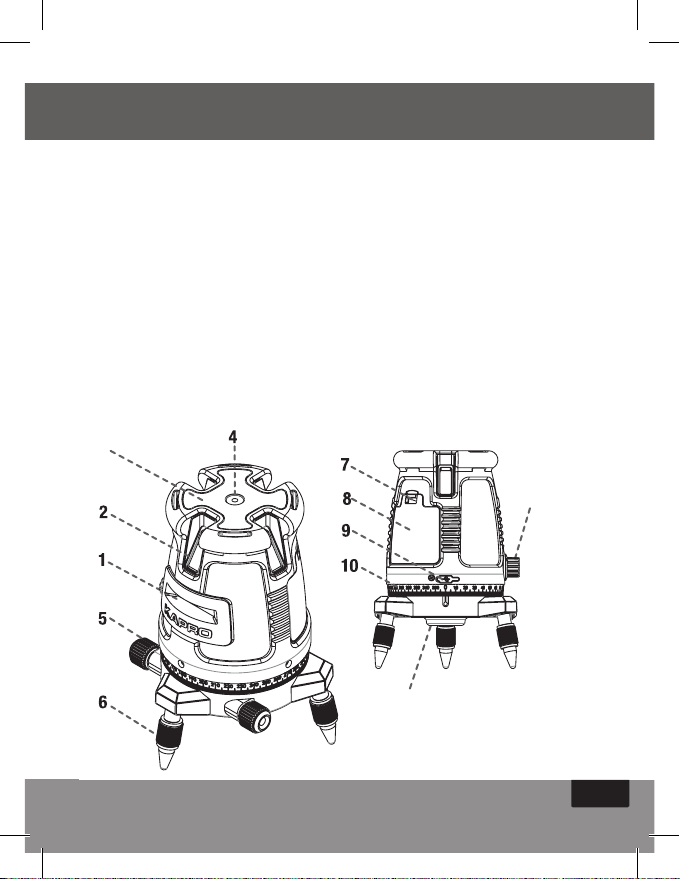

OVERVIEW

Laser level

1. Horizontal laser output window

2. Vertical laser output window

3. Keypad

4. Surface level

5. Fine adjustment knob

6. Adjustable support legs

7. Battery cover

8. Li – ion battery pack.

9. Micro USB charging port.

10. Graduated scale.

11. 5/8” Tripod threaded adaptor.

12. Pendulum safety lock.

Keypad

1.Horizontal line button

2.Vertical lines button

3.Manual mode button

4.Pulse mode button

5.Manual mode red LED indicator

6. Pulse mode green LED indicator
